Autel MaxiSYS

Alignment Without Limits

Diagnostics + Digital Inspection + Alignment + ADAS Calibration

An Important Statement on Autel ADAS Systems

The Dangers of Using Non-Autel ADAS Components with Autel Software

When Autel speaks of our ADAS calibration products, we reference them as systems. And that is because each component is engineered to work as part of the whole. Each component of the system is dependent upon the specificity of the other to produce accurate calibrations that are verifiable to OE specifications.

Further, the Autel ADAS calibration software was developed for our systems only. The use of non-Autel components with our software will result in inaccurate calibrations. It’s vital to understand the precise nature by which these safety systems, cameras and sensors operate. Alignment and calibrations that are off by as little as one degree can result in up to 1.5-meter lateral miscalculations at 100-meter distance between vehicles. Such inaccuracies can lead to false ADAS interventions or accidents.

Shops knowingly calibrating vehicles with mismatched calibration components are fully responsible for calibration errors and will assume liability. Autel technical support staff will not support or assist in any calibration that uses non-Autel branded ADAS calibration products.

To learn more about the Autel comprehensive approach to accurate and verifiable ADAS calibration workflow solutions, contact an Autel ADAS calibration expert.

Maximize Your Shop’s Profitability & Efficiency

With a Single System & Workflow

At the cost of a typical alignment system, the Autel IA900 & IA700 deliver All Systems Health Check + Digital Vehicle Inspection + Wheel Alignment Capabilities + step-by-step ADAS Calibration instructions in a single system and investment.

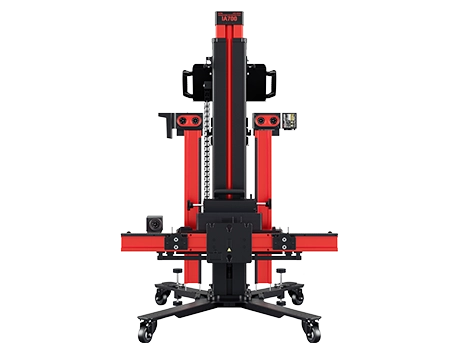

IA700 Advanced Modular ADAS

In-shop / Mobile Solution

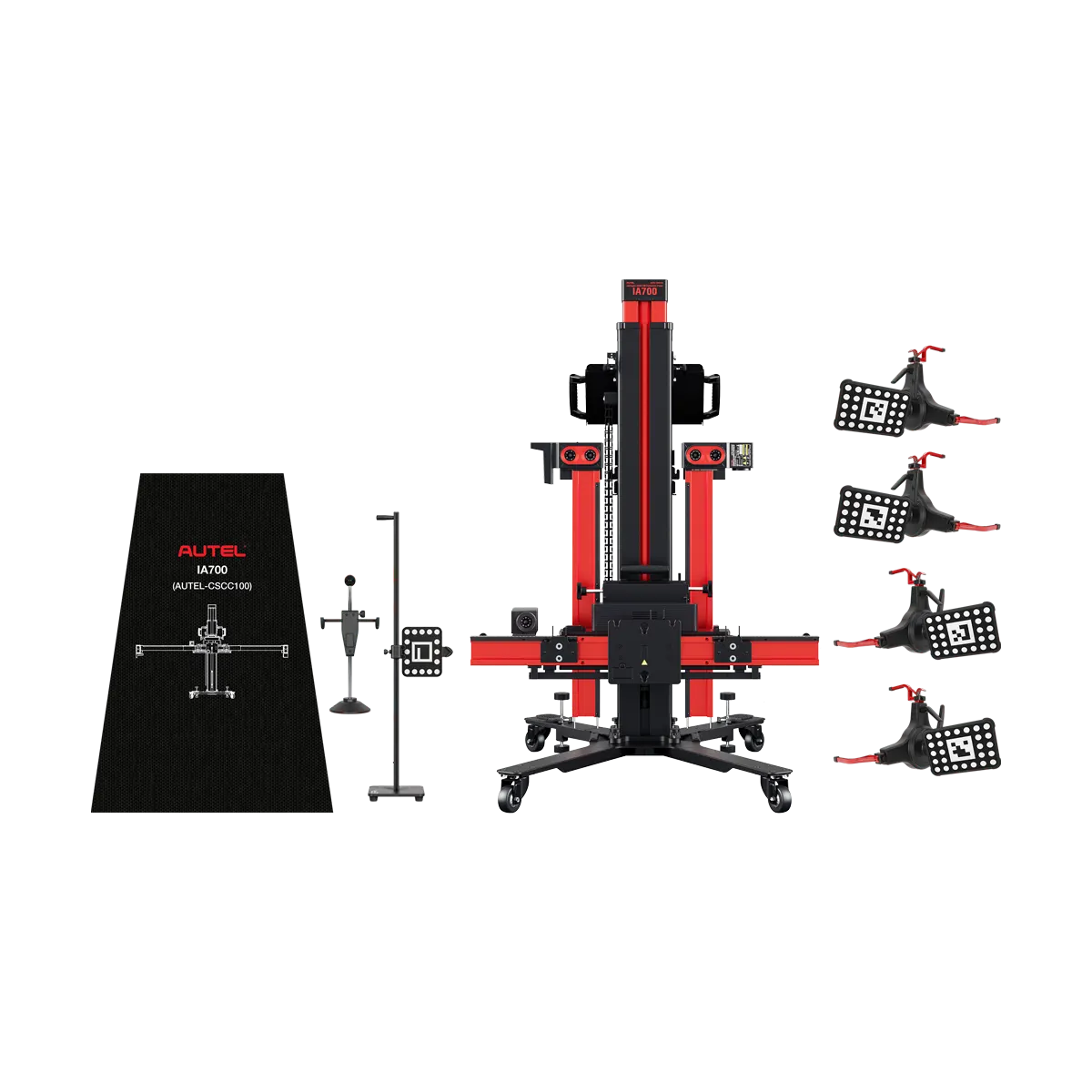

The Autel IA700 is a state-of-the-art and versatile wheel alignment pre-check and ADAS calibration system engineered for both in-shop and mobile applications – move from bay to bay and shop to shop.

It features optical positioning that reduces target setup by 6X versus mechanical measurement, unlevel floor compensation that eliminates failed calibrations due to uneven surfaces, and integrated alignment pre-check in a single system and workflow.

View All IA700 System & Target Packages

Wheel Alignment
Pre-Check
IA700 Wheel Alignment

IA700

Part Number: IA700

Includes the above plus

MS909 ADAS Tablet

MS909 ADAS Tablet

IA700T

Part Number: IA700T

Alignment Pre-Check
+ LANE DEPARTURE WARNING ADAS
IA700 LDW ADAS

IA700 LDW

Part Number: IA700LDW

Includes the above plus

MS909 ADAS Tablet

MS909 ADAS Tablet

IA700LDWT

Part Number: IA700LDWT

Alignment Pre-Check
+ All Systems ADAS
IA700 All Systems ADAS

IA700AS

Part Number: IA700AS

Includes the above plus

MS909 ADAS Tablet

MS909 ADAS Tablet

IA700AST

Part Number: IA700AST

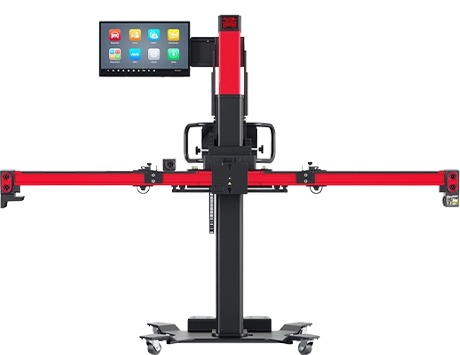

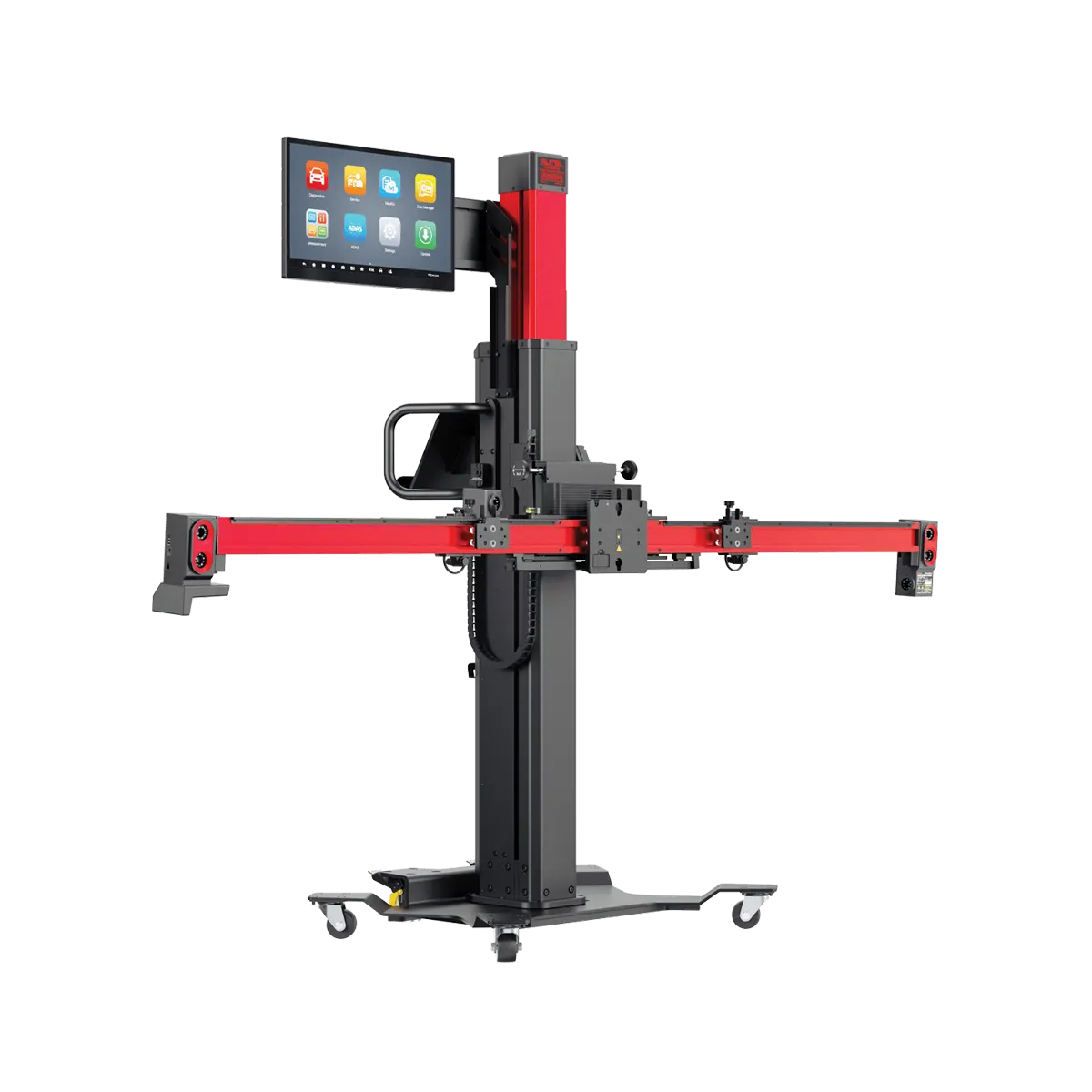

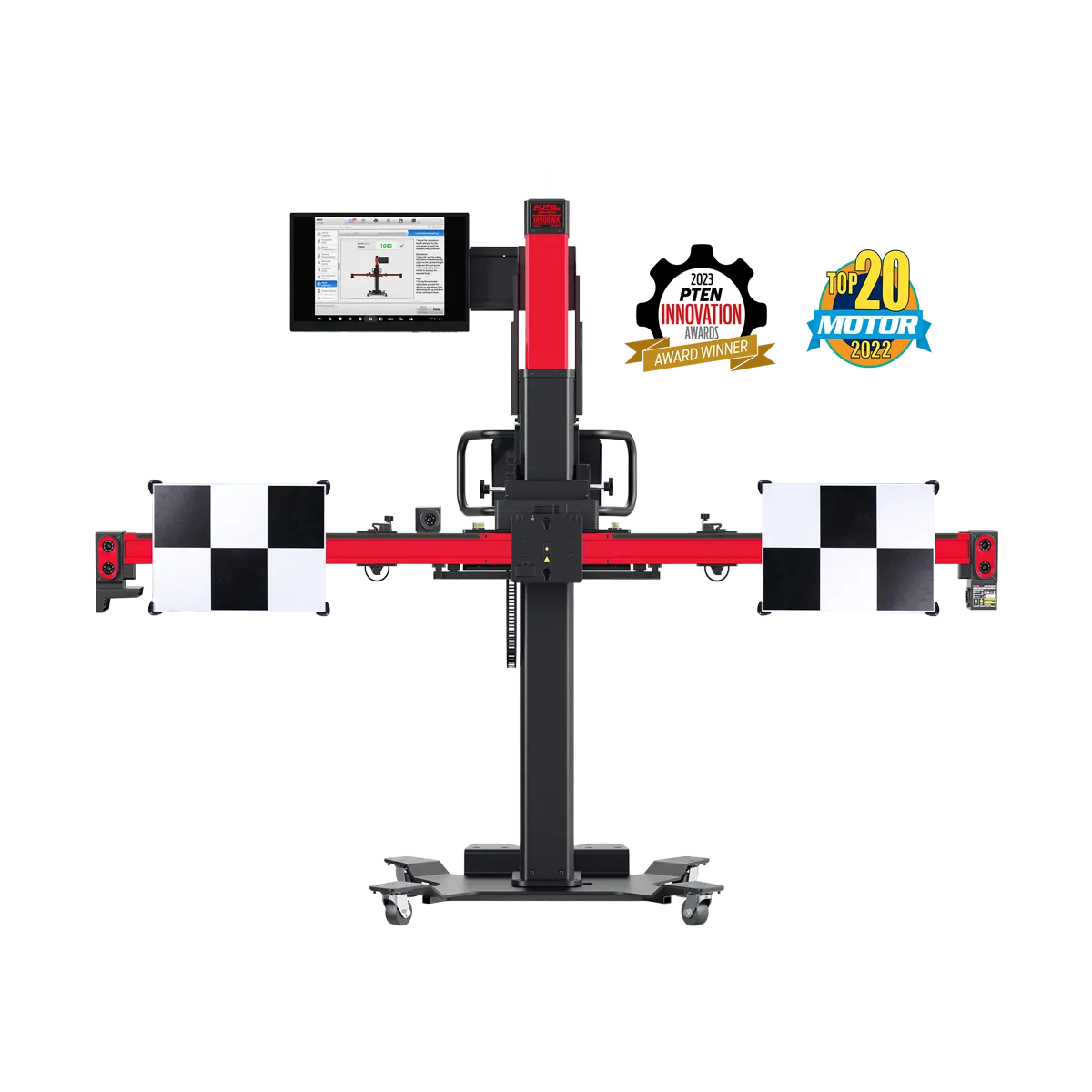

IA900WA

Diagnostics + Alignment + Calibration

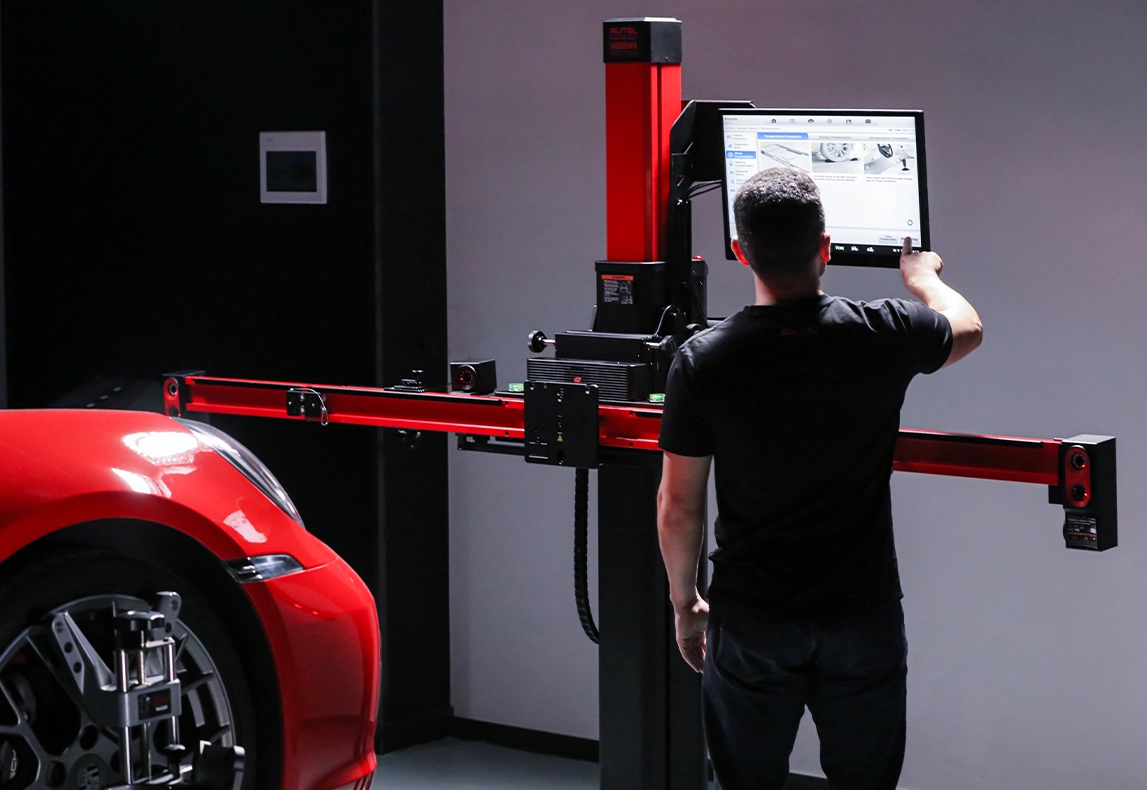

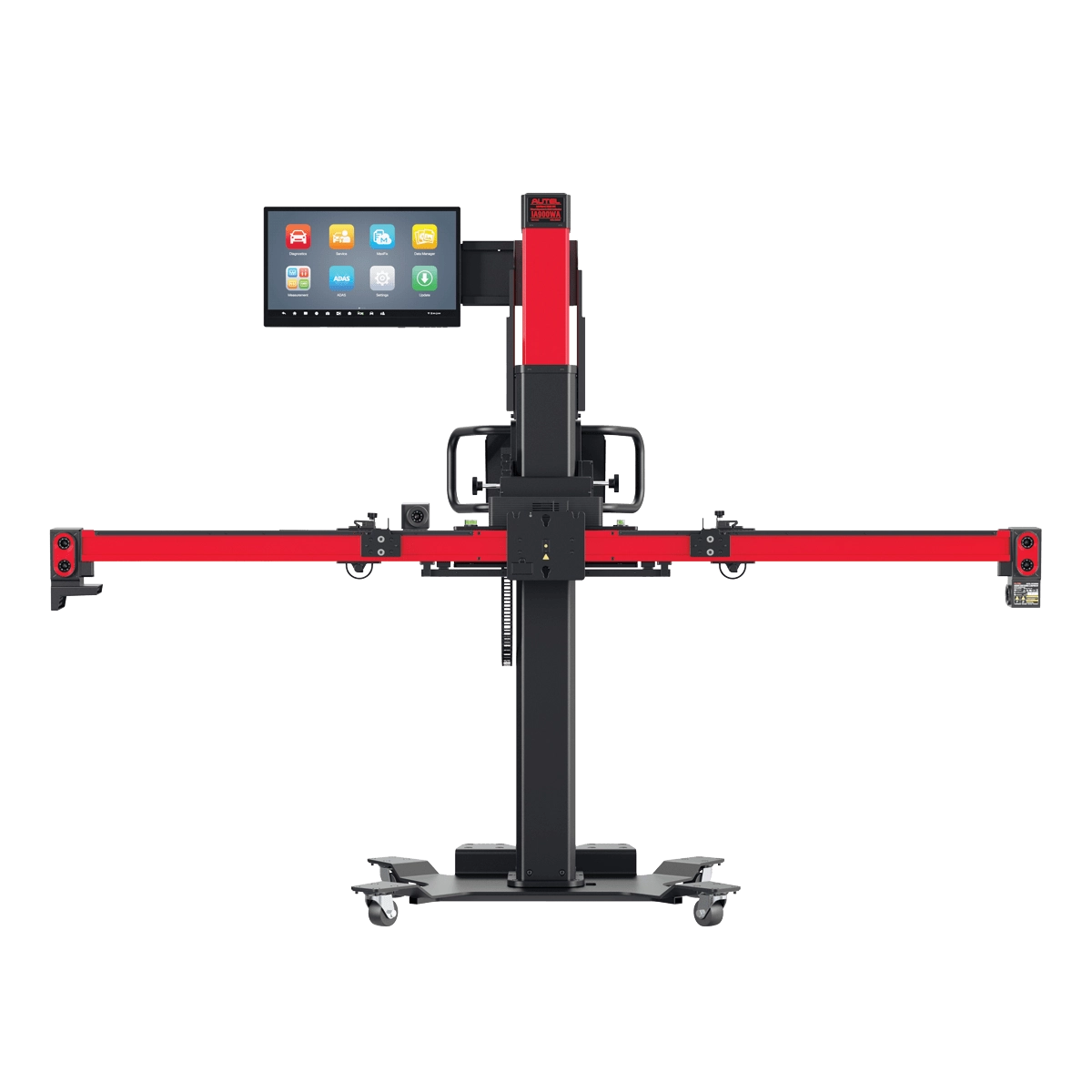

The MaxiSYS IA900WA Wheel Alignment and ADAS calibration frame enables the performance of four-wheel alignment and ADAS component calibration. Software includes Illustrated alignment instructions, live readings, required tools, and adjustment locations display on included 24” touchscreen screen. Alignment coverage for U.S., Asian and European vehicles, 1996 and newer.

Six high-resolution positioning and tracking cameras in frame automatically monitor vehicle height on shop lift. Robotic frame movement for efficient use and alignment reading accuracy to 0.02 degrees for precise alignments. Includes steering wheel lock and wheel chocks. One-year limited warranty.

  • All in one OEM compliant calibration solution
  • Full Diagnostics with MaxiSYS Ultra Advanced Diagnostic tablet and MaxiFlash VCI
  • Easy Straight Forward OEM Calibration Instructions
  • High Definition Cameras for Frame Placement & Validation
  • Frame, Target, Distance Values Validated on Post Scan Report
  • 3D Alignment with Thrust Line Validation
IA900 Wheel Alignment + ADAS Packages
Autel ADAS Packages include: IA900WA
Frame
Stationary
MaxiSYS
Tablet
& MaxiFLASH VCI
ADAS
Software
LDW AVM BSD ACC LIDAR NVS RCW
IA900WA IA900WA
PART NO. IA900WA

The Ultimate for Calibration Capabilities

Stationary Frame
IA900WAT IA900WAT
PART NO. IA900WAT

The Ultimate for Calibration Capabilities

Stationary Frame Ultra ADAS
Ultra ADAS
ADAS Software
IA900LDW IA900LDW
PART NO. IA900LDW

Expands Lane Departure Warning
Calibration Capabilities

Stationary Frame LDW
IA900LDWT IA900LDWT
PART NO. IA900LDWT

Expands Lane Departure Warning
Calibration Capabilities

Stationary Frame Ultra ADAS
Ultra ADAS
ADAS Software LDW
IA900AS IA900AS
PART NO. IA900AS

The Ultimate for Calibration Capabilities

Stationary Frame LDW AVM BSD ACC LIDAR NVS RCW
IA900AST IA900AST
PART NO. IA900AST

The Ultimate for Calibration Capabilities

Stationary Frame Ultra ADAS
Ultra ADAS
ADAS Software LDW AVM BSD ACC LIDAR NVS RCW

The IA900WA is the Only System That Starts and Finishes Through the OBD2 Connector.

The Autel alignment workflow starts with a full Health Check and Digital Inspection. These integrated steps deliver the highest revenue potential, the most comprehensive repair, a safer alignment, and a complete calibration of all effected ADAS systems.

Ultra Screen

Diagnostics

All Systems and Module Health Check Including Steering and Suspension

A comprehensive all-systems scan that provides an overview of the vehicle’s condition to detect any existing faults and identify ADAS components is the essential first step toward every successful alignment and ADAS calibration.

Autel Ultra Digital Inspection

Digital Inspection

Text or Email All Customized Reports Instantly to Your Customer

Inspect, image, and document a vehicle’s brakes, suspension, and steering component condition and measure tire wear with the laser-enabled Autel TBE200.

Autel Ultra Alignment

Wheel Alignment

3D Wheel Alignment with Any Electronic Component Reset

Employing six high-resolution position and tracking cameras, the IA900WA performs precise four-wheel alignments to 0.02 degrees of accuracy. The 24” touchscreen screen displays step-by-step instructions that guide the technician through the complete process with illustrated, color-coded alignment status, live readings, required tools and visual prompts for needed adjustments. After alignment, the tablet directs the technician to perform a step-by-step steering angle reset.

Autel Ultra ADAS Calibration

ADAS Calibration

Step-by-Step Illustrated Instructions with Automatic Vehicle Height Tracking

Autel was one of the first manufacturers to bring a complete ADAS calibration frame system, comprised of software, hardware, and targeting components, to the aftermarket. Our experience and talent for innovation have enabled us to develop an intuitive, knowledge-based solution that allows technicians in every industry to calibrate ADAS components with precision and efficiency.

Advanced Automotive

With Autel’s nearly 20 years of experience developing automotive diagnostic software and tools, no company is better positioned to offer technicians a comprehensive approach to vehicle repair, servicing, and system calibration.

The IA900WA frame system, paired with the MaxiSYS Ultra tablet, is the culmination of all Autel’s software and hardware expertise, offering technicians a comprehensive, all-in-one solution for diagnostics, visual component inspection, 4-wheel alignment, ADAS calibration, and report generation.

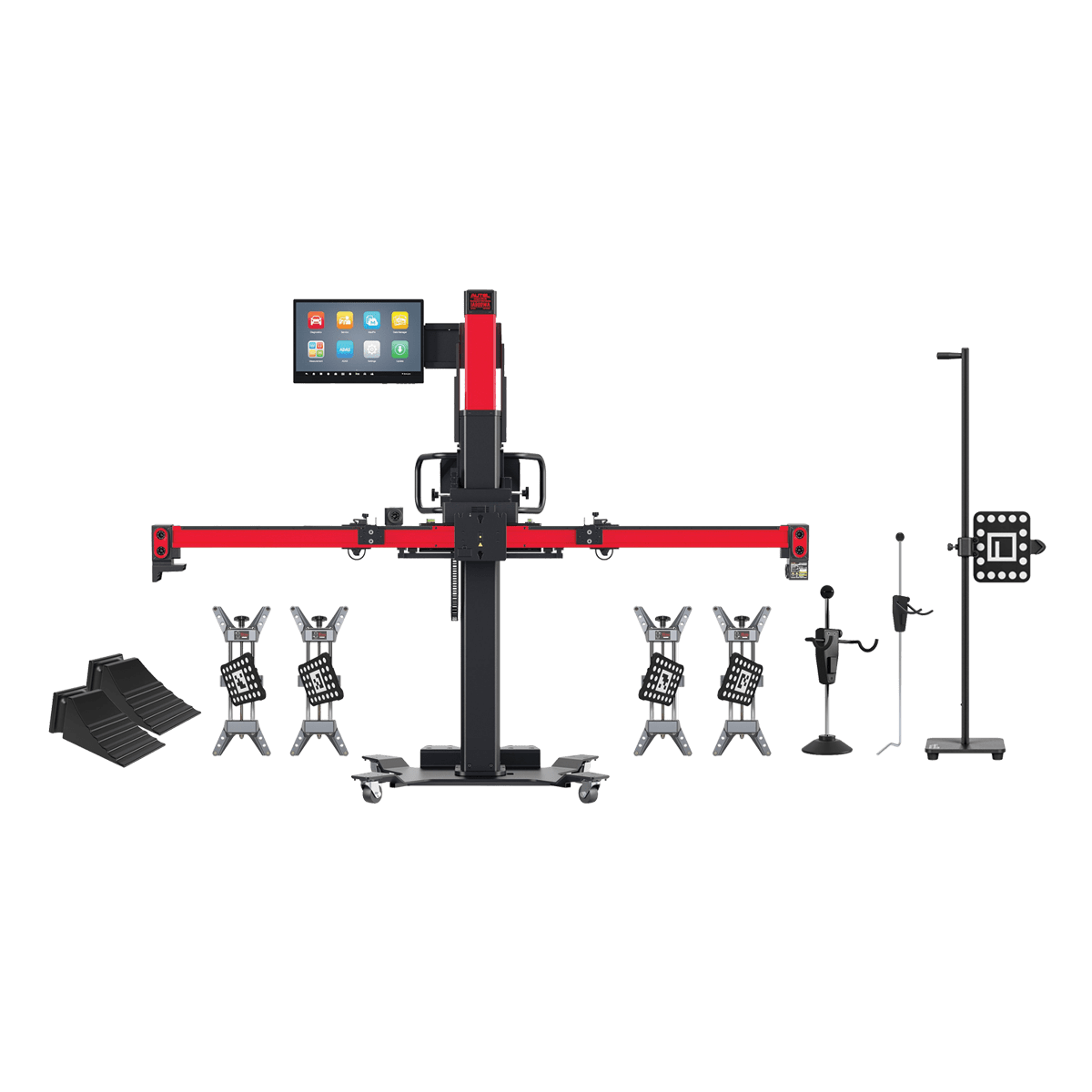

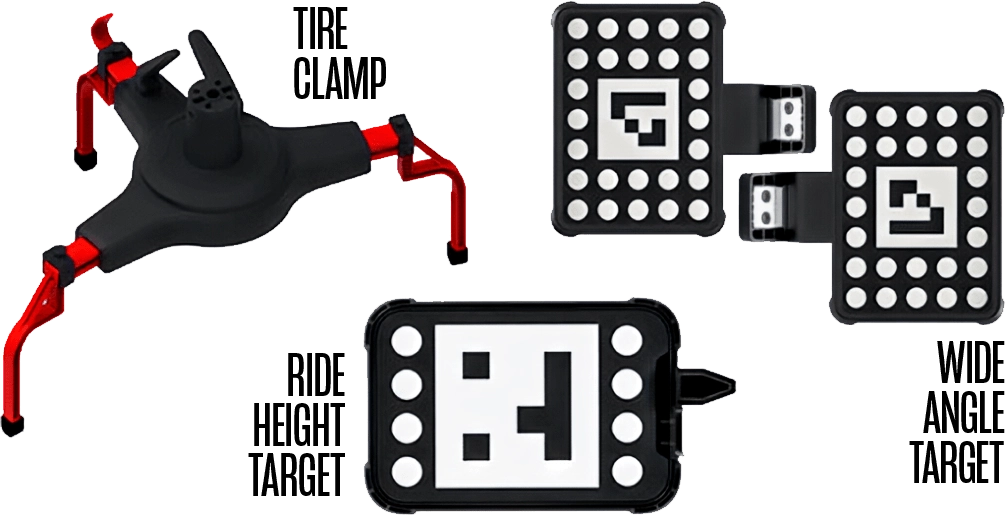

IA900WA Accessories

Improve shop efficiency

Ride Height, Wide-Angle Targets, Sliding Target Panel, Ultra Docking Station, and a set of Tire Clamps designed to be attached to the vehicle tires rather than the rims are accessories developed to expedite the ADAS calibrations on specific vehicle models to make the overall process more efficient.

Purchase the following accessories to expedite ADAS calibrations on specific vehicle models and to make the overall setup and calibration process more efficient.

ADAS Accessories
  • 500-20 Ride Height Target
  • 500-21 Wide-Angle Target
  • IA900STP Sliding Target Panel
  • IA900DOCK Ultra Docking Station
  • 500-17 Tire Clamps (Set Of Four)
Standard Frame 2.0

Standard Frame 2.0

Mechanical Positioning System
Complete Diagnostics

Autel MaxiSys ADAS provides the original complete diagnostic functionality and comprehensive and precise ADAS calibration in a single system. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement, and repair shops.

ADAS Standard System

IA800 3.0

Optical Positioning System
Diagnostics & Alignment Pre-Check

The MaxiSYS IA800 advanced ADAS calibration system enables frame placement in as little as 1 minute, making your calibrations faster, more accurate, and endlessly repeatable. Includes 6 high-resolution cameras, wheel clamps, and targets.

Standard Frame 2.0 ADAS Packages
Autel ADAS Packages include: Standard
Frame
Stationary
MaxiSYS
Tablet
& MaxiFLASH VCI
ADAS
Software
LDW AVM BSD ACC LIDAR NVS RCW
ADAS LDW 2.0 ADAS LDW 2.0
PART NO. LDW20

Expands Lane Departure Warning
Calibration Capabilities

Standard Frame ADAS Software LDW
ADAS LDW 2.0T ADAS LDW 2.0T
PART NO. LDW20T

Expands Lane Departure Warning
Calibration Capabilities

Standard Frame MS909
MS909
ADAS Software LDW
ADAS All Systems 2.0 ADAS All Systems 2.0
PART NO. AS20

The Ultimate for Calibration Capabilities

Stationary Frame ADAS Software LDW AVM BSD ACC LIDAR NVS RCW
ADAS All Systems 2.0T ADAS All Systems 2.0T
PART NO. AS20T

The Ultimate for Calibration Capabilities

Stationary Frame MS909
MS909
ADAS Software LDW AVM BSD ACC LIDAR NVS RCW
IA800 Standard Frame 3.0 ADAS Packages
Autel ADAS Packages include: Standard
Frame
Stationary
MaxiSYS
Tablet
& MaxiFLASH VCI
ADAS
Software
LDW AVM BSD ACC LIDAR NVS RCW
ADAS LDW 3.0 ADAS LDW 3.0
PART NO. LDW30

Expands Lane Departure Warning
Calibration Capabilities

Standard Frame ADAS Software LDW
ADAS LDW 3.0T ADAS LDW 3.0T
PART NO. LDW30T

Expands Lane Departure Warning
Calibration Capabilities

Standard Frame MS909
MS909
ADAS Software LDW
ADAS All Systems 3.0 ADAS All Systems 3.0
PART NO. AS30

The Ultimate for Calibration Capabilities

Standard Frame ADAS Software LDW AVM BSD ACC LIDAR NVS RCW
ADAS All Systems 3.0T ADAS All Systems 3.0T
PART NO. AS30T

The Ultimate for Calibration Capabilities

Standard Frame MS909
MS909
ADAS Software LDW AVM BSD ACC LIDAR NVS RCW

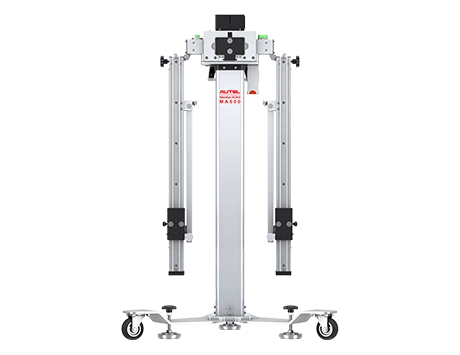

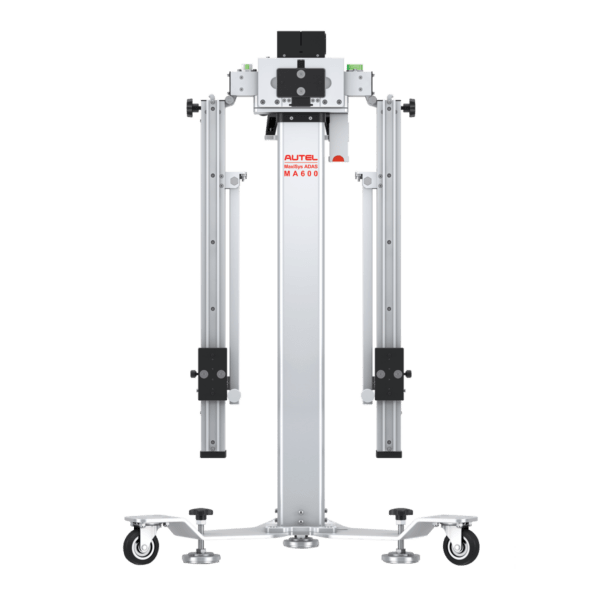

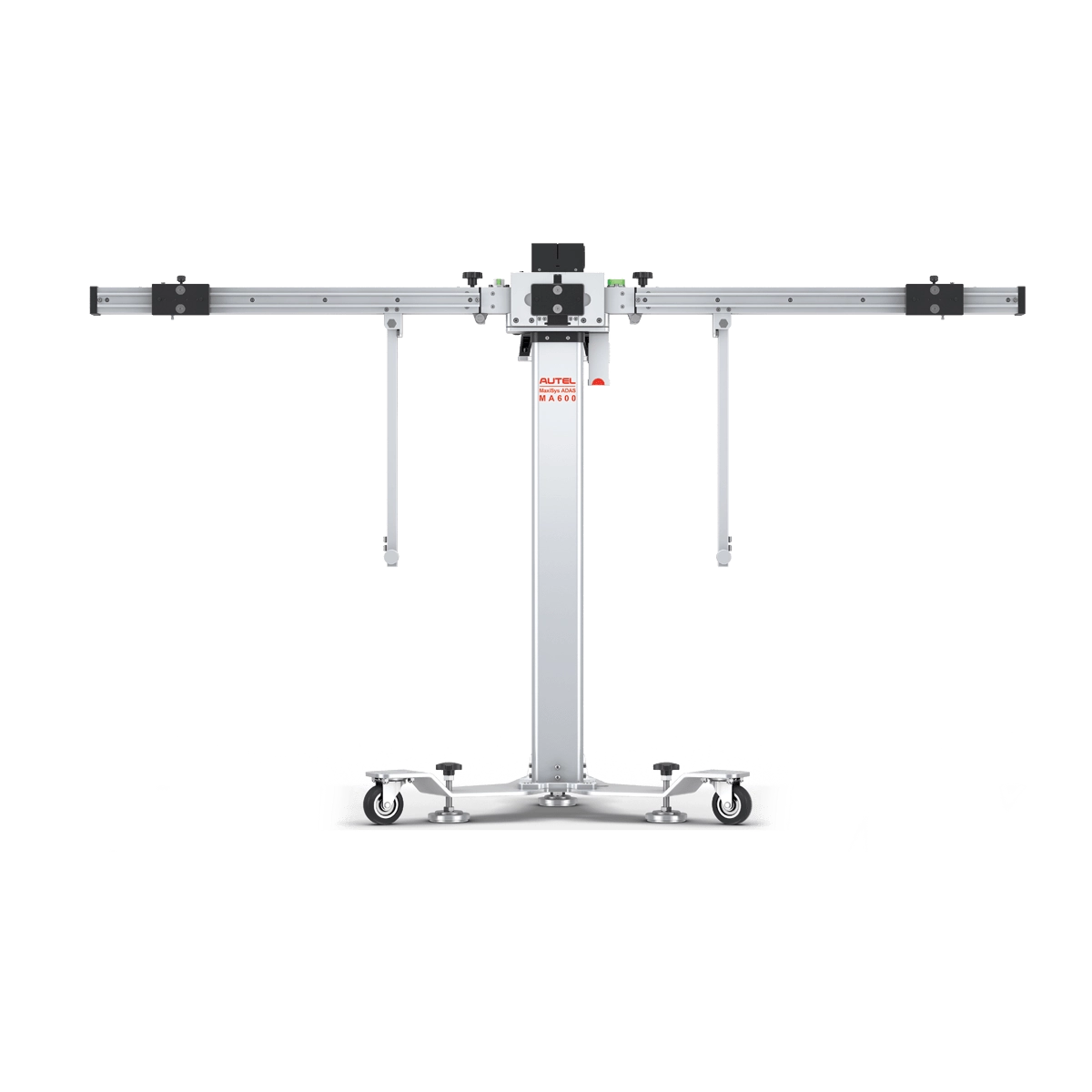

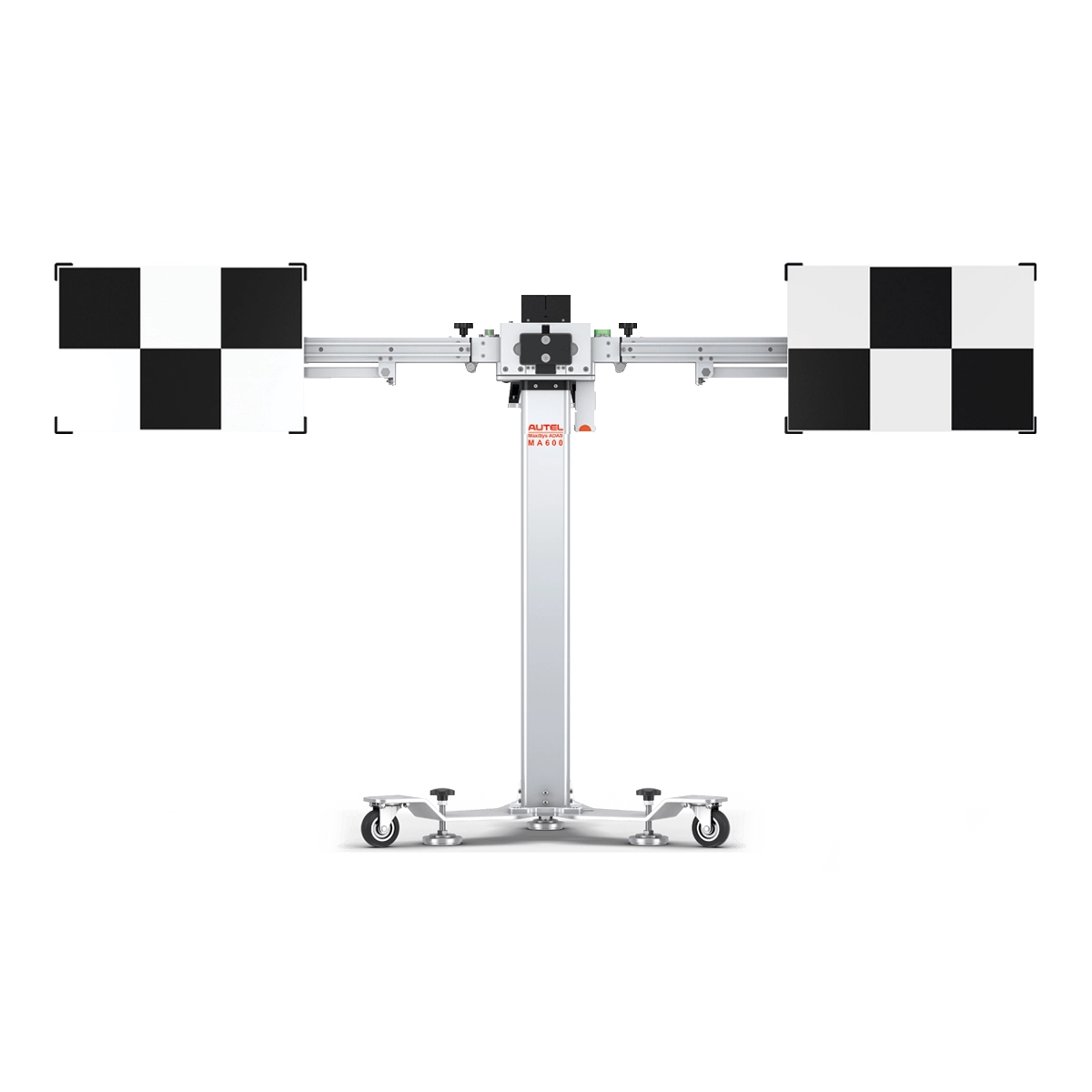

Mobile ADAS MA600 Calibration System

MA600 Portable ADAS system

The ultimate portable ADAS solution

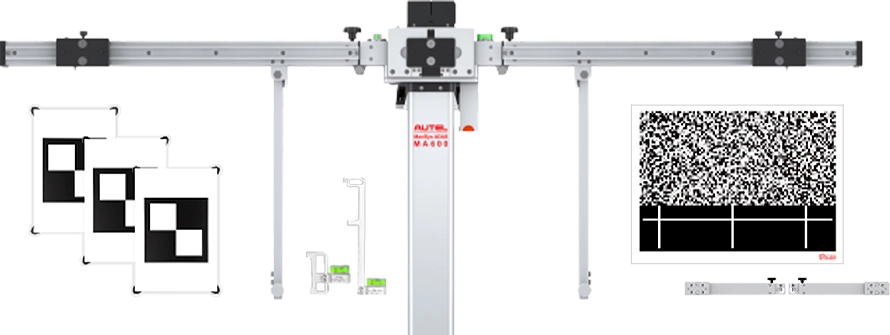

Autel’s MA600 Portable ADAS Calibration system includes a collapsible aluminum calibration frame, 2-line and 5-line centering and aligning lasers, laser-assisted reflectors and Lane Departure Warning (LDW) calibration target set for the calibration of vehicle camera systems.

The MA600 is compatible with the MaxiSYS ADAS tablet, or the MaxiSYS MS906BT or higher tablet series when upgraded with ADAS software (purchased separately).

MA600 Portable Frame ADAS Packages
Autel ADAS Packages include: MA600
Frame
Portable
MaxiSYS
Tablet
& MaxiFLASH VCI
ADAS
Software
LDW AVM BSD ACC LIDAR NVS RCW
MA600 LDW 2.0 MA600 LDW 2.0
PART NO. MA60020

Expands Lane Departure Warning
Calibration Capabilities

Portable Frame ADAS Software LDW
MA600 LDW 2.0T MA600 LDW 2.0T
PART NO. MA60020T

Expands Lane Departure Warning
Calibration Capabilities

Portable Frame MS909
MS909
ADAS Software LDW
MA600 All Systems 2.0 MA600 All Systems 2.0
PART NO. MAS20

The Ultimate for Calibration Capabilities

Portable Frame ADAS Software LDW AVM BSD ACC LIDAR NVS RCW
MA600 All Systems 2.0T MA600 All Systems 2.0T
PART NO. MAS20T

The Ultimate for Calibration Capabilities

Portable Frame MS909
MS909
ADAS Software LDW AVM BSD ACC LIDAR NVS RCW

Most Recommended Accessories

ADAS Accessory Kit 2

ADASACCESSORY – ADAS Accessory

2-Line and 5-Line Lasers, Plumb Bob, Laser Reflector, Laser Assist Mirror and L-Shaped Bracket

ADAS ADASRAD1 Kit

ADASRAD1 – Radar

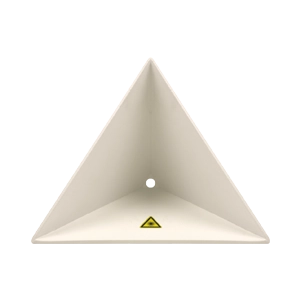

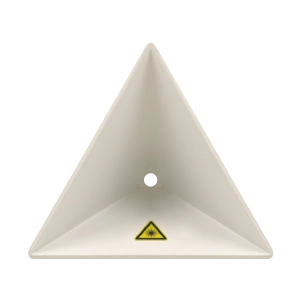

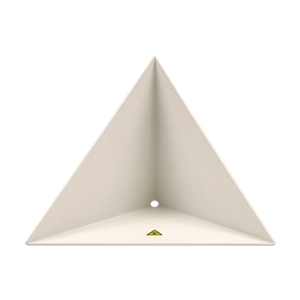

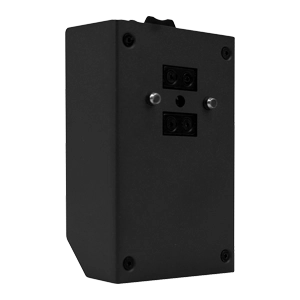

Radar calibration component package includes: Adaptive Cruise Control (ACC) adapter, Doppler Radar Box, Continental radar plate and Corner Reflector

Autel Clearance

Shop ADAS Surplus

Patterns, Targets, & More

Exceptional Training and Support

Autel’s commitment to its users and its products extends far beyond the sale. We offer a team of training specialists deployed throughout North America to come onsite to ensure your system is working correctly, your shop setting is effective, and your technicians are trained to efficiently use our products.

We offer technical support for all Autel products from 9 am to 6 pm EST, Monday through Friday, via our toll-free line. ADAS support specialists can use the Teamviewer app to turn on the tablet’s camera and ensure the frame and targets are set correctly, and that shop conditions are optimal and that calibrations are not hindered by glare, disruptive backgrounds, or large metal objects.

Intro To ADAS

Intro to ADAS

Intro to ADAS

Advanced Driver Assist Systems

ADAS And Your Shop

ADAS & Your Shop

ADAS & Your Shop

Maximize Your Shop’s Service Profits

Autel ADAS Systems

Autel ADAS Systems

Autel ADAS Systems

Alignment Without Limits

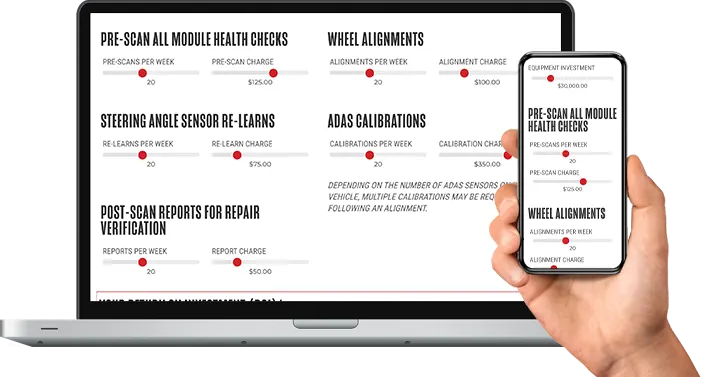

ADAS ROI Calculator

ROI Calculator

ROI Calculator

Calculate Your Revenue Potential

IA700 Modular ADAS

Contact Our ADAS Experts

Fill out the form below to schedule a free virtual product demo, or for technical questions and training inquires.
