The Rising Heat on A/C Diagnostics
For any seasoned automotive technician, the phrase “A/C job” can trigger a familiar mix of frustration and uncertainty. What was once a straightforward mechanical task has evolved into navigating a vehicle’s complex electronic nervous system. Technicians are now asked to diagnose digital systems with analog tools—a recipe for comebacks, lost profits, and stress. Older, purely mechanical air conditioning systems have given way to sophisticated, computer-controlled thermal management networks. Today’s vehicles feature variable displacement compressors, multi-zone climate control, and a web of electronic valves—all before considering the challenges of electric vehicles (EVs) and hybrids, whose systems often resemble commercial HVAC more than traditional automotive A/C.
This technological leap has made traditional diagnostic methods dangerously inadequate. A new generation of tools is critically needed. Autel answers that need with the MaxiHVAC AC909.
The Widening Gap: When Yesterday’s Tools Meet Today’s Technology
Accurate HVAC diagnostics are crucial for shop profitability, customer trust, and avoiding costly comebacks. Yet, tools that served shops well for decades now struggle to keep pace with the rapid evolution of climate control systems.
The core problem lies in the ambiguity of traditional manifold gauges. A reading of “low side above limit, high side below limit” could indicate insufficient refrigerant or a failing compressor. Without more data, technicians often guess—starting with a recharge that may fail to fix the real issue and guarantee a customer comeback.
Key shifts making older tools obsolete include:
- Computer-Controlled Complexity: Simple on/off clutches are replaced by electronically controlled variable displacement compressors and multiple valves, beyond the analysis capacity of basic gauges.
- Multi-Zone Systems: Automatic climate control with different settings for driver, passenger, and rear zones adds diagnostic complexity, requiring analysis of sensors and blend doors.
- EV and Hybrid Thermal Management: Incorporating heat pumps and liquid-cooled components; these systems resemble residential or commercial HVAC, requiring entirely new diagnostic approaches.
This ambiguity—where a single pressure reading could indicate multiple failures—creates a blind spot that the AC909 directly addresses.
Autel’s Vision: A Smarter System for a Complex Problem
The MaxiHVAC AC909 is a natural extension of Autel’s mission: delivering intelligent solutions for today’s most pressing diagnostic challenges. Just as Autel streamlined ADAS calibrations and battery diagnostics, it now brings the same methodology to thermal management.
The AC909 is more than digital manifold gauges; it is a modular system built to tackle modern HVAC intricacies. Its core design principles:
- Intuitive Guided Workflow: Leads technicians step-by-step, ensuring thorough, accurate service—whether for a novice or seasoned expert.
- Modular, Wireless Architecture: The manifold, temperature probes, and refrigerant scale connect to a control tablet via Bluetooth. Technicians can operate the system untethered, monitoring data from the driver’s seat while hanging the manifold under the hood.
This intelligent design enables the AC909’s most groundbreaking feature: the graphical diagnostic interface.
From Guesswork to Graphical Diagnosis: Fusing Data for Clarity

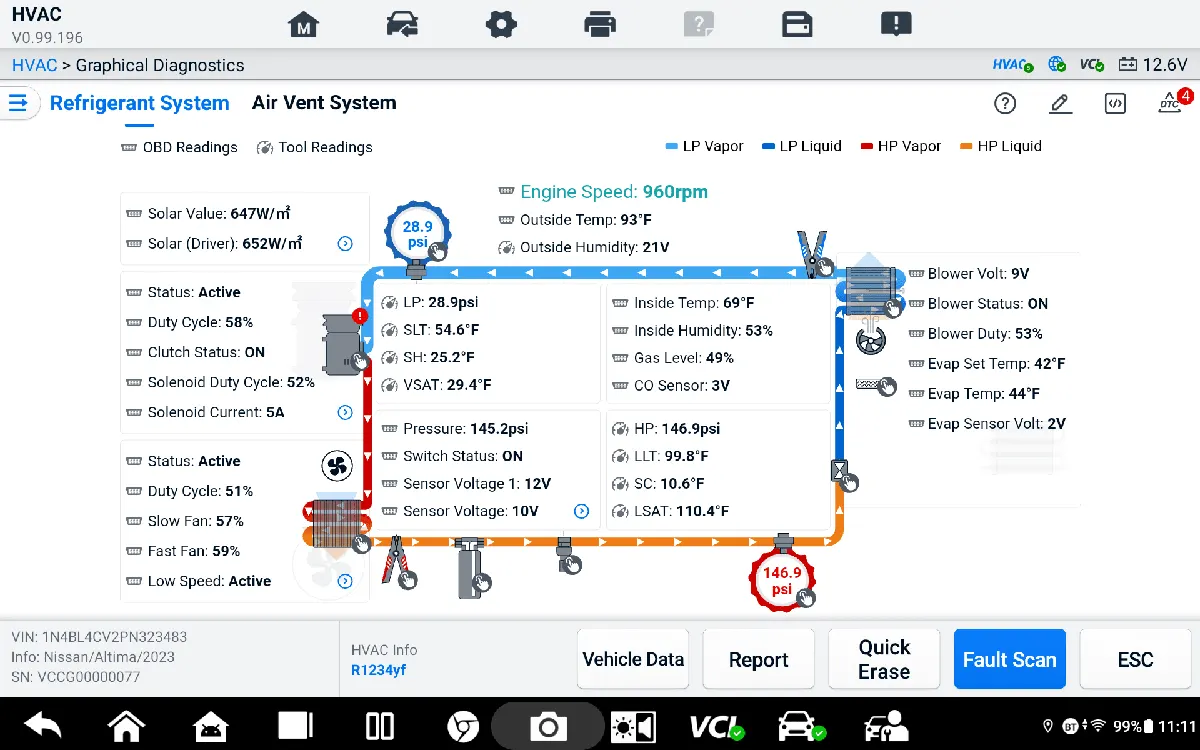

The AC909 transforms diagnostics by merging multiple data streams on a single, intuitive screen. Its Graphic Diagnostic Diagram shows a dynamic, color-coded schematic of the A/C system, displaying high and low-pressure sides, refrigerant state, and flow.
The system fuses two critical data sources:
- OBD2 Data: Vehicle computer information such as blend door positions and compressor commands.
- Direct Sensor Readings: Real-time pressure and temperature measurements from the AC909’s manifold and wireless probes.
Technicians can instantly compare what the car’s computer thinks is happening with what is actually happening, exposing hidden conflicts that cause complex faults.
Advanced metrics like Superheat (evaporator efficiency) and Subcooling (condenser efficiency) further clarify system health, revealing issues like restrictions or incorrect charge that pressure readings alone might miss. The result: no more guesswork—just a clear, unified diagnostic picture.
A More Efficient Workflow for the Modern Shop
The AC909’s approach streamlines service from inspection to quality assurance, replacing assumptions with empirical evidence. Key features include:
- Visual Refrigerant Inspection: Pull refrigerant into a backlit sight glass to check for contaminants or metal fragments, spotting potential failures early.
- Independent Compressor Testing: Connect directly to the compressor and test independently of the ECU, displaying performance as a clear pressure vs. duty cycle graph.
- Advanced Nitrogen Testing: A 29 PSI nitrogen purge removes moisture more effectively than vacuuming alone, while a 150 PSI pressure test detects small leaks, saving time and refrigerant.
- Micron Level Vacuum Measurement: Ensures a true deep vacuum. Reaching 28” or 29″ of vacuum is easy for most units or machines but not truly a deep vacuum. That equates to only 20,000 microns. The desired level of vacuum is at least 3000 microns and should be less than 1000 microns. That is what is needed to fully remove moisture and guarantee a complete and effective repair
- Equipment Self-Diagnostics: Tests the vacuum pump and manifold gauge set for leaks, ensuring technicians work with verified, functioning equipment.
These procedures eliminate redundant steps, prevent misdiagnosis, and ensure both vehicle and equipment are performing optimally.
Future-Proofing Your A/C Service
The Autel MaxiHVAC AC909 represents a fundamental shift from reactive repair to data-driven thermal management diagnostics. By fusing OBD2 and direct sensor data in a graphical interface, it closes the diagnostic gap created by today’s complex systems.
As the automotive diagnostic market grows, driven by EVs and increasing vehicle complexity, the AC909 positions shops to efficiently and accurately service modern HVAC systems—from variable displacement compressors in passenger cars to heat pumps in hybrids and EVs.
Adopting the AC909 makes a repair shop a leader, fully equipped for today’s vehicles and tomorrow’s technologies. Its modular design, intuitive workflow, and graphical diagnostics make it the intelligent investment for future-proofing your shop’s thermal service capabilities. The AC909 will be available for purchase in early 2026.
