Autel MaxiTPMS

Complete TPMS Solution

Intelligent Tire Service

Tool Line Up

Sensors

1-Sensor &
BLE Sensor

ITS600

TPMS Service &
Diagnostic Tablet

TS900

Three-In-One
Wireless Tablet

TBE200

Laser-Enabled Tire Tread
Depth Examiner

View all TPMS products >>

One Tool.
everything TPMS.

TS900

Three-in-one
Wireless Tablet

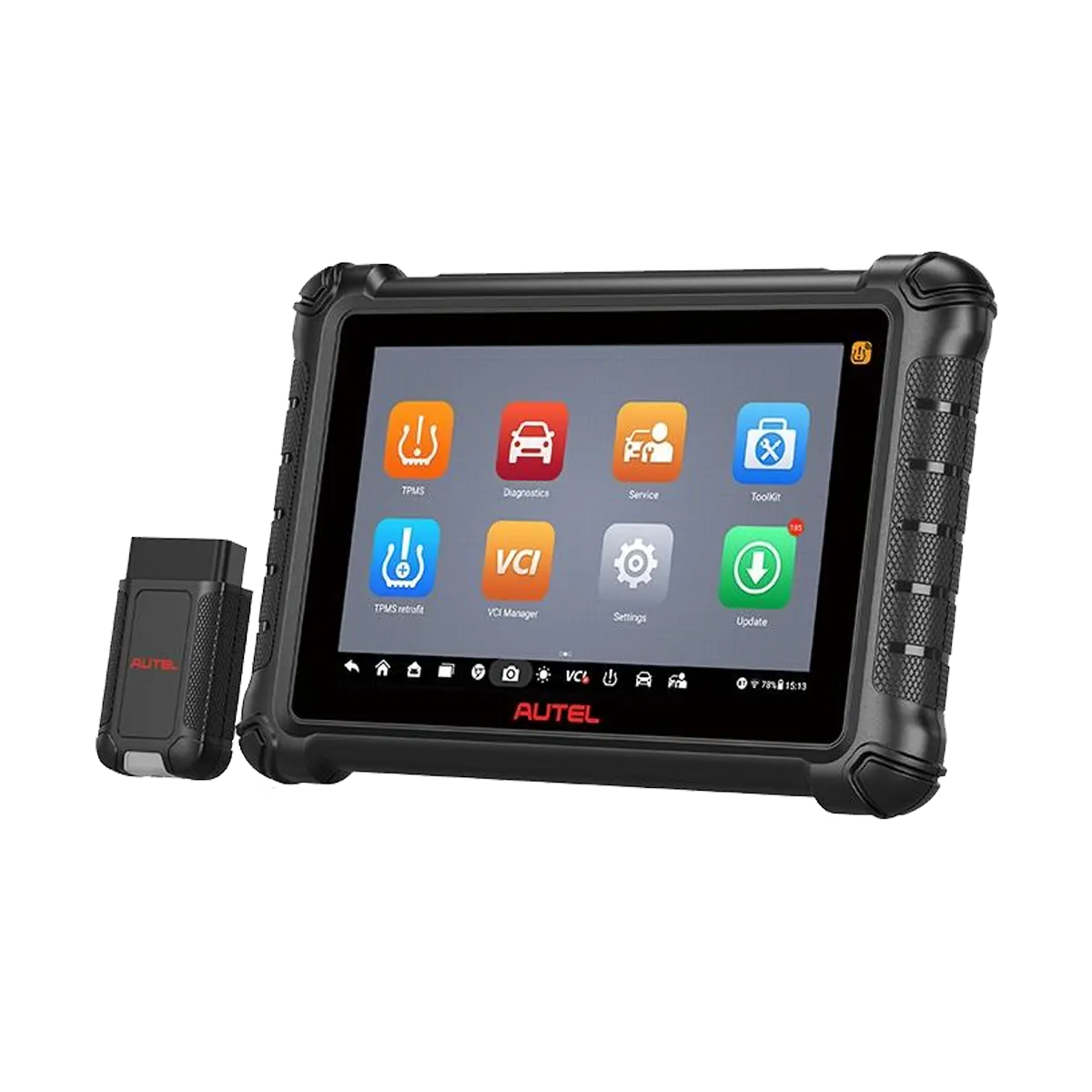

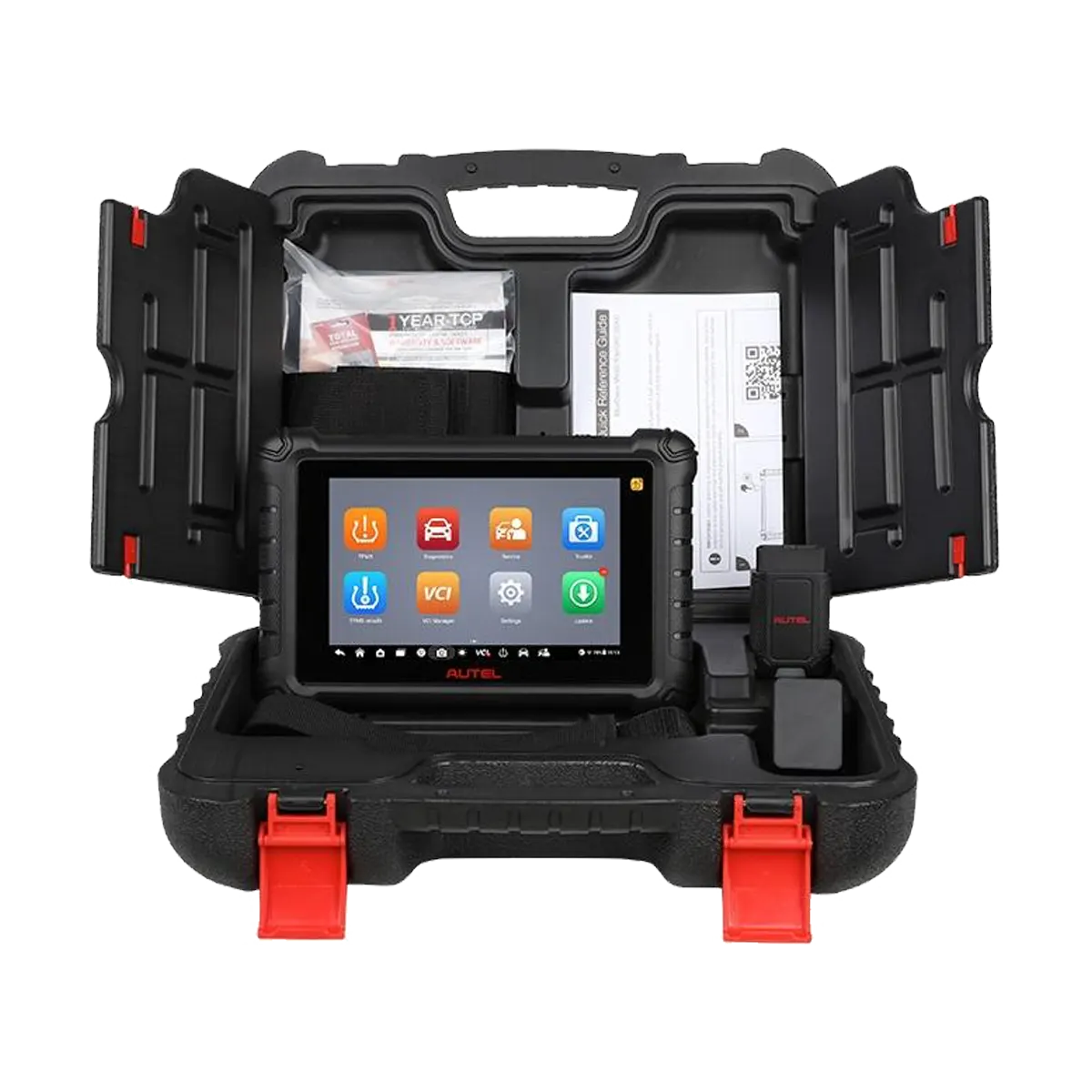

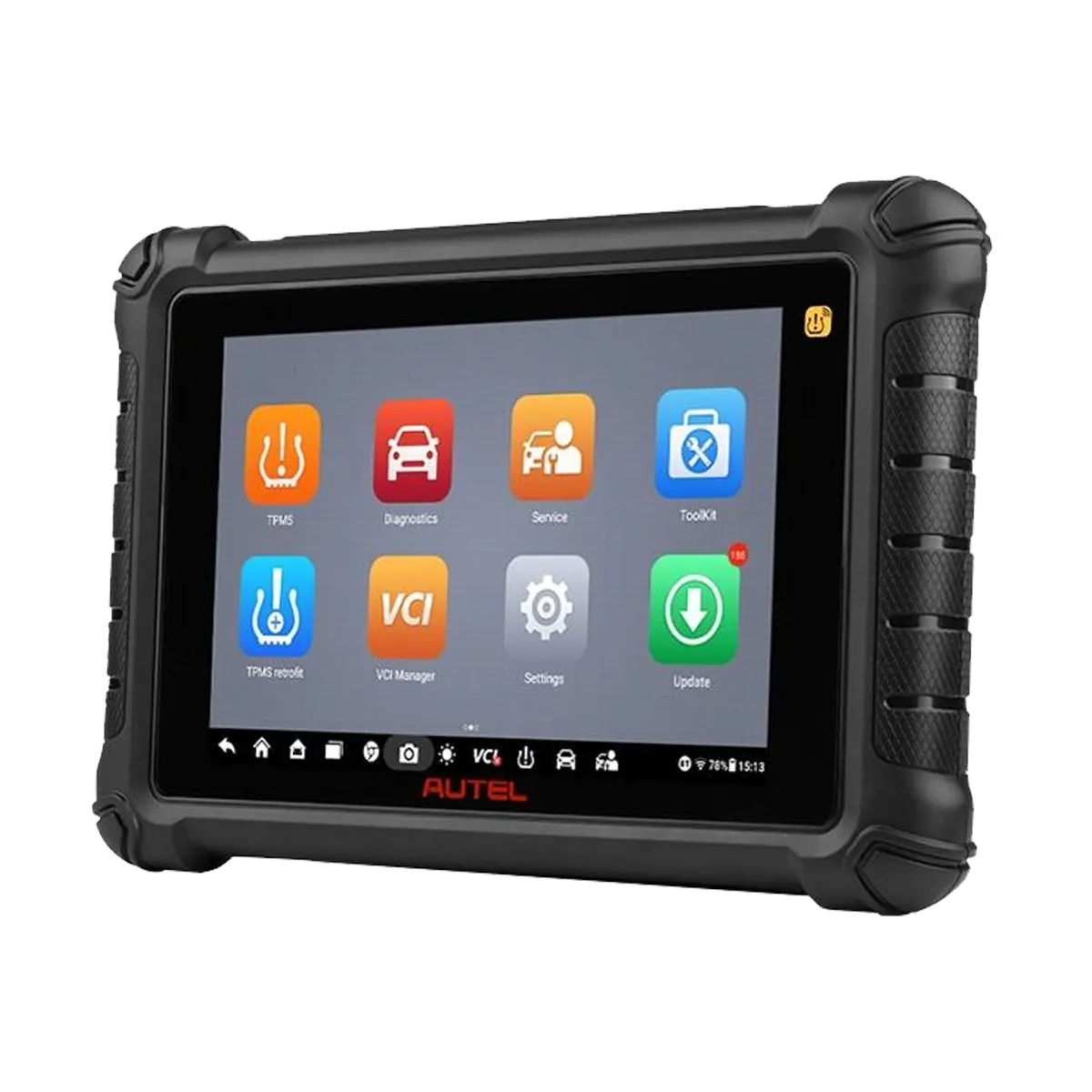

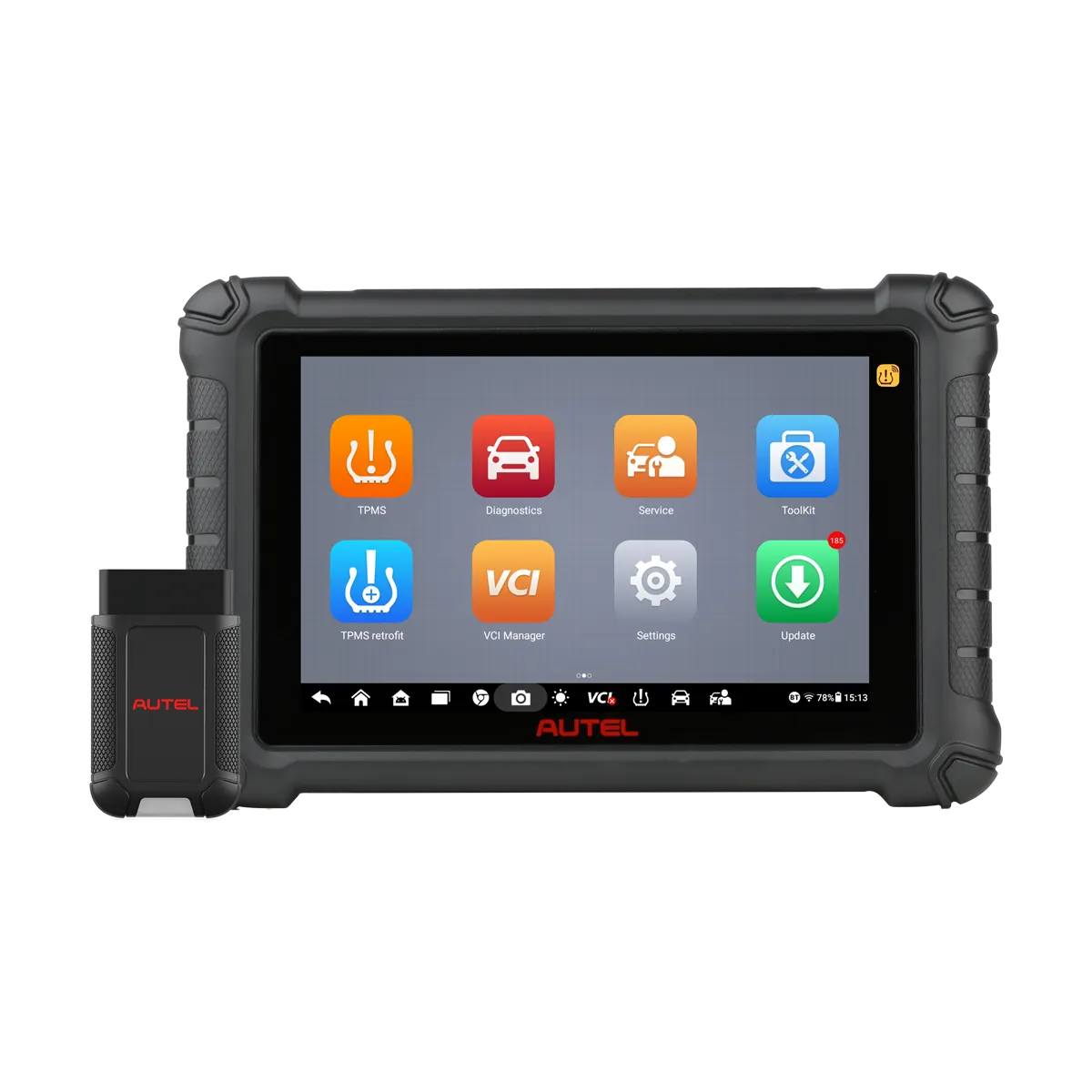

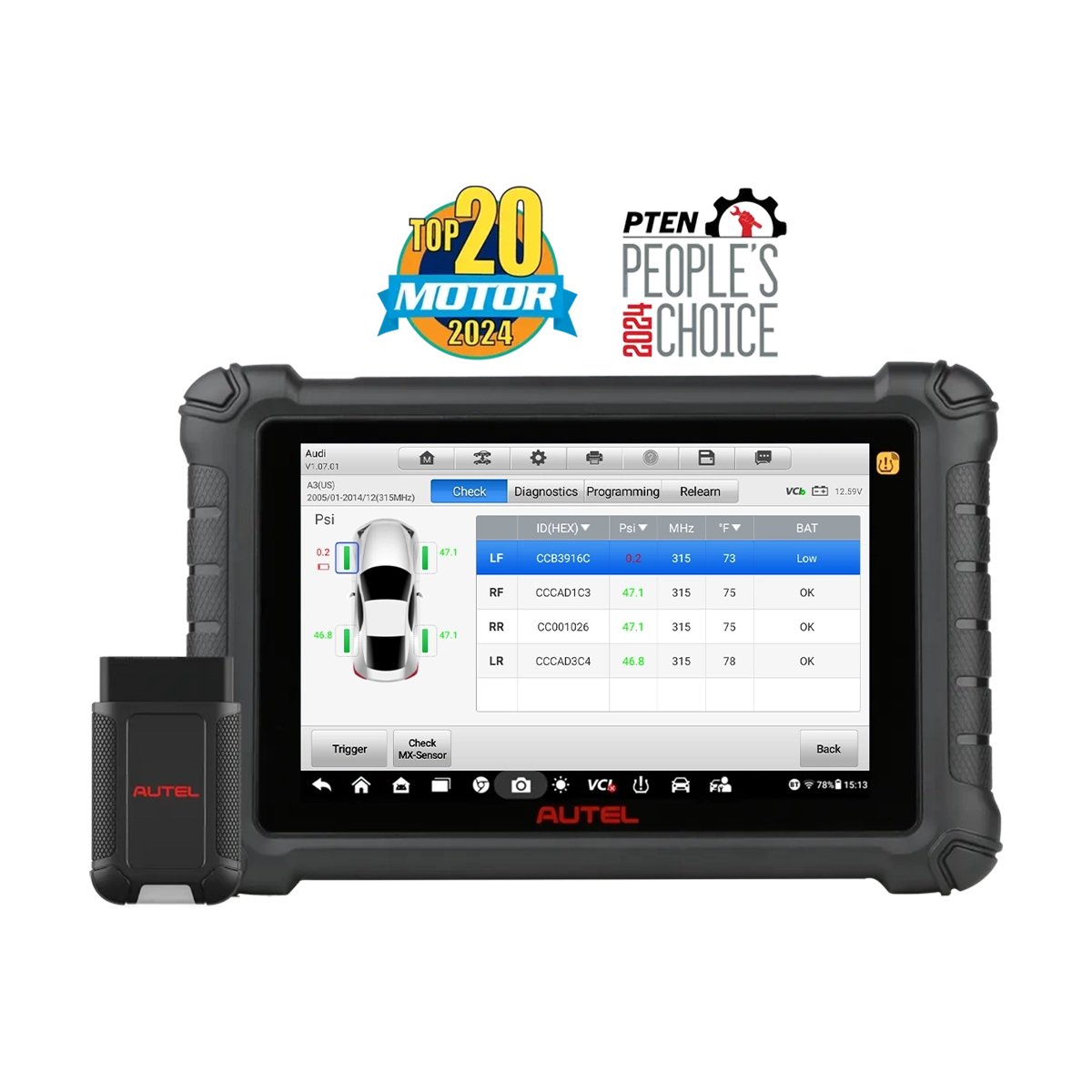

The MaxiTPMS TS900 is an 8-inch, three-in-one, TPMS, diagnostics, Service, wireless touchscreen tablet. The TS900 can activate, read and relearn all known TPMS sensors, including Tesla OE sensors, and program the Autel 1-Sensor to replace 99 percent of the TPMS sensors on the road today. The TS900 is also compatible with the Autel BLE Sensor, preprogrammed for Tesla vehicles. The TS900 offers both basic all-systems diagnostics, such as the ability to read and clear codes and view Freeze Frame and Live Data, and advanced features, such as Active Tests and Special Functions.

  • Activate, Read, and Relearn all known TPMS sensors
  • Industry-leading Relearn-by-OBD vehicle coverage
  • Single Screen TPMS Health Report
  • Perform Bi-directional Active Tests and Special Functions
  • Extensive Service Menu with direct access to over 40 maintenance tasks
  • Generate Detailed Pre- and Post-Scan Reports
TS900 Specifications
Processor RK3566 Quad-core Arm Cortex-A55 processor (1.8 GHz)
Memory 4GB RAM & 64GB ROM
Display 8-inch LCD screen with 1280 x 800 resolution
Connectivity • USB Type-C
• USB 2.0
• Wi-Fi
• Bluetooth
• Mini SD card (supports up to 64GB)
Camera 8MB
Audio Output Input: N/A
Output: Buzzer
Power and Battery • 3.7 V/7700 mAh lithium-polymer battery
• Charges via 5V DC power supply
Tested Battery Life Around 7 hours of continuous use
Battery Charging Input 5 V/3 A
Power Consumption Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -10 to 60°C (14 to 140°F)
Dimensions (W x H x D) 259.87 mm (10.23″) x 168.98 mm (6.65″) x 33.60 mm (1.32″)
Net Weight 998 g (2.2 lbs)

Autel Enhances your TPMS Service with the MaxiTPMS TS900

How To Use The Copy By OBD Function With The MaxiTPMS TS900

Free TPMS Software Updates For the Life of your ITS600*

*Not applicable to the ITS600Pro

ITS600

TPMS Service &
Diagnostic Tablet

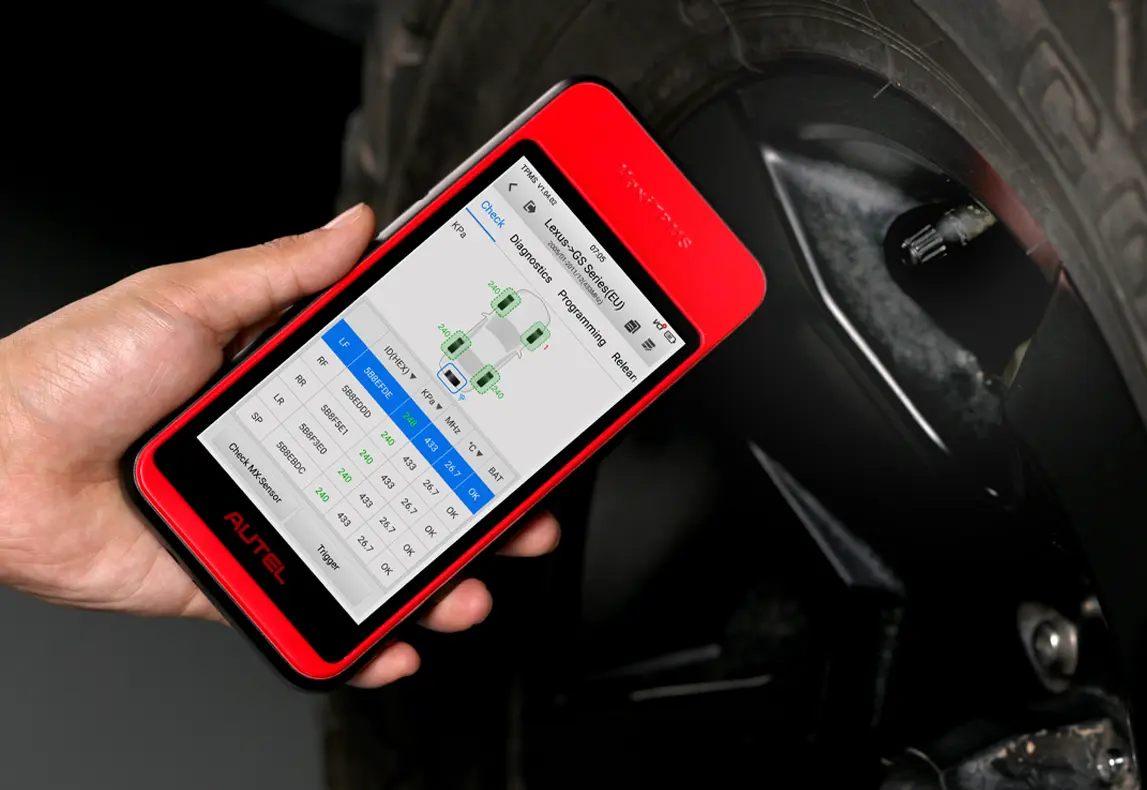

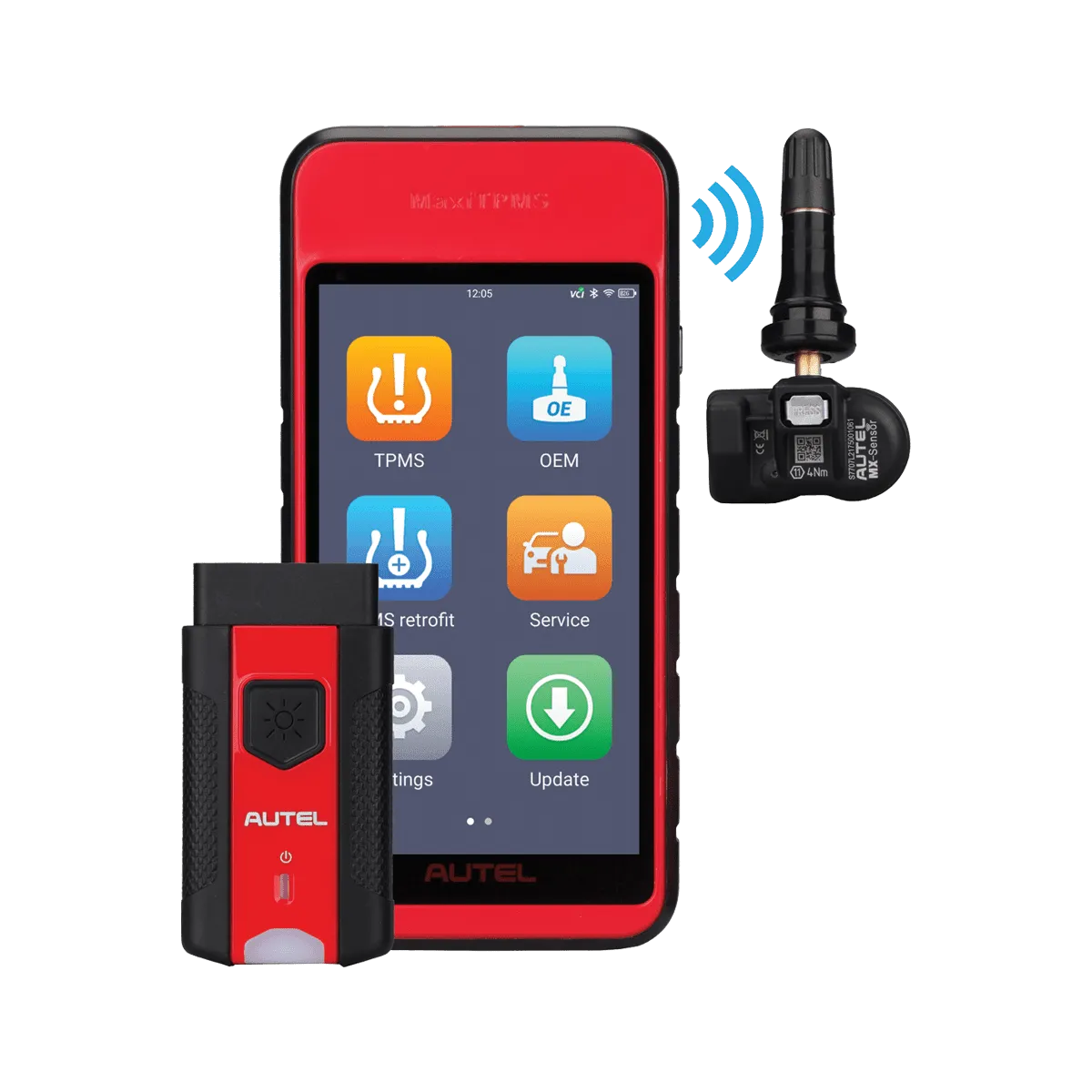

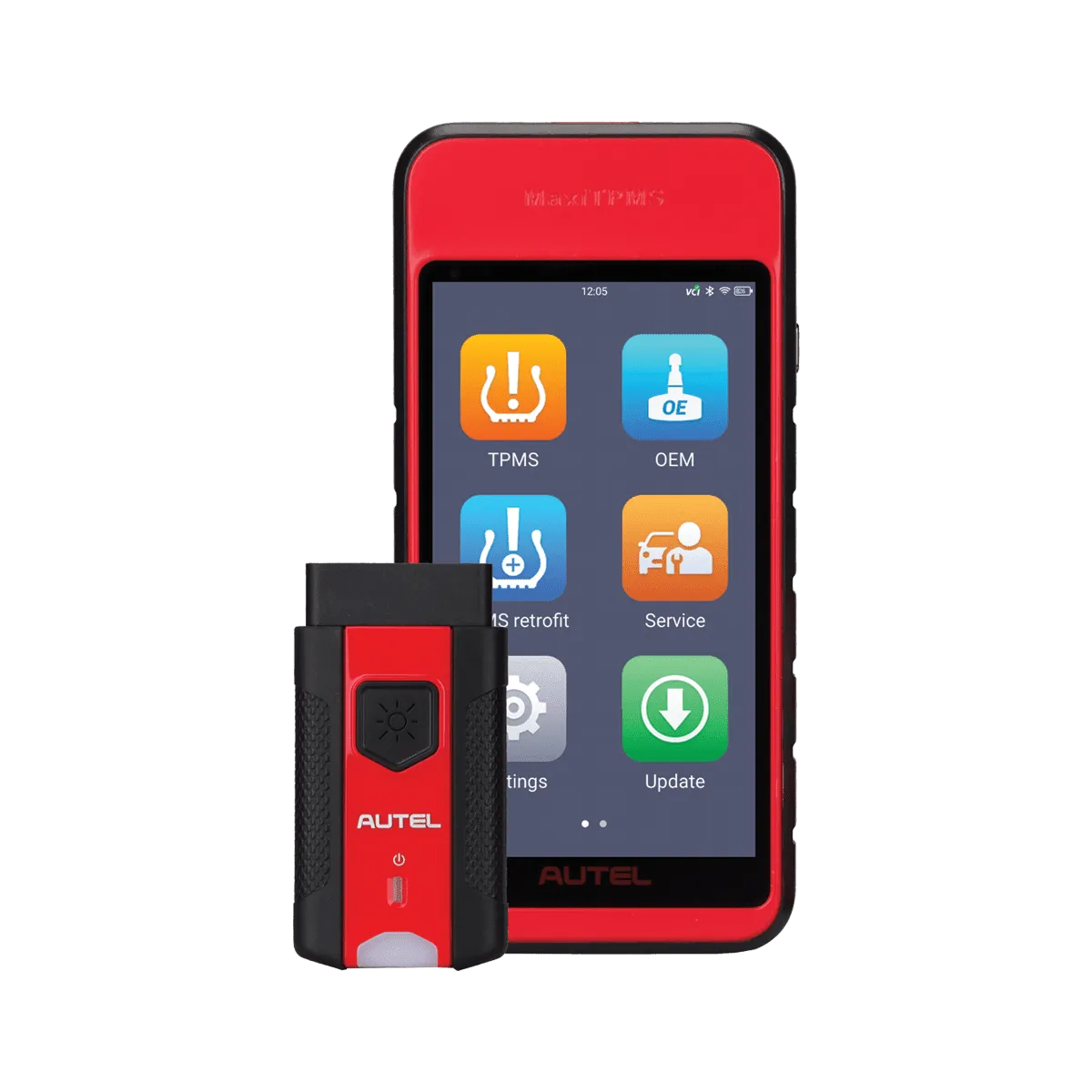

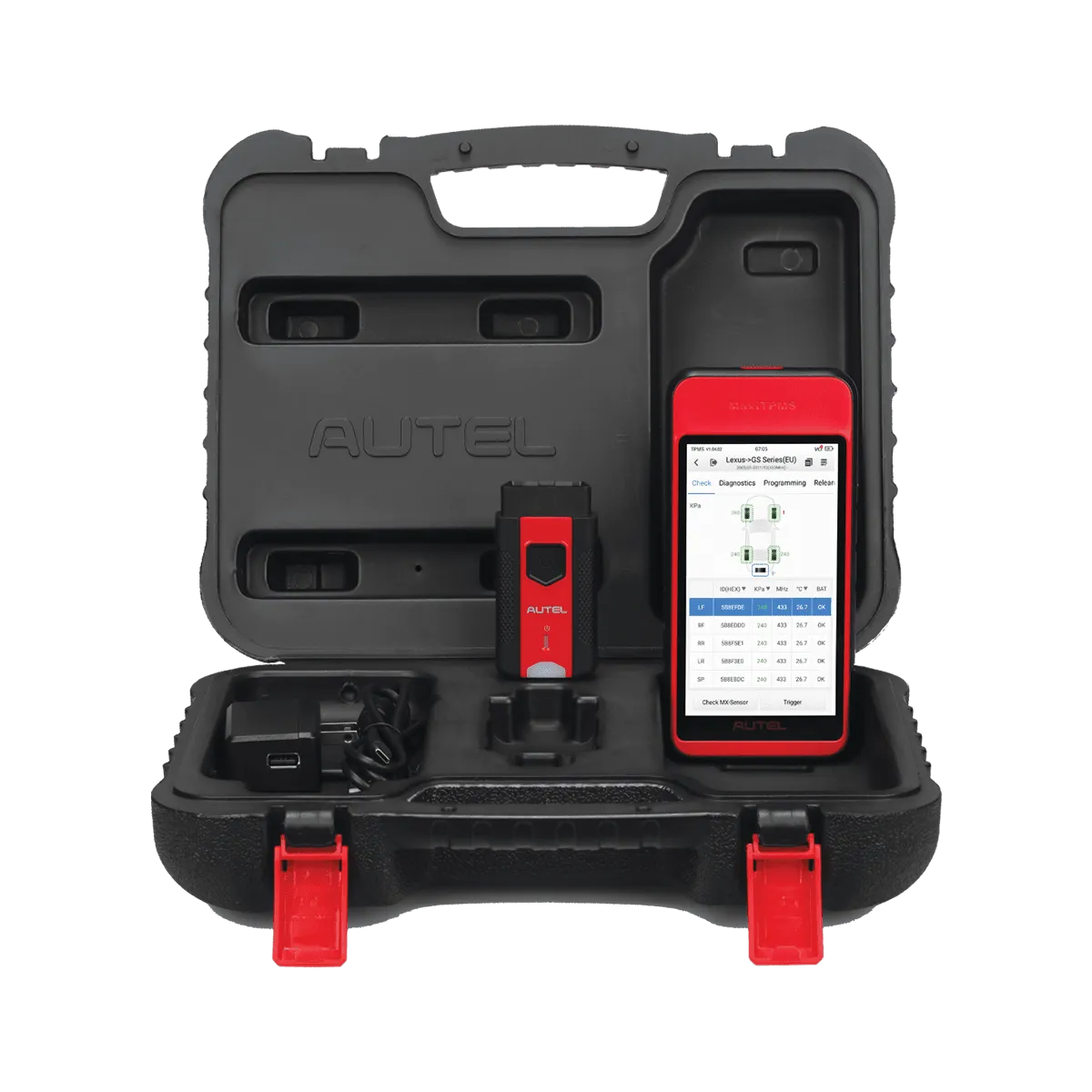

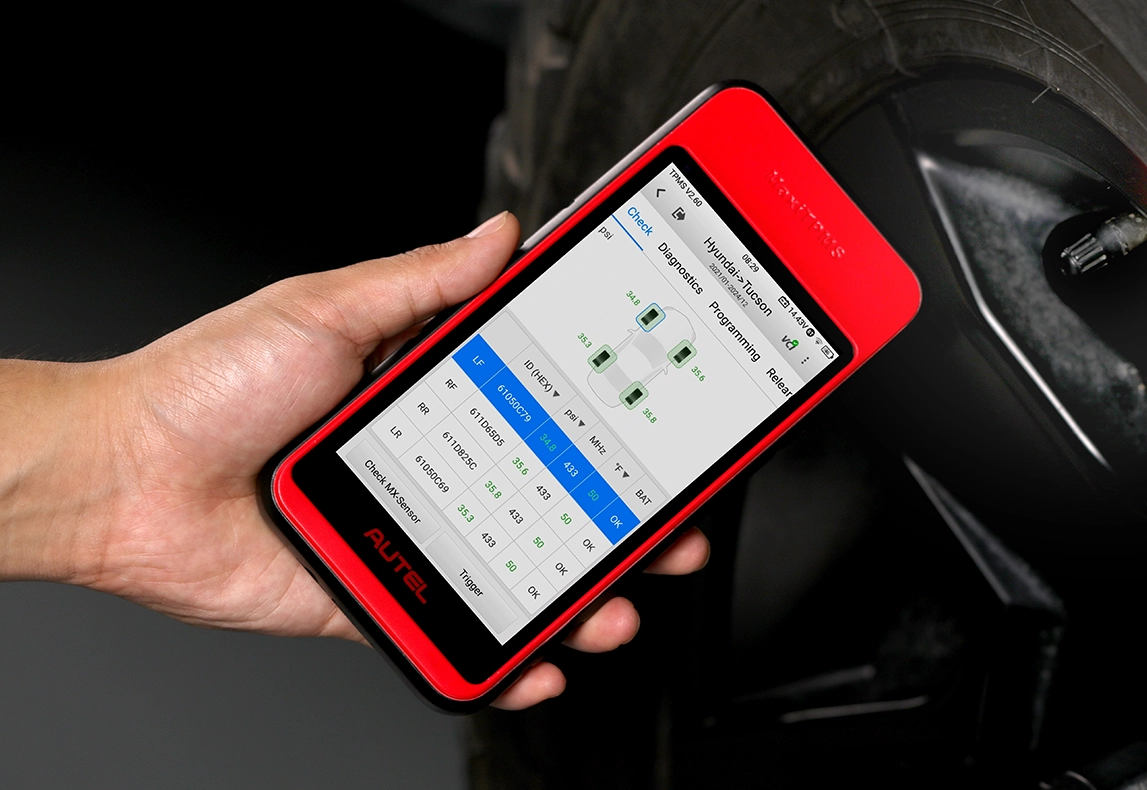

The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and on-screen relearn instructions for all vehicles.

  • Exclusive TPMS Status Screen
  • Fast OBD Ll Relearn For Most US Domestic Vehicles
  • Copy By OBD Sensor Programming For Faster Service
  • Activate, Read, Relearn All Known TPMS Sensors
  • Wireless OBDII Connection Via Bluetooth VCI
  • Tire Pressure Placard Value Reset
ITS600 Specifications
Operating System ANDROID™ 9.0
Processor Quad-core processor (1.5 GHz)
Memory 1GB RAM DDR4 & 64GB ROM
Display 5.5-inch LCD capacitive touchscreen with 1280×720 resolution
Connectivity • Wi-Fi
• USB 2.0 & Type C
• BT
RSensors Light sensor for brightness auto adjust
Audio Input/Output Input: N/A Output: Beep
Power and Battery • 3.8 V/5000 mAh lithium-polymer battery
• Charges via 5 V AC/DC power supply
Battery Charging Input 5 V/2 A
Power Consumption 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temperature -10 to 45°C(14 to 113°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”)
Net Weight 368 g (0.8 lb.)
Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66

ITS600 functionality & screen flow

Integrated DOT tire registration on the ITS600

Vehicle ID

Fast & accurate vehicle id

Autovin, scan vin & plate scan:
integrated optical scanner quickly identifies the vin / mmy

TPMS Diagnostics Service

Diagnostics & Service

4 Service Resets: Oil Light, Battery Registration, Electronic Brake Service and Steering Angle

TPMS DOT Registration

DOT Registration & Recall Lookup

Scan Tire DOT Numbers:
Quick & easy serial number scan & Integrated DOT Tire Registration

TBE200

Laser-enabled tire tread depth &
disc wear examiner

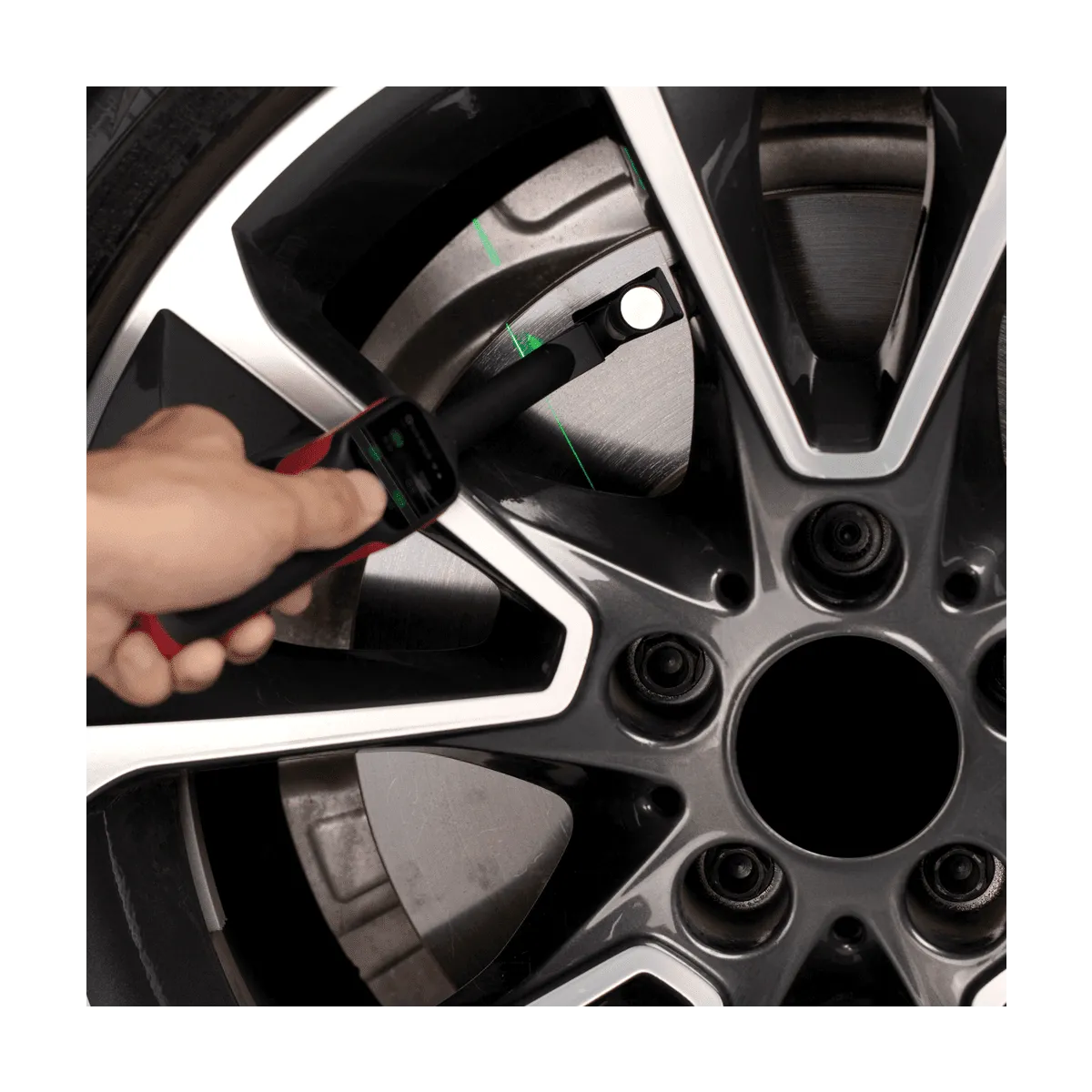

The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time. TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tire service.

  • Tire Tread Depth & Brake Disc Wear In One Tool
  • Laser Measurement With 0.1mm Accuracy
  • Uneven Wear Analysis
  • Real-Time Measurement Data
  • Measurement Data Curve Display
  • No Need To Remove Wheel During Measurement
TBE200 Specifications
Processor 4x ARM Cortex-A35 (1.5 GHz)
Memory 1GB RAM LPDDR3 & 4GB ROM
Display 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
Connectivity • Wi-Fi
• USB 2.0 & Type C
Camera CMOS WXGA, 1 megapixel & 8 megapixel, 30fps
Audio Output Output: Beep
Power and Battery • 3.7 V/3000 mAh 18650 lithium-ion battery
• Charges via 5 V AC/DC power supply
Tested Battery Life Around 8 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 300 mA (AMOLED on with default brightness) @3.7 V
Operating Temperature -10 to 45°C(14 to 113°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”)
Net Weight 188 g (0.41 lb.)

Autel TBE200 first look & unboxing

The perfect TPMS pair – the TBE200 & ITS600

ITS600 & TBE200

ITS600 + TBE200

Expanded
Tire Service

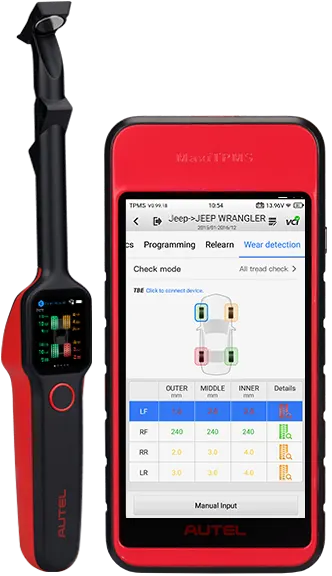

When combined, the ITS600 & TBE200 becomes the ultimate expanded TPMS and Tire Service bundle.

Precise Laser Measurement:

Tread depth & brake disc wear



Comprehensive test report:

TPMS health, tread depth & brake disc wear characteristics

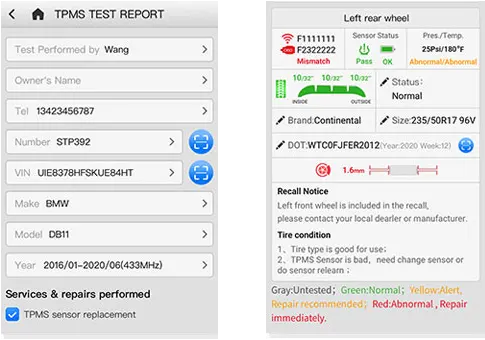

TPMS Test Report
Best Selling Sensor
Programmable Universal Sensor

Programmable Universal TPMS Sensor

The Autel 1-Sensor combines both 315MHz + 433MHz frequencies into one TPMS sensor with the highest industry vehicle coverage. Built to match or exceed OEM sensors in frequency strength and durability, MX-Sensors are 100% ID clone-able with no relearn required and offer latest model vehicle coverage because they quickly update with an Autel wireless programming tool.

  • Programmable Universal TPMS
  • 99% Vehicle Coverage
  • Combine Both frequencies: 315MHz + 433MHz
  • 1 SKU Lower Inventory
  • Interchangeable Valve Stems
  • Exclusive Press Release Button for Easy Removal

MX-Sensor: Why choose Autel?

The Autel MX-Sensor 1-Sensor

BLE

Pre-programmed, Tesla Ready, and
Programmable for BLE-equipped vehicles

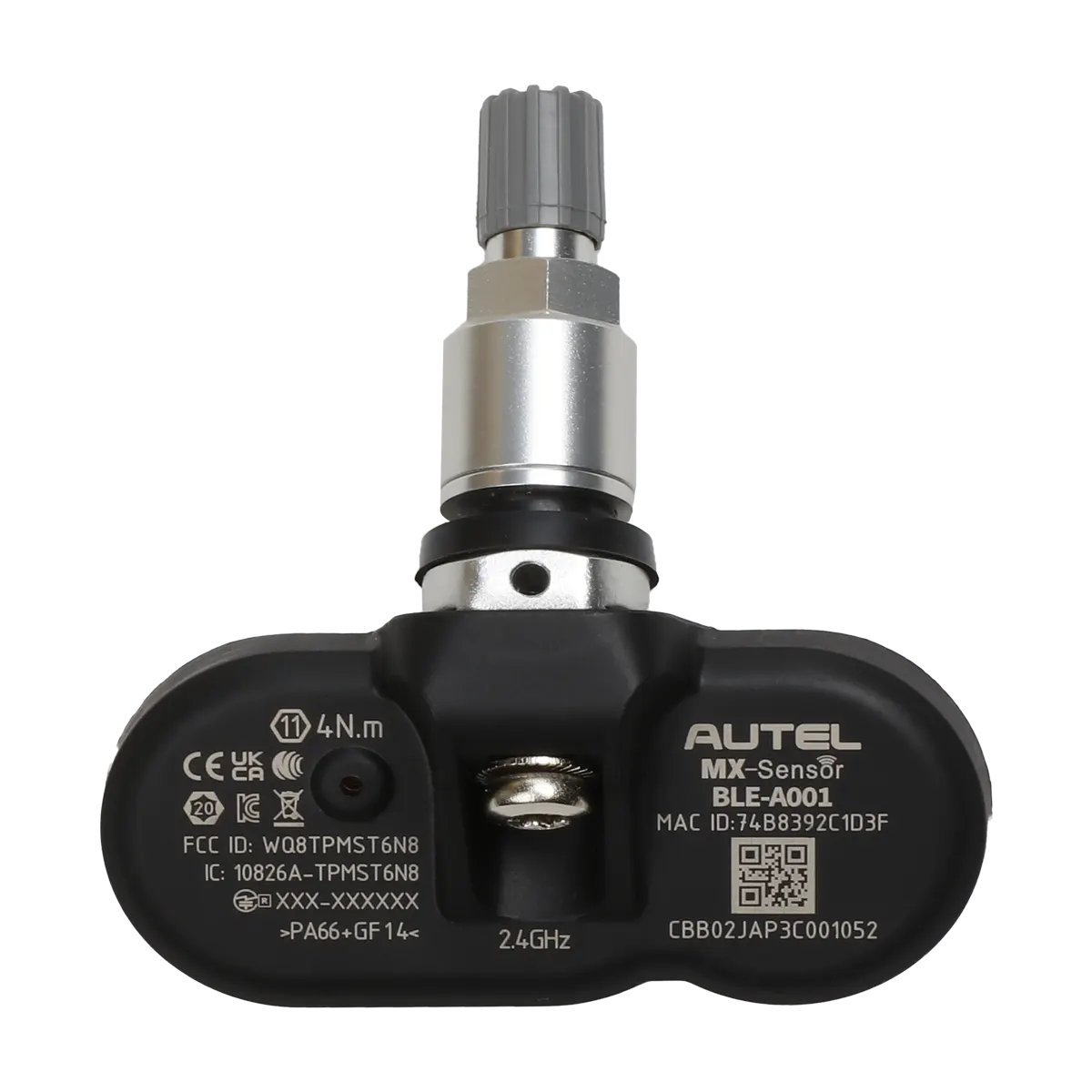

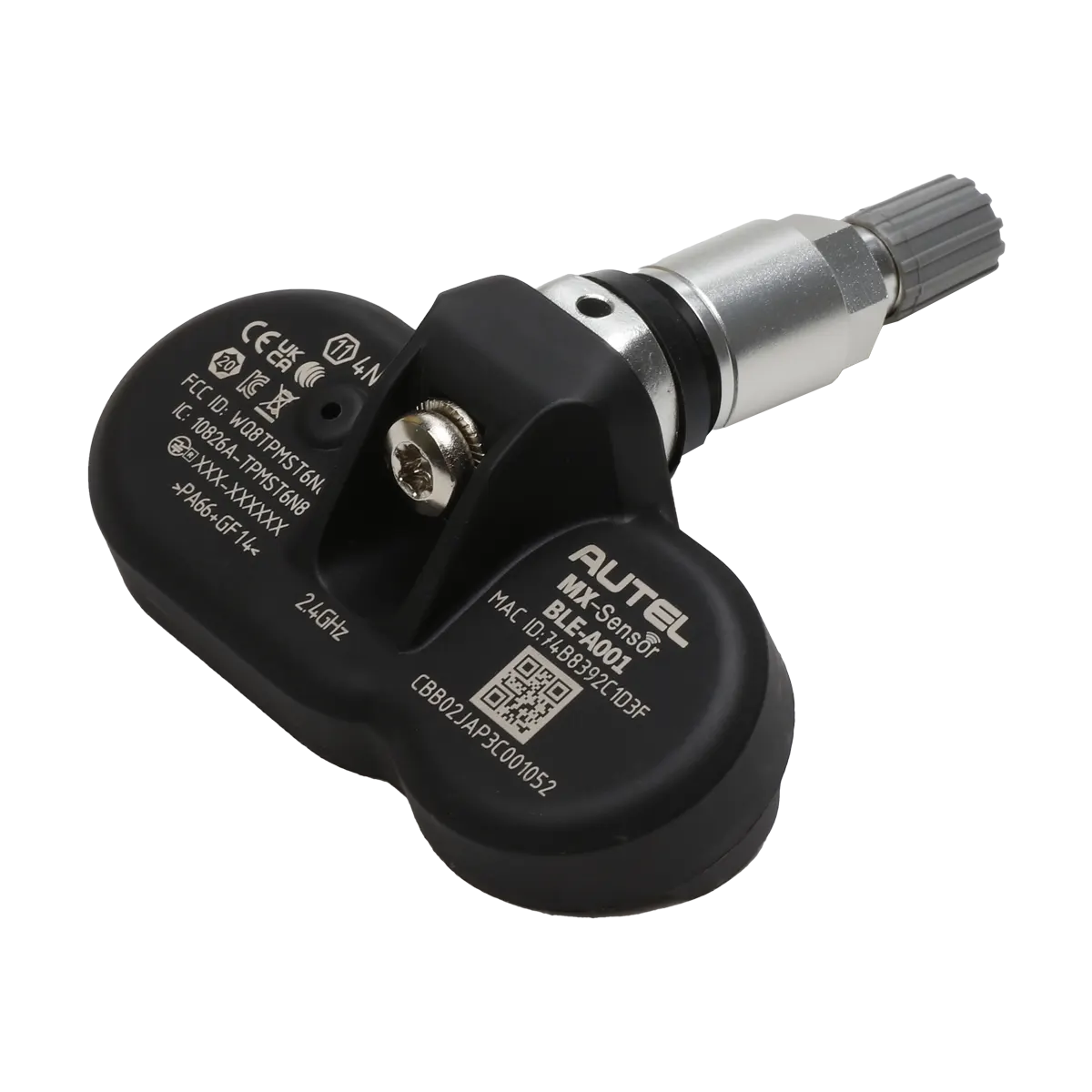

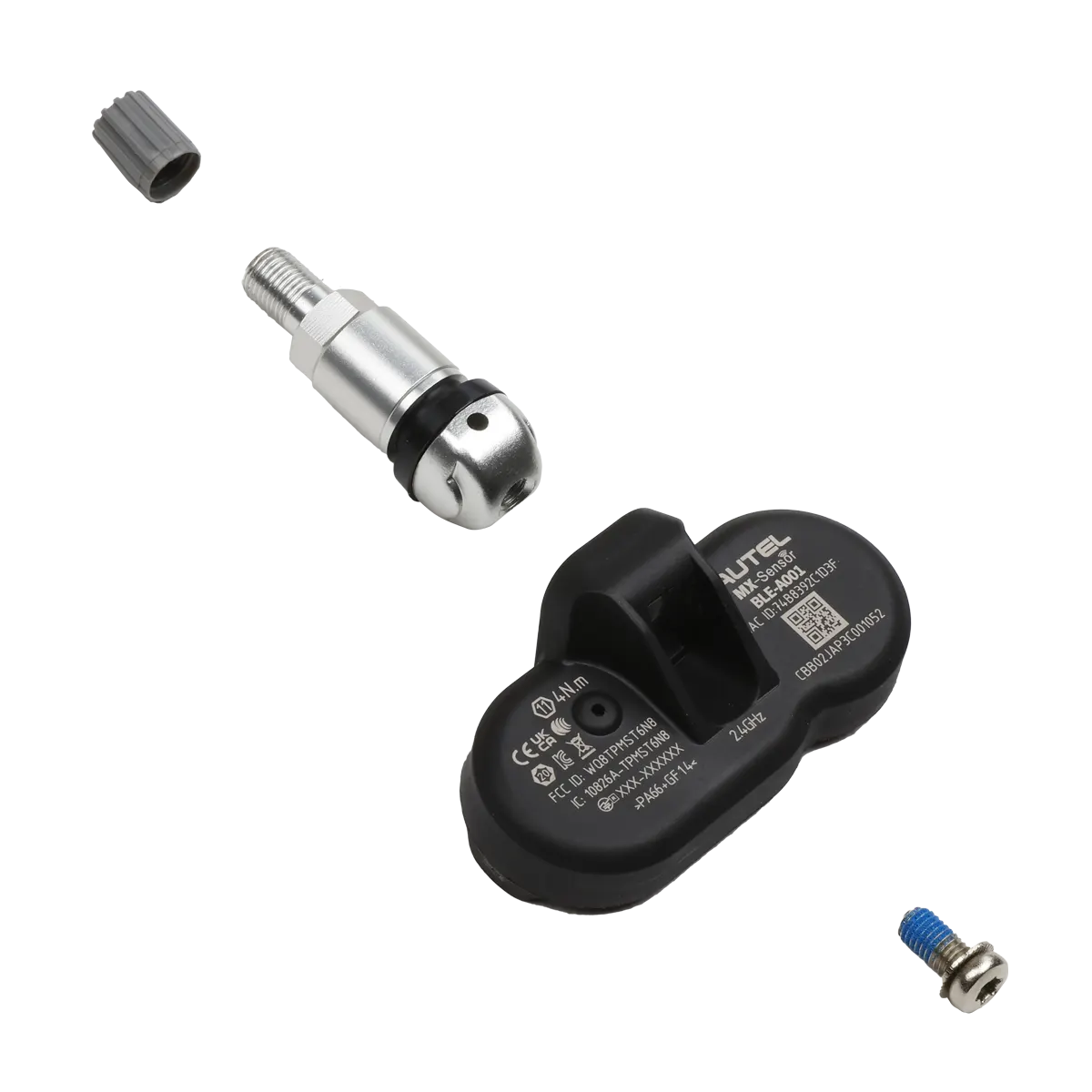

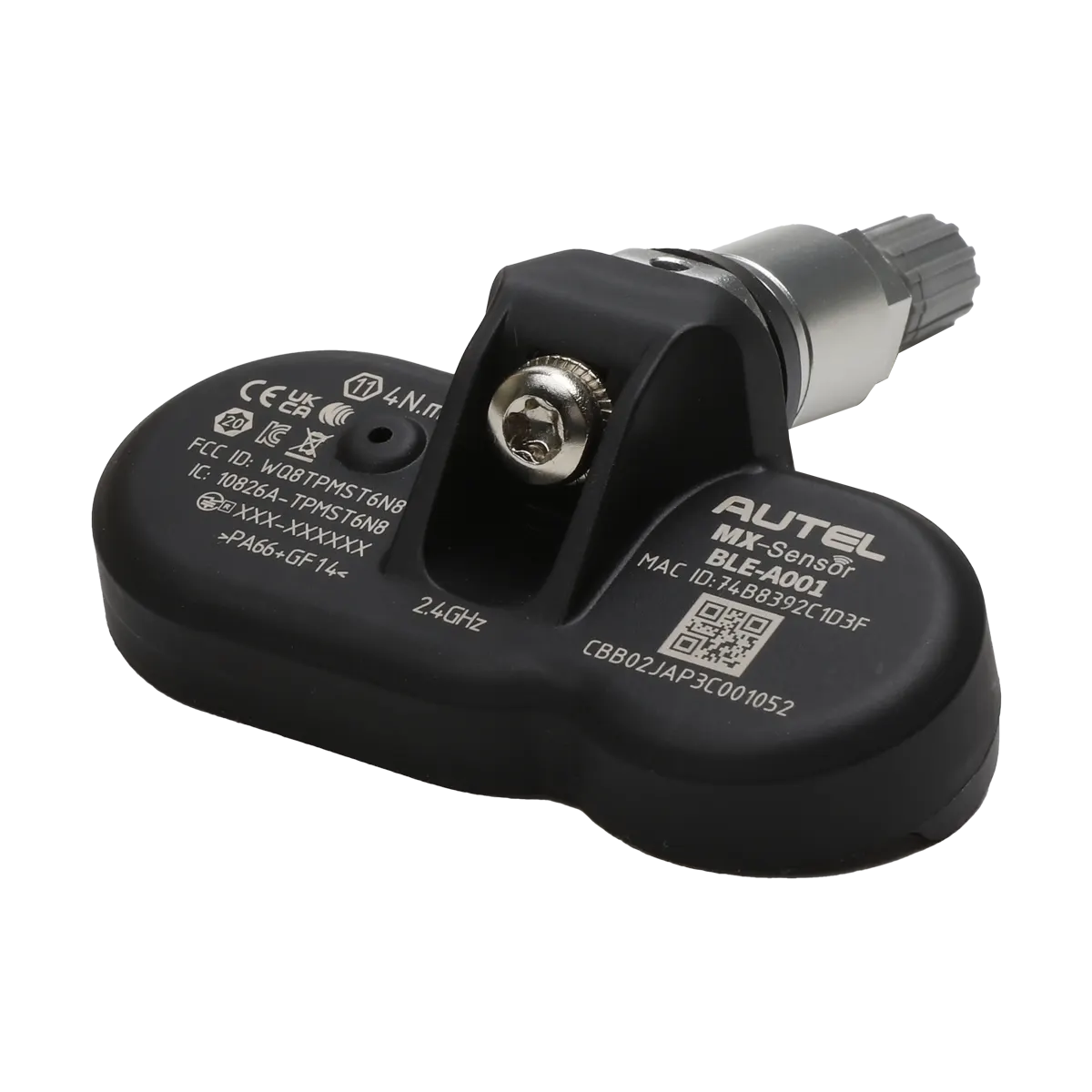

The MX-Sensor BLE is a pre-programmed Bluetooth Low Energy (BLE) sensor that offers “fit & go” capability for Tesla 3/Y/S/X models. Built to meet or exceed industry standards and tested to endure extreme temperatures, the MX-Sensor BLE is also programmable with Autel tools for the latest BLE-equipped vehicles. The MX-Sensor BLE features adjustable valve stems available in black, chrome, and gray to meet various vehicle needs and styles. The MX-Sensor BLE is warranted for two years.

  • Tesla-Ready Pre-Programmed Bluetooth TPMS Sensors
  • Compatible with Tesla 3/Y/S/X models
  • Automotive-grade Bluetooth processor
  • 6+ years of battery life
  • Adjustable valve stems programmable for latest BLE equipped vehicles
  • Program with the new Autel MaxiTPMS TS900 tablet and ITS600 tablet
  • OE-Level Functionality and tested to endure extreme temperatures

BLE TPMS Sensor Instructional Video

Autel MX-Sensor BLE-A001 Tesla-Ready…
