Advanced EV Diagnostics
Complete Tooling Solutions
Efficient, Precise,
& Comprehensive
OE-Level EV and Hybrid Diagnostics, service and testing tools
Autel’s EV diagnostic technology provides a complete suite of tools for electric and hybrid vehicles, enabling efficient, precise maintenance of high-voltage (HV) systems. The platform supports bi-directional testing of batteries, inverters, motors, and other critical EV components, featuring battery pack health checks, state-of-charge evaluations, and component-level analysis. Advanced tools such as real-time topology mapping, graphical system diagrams, and specialized connection guides empower technicians to safely diagnose, test, and resolve issues on electric vehicles.
What EV diagnostic tool is best for your shop?

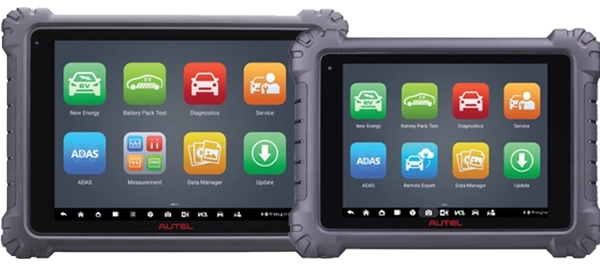

Advanced EV
Diagnostic Tablets
Autel’s EV diagnostic tablets and EVDiag Kit combine powerful software with specialized hardware to deliver complete high-voltage system insight and control. The integrated platform enables technicians to perform OE-level diagnostics, coding, and bi-directional testing on batteries, inverters, and other EV components. Real-time topology mapping, guided connection graphics, and dedicated high-voltage cables and jumpers ensure safe, accurate, and efficient diagnostics across electric and hybrid vehicles.
Advanced EV Diagnostic
and Service Tools
Autel’s advanced EV testing technology delivers complete high-voltage system analysis, from insulation integrity and battery conditioning to enclosure safety verification. These tools allow technicians to measure resistance, charge and discharge battery packs, and confirm airtightness to ensure every component meets safety and performance standards. Together, they provide a precise, efficient, and reliable solution for maintaining and validating electric vehicle high-voltage systems.
EV Diagnostic Tablets
-

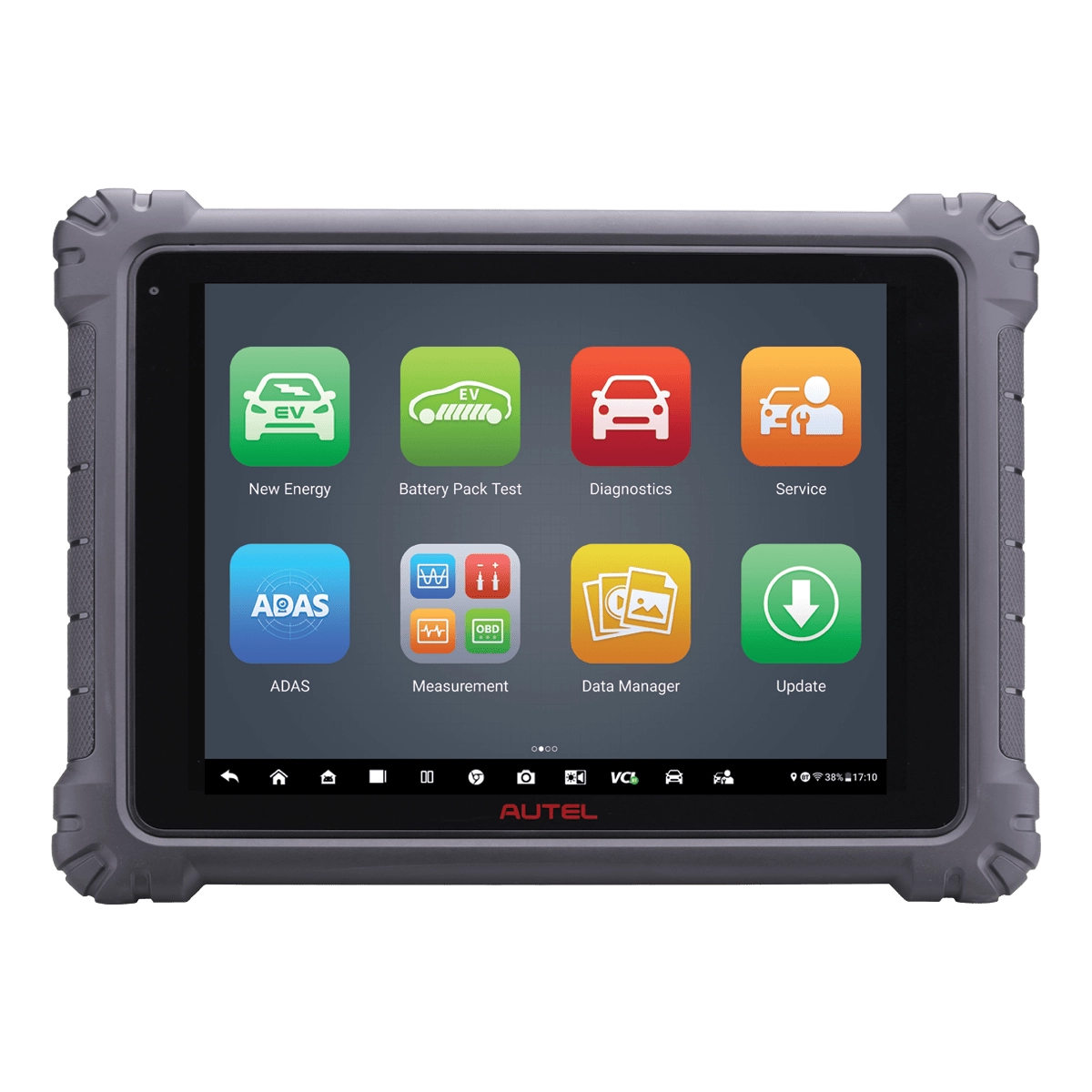

MaxiSYS Ultra EV
$6,695.0012.9" Touchscreen Advanced EV Diagnostics Tablet with MaxiFlash VCMI/J2534
- Bi-directional Active Tests, Special Functions, Coding and Adaptations; Service Menu of 40+ tasks
- Topology module mapping: color-coded communication layout of ECUs and networks
- Rapid EV high-voltage (HV) system analysis: read/erase codes, view live data, perform SOC/SOH battery pack analysis via OBD or with jumpers/special cables
- Testing and Live Data Analysis with Split-Screen Capability. 5-in-1 VCMI: Oscilloscope, Multimeter, CAN Bus Tester, Waveform Generator and J2535 pass-thru device
-

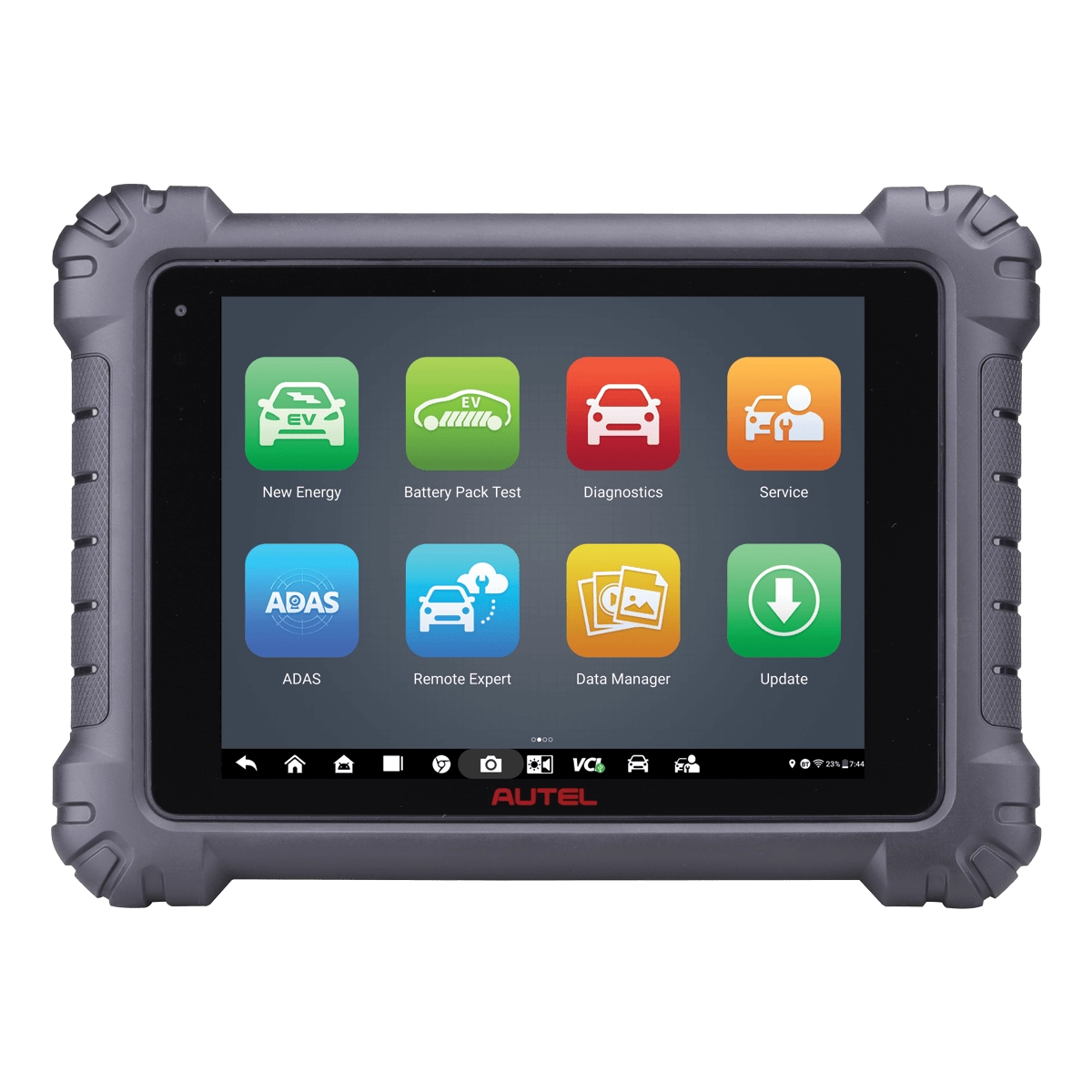

MaxiSYS MS909EV
$4,695.009.7” Touchscreen Advanced Diagnostic Tablet for Electric, Hybrid, Diesel, and Gas Vehicles, equipped with Bluetooth-enabled MF VCI/J2534
- Bi-directional Active Tests, Special Functions, Coding and Adaptations; Service Menu of 40+ tasks
- Topology module mapping: color-coded communication layout of ECUs and networks
- Rapid EV high-voltage (HV) system analysis: read/erase codes, view live data, and perform SOC/SOH battery pack analysis via OBD or with jumpers/special cables
- Ships with EV Upgrade Kit: Includes EVDiag Box, connectors, leads, and probes
-
EV Diagnostics Upgrade Kit
$1,095.00EVDiag Box & Adapters for Battery Pack Diagnostics
- Includes EVDiag Box, Adapters for BMW, Tesla, VW, and Breakout Leads
- State of Charge and State of Health analysis for true battery condition
- Compatible with Ultra series products to perform Battery Pack diagnostics
- Blow-molded Carrying Case for Diag Box, adapters and leads
EV Diagnostic Tools
EV Diagnostic Accessories
-
EV Diagnostics Upgrade Kit
$1,095.00EVDiag Box & Adapters for Battery Pack Diagnostics
- Includes EVDiag Box, Adapters for BMW, Tesla, VW, and Breakout Leads
- State of Charge and State of Health analysis for true battery condition
- Compatible with Ultra series products to perform Battery Pack diagnostics
- Blow-molded Carrying Case for Diag Box, adapters and leads
-

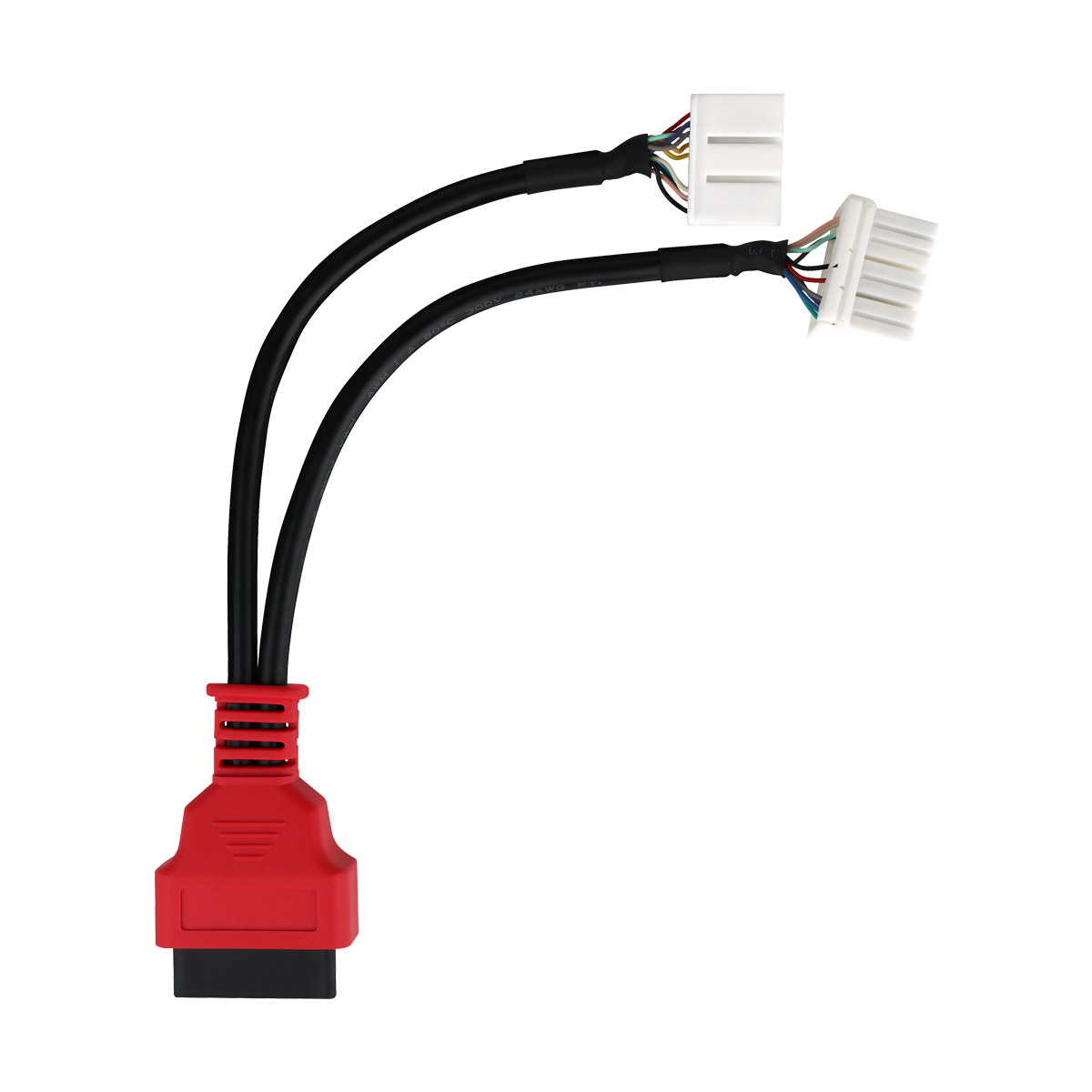

Tesla-Compatible Diagnostic Adapter Cable
$129.00Diagnostic cable for Tesla 3, Y, S, and X models vehicles, 12 and 20 pin to 16 pin adapter
- Two-in-one cable design, compatible with Tesla X, S, Y and 2021+ model 3 vehicles
- 12 pin and 20 pin adapters to 16 pin connection
- Connect to X437 port on Tesla S and X models
- Connect to CAN port on Tesla Y and 2021+ Model 3 vehicles
-
Tesla 3 and Y-Compatible Adapter
$25.00Diagnostics adapter for Tesla 3 and Y models
- Connect to vehicle and Autel VCI to read live data on 12 systems
- Enables the ability to read and erase codes on Tesla 3 and Y models
- Connection instructions included
- One Year Limited Warranty
Industry Leading
Vehicle Coverage
Autel EV diagnostics technology provides a complete suite of tools for electric and hybrid vehicles, enabling efficient, precise high-voltage (HV) system maintenance. The platform supports bi-directional testing of batteries, inverters, motors, and other critical EV components, featuring battery pack health checks, state-of-charge evaluation, and component-level analysis. Advanced features like real-time topology mapping, graphical system diagrams, and specialized connection guides empower technicians to safely diagnose, test, and resolve issues on these electric vehicles.
Ready to Get Started?
Contact our diagnostic experts
Explore More General Auto Repair Solutions

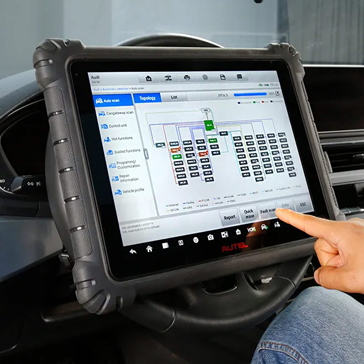

Diagnostic
Tools
EV
Diagnostics

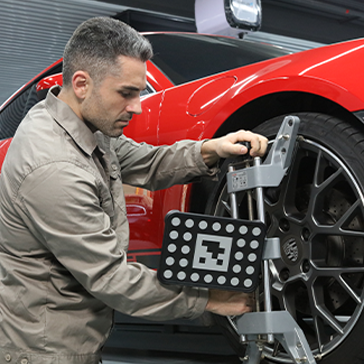

Alignment
& ADAS
TPMS Tools
& Sensors

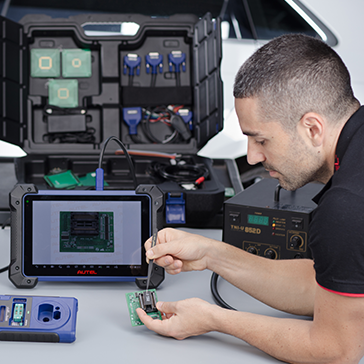

Key
