Vehicle Lifts 15K 4-Post Alignment Lift
Service & Alignment Vehicle Lift

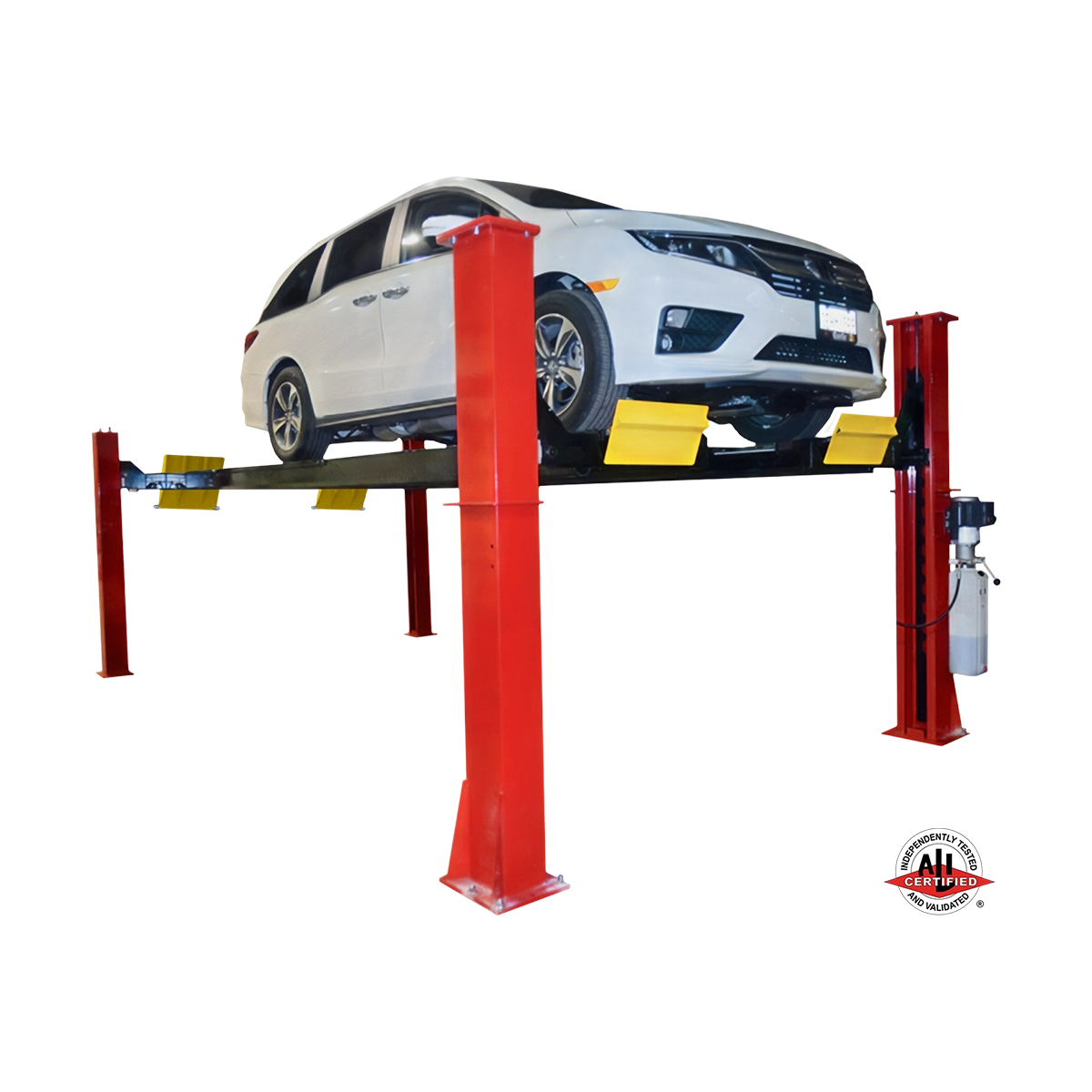

The Autel Alignment 15K Open Post Lift, part number 415ALORR1P, is an ALI-certified 4-post alignment lift has a rated capacity of 15,000 lb. and features an open-front design for alignment service. The lift has an overall length of 257-7.8 inches with 210-inch runways. Maximum alignment capability is 164 inches for four-wheel alignments and 193.5 inches for two-wheel alignments. The lift is equipped with full-floating rear slip plates, UHMW turn plate pocket protectors, and stainless steel front radius plates. Two sets of rollback bars are included. Service capability is expanded with two heavy-duty air/hydraulic rolling jacks, each rated at 7,500 lb. capacity and covered by a five-year parts warranty. Rail detents are integrated for the accurate positioning of the hydraulic jacks. Additional features include a center-mount air outlet kit, LED light kit, and tire inflation air kits at each wheel. The lift operates on a 220-volt, single-phase power unit. Finish includes black runways and baseframes, yellow front and rear ramps, and red columns, with a red Autel logo label.
