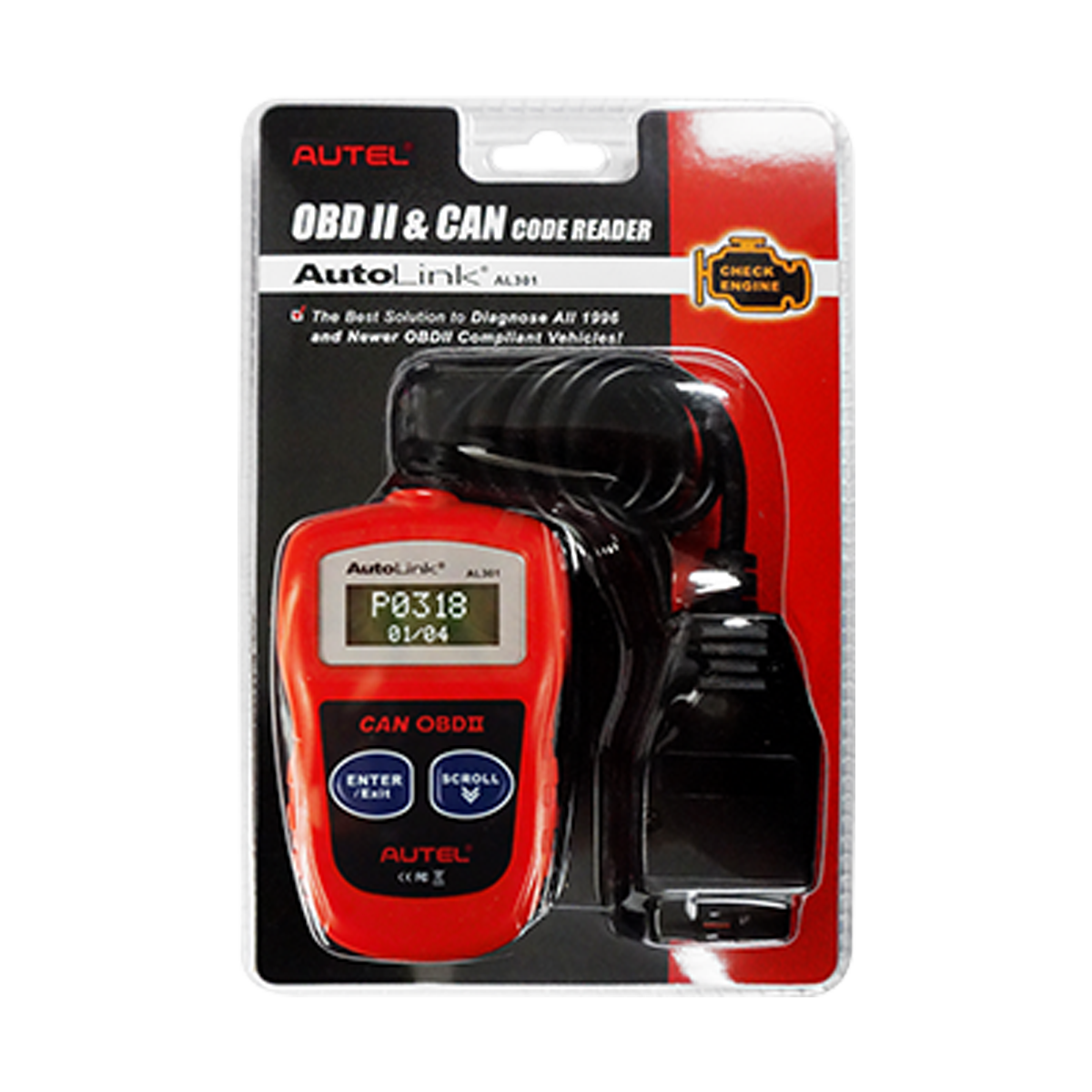

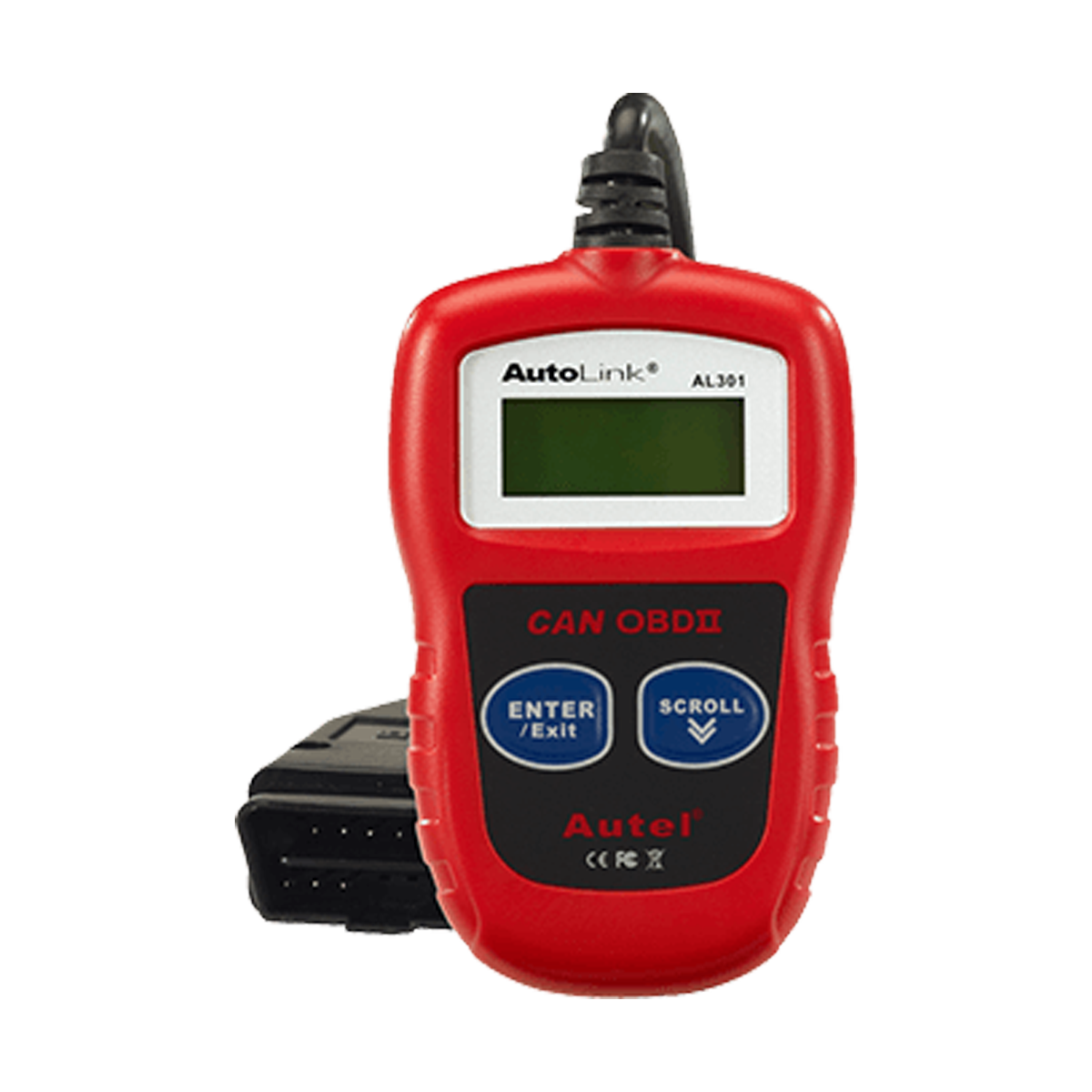

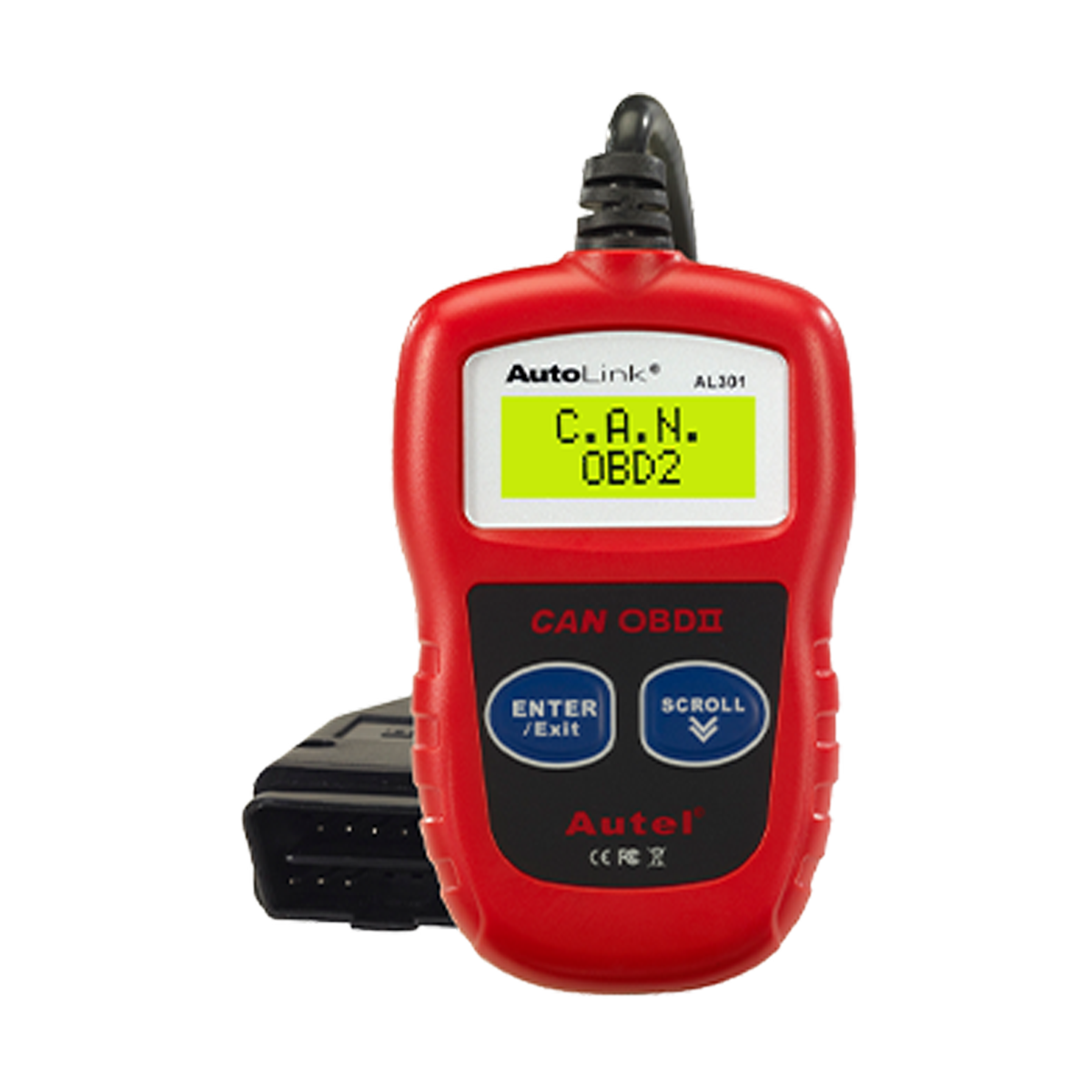

AutoLINK AL301
Vehicle OBDII/CAN Code Reader
The AutoLink AL301 is the most powerful, affordable and easiest-to-use tool for DIY customers. It enables the user to read and clear diagnostic trouble codes(DTCs) from the on-board computers of 1996 and newer OBD II compliant vehicles. It also provides VIN info and performs the task of (I/M) Inspection maintenance readiness testing by displaying the I/M readiness monitor status.
| Availability: | This product has been discontinued. |
|---|
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads
- What's Included
- Sold Separately
- Compare Similar
- Compatible with most 1996 and newer vehicles (OBD II & CAN)
- Supports multiple trouble code requests: generic codes, pending codes and manufacturer specific codes
- Reads and displays DTCs
- Erases DTCs
- Reads and displays I/M monitor status
- Reads and displays VIN
- Resets and turns off the MIL
- Easy to use with one plug-in
- with over 7000 DTC definitions
| Display | Backlit LCD, 2 lines, 8 characters each line |
| Operating Temperature | 0 to 50°C (32 to 122 F°) |
| Storage Temperature | -20 to 70°C (-4 to 158 F°) |
| External Power | DC12V provided via the vehicle’s battery |
| Dimensions (LxWxH) | 110mm (4.33")\69mm (2.72")\18mm (0.71") |
| Weight | 0.153kg (0.337b) |
 | AutoLINK AL301 User Manual | Download |
