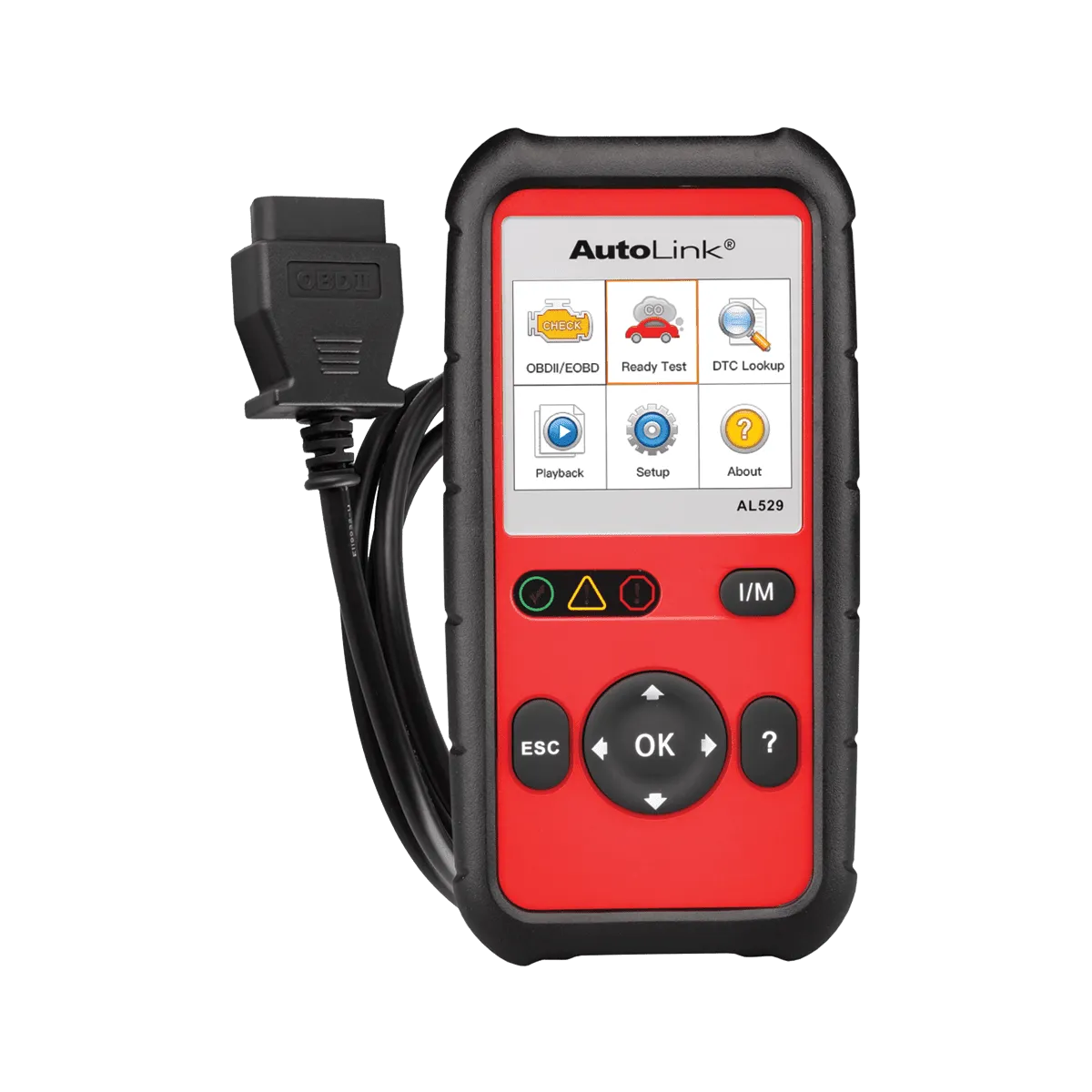

AutoLINK AL529

Advanced Engine Code Reader

The AutoLINK AL529 can read/erase current, pending and permanent trouble codes, query Freeze Frame data and features a one-click I/M Readiness (Emissions) Status key to instantly see if your vehicle will pass emission inspection. It is a more advanced tool with the ability to also view Mode 6 data, displaying the results of onboard emissions-related tests including O2, On-Board and Component tests. Mode 6 data can also be accessed. The AL529 also enables the technician to not only view Live Data but also store and replay it. Plus, the AL529 also can read enhanced Powertrain codes for Ford, GM and Chrysler vehicles. Connect the tool to a pc to print a repair record. The AL529 includes free software updates for the life of the tool.

Availability:

This product has been discontinued.

SKU: AL529 Category: Tag:
  • Read/ Erase DTCs for Engine
  • Read Enhanced Powertrain Codes on GM/Ford/Chrysler
  • One-Touch I/M Readiness/ LED Indicator
  • FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
  • Tests: O2 Monitor, On-Board Monitor, and Oxygen Sensor
  • Support All 10 OBDII Test Modes
  • Enhanced Mode 6 Diagnostics
  • Graph/ Record & Playback Live Data
  • Display Live & Freeze Frame Data
  • Covers Domestic, Asian & European Vehicle Manufacturers (1996+)
  • Includes OBDII Cable
  • Easy-To-Use Navigation /Software Updates via PC
  • Full Color Display 320x240
  • Save Files with Micro SD Card (not included)

Additional information

Availability:

This product has been discontinued.

Specifications

Display 2.8-inch LCD (320×240 dpi)
Connectivity USB mini 2.0 OBD II DB15
Operating Temperature 0℃ to 60 ℃ (32℉ to 140℉)
Storage Temperature -20℃ to 70 ℃ (-1℉ to 158℉)
External Power 8.0 to 18.0V power provided via vehicle battery
Dimensions (LxWxH) 183 mm (7.2”) x 91 mm (3.58”) x 33 mm (1.3”)
Weight 237 g (0.522 lb.)

Videos

Downloads

PDF AutoLINK AL529 User Manual Download
PDF AutoLINK AL529 User Manual (Spanish) Download
PDF AutoLINK AL529 Quick Start Guide Download
PDF AutoLINK AL529 Quick Start Guide (French) Download

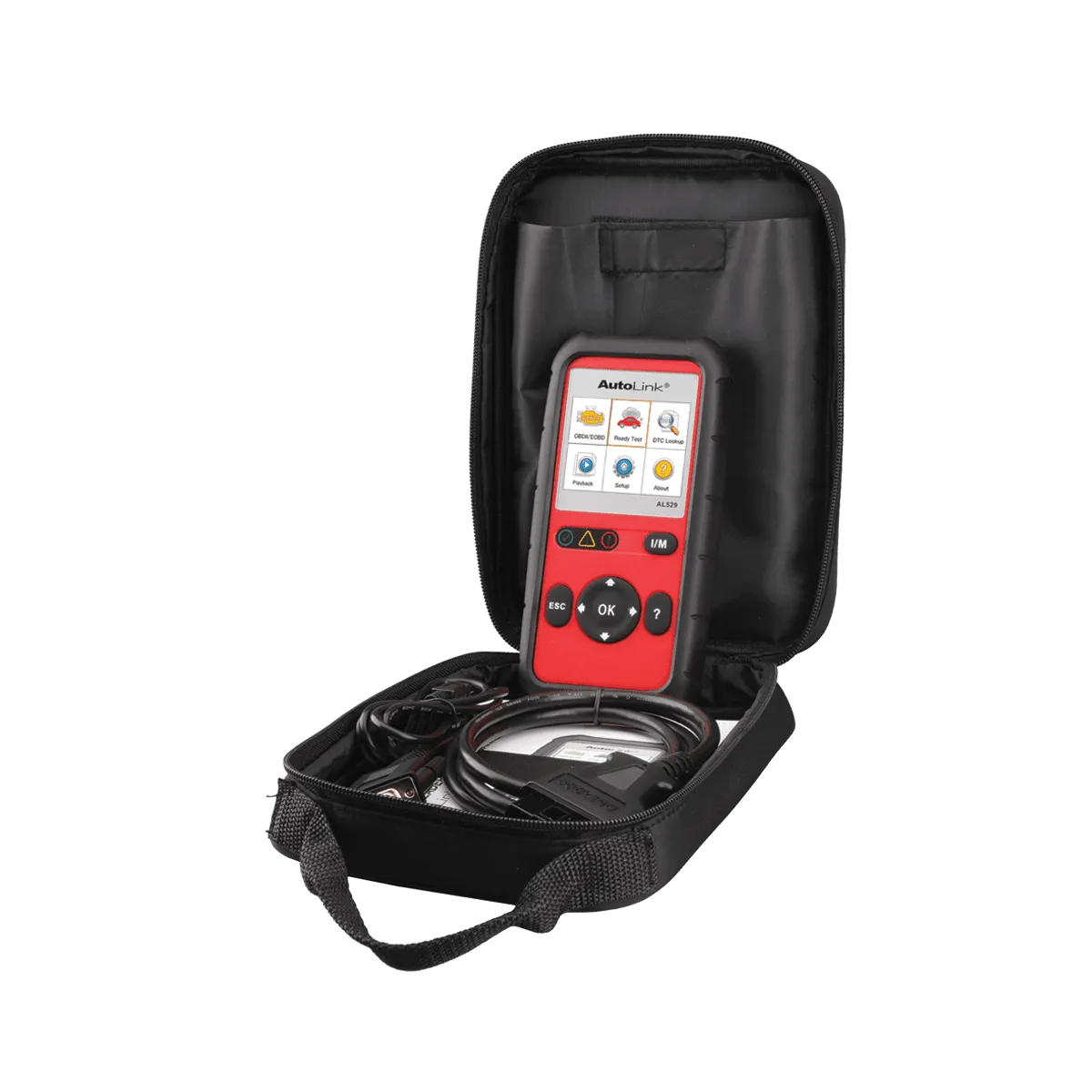

What's Included

Compare Similar

AutoLINK AL329 AutoLINK AL529 AutoLINK AL539
  AutoLink AL329 AutoLink AL529 AutoLink AL539
HARDWARE
Connection
OBDII Cable
OBDII Cable
OBDII Cable
Screen
1.6-Inch Display
220 x 176 DPI / LED Color Screen
2.8-Inch Display
320 x 240 DPI / LCD Color Screen
2.8-Inch Display
320 x 240 DPI / LED Color Screen
Memory
16GB Micro SD Card
Included
SOFTWARE
Operating System
Easy tool navigation
Easy tool navigation
Easy tool navigation
Software Updates
FREE for life of tool
FREE for life of tool
Automatic Detection
Auto-Vin 2006+
Auto-Vin 2006+
Vehicle Coverage
US, Asian & European
1996 And Newer
Vehicles compatible with OBD protocols
US, Asian & European
1996 And Newer
OBDII Test Modes
Live & Freeze Frame Data
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
FEATURES
Language
Tri-Lingual
Tri-Lingual
Print Data
USB Cord to PC
USB Cord to PC
One Click I/M Readiness
Quick Key Indicator Lights
Quick Key Indicator Lights
Internet Updates
USB Cord to PC
USB Cord to PC
Electrical Tests
Starting, Circuit Charging, Voltage, Continuity & Current
Voltage Test Probes
Included
Emissions Component Test
I/M Readiness
I/M Readiness
O2 & on-board monitor
MIL
Read MIL status
Read MIL status
Read MIL status
Data
Save & Playback
Testing
Component Test
Mode 6
Enhanced
Read/Erase DTCS
Engine
Engine/TRANS
Manufacturer-Specific Codes
