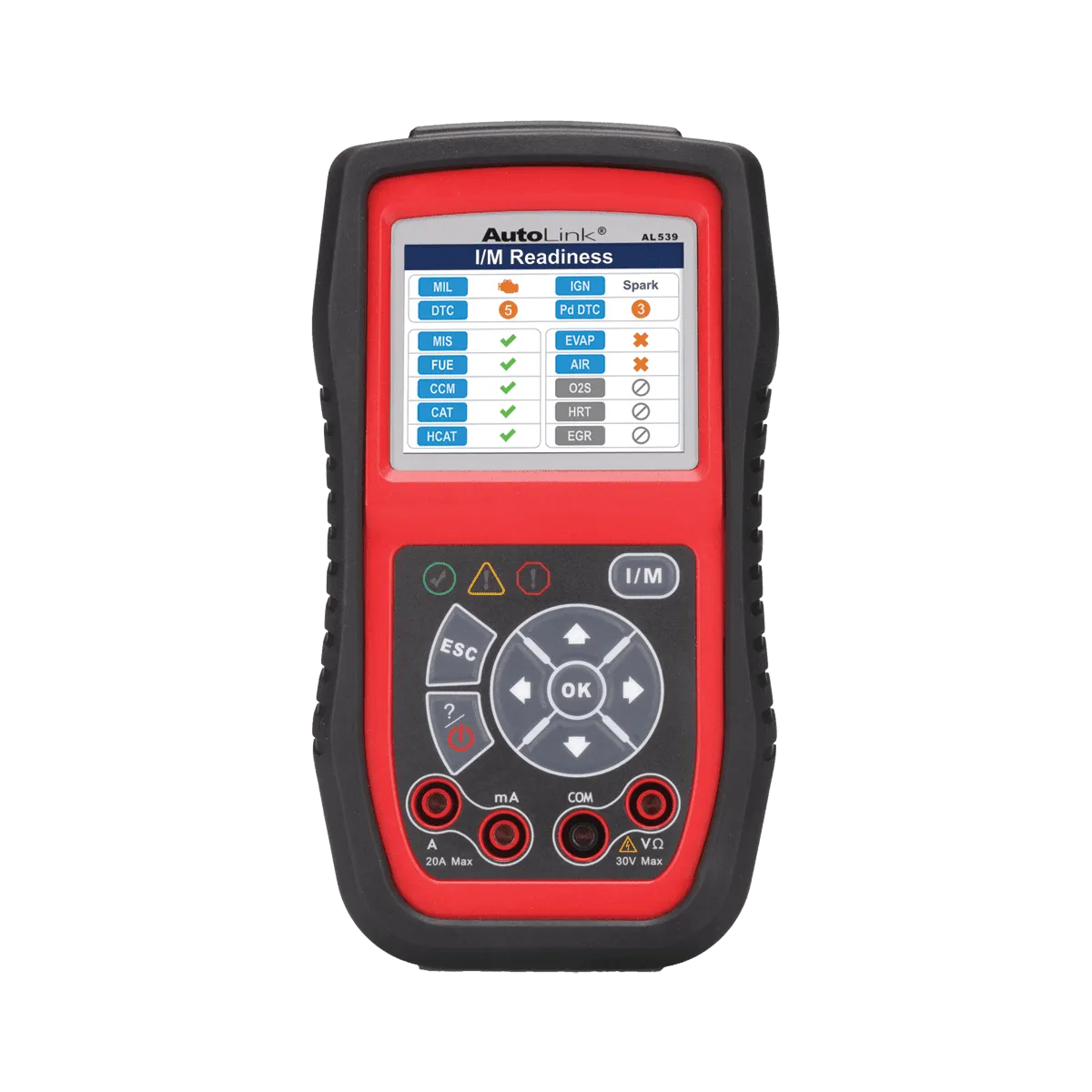

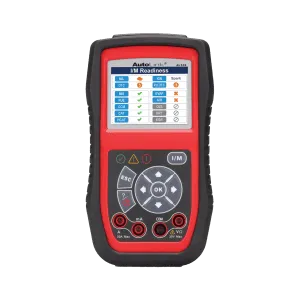

AutoLINK AL539
Electrical Test Tool / CAN OBDII
The AutoLINK AL539 is an engine code reader and electrical testing tool. It can read and erase engine codes, display live and freeze frame data, supports all 10 OBDII test modes, and has one-click I/M readiness/emissions testing. An OBDII cable, voltage test probes and an AVO meter are included for testing the starting, circuit, voltage, continuity, current, and charging systems. It is updatable via PC, and a 1-year tool warranty and free lifetime software updates are available with purchase.
| Availability: | This product has been discontinued. |
|---|
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads
- What's Included
- Sold Separately
- Compare Similar
- Read & Erase Engine DTCs
- Tests Starting, Circuit & Charging Systems
- AVO Meter Tests Voltage, Continuity & Current
- Display Live & Freeze Frame Data
- One-Touch I/M Readiness/ LED Indicator
- FREE Lifetime Software (lifetime of tool) & 1Yr Warranty

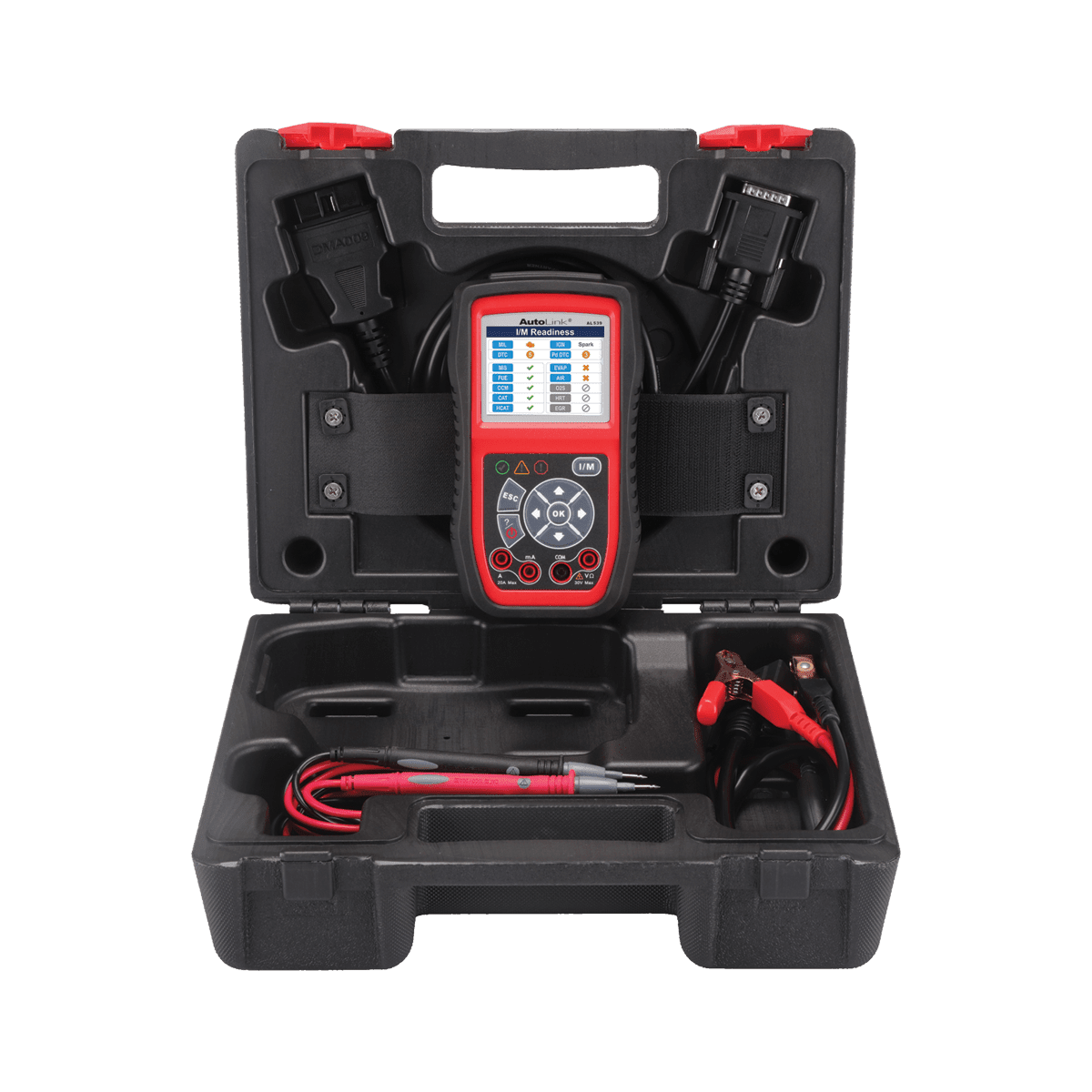

- Includes Voltage Test Probes & OBDII Cable
- Support All 10 OBDII Test Modes
- Covers Domestic, Asian & European Vehicle Manufacturers (1996+)
- Easy-To-Use Navigation/ Software Updates via PC
- Full Color Display 320×240
| Display | TFT color display (320 x 240 dpi) |
| Operating Temperature | 0 to 60°C (32 to 140 F°) |
| Storage Temperature | -20 to 70°C (-4 to 158 F°) |
| Dimensions (LxWxH) | 175 mm (6.91”)96.6 mm (3.80”)37 mm (1.46”) |
| Weight | 0.3kg (0.8lb, without wire) or 0.68kg (1.82lb, with wire) |

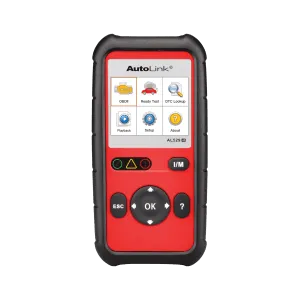

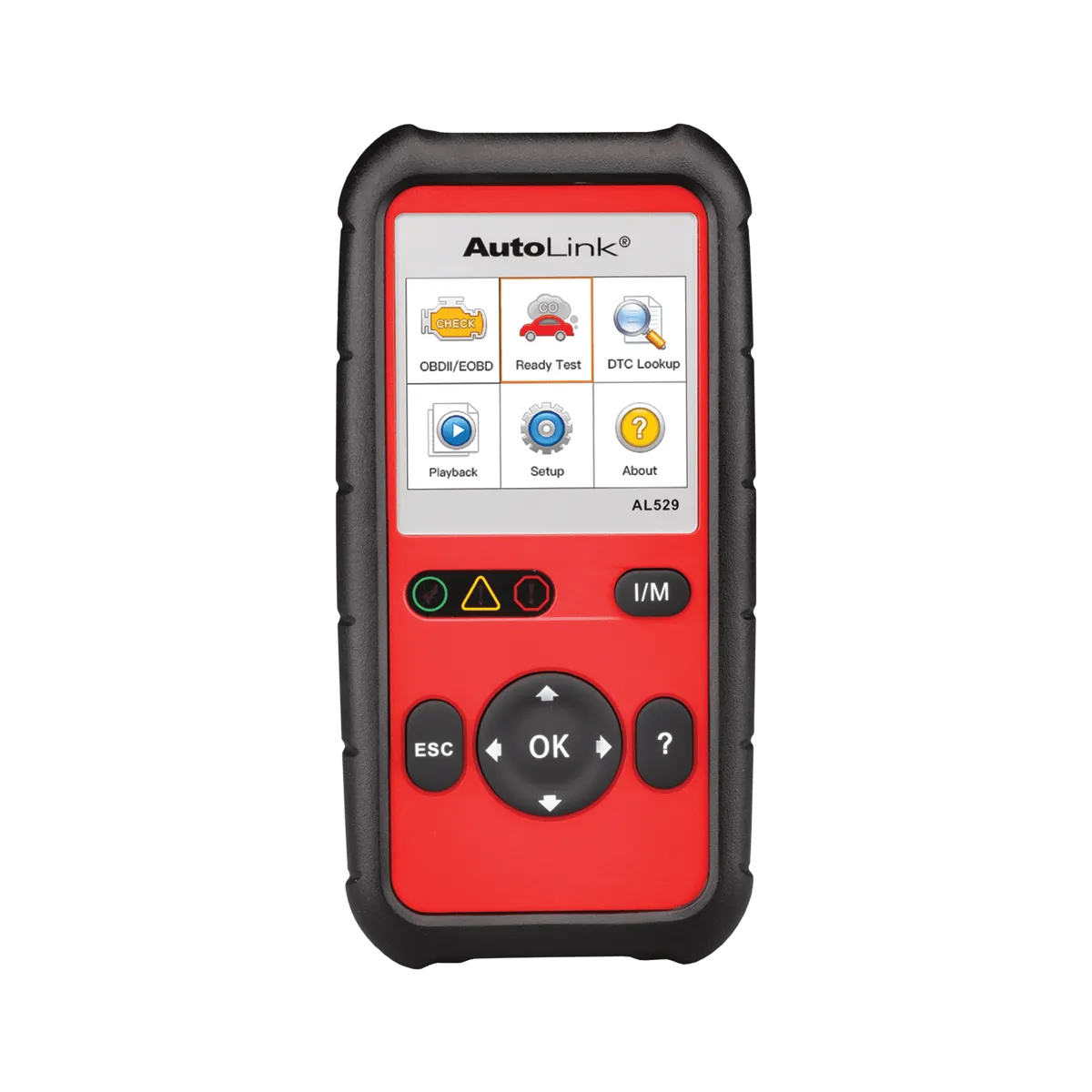

| AutoLINK AL529 | AutoLINK AL539 | AutoLINK AL529HD Heavy Duty | |
|---|---|---|---|
 |  |  | |
| HARDWARE | |||

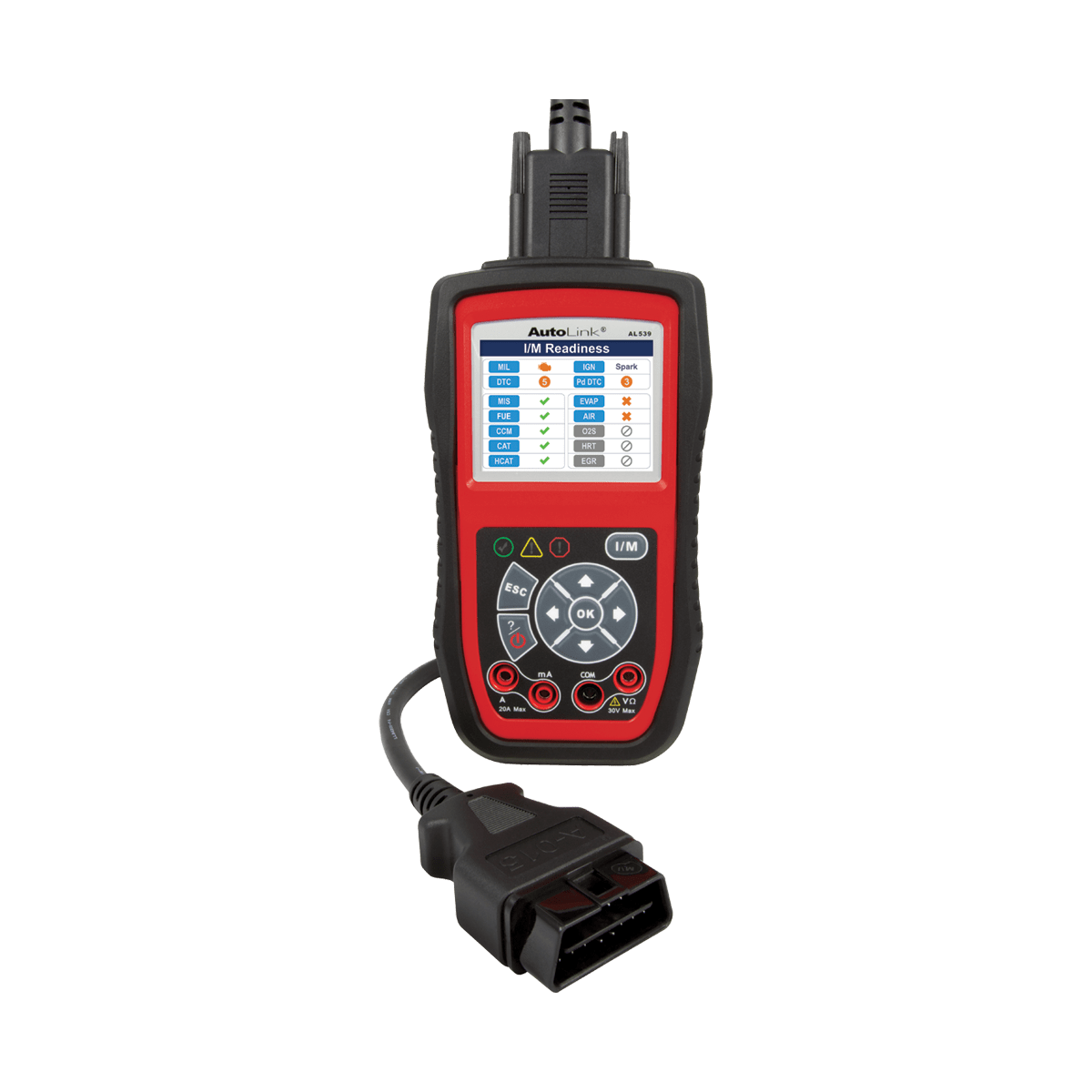

| Connection | OBDII Cable | OBDII Cable | OBDII Cable |
| Screen | 2.8-Inch Display 320 x 240 DPI / LCD Color Screen | 2.8-Inch Display 320 x 240 DPI / LED Color Screen | 2.8-Inch Display 320 x 240 DPI / LED Color Screen |
| Memory | — | 16GB Micro SD Card Included | 16GB Micro SD Card Included |
| SOFTWARE | |||
| Operating System | Easy tool navigation | Easy tool navigation | Easy tool navigation |
| Software Updates | — | FREE for life of tool | FREE for life of tool |
| Automatic Detection | — | Auto-Vin 2006+ | Auto-Vin 2006+ Manufacturer-specific codes |
| Vehicle Coverage | Vehicles compatible with OBD protocols | US, Asian & European 1996 And Newer | US, Asian & European 1996 And Newer |
| OBDII Test Modes | — | All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6 | All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6 |
| FEATURES | |||
| Language | — | Tri-Lingual | Tri-Lingual |
| Print Data | — | USB Cord to PC | USB Cord to PC |
| One Click I/M Readiness | — | Quick Key Indicator Lights | Quick Key Indicator Lights |
| Internet Updates | — | USB Cord to PC | USB Cord to PC |
| Electrical Tests | — | Starting, Circuit Charging, Voltage, Continuity & Current | — |
| Voltage Test Probes | — | Included | — |
| Emissions Component Test | — | I/M Readiness O2 & on-board monitor | I/M Readiness O2 & on-board monitor |
| MIL | Read MIL status | Read MIL status | Read MIL status |
| Data | — | Save & Playback | Save & Playback |
| Testing | — | Component Test | Component Test |
| Mode 6 | — | Enhanced | Enhanced |
| Read/Erase DTCS | — | Engine/TRANS | Heavy Duty Engine |
| Manufacturer-Specific Codes | — | — | Read power system codes for Ford/GM/Chrysler |
You may also like…
-

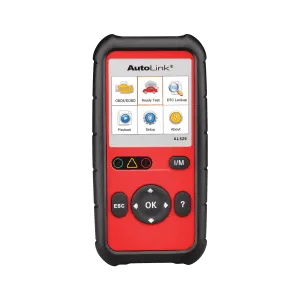

AutoLINK AL529
