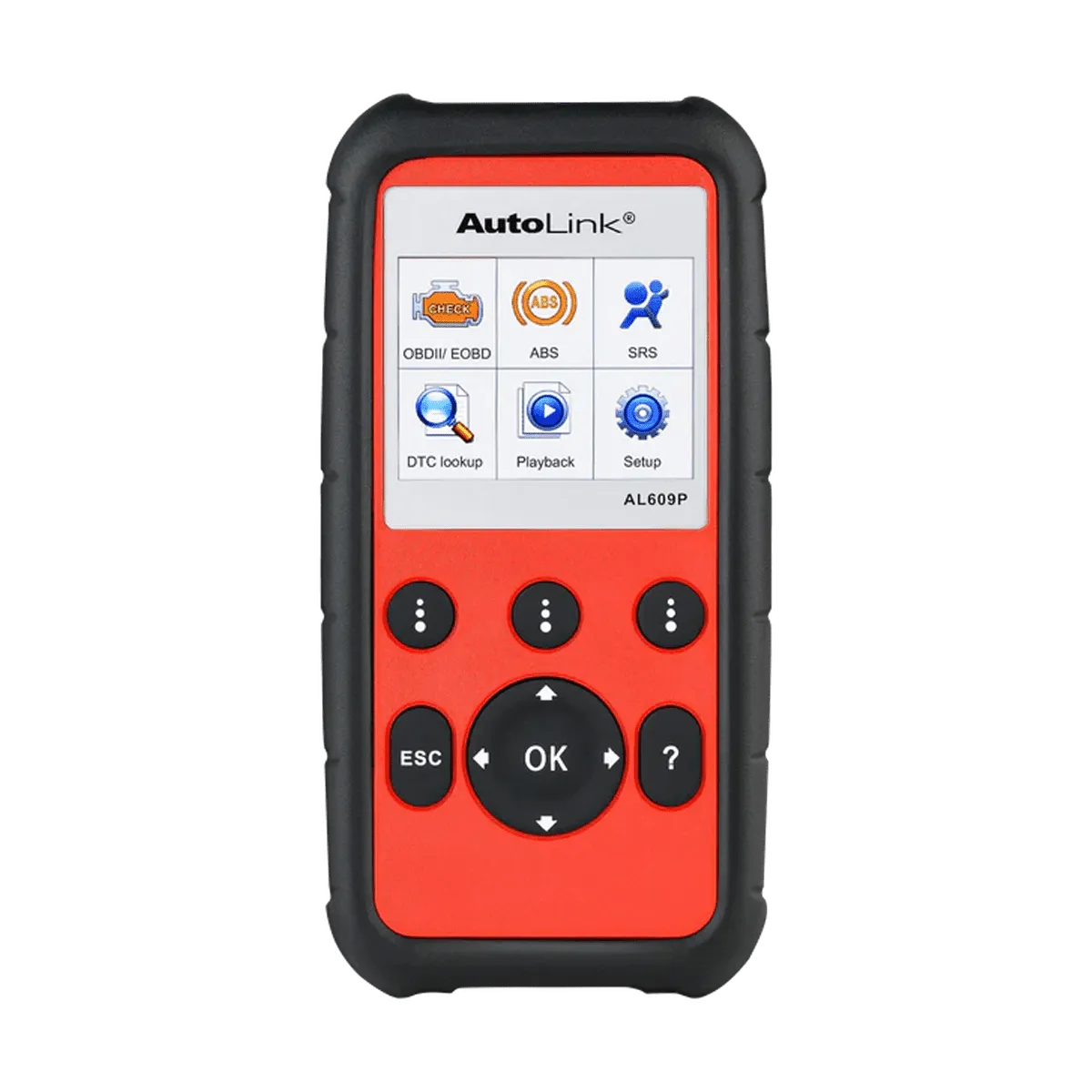

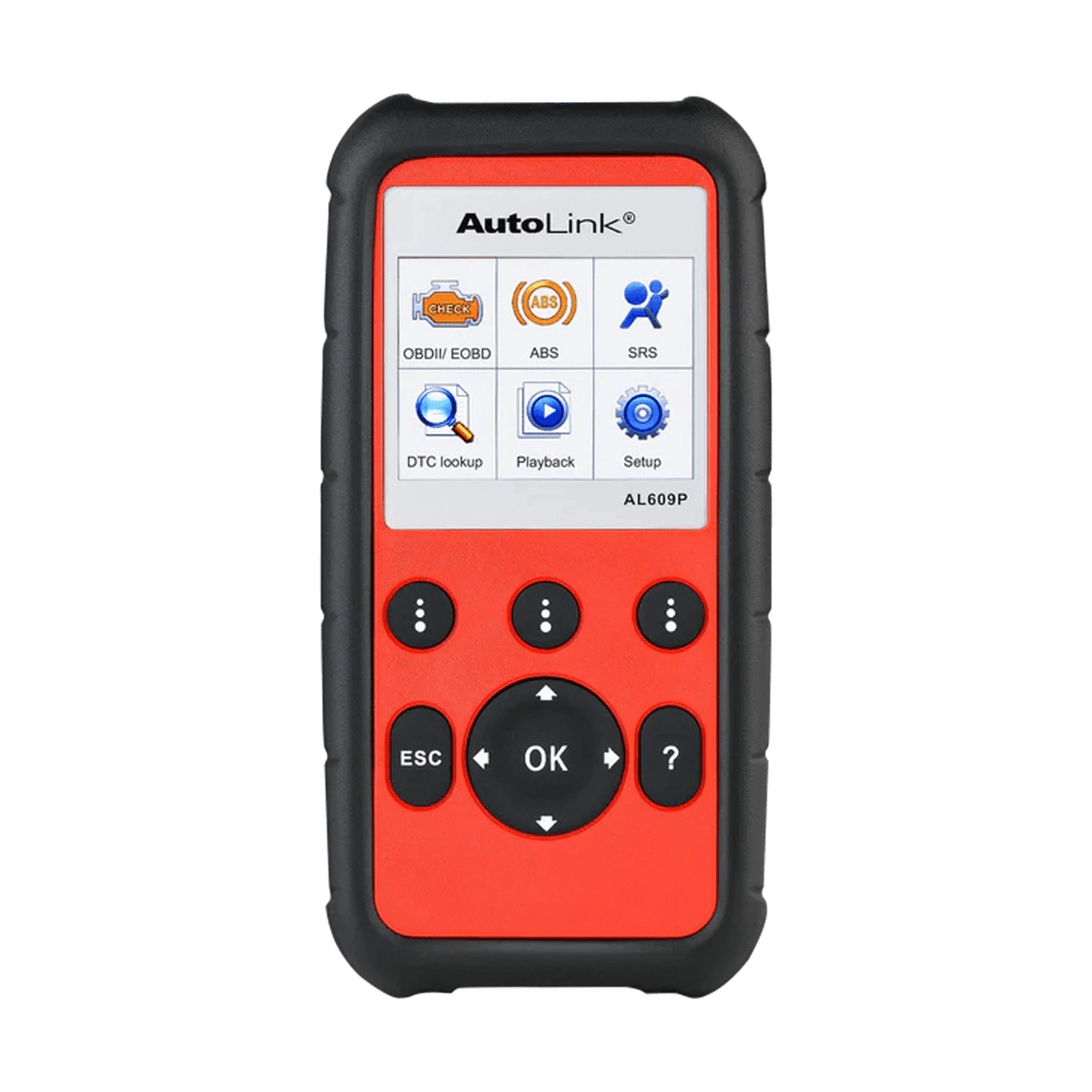

AutoLINK AL609P
3 System Code Reader
The AutoLINK AL609P can read and erase codes on domestic, Asian and European vehicles, 1996 and newer. In addition to scanning engine codes, the AL609P can also scan ABS and SRS (airbag) systems for codes. The AL609P can retrieve vehicle information (VIN, CALID and CVN). The AL609P displays, graphs, records and plays back Live Data and supports all 10 test modes of the latest J1979 OBDII test specs. The AL609P also presents I/M Readiness (emissions) status. The tool also presents enhanced Mode 6 data. Users can view Data Trouble Code (DTC) definitions on screen. The AL609P features a 2.8” LCD display and also can print a repair report when connected to a pc. Software updates, easily downloaded directly from Autel’s website, are free for the life of the tool.
Availability: | This product has been discontinued. |
---|
- Read/ Erase DTCs for ABS/ SRS/ Engine
- AutoVIN 2006+ Manufacturer-Specific Codes
- Tests: O2 Monitor, On-Board Monitor & O2 Sensor
- I/M Readiness/ Emissions Testing
- FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
- Support All 10 OBDII Test Modes
- Enhanced Mode 6 Diagnostics
- Graph, Record & Playback Live Data
- Display Live & Freeze Frame Data
- Covers Domestic, Asian & European Vehicle Manufacturers (1996+)
- Includes OBDII Cable
- Easy-To-Use Navigation /Software Updates via PC
- Full Color Display 320x240
- Save Files with Micro SD Card (not included)
Additional information
Availability: | This product has been discontinued. |
---|
Specifications
Display | 2.8-inch LCD (320 x 240 dpi) |
Connectivity | USB mini 2.0 OBD II DB15 |
Operating Temperature | -10°C to 60°C (14°F to 140°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
External Power | 8.0 to 18.0 V power provided via vehicle battery |
Dimensions (LxWxH) | 182.8 mm (7.2”) x 90.9 mm (3.6”) x 33.2 mm (1.3”) |
Weight | 237.9 g (0.524 lb.) |
