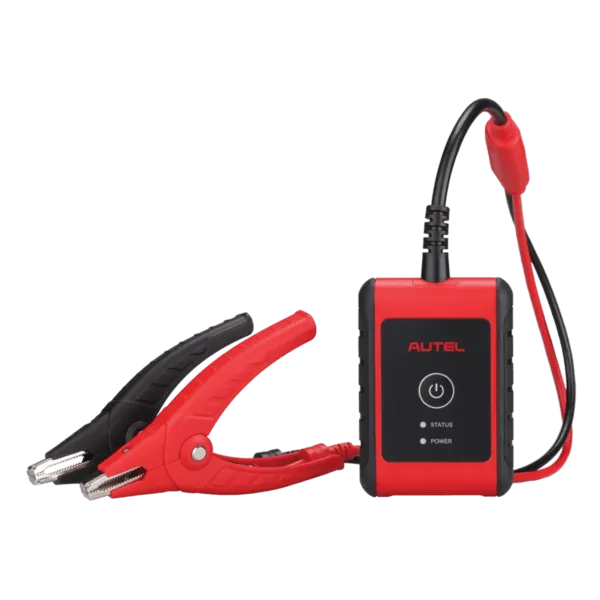

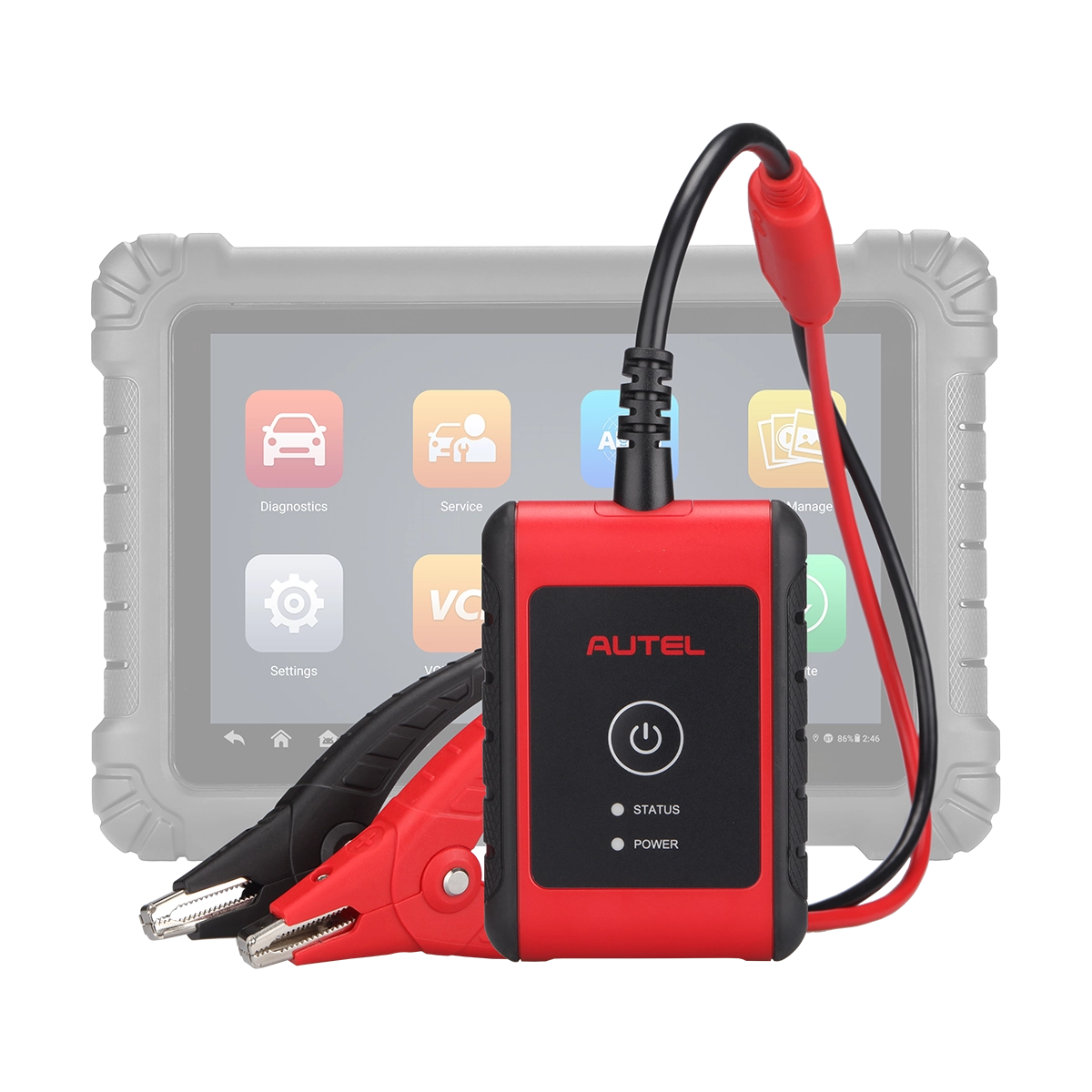

MaxiBAS BT506
Battery Testing and Analysis

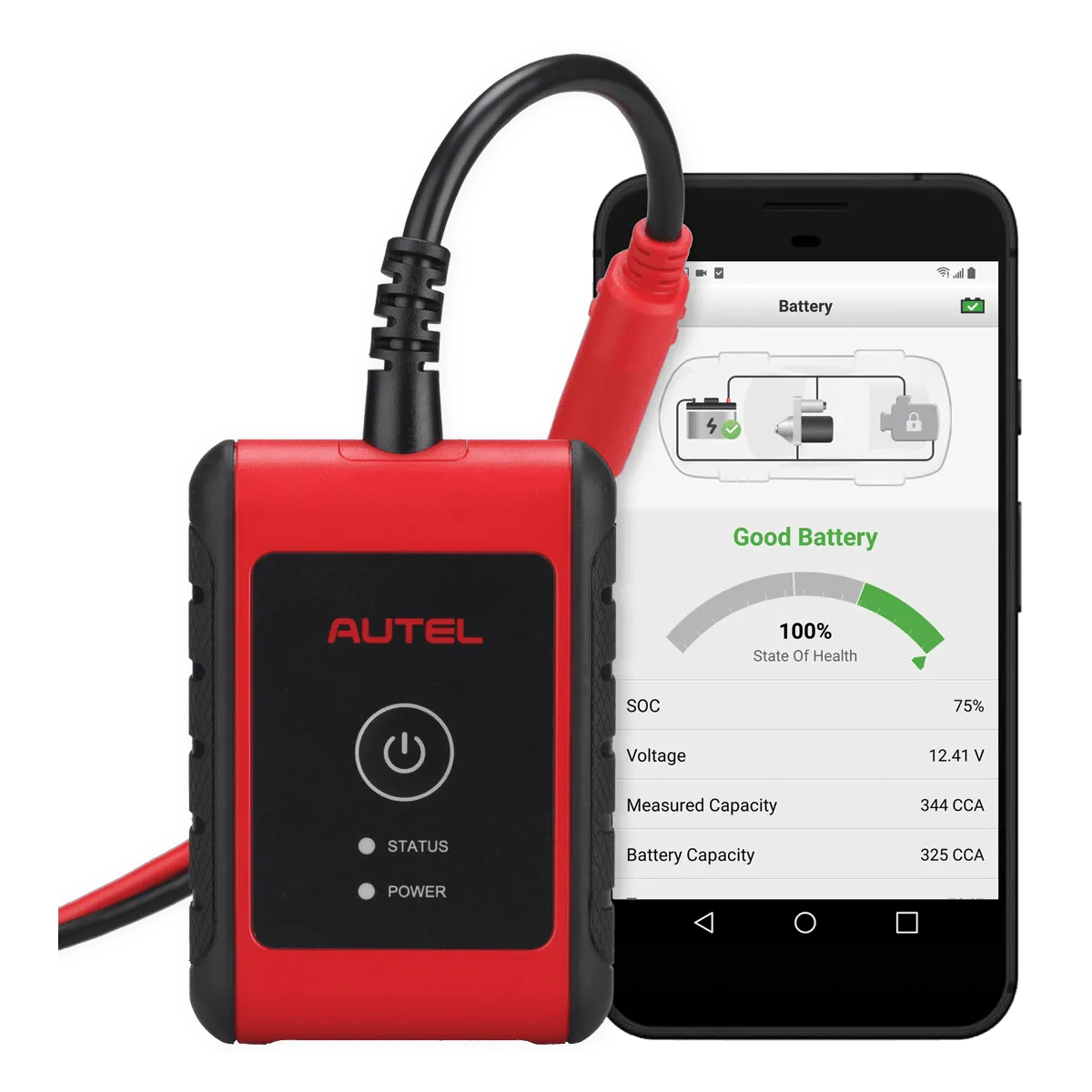

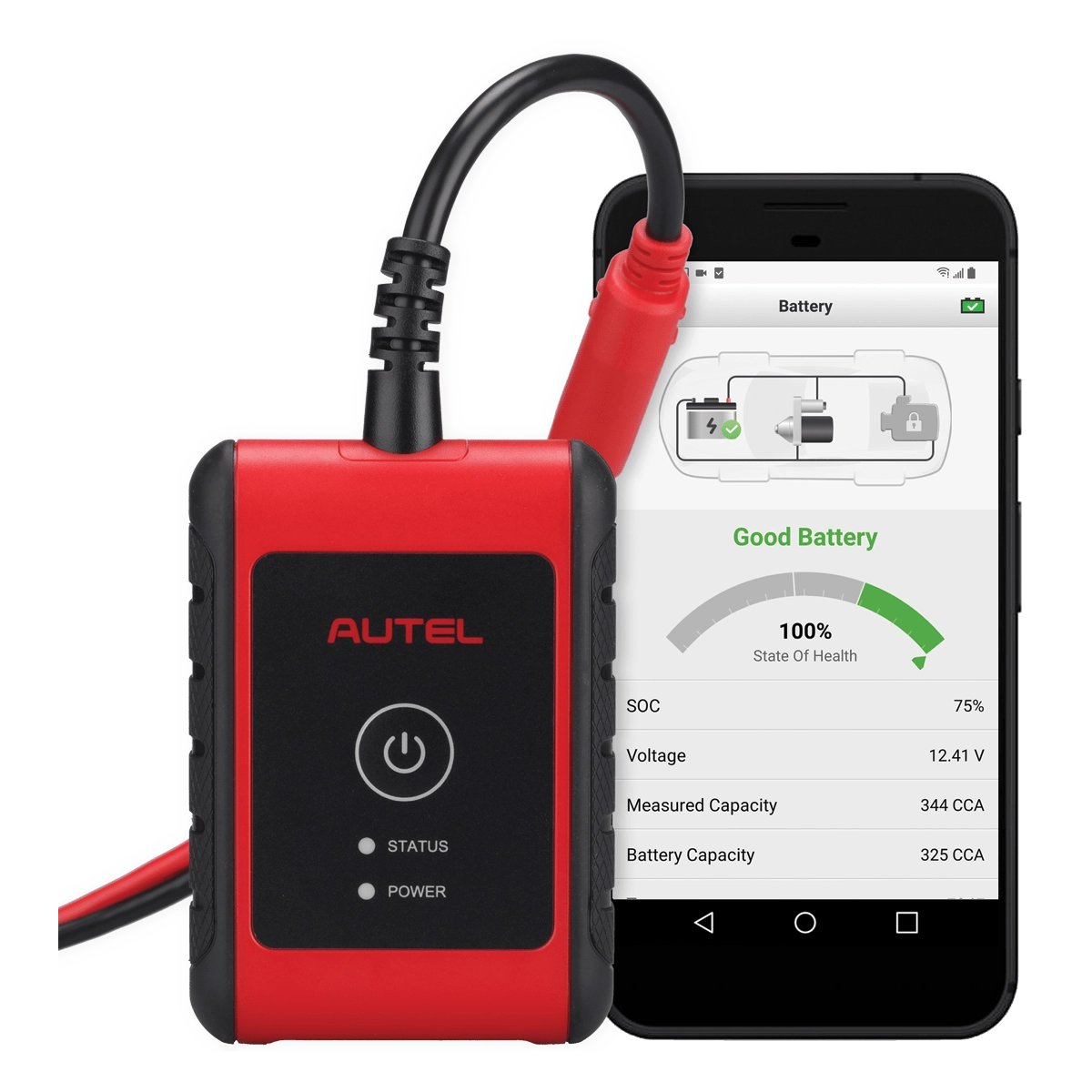

The BT506 is a battery and electrical system analysis tool that uses Adaptive Conductance, an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT506 enables technicians to view the health status of vehicle’s battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT506 to perform testing and display test results. Includes connected cable with clamps.
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads
- What's Included
- Sold Separately
- Compare Similar
- BT506 is a Battery and Electrical System Analysis tool and App
- Includes Connected Cable with Clamps
- Support In-vehicle and Out-of-vehicle Testing of Passenger Vehicle Batteries
- Test 6- and 12-volt batteries: 100 – 2000 CCA
- Test 12- and 24- cranking/charging systems
- Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
- Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

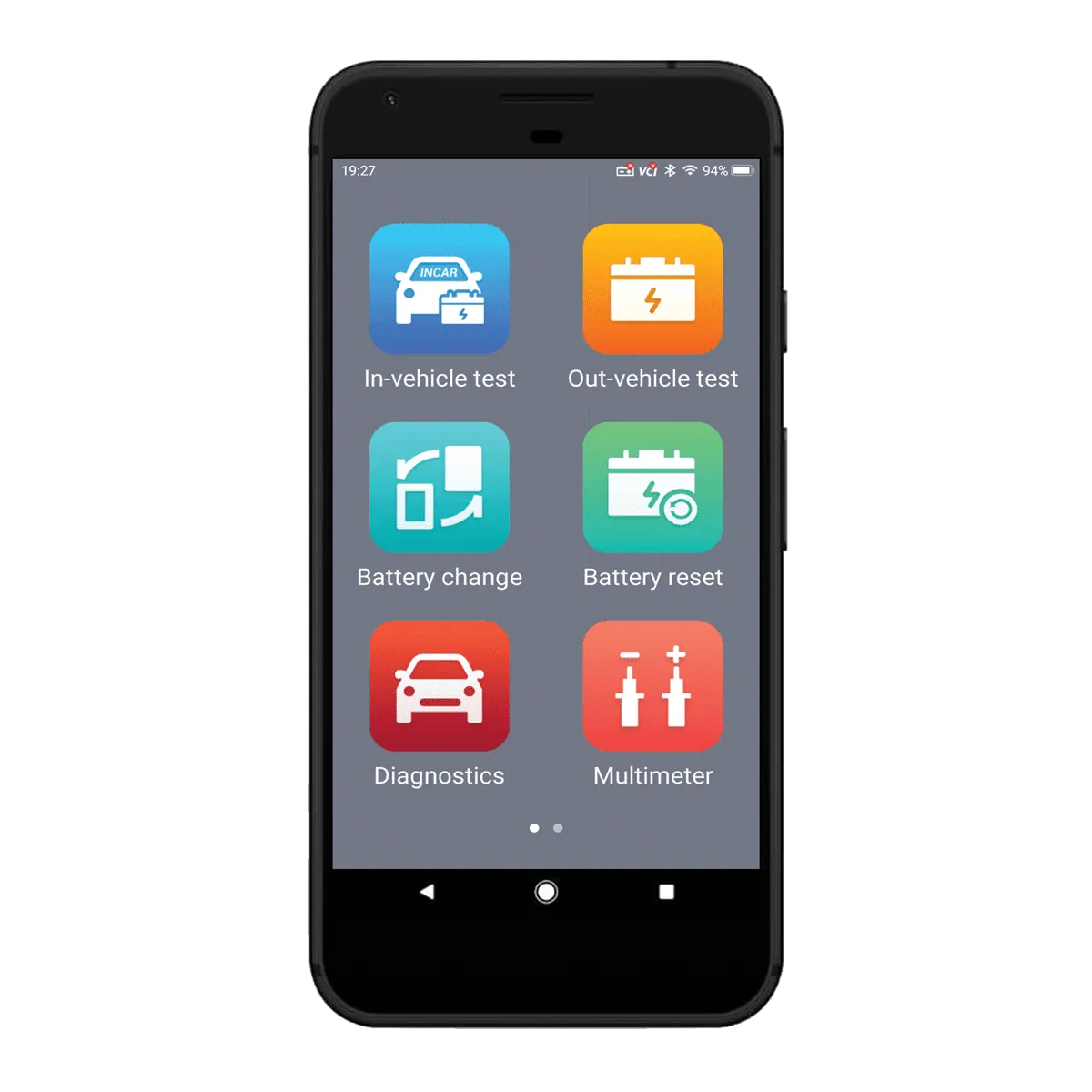

- Download Free App from Google Play and the App Store
| Connectivity |
|
| Input Voltage | 5V DC |
| Working Current | < 150 mA at 12 V DC |
| Internal Battery | N/A |
| CCA Range | 100 to 2000 A |
| Voltage Range | 6 to 36 V |
| Operating Temperature | -10°to 50° C (14° to 122° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Dimensions (W x H x D) | 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included) |
| Weight | 320 g (0.7 lb.) |
 | MaxiBAS BT508 and BT506 Flyer | Download |
| MaxiBAS BT506 | MaxiBAS BT508 | MaxiBAS BT608 | |
|---|---|---|---|
| Image |  |  |  |
| HARDWARE | |||
| Screen | — | — | 5.5-Inch Touchscreen 720 x 1280 DPI / LED Color Screen |
| Battery | — | — | 3,000 mAh 6H |
| Processor | Cortex-M4 | CORTEX-M4 | 1.5 GHz CORTEX-A35 QUAD-CORE |
| Memory | — | — | 32GB SSD / 2GB RAM |
| Camera | — | — | 8.0MP |
| SOFTWARE | |||
| Operating System | — | — | ANDROID 9.0 |
| FEATURES | |||
| CCA Range | 100-2000 CCA | 100-2000 CCA | 100-3000 CCA |
| Battery Type | Flooded, AGM, AGM Spiral, EFB, GEL | Flooded, AGM, AGM Spiral, EFB, GEL | Flooded, AGM, AGM Spiral, EFB, GEL |
| Battery Ratings | CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB | CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB | CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB |
| Battery Voltage | 6V, 12V | 6V, 12V | 6V, 12V |
| Electrical System | 12V, 24V | 12V, 24V | 12V, 24V |
| Voltage Range | 1.5-36V | 1.5-36V | 1.5-36V |
| Temperature Compensation | — | — | Included |
| Battery Registration | — | 53 Vehicle Makes | 53 Vehicle Makes |
| Electrical Reset | — | Included | Included |
| System Detection | — | AUTOVIN | AUTOVIN, VINSCAN, PLATE SCAN |
| Battery Location Diagrams | Included | Included | Included |
| Battery Health Report | — | Included | Included |
| Built-In Printer | — | — | Included |
| Email Report | — | Included | Included |
| Cloud-Base Service | Included | Included | Included |
| Multimeter | — | — | Optional |
| Amp Clamp | — | — | Optional |
| DIAGNOSTICS | |||
| All System with Autoscan | — | One Vehicle Brand Only | Included |
| All Maintenance Resets | — | — | — |
| Diagnostic Software Update | — | Charge for additional vehicle brands & annual update | No Annual Update Fee |
Related Products
-
MaxiBAS BT609
$815.007" Touchscreen Battery Testing and Service Tablet with Bluetooth V200 VCI
- Comprehensive battery, starting and charging tester; Battery Registration
- All Systems Diagnostics and Service Functions
- Test Flooded, AGM, AGM Spiral, EFB, and GEL Test 6- and 12-volt, 100–3000 CCA batteries
- Compatible with Autel Battery Tester Accessory Kit (BTAK) with multimeter, current clamp and probes (sold separately)
-

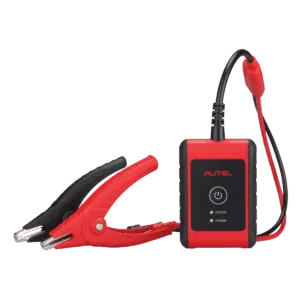

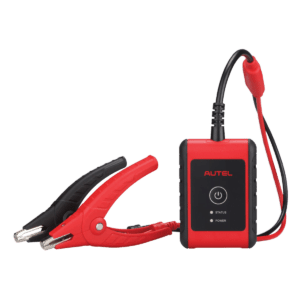

MaxiBAS BT506
$215.00Bluetooth Battery, Starting and Charging Tester with battery clamps
- Compaitble with free downloaded iOS and Android app
- Compatible with Autel diagnostics and service tablets with Battery Test application
- Test Flooded, AGM, AGM Spiral, EFB and GELTest 6- and 12-volt 100-2000 CCA Batteries
-

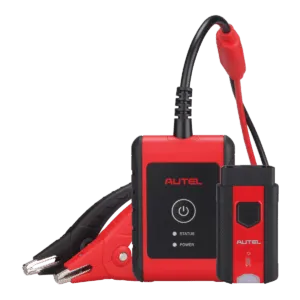

MaxiBAS BT508
$315.00 -

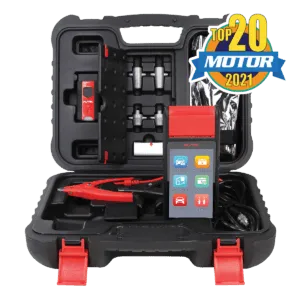

MaxiBAS BT608
