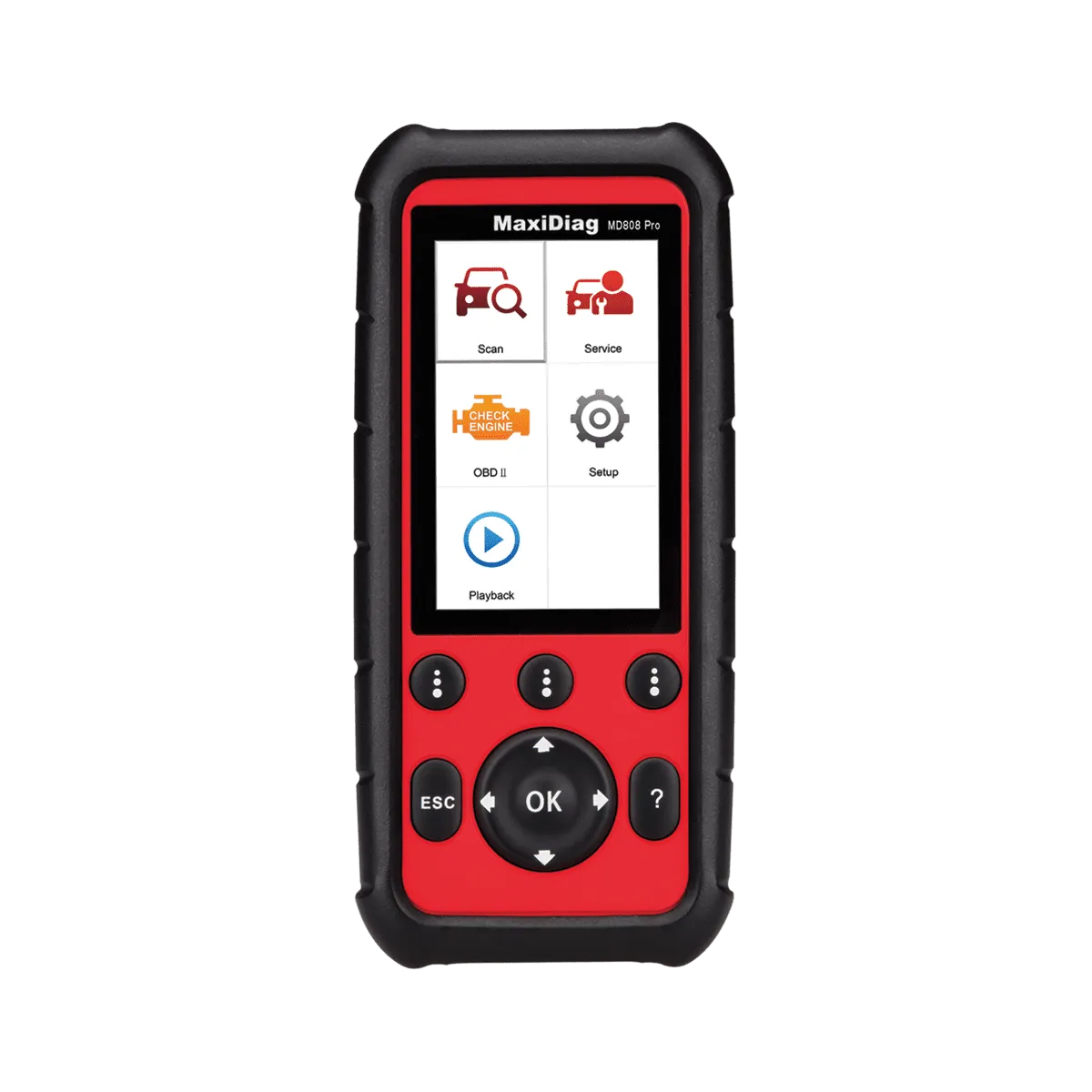

MaxiDIAG MD808 Pro
Service + All System Diagnostics
The MD808P is an advanced all systems code reader. It has a 4-inch color screen, can access all modules in all systems, performs AutoSCAN, and currently has 6 service functions. The MD808P can graph/record/playback live data, display live and freeze frame data, and supports all 10 OBDII test modes. It has enhanced Mode 6 diagnostics, I/M readiness/emissions testing, and performs DPF regeneration. The MD808P is updatable via PC and includes an OBDII cable. A 1-year tool warranty and free lifetime software updates are available with purchase.
- All System AutoSCAN DTCs Detection
- OLS/ EPB/ SBC/ SAS/ BMS/ DPF
- Set Inspection 1&2 Service Intervals
- I/M Readiness / Emissions Testing
- FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
- Reads & Clears EPB/ SBC Trouble Codes
- Support OBDII Protocols & All 10 OBDII Test Modes
- Enhanced Mode 6 Diagnostics
- View Live and Freeze Frame Data
- 4" Color Display 840x480
- Includes OBDII Cable & 16 MB Micro SD Card
- Easy-To-Use Navigation /Software Updates via PC
Specifications
| Processor | ARM® Thumb® Processor (400 MHz) |
| Memory | 32MB, 166 MHz |
| Display | 4.0 inch LCD with 800×480 resolution |
| Connectivity | Mini USB: 2.0 Micro SD Card (16GB) |
| Power Consumption | 1.7 W |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | 5% – 95% non-condensing |
| Housing | Strong plastic housing with protective rubber boot |
| Dimensions (W x H x D) | 202 mm x 92 mm x 35 mm (8.35" x 3.62" x 1.4") |
| Weight | 313 g (0.69 lb.) |
