MaxiEV CDT100

HV Battery Discharge and Charge Unit

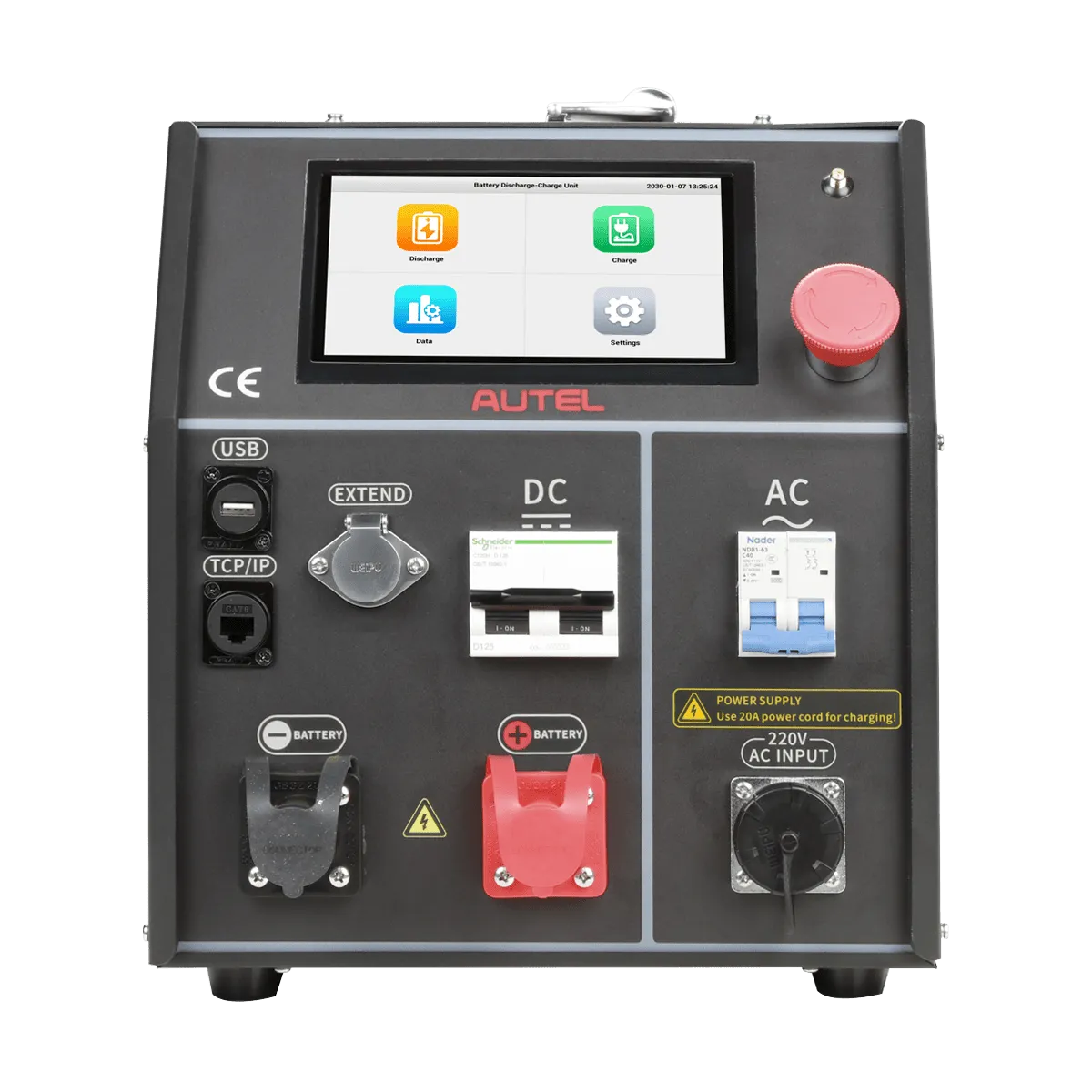

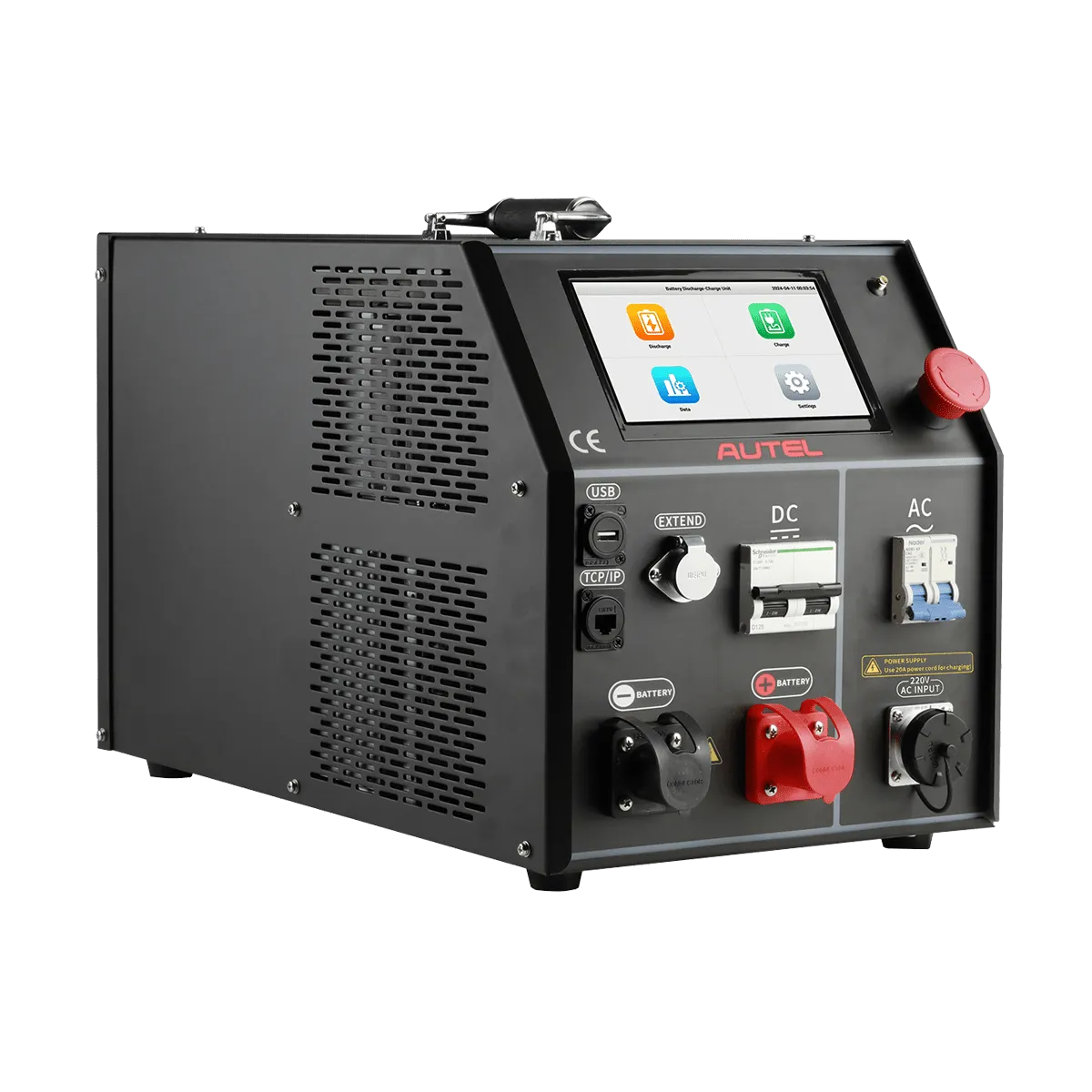

The MaxiEV CDT100 is a high voltage battery charger and discharger. Improve battery pack capacity with constant current charge, and discharge modes. The CDT100 displays single-cell maximum/minimum voltage and other data onscreen in graphs, columns, and report forms with optional connecters (included in kit). Zoom-in and zoom-out display capability. Industry applications include electric vehicle transporters, collision and mechanical repair shops, and salvage yards and vehicle warehouses. Includes one-year Limited Warranty.

Availability:

This product has been discontinued.
SKU: CDT100 Category: Tag:
  • Wide-voltage design, suitable for discharge, charge, and activation testing of modules with different voltage levels
  • Set constant current and power, Charge and Discharge modes for varied applications
  • Displays single-cell maximum/minimum voltage and other data onscreen in graphs, columns, and report forms. Zoom-in and Zoom-out display capability
  • Optimize battery pack capacity with constant current discharge, and charge modes
  • Issues warnings for reverse connection, over temperature, overcurrent, fan failure and overcharge
  • Improves charging efficiency by ensuring full charge
  • Battery/Vehicle Transport: Safely discharge batteries to DOT transport guidelines(Air: 20%, Land/Sea: 40%)
  • Repair shops: Direct charging and discharging before, during, and after vehicle repair
  • Collision shops: Discharge the battery before placing the vehicle in the baking booth
  • Salvage Yards and Vehicle Warehouses: Prevent thermal runaway events (fires) by discharging batteries
Voltage Range 2~285V (working voltage range: 2~250V; max range: 285V)
Discharge Current 0~150A
Charging Current 0~100A
Discharge Power 7.2kW max
Charging Power
  • 4.4kW max (220Vac supply)
  • 2.2kW max (110Vac supply)
Discharge Mode Constant Current, Constant Power
Charge Control Constant Current, Constant Power
Data Storage Internal memory/download via USB disk
Protection
  • input overvoltage, LCD prompt+beep warning
  • battery polarity reverse connection, LCD prompt+beep warning
  • overcurrent, LCD prompt+beep warning
  • overheat, LCD prompt+beep warning
  • communication alarm, LCD prompt+beep warning
Accuracy
  • test current ≤±1%FS+0.2A
  • module voltage≤±0.5%FS+0.3V; cell voltage: ≤±0.1%FS+5mV
Communication
  • RS485
  • USB
Internal Memory 8G
Working Condition
Cooling Mode forced-air cooling
Temperature working: -5~50°C; storage: -20~70°C
Humidity RH: 0~90%(40±2°C)
Rated Altitude 4000m
Noise ﹤60dB
Working Power
Voltage single-phase three-wire 100-264Vac, frequency: 45~65Hz
Withstand Voltage
  • input-shell: 2200Vdc 1min / input-output: 2200Vdc 1min / output-shell: 700Vdc 1min
  • Note: Refer to Appendix 1. for important points.
Mechanical Character
Dimension 530x300x350mm
Weight 23.4kg
PDF MaxiEV ALT100L User Manual Download
PDF MaxiEV CDT100 Flyer Download
