MaxiSCOPE MP408 4-Channel Automotive Oscilloscope
The MaxiSCOPE MP408 is a 4-channel digital oscilloscope. It measures and tests all modern electronic components and circuits. Compatible with MaxiSYS tablets MS906BT and up, and the MaxiIM IM608 tablet, the MP408 displays high resolution waveforms. It features a high-speed sampling rate from 80MS/s to 20MS/s and 20MHz bandwidth. New Low Pass Filter software cleans and focuses dirty waveform signals for easier diagnostics. The MP408-BASIC includes 4 shielded test leads, 2 attenuators with 10mV/div – 20V/div, secondary ignition pickup, multimeter and acupuncture probe sets, and a new heavy duty carry case. It is updatable via PC, a 1-year tool warranty and free lifetime software updates are available with purchase.
| Availability: | This product has been discontinued. |
|---|
- New Low Pass Filter Software
- Color Coded 4-Channel Control Panel / Easily Adjusted Trigger Point
- Measure/ Test Vehicle Electrical Emissions Components
- 1-Click Auto Setup Voltage Scale / 1-Click Auto Setup Time Base
- Read/ Display/ Record/ Playback High Resolution Waveform Data
- Can Be Used With MaxiSYS Tablets (except MS909, MS919 and MSUltra), MaxiIM IM608 or Windows PC
- FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
- Includes 4 10-Ft Shielded Test Leads & 2 Attenuators with 10mV/div
- Includes 20V/div & Secondary Ignition Pickup / Multimeter & Acupuncture Probe Sets
- Real-time Scale Information Display / Serial Decoding
- High Speed Sampling Rate: 80-20MS/s- 20MHz Band
- 10-20mV/div Sensitivity
- Compatible with Advanced Sensors
- LIN/ CAN/ FlexRay Data Bus Systems
- Includes 5-Ft USB Cable & NEW Heavy Duty Carry Case
- Software Updates Via PC
Additional information
| Availability: | This product has been discontinued. |
|---|
Specifications
| Vertical Resolution | 12 bits |
| Channels | 4 |
| Bandwidth | 20MHz |
| Accuracy | 1% |
| Sensitivity | 10mV/div to 20V/div |
| PC Interface | USB 2.0 – Cable (Supplied) |
| Power Requirements | Powered from USB port |
| Input Ranges (Full Scale) | ±v50mV to ±100V in 11 ranges |
| Input Impedance | 1MΩ in parallel with 22pF |
| Input Type | Single-ended, BNC connector |
| Input Coupling | Software selectable AC/DC |
| Overload Protection | ±200V on single input |
| Buffer Memory | 32M samples shared among active channels |
| Waveform Buffer | Up to 1000 waveforms |
| Timebase Ranges | 100ns/div to 1000s/div |
| Operating Temperature Range | 0°C to 50°C (15°C to 40°C for quoted accuracy) |
| Storage Temperature Range | -20°C to +60°C |
| Storage Humidity Range | 5% to 95%RH, Non-condensing |
| Dimensions | 190X115X38mm |
| Weight | <0.5kg |
| Maximum Sampling Rate (Single Shot) | |
| 1 or 2 channels in use | 80MS/s |
| 3 or 4 channels in use | 20MS/s |
Videos
Downloads
 |
MaxiSCOPE MP408 Low Pass Filter | Download |

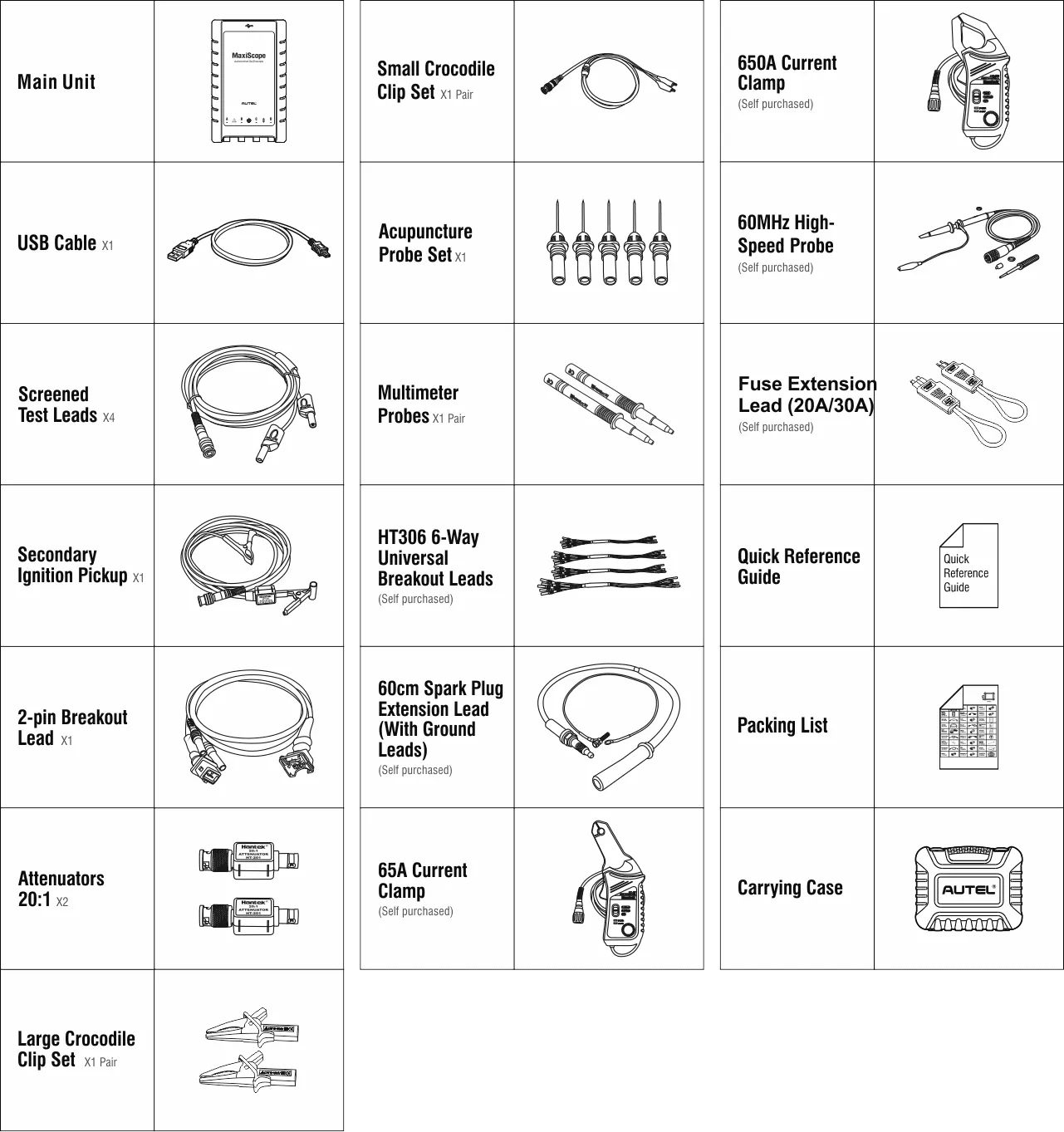

What's Included
