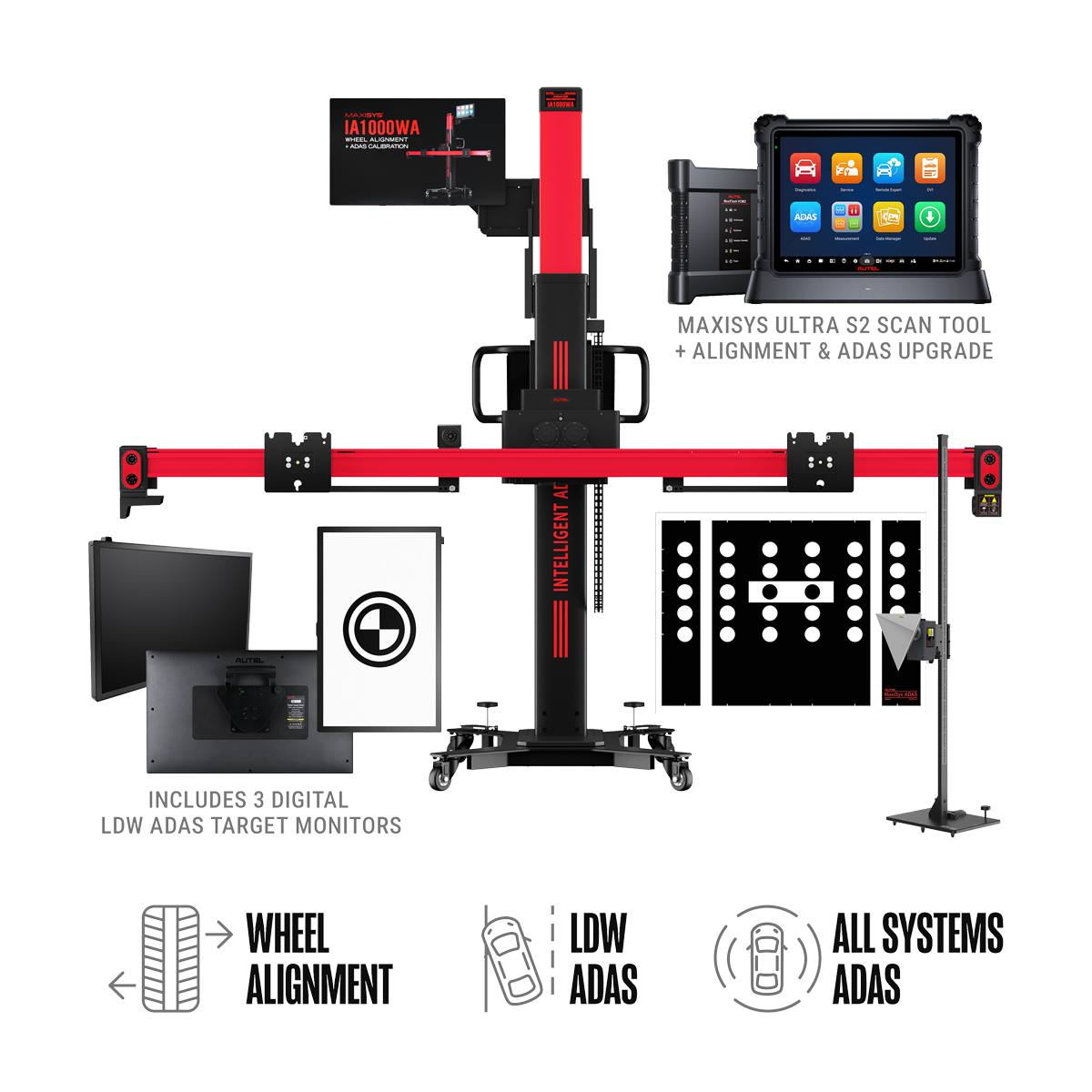

MaxiSYS IA1000ASTDT
All-Systems Calibration System with MS Ultra S2 and Digital Targets
The IA1000 is a next-generation ADAS calibration and wheel alignment system powered by the advanced diagnostics of the MaxiSYS Ultra S2. Its robotic one-step forward-facing target positioning significantly reduces manual setup time, streamlining the process for maximum efficiency. High-definition optical cameras combined with laser-guided Blind Spot, ACC, and AVM pattern positioning enhance accuracy while minimizing human error. Automated unlevel floor compensation further ensures speed and accuracy.
The system’s advanced alignment data surpasses the industry standard of camber, caster, and toe, while its comprehensive pre- and post-scan reports validate and document every calibration. The IA1000 delivers tailored solutions for wheel alignment, LDW, and ADAS calibrations to meet your needs
| Frame: IA1000 | |
| Packages: IA1000ASTDT |
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads
- What's Included
- Sold Separately
- Compare Similar
The Autel IA1000 is a next-generation automated ADAS calibration, wheel alignment, and advanced diagnostics system, engineered for maximum efficiency, precision, and seamless operation. Designed to streamline workflows, it features robotic one-step forward-facing target positioning, laser-guided accuracy, and automated floor compensation, eliminating setup errors and optimizing calibration performance.
Key Features & Benefits:
Automated ADAS Targeting & Advanced Wheel Alignment
- 6 high-definition cameras and precision-engineered wheel clamp targets provide industry-leading 0.02° accuracy.
- 5-way robotic, automated forward-facing target placement enhances efficiency and accuracy.
- Laser-guided Blind Spot, ACC, and AVM pattern positioning seamless ADAS calibration.
- Go beyond basic camber, caster, and toe with industry-leading advanced wheel alignment and measurement data.
Thorough Target Validation & OEM-Compliant Reporting
- Validated target position reporting documents every step in Pre/Post Scan reports for insurance documentation and compliance.
- OEM-sourced calibration procedures ensure alignment with manufacturer specifications.
- Digital Go-No-Go confirmation confirms target placement and prevents advancement when elements are out of spec.
Advanced Diagnostics & Unmatched Vehicle Coverage
- Powered by the MaxiSYS Ultra S2 diagnostic scan tool with Topology 3.0 for deep system analysis.
- Industry-leading software and target coverage for U.S., Asian, and European vehicles.
- Scalable system with multiple ADAS calibration and wheel alignment packages tailored to specific needs.
Optional Digital LDW Targets & Automated Display
- Auto-projected digital targets eliminate manual selection, reducing setup time and human error.
- Optimized digital target storage, replacing physical target storage requirements.
- Self-adjusting screen brightness for optimal visibility
- Seamless OTA updates provide continuous access to the latest OEM-sourced target and software coverage.
The IA1000 is the ultimate all-in-one ADAS calibration, wheel alignment, and diagnostics solution, delivering unmatched accuracy, efficiency, and scalability for modern automotive service centers.
| Model | AUTEL-CSC1000 |
| Rated Power | 360 W |
| Power Supply | 100–264 V, 50/60 Hz |
| Calibration Frame Folded Dimensions | 800 x 1000 x 1900 mm (31.50 x 39.37 x 74.80 in) |
| Crossbar Unfolded Length | 2700 mm (106.30 in) |
| Crossbar Folded Length | 400 mm (15.75 in) |
| Calibration Frame Height Range | 1670–2770 mm (65.75–109.06 in) |
| Crossbar Height Range | 300–2500 mm (11.18–98.43 in) |
| Camera Numbers | 6 |
| Single Camera Pixel | 3072*2048 |
| Operating Temp. | -10–50 ℃ (14–122 °F) |
| Storage Temp. | -20–60 ℃ (-4–140 °F) |
| Compatible Tablet | MaxiSYS Ultra Tablet Series (hereinafter referred to as “MaxiSYS Ultra Tablet”) |
- IA1000 Calibration Frame
- Accessories
- Ultra S2 Tablet
- IA1000 Activation Card
- LDW Targets
- All Systems Calibration Equipment
- Digital Targets (3 Monitors)
- Digital Target Activation Card
