MS906TS

Diagnostics Tablet with TPMS Service

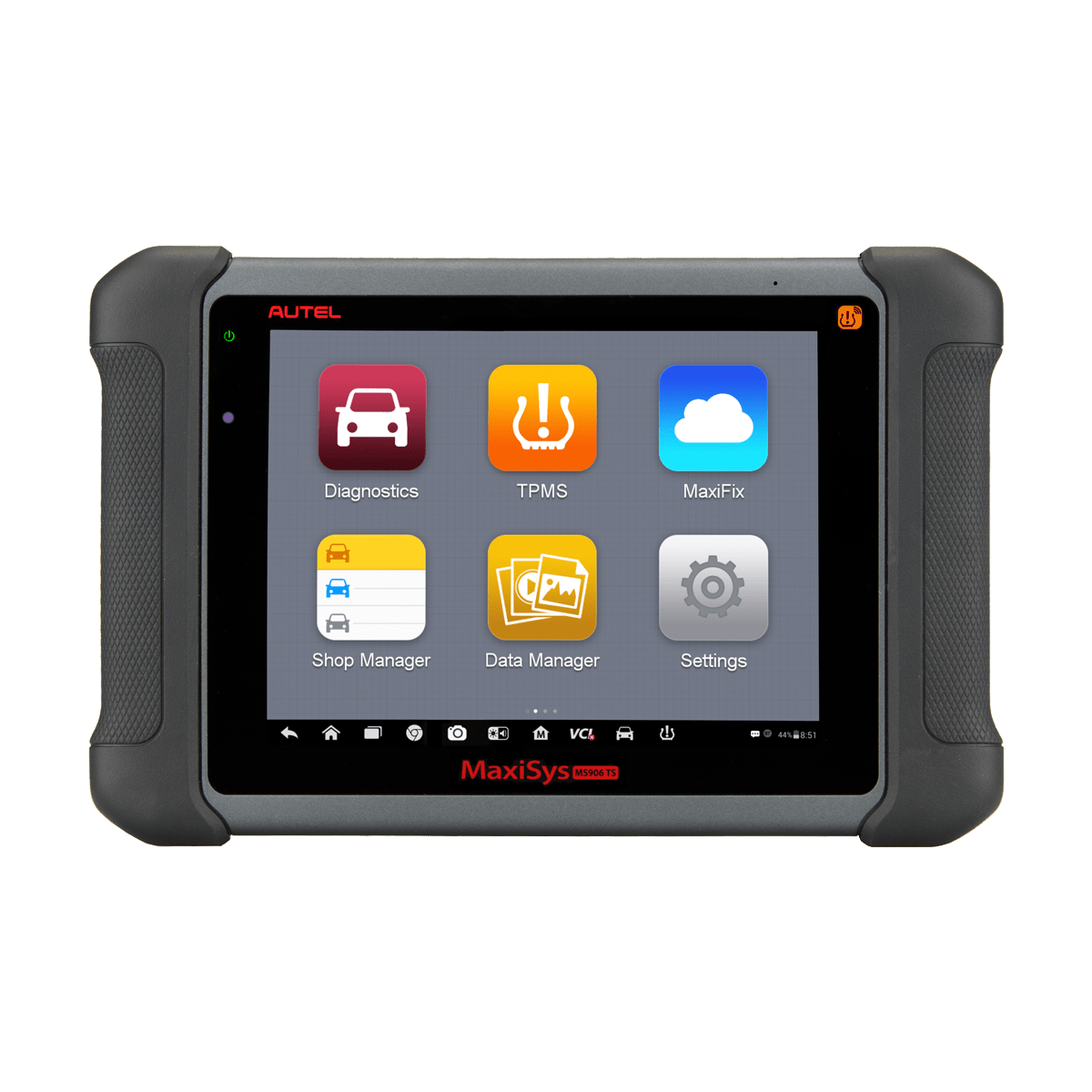

The Autel MaxiSYS MS906TS is an 8″ wireless, diagnostic scan tablet and TPMS tool. The MS906TS performs complete TPMS servicing and offers advanced functions including module coding and adaptations. It generates insurance-carrier ready Pre-SCAN and Post-SCAN diagnostic reports with ADAS module identification. The MS906TS has bi-directional control, can access all modules in all systems, and has 20 service functions. Purchase includes a wireless MaxiSYS-VCI100, OBDII connector kit, 1-year tool warranty and 1 year of free software updates.

Availability:	This product has been discontinued.

SKU: MS906TS Category: Legacy Tools Tag: TPMS Service

MaxiSYS MS906TS – Collision Repair-Ready Diagnostics

AutoVIN 2006+ / AutoSCAN: All Modules in All Systems

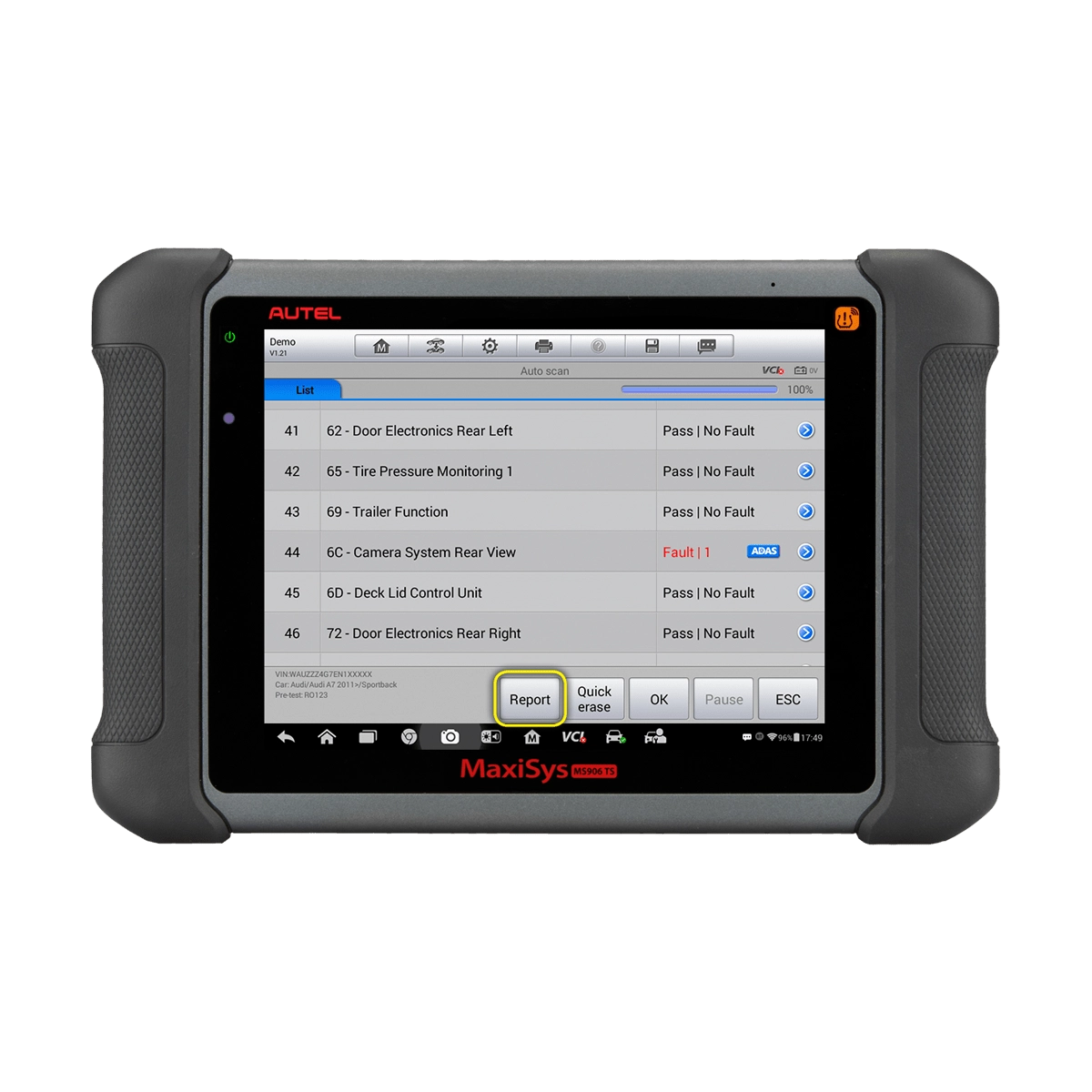

Pre- & Post-SCAN Diagnostic Reports/Generates Printable Diagnostic Reports
20 Service Functions / Bi-Directional Control
8” Touchscreen /1.3GHz+1.7GHz Processor /32GB Memory / 2GB RAM
1Yr FREE Software & 1Yr Warranty / Eligible for Extended TCP Coverage
Android 4.4.2/ Wi-Fi Software Updates
Reset Diesel Emissions on Select Light/Med. Duty / DPF Regeneration

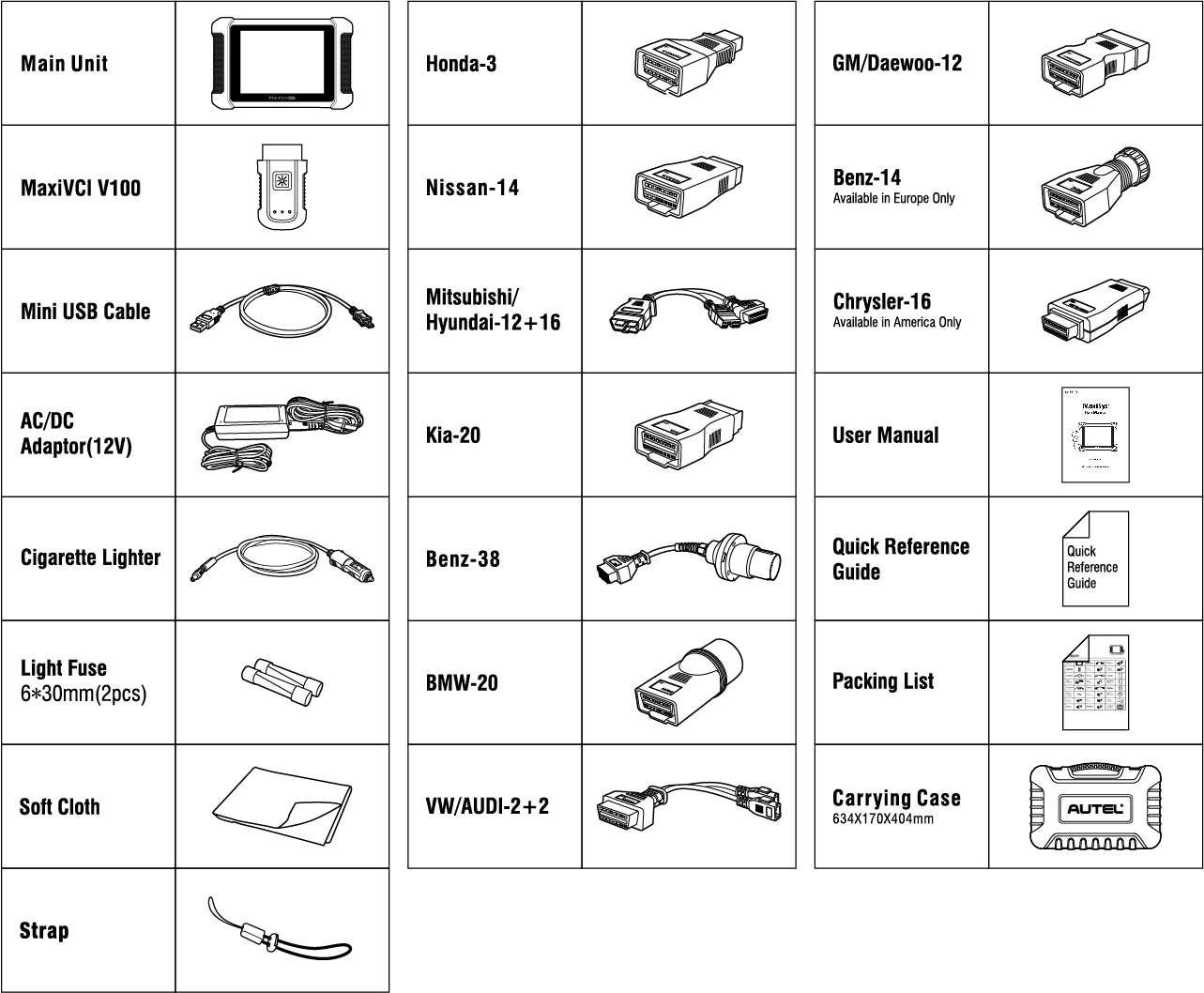

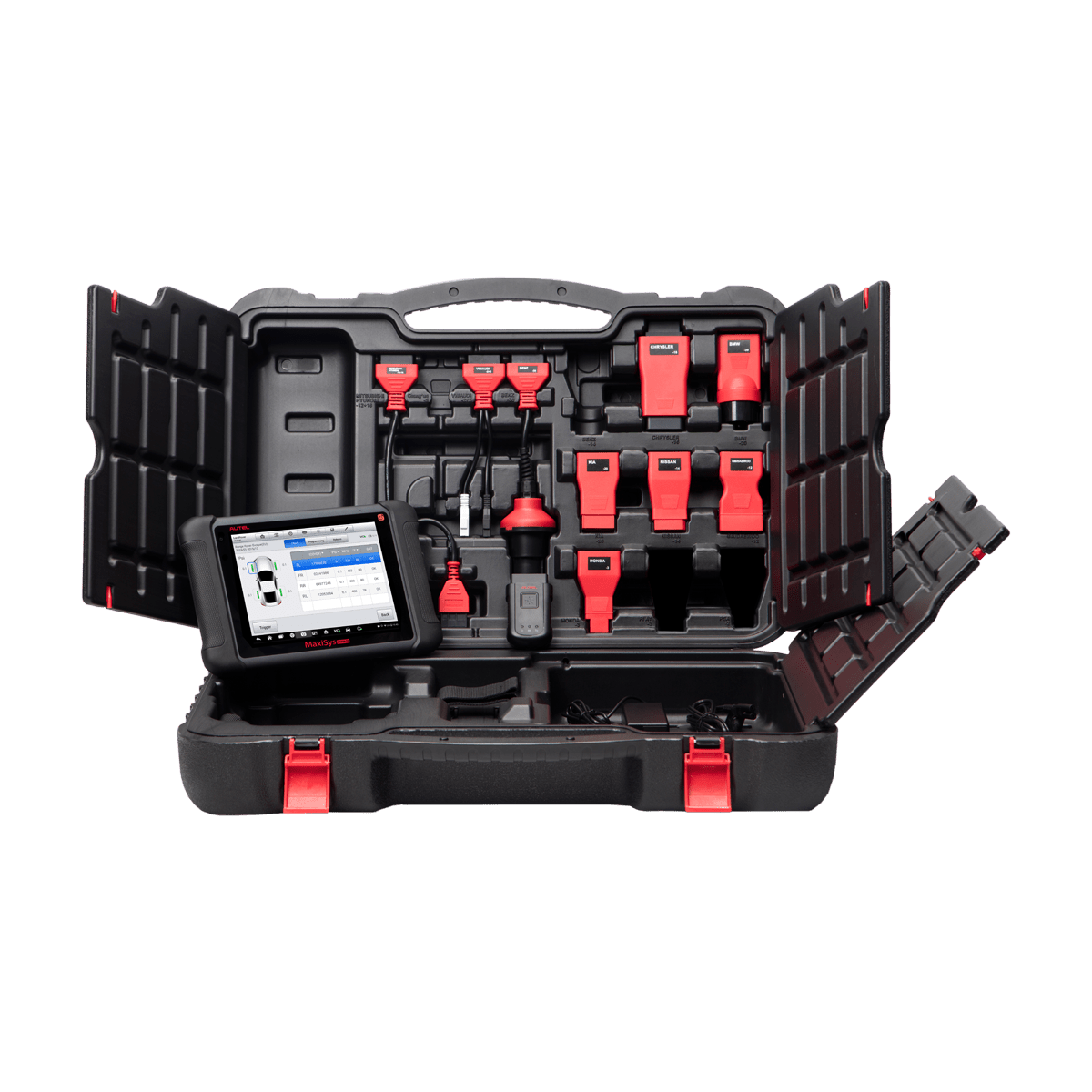

Includes Bluetooth OBDII MaxiSYS-VCI100, OBDII Connector Kit & Carry Case
Covers Domestic, Asian and European Vehicle Manufacturers (1996+)
Coding & Adaptations
4 Programming Options: MX-Sensors Only
Enhanced TPMS Status Screen Detects & Displays System Faults
Read/Activate/Relearn All Known Sensors
Display Sensor ID, Battery Condition (on select sensors) and Psi
Read/Clear OBDII Codes & Sensor Info
Display On-Tool Relearn Procedures Including OBDII Relearn
Placard Value Reset on Supported Vehicles
Access All Repair Records / View Live & Freeze Frame Data
Enhanced Mode 6 Diagnostics / All 10 Test Modes
10,000mAh Lithium-polymer Battery / 8MP Camera with LED Light
MaxiSYS System Suite Applications – Shop Manager
Save Files with Micro SD Card (32G max. not included)

Operating System	Android 4.4.2, KitKat
Processor	Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory	2 GB RAM & 32 GB ROM
Display	8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity	Wi-Fi (802.11 b/g/n) USB 2.0 Mini USB 2.0 Wireless BT V2.1+EDR Class1 HDMI 1.4a SD Card (support up to 32 GB)
Camera (rear)	Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Single Speaker 3-Band 3.5mm stereo/standard headset jack
Power and Battery	10,000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage	12 V (9-35 V)
Power Consumption	5W
Operating Temperature	-10 to 55°C (14 to 131°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Housing	Rubberized outer protection and rugged internal housing
Dimensions (W x H x D)	270.8 mm (10.0") x 176.0 mm (6.9") x 36.0 mm (1.4")
Net Weight	NW: 1.10 kg (2.42 lb.)
