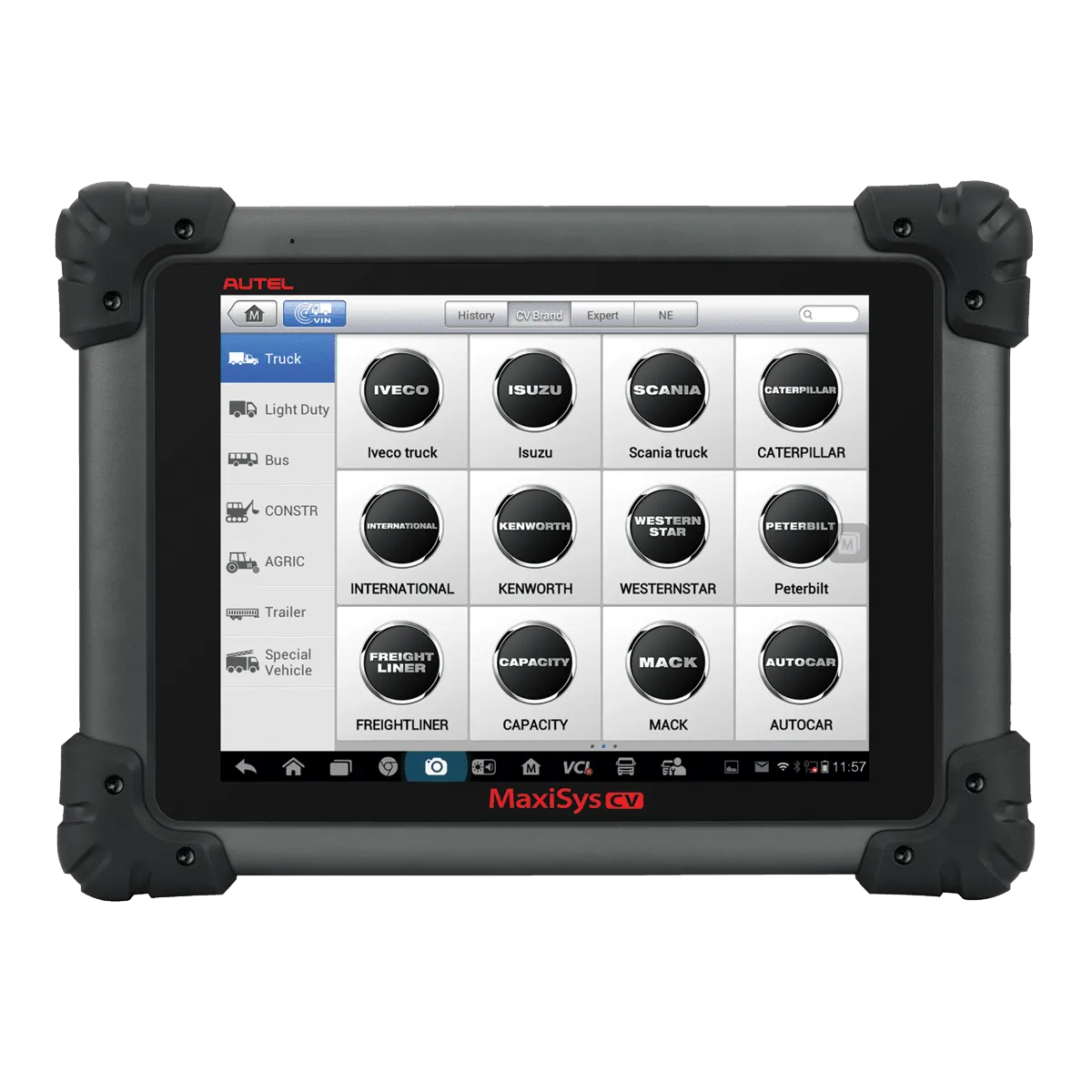

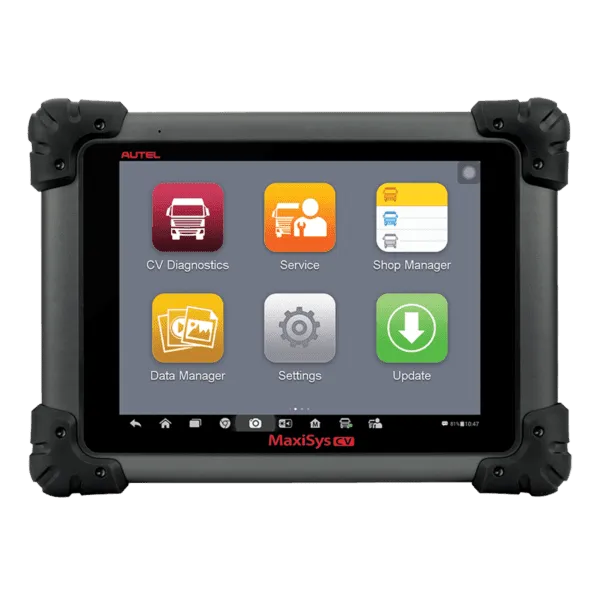

MaxiSYS MS908CV Heavy Duty
Commercial Vehicle Diagnostics
The MS908CV is a wireless, heavy duty, diagnostic scan tool. The 10-inch touchscreen tablet comes equipped with an Android 4.0.4 operating system, a 1.4GHz quad-core processor, 64G hard drive, and the Autel MaxiSYS system suite software. The MS908CV has bi-directional control and can access all available modules for commercial vehicles Class 1 (0-6,000LBS) – Class 9 (33,000LBS). It performs AutoSCAN and AutoVIN (2006+), and generates printable diagnostic reports. It features advanced coding and adaptations and currently has 25 service functions including ABS brake bleed. The MS908CV is updatable via Wi-Fi and J1708/J1939 compliant. It includes Deutsch 9-Pin and 6-Pin adapters, a full probe set, and complete OBDII connector kit. A 1-year tool warranty and 1 year of free software updates are available with purchase. This tool is eligible for TCP expanded coverage.
| Availability: | This product has been discontinued. |
|---|---|
| MS908CV1YRUPDATE: | Total Care (TCP) for MS908CV $1295.00 |
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads

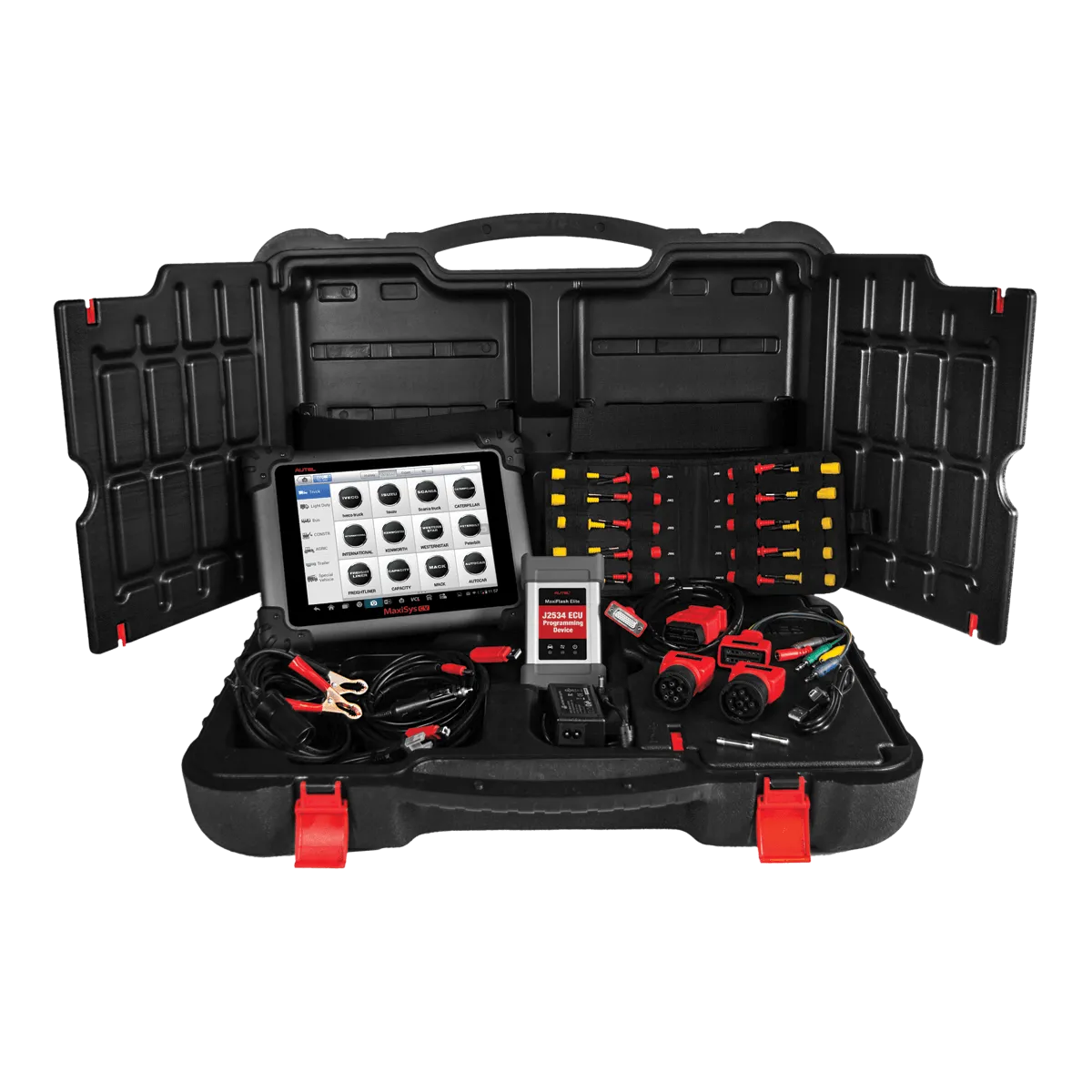

- What's Included
- Sold Separately
- Compare Similar
- Class 1- 9 Commercial Vehicles / SAE J1939/SAE J1708
- MFG. CUST. J1939/J1708 Protocols
- AutoVIN 2006+ / AutoSCAN: All Modules in All Systems
- 25 Service Functions / Bi-Directional Control

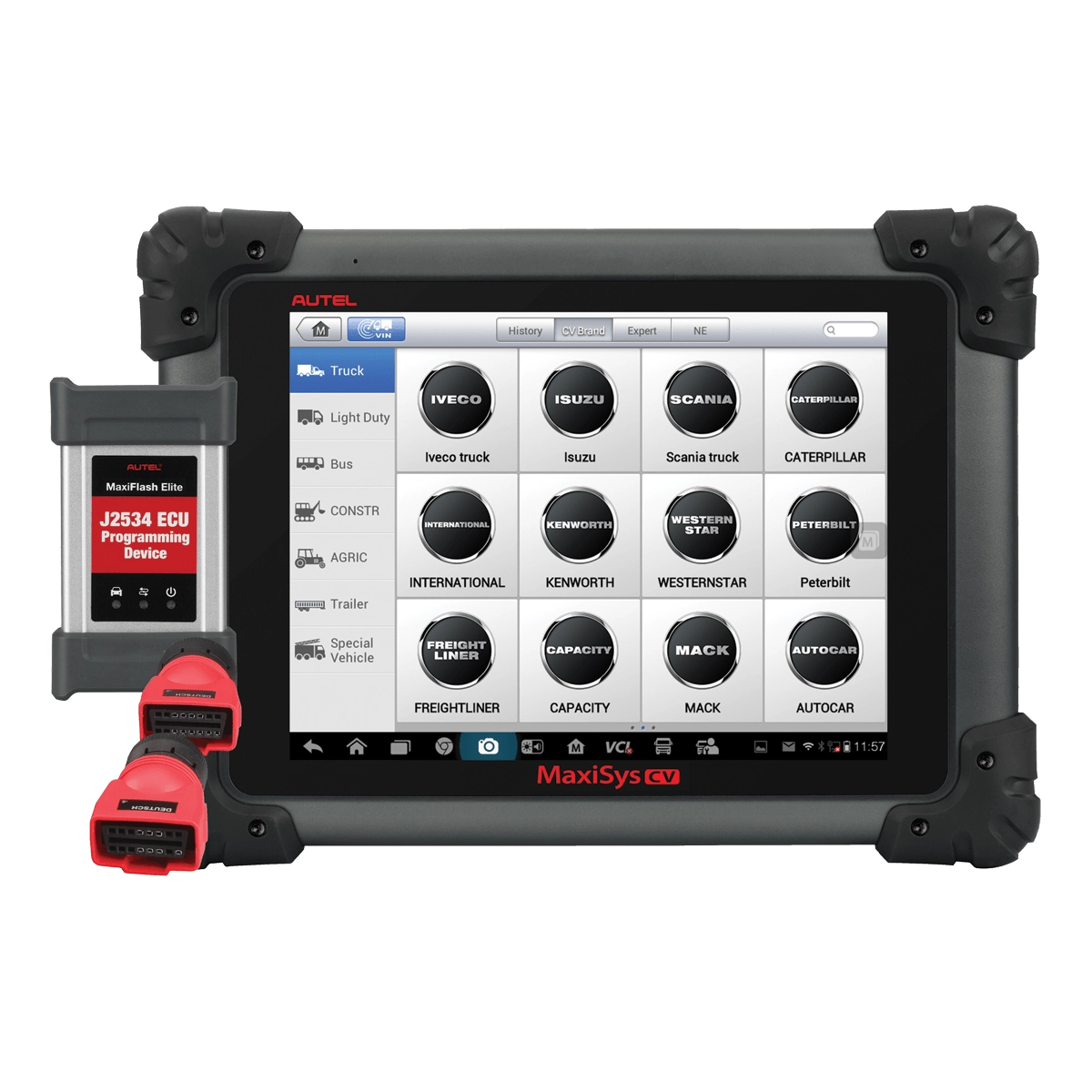

- Includes J2534 MaxiFlash Elite Pass-Thru Programming Device
- Includes Deutsch 6Pin & 9Pin and Full Probe Set
- 10” Touchscreen /1.4GHz Processor/ 64GB Memory / 2GB RAM
- 1Yr FREE Software & 1Yr Warranty / Eligible for Extended TCP Coverage
- Android 4.0.4 / Wi-Fi Software Updates
- Class 1-9 Reset Diesel Emissions /DPF Regeneration
- Includes OBDII Connector Kit & Carry Case
- Covers domestic, Asian and European Vehicle Manufacturers (1996+) Including SuperCars
- Manufacturer-Specific Systems Diagnostics
- Advanced Coding & Adaptations
- Generates Printable Diagnostic Reports
- Enhanced Mode 6 Diagnostics / All 10 Test Modes
- MaxiSYS System Suite Applications – Shop Manager
- View Live & Freeze Frame Data
- 11,000mAh Lithium-polymer Battery / 5MP Camera with LED Light
- Save Files with Micro SD Card (32G max. not included)
| Operating System | Android™ 4.0, Ice Cream Sandwich |
| Processor | Samsung Exynos Quad-Core Processor 1.4GHz |
| Memory | 2GB RAM & 32GB On-board Memory |
| Display | 9.7 inch LED capacitive touchscreen with 1024x768 resolution |
| Connectivity |
|
| Camera (rear) | Rear-facing, 5.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery | 11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temperature | -10 to 55°C (14 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Housing | Strong plastic housing with protective rubber boot |
| Dimensions(WXHXD) | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
| Weight | NW: 1.42 kg (3.13 lb.), GW: 8.052 kg (17.75 lb.) |
| Protocols | SAE J1939; SAE J1708; Manufacturer customized J1939; Manufacturer customized J1708; KWP; VPW; UDS-CAN; CDL |
| MaxiSYS MS908CV | MaxiSYS MS908CVII | MaxiSYS MS909CV | |
|---|---|---|---|
 |  |  | |
| HARDWARE | |||
| Connection | J2534 MaxiFLASH Elite Wireless Bluetooth | J2534 MaxiFLASH VCI Wireless Bluetooth | J2534 MaxiFLASH VCI Wireless Bluetooth |
| Screen | 9.7-Inch Touchscreen 1024 x 768 DPI / LED color screen | 9.7-Inch Touchscreen 1536 x 2048 DPI / LED Color Screen | 9.7-Inch Touchscreen 1536 x 2048 DPI / LED Color Screen |
| Battery | 11,000 mAh | 15,000 mAh | 15,000 mAh |
| Processor | 1.4GHz QUAD-CORE | 2.2GHz + 1.8GHz OCTA-CORE | 2.2GHz + 1.8GHz OCTA-CORE |
| Memory | 64GB SSD / 2GB RAM | 128GB SSD / 4GB RAM | 128GB SSD / 4GB RAM |
| Camera | 5.0MP with flashlight | 16MP & 5.0MP Front & Rear with Flashlight | 16MP & 5.0MP Front & Rear with Flashlight |
| Docking Station | — | — | — |
| SOFTWARE | |||
| Operating System | Android 4.4.2 | Android 10.0 | Android 10.0 |
| Software Updates | 1 Year Free | 1 YEAR FREE | 1 YEAR FREE |
| Automatic Detection | Auto-Vin / Auto-Scan | Auto-Vin / Auto-Scan / ScanVin | Auto-Vin / Auto-Scan / SCANVIN |
| Secure Gateway Access | Authorized FCA Access With Autoauth Account | Authorized FCA Access With Autoauth Account | Authorized FCA Access With Autoauth Account |
| License Plate Reader | — | — | — |
| Vehicle Coverage | Class 3 - Class 9 10,000LBS 33,000LBS | Class 3 - Class 9 10,000LBS 33,000LBS | Class 3 - Class 9 10,000LBS 33,000LBS |
| OBDII Test Modes | All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6 | — | All 10 test modes LIVE & FREEZE FRAME / ENHANCED MODE 6 |
| Service Resets | 19 Service Features | 25 Service Features | 25 Service Features |
| Diesel PM | Class 1-9 Reset Diesel Emissions | Class 1-9 Reset Diesel Emissions | Class 1-9 Reset Diesel Emissions |
| System Diagnostics | Access All Modules In all systems on select vehicles | Access All Modules In All Systems on Select Vehicles | Access All Modules In All Systems on Select Vehicles |
| Component Activations | 1,000+ New with software update Bi-directional Controls DPF Regen / Injector Coding | 1,000+ New with software updates Bi-directional Controls DPF Regen / Injector coding | 1,000+ New with software updates Bi-directional Controls DPF Regen / Injector coding |
| Enhanced Functions | Advanced Coding + Adaptations | Advanced Coding + Adaptations | Advanced Coding + Adaptations |
| ADAS Calibration | — | — | Access Static Calibration Class 3-5* Class 6-8 Dynamic Calibration *ADAS Target kits sold separately |
| Battery Analysis | — | — | MaxiBAS Software with multimeter AMP Clamps & B200 included |
| Oscilloscope | MP408 Compatible | — | — |
You may also like…
-

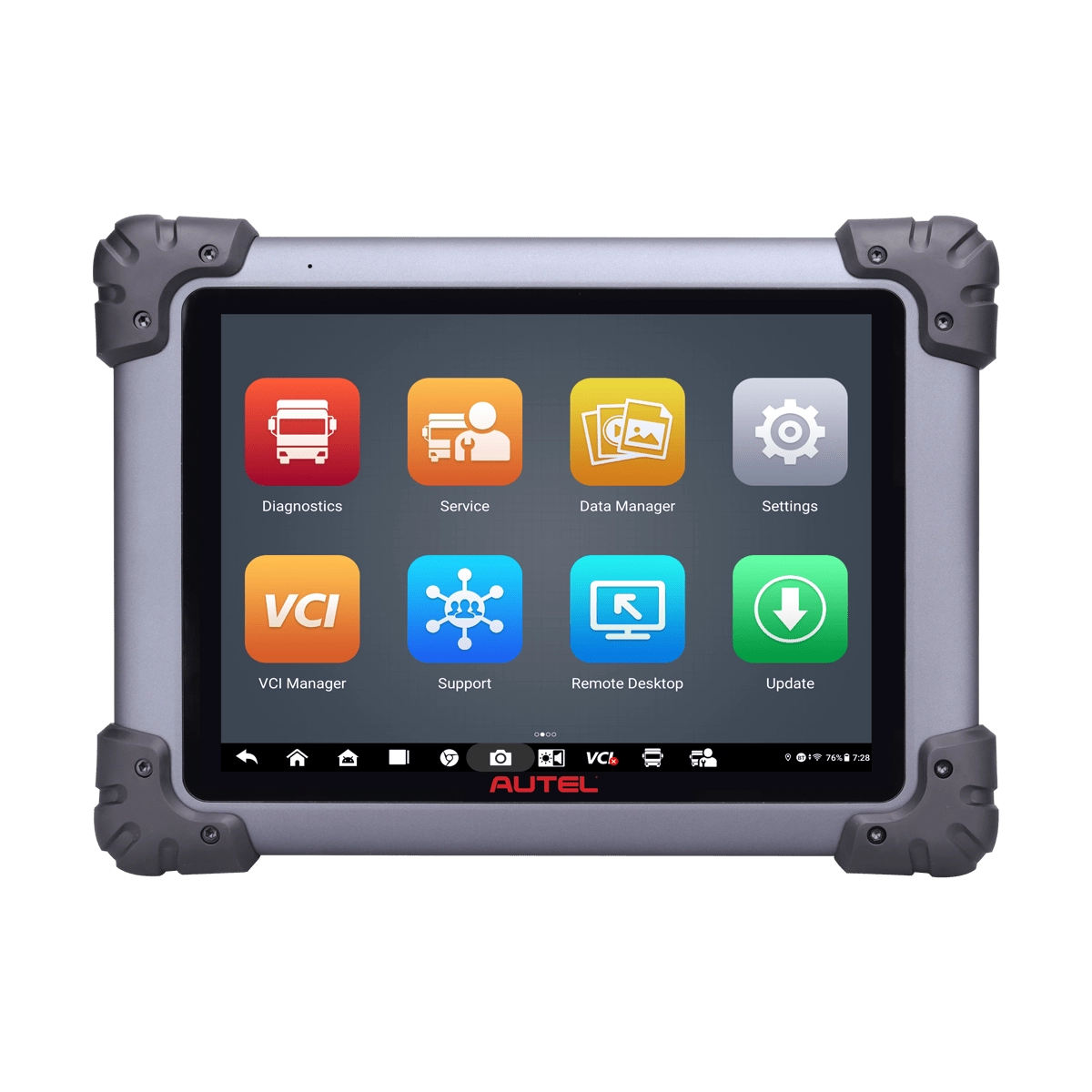

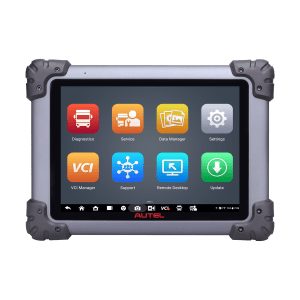

MaxiSYS MS908CVII
