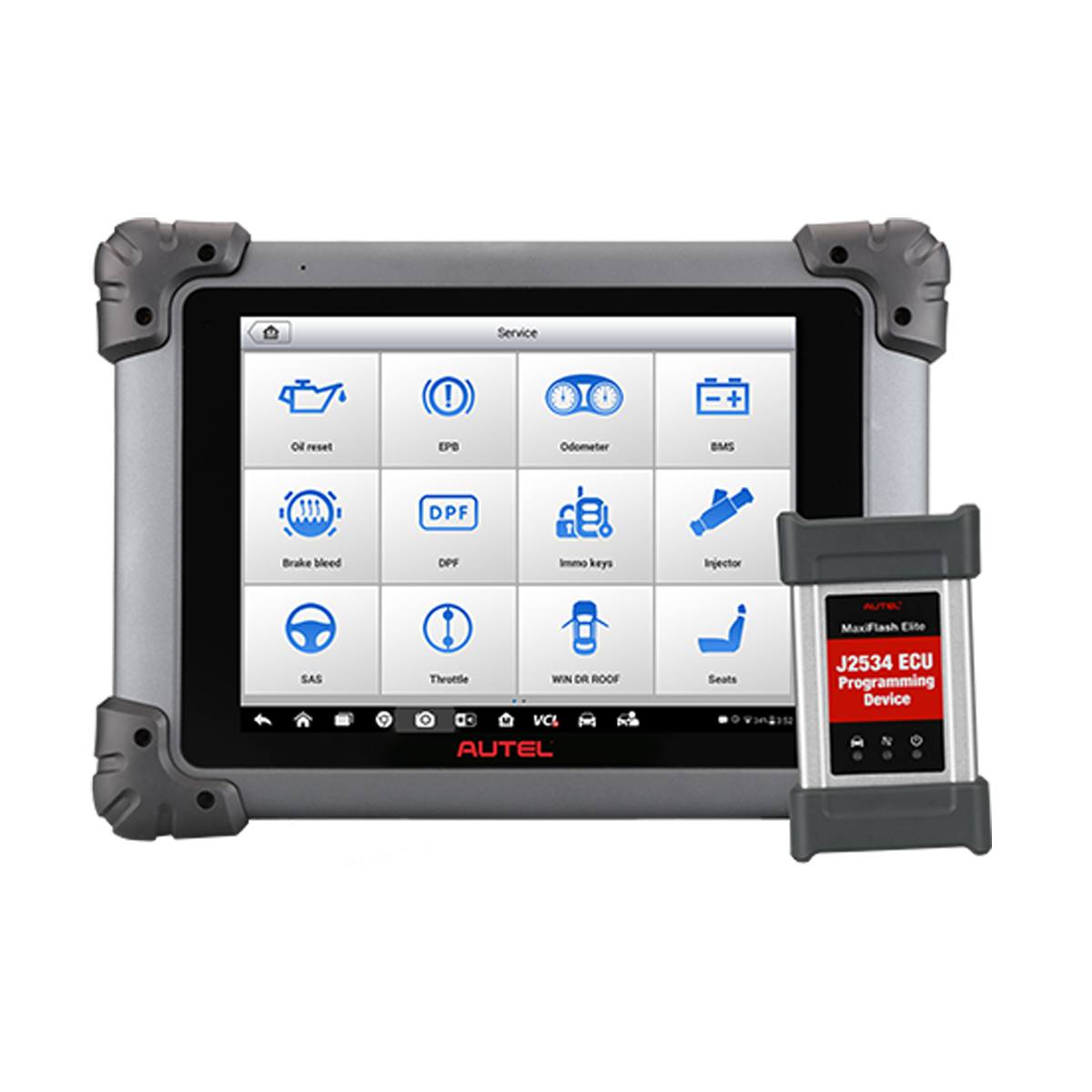

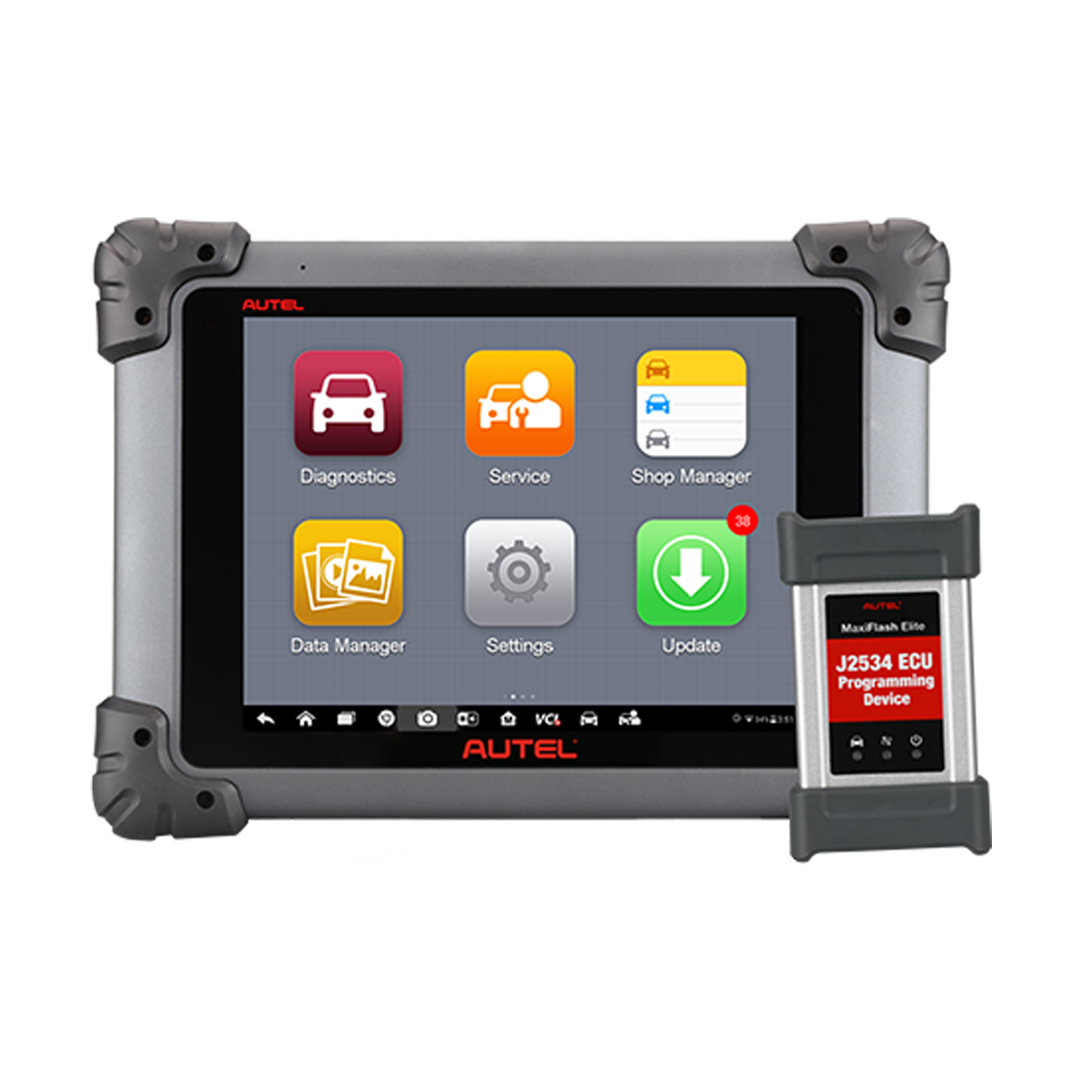

MaxiSYS MS908S Pro
OBD2 Bi-Directional Diagnostic Scanner And J2534 VCI
One of the MaxiSys series devices, the MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.
| Availability: | This product has been discontinued. |
|---|---|
| MS908P1YRUPDATE | Total Care (TCP) for MS908SP $1,295.00 |
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads

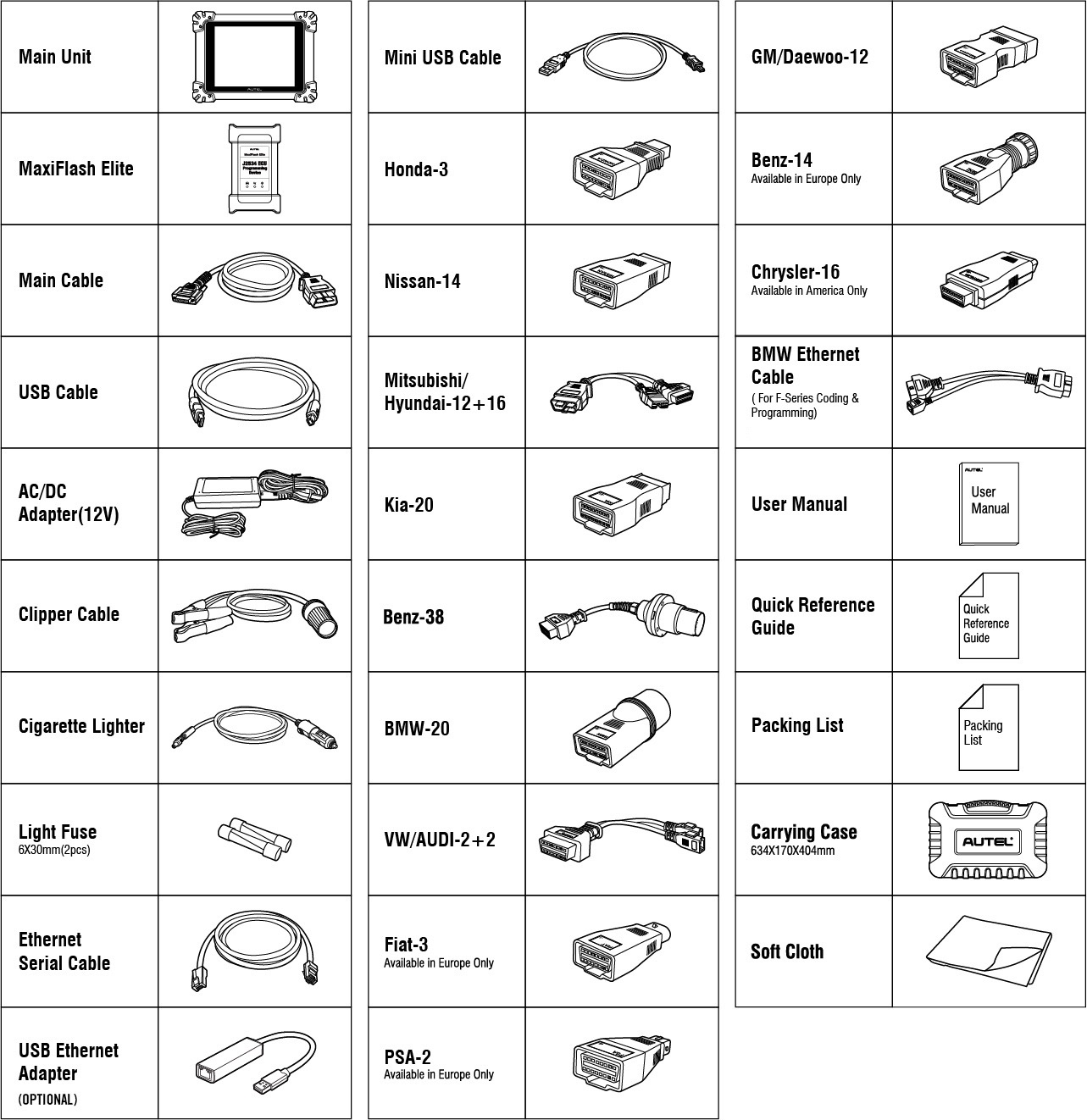

- What's Included
- Sold Separately
- Compare Similar
- Extraordinarily powerful Cortex A7+A15 six-core processor
- 9.7” 2048×1536 LED-backlit glossy Multi-Touch capacitive display with IPS technology
- Internal reliable 64GB On-board Memory for better performance
- Built-in 8-megapixel rear camera with autofocus and flashlight
- The VCI connects to the main unit wirelessly with up to 70 meters working range
- 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
- Unique ergonomic design with rubberized outer protection and a rugged internal housing
- Open source Android Operating System for fast boot-up and multitasking
- Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
- Exceptional OE-Level system coverage for all electronic systems
- Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
- Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation
- Equip with J2534 ECU Programming Device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) |
| Memory | 2GB RAM & 64GB On-board Memory |
| Display | 9.7 inch LED capacitive touch screen with 2048x1536 resolution |
| Connectivity |
|
| Camera (rear) | 8.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (WxHxD) | 300 mm (11.81") x 220 mm (8.66") x 50 mm (1.97") |
| Weight | NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.) |
Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
 | MaxiSYS MS908S Pro User Manual | Download |
MaxiSys Elite | MaxiSys CV | MaxiSys MS908S Pro | MaxiSys MS908S | MaxiSys MS906TS | MaxiSys MS906BT | MaxiSys MS906 | |
| Function | |||||||
| All Systems DTC Scan | √ | √ | √ | √ | √ | √ | √ |
| Service Function | √ | √ | √ | √ | √ | √ | √ |
| Bi-Directional Control | √ | √ | √ | √ | √ | √ | √ |
| Auto VIN Technology | √ | √ | √ | √ | √ | √ | √ |
| ECU Coding | √ | -- | √ | √ | √ | √ | -- |
| ECU Programming | √ | -- | √ | -- | -- | -- | -- |
MaxiFix Cloud-Based Info System | √ | √ | √ | √ | √ | √ | √ |
| Data Manager | √ | √ | √ | √ | √ | √ | √ |
| Shop Manager | √ | √ | √ | √ | √ | √ | √ |
| Remote Support | √ | √ | √ | √ | √ | √ | √ |
| Pre-scan Report & Post-scan Report | North America Only | -- | North America Only | North America Only | √ | North America Only | North America Only |
| Print Feature | √ | √ | √ | √ | √ | √ | √ |
| Multi-language Support | √ | √ | √ | √ | √ | √ | √ |
| Coverage | |||||||
| Domestic/Asian/European Coverage(1996-Present) | √ | √ | √ | √ | √ | √ | √ |
| Hardware | |||||||
| Display Size | 9.7" | 9.7" | 9.7" | 9.7" | 8" | 8" | 8" |
| Wireless VCI | MaxiFlash Elite | MaxiFlash Elite | MaxiFlash Elite | Wireless Diagnostic Interface | MaxiVCI V100 | MaxiVCI V100 | -- |
| Battery Life | 15400 mAh 3.7 V | 11000 mAh 3.7 V | 11000 mAh 3.7 V | 11000 mAh 3.7 V | 10000 mAh 3.7 V | 10000 mAh 3.7 V | 5000 mAh 3.7 V |
| Memory Storage | 64GB | 64GB | 64GB | 64GB | 32GB | 32GB | 32GB |
| Connector Kit | √ | √ | √ | √ | √ | √ | √ |
| Options | |||||||
| TPMS | -- | -- | -- | -- | √ | -- | -- |
| Oscilloscope | √ | √ | √ | √ | √ | √ | -- |
| Inspection Camera | √ | √ | √ | √ | √ | √ | -- |
| ADAS | √ | -- | √ | √ | -- | √ | √ |
You may also like…
-
MaxiSYS MS909
$3,995.00L9.7” Touchscreen Diagnostic Tablet With VCI
- Advanced Diagnostics
- Network Topology 2.0
- Bi-directional active test, special functions and vehicle hidden features activation, coding and adaptations
-

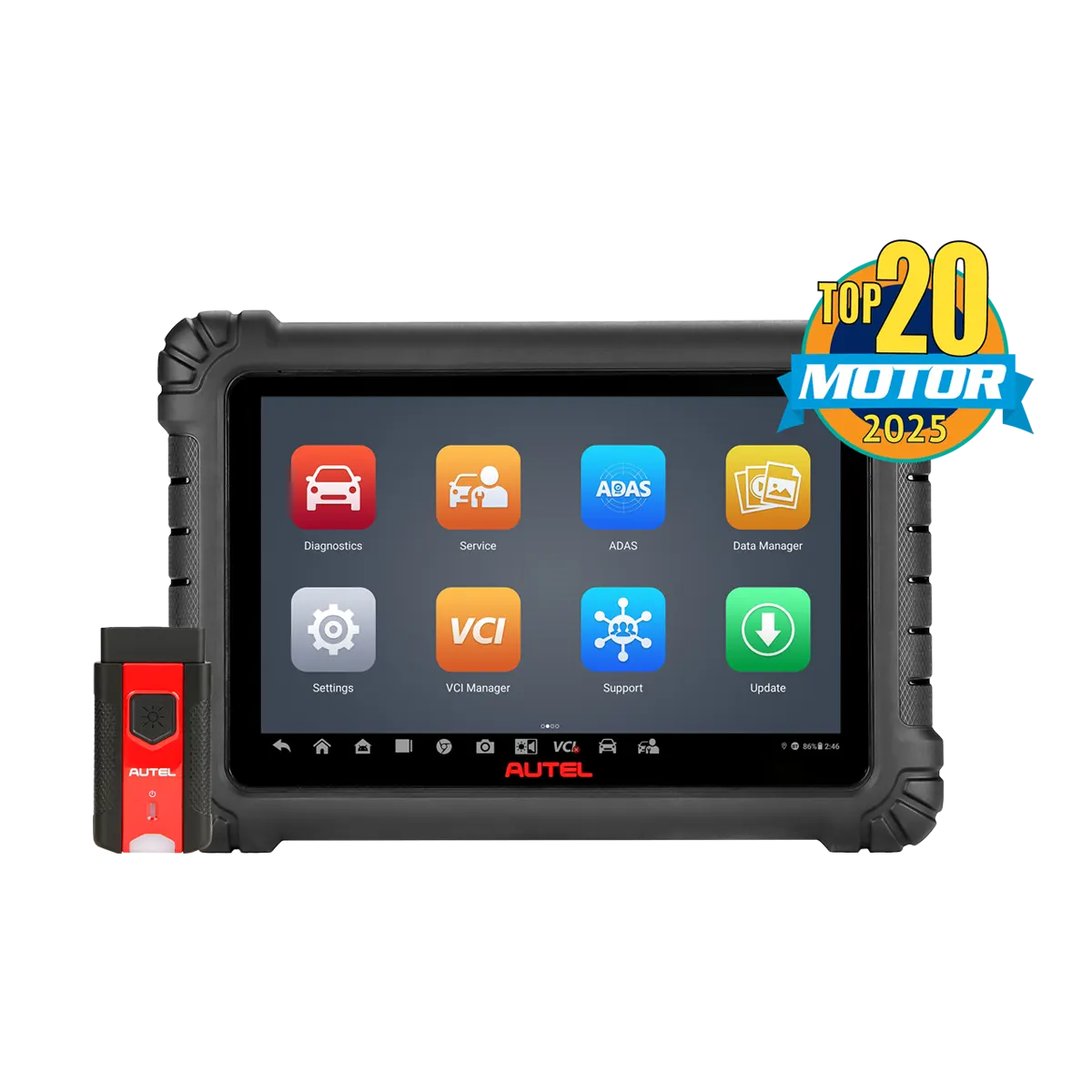

MaxiSYS MS906 MAX
