MaxiSYS MS909EV
Advanced EV Diagnostics with MaxiFlash VCI/J2534
Want to add EV Charging to your shop? Browse our solutions
at autelenergy.com

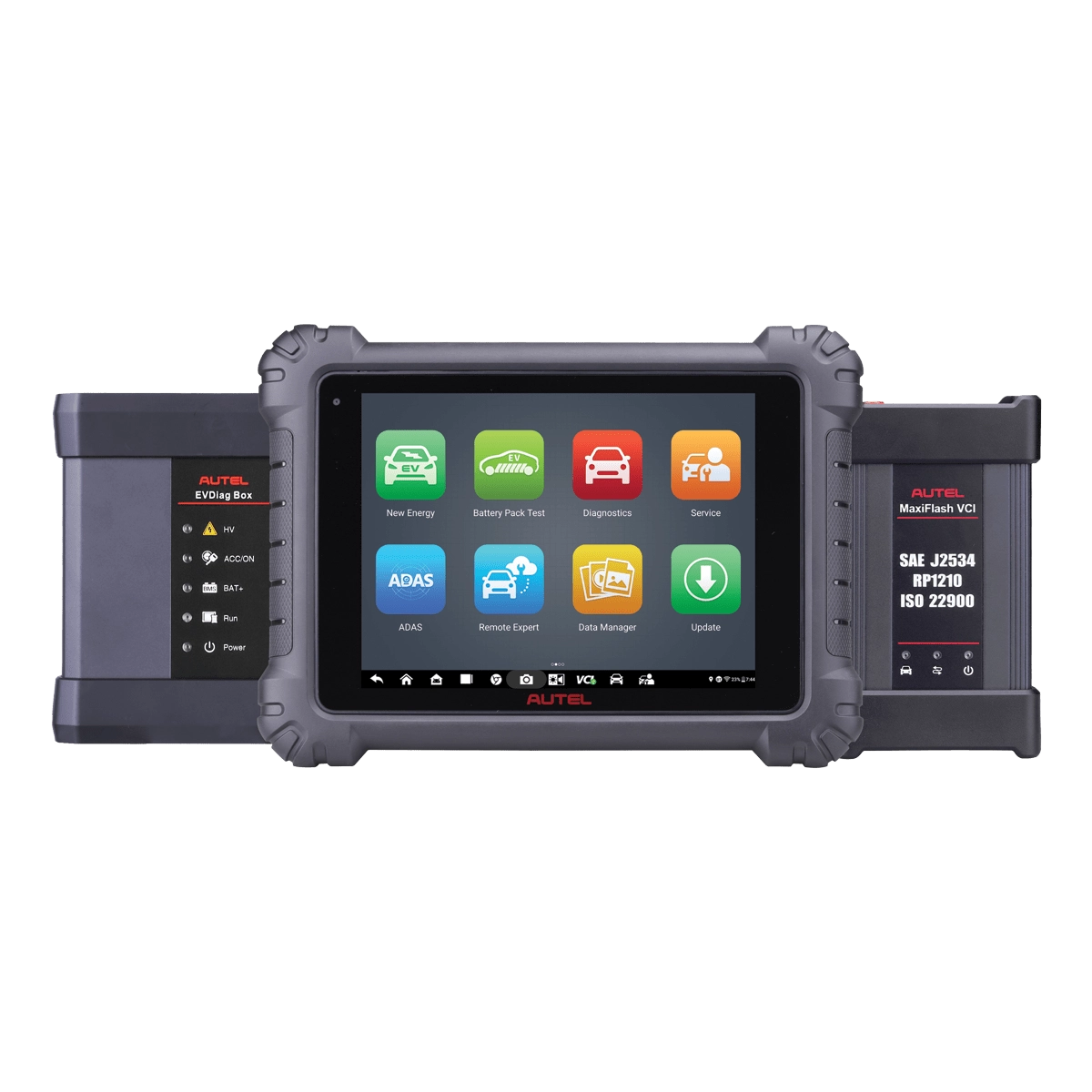

The MaxiSys MS909EV is a new generation of advanced diagnostics for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV provides a comprehensive approach to electric and hybrid vehicle diagnostics.
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads

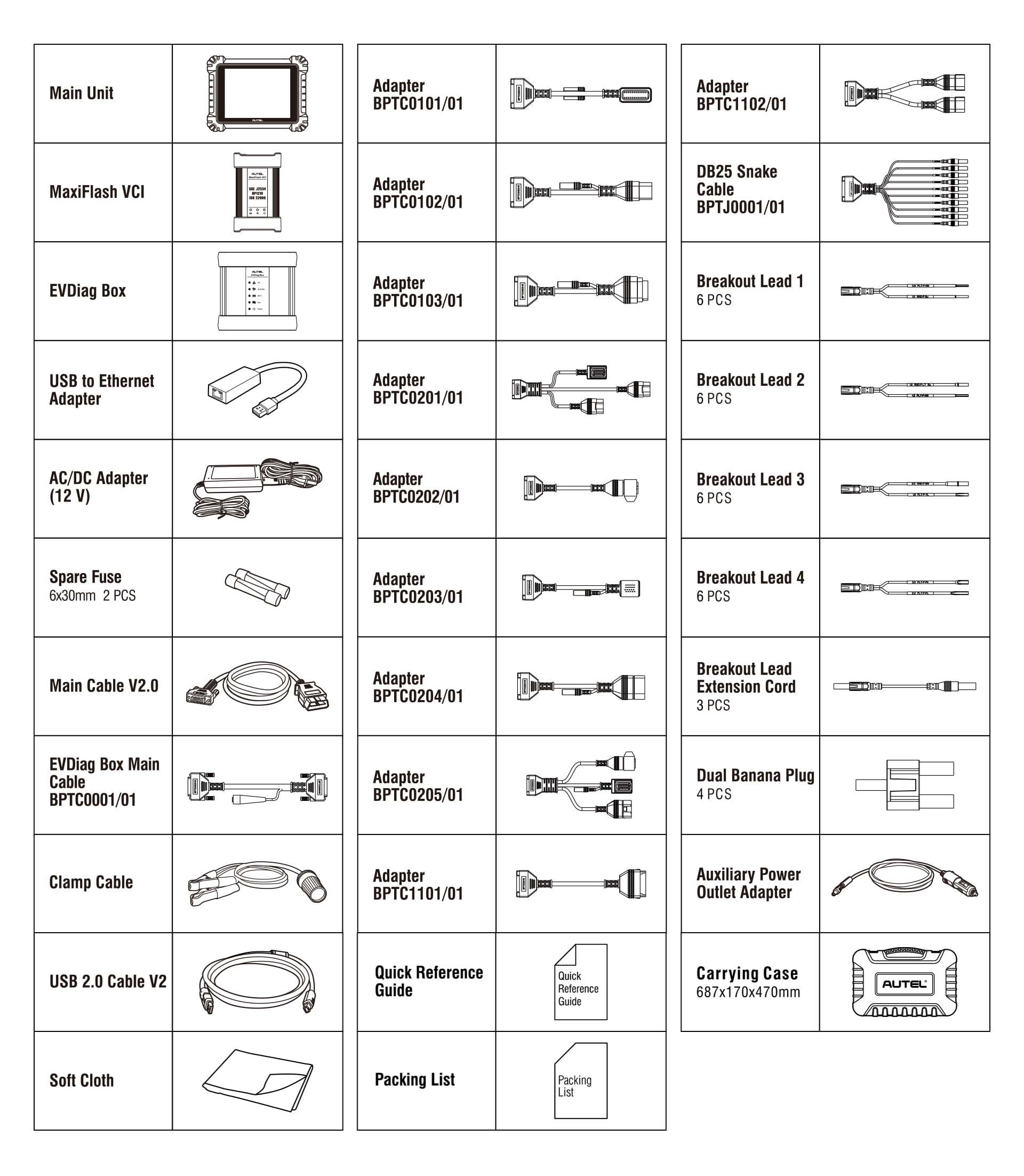

- What's Included
- Sold Separately
- Compare Similar
- Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
- Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
- Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions
- State of Charge and State of Health analysis for true battery condition
- Battery pack analysis can be performed via OBD or directly with included specialty cables and jumpers; the 909EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing
- Automatic system and software updates with real-time push message notifications via internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
- One-stop multitasking designed for ideal management of shop operations to keep all data files, customer info, and vehicle records organized
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
| Operating System | Android 7.0 |
| Processor | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity |
|
| Camera |
|
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Weight | 1.66kg (3.66 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
| MaxiSYS MS909EV | MaxiSYS MSUltra EV | ||
|---|---|---|---|
 |  | ||
| HARDWARE | |||
| Connection | Bluetooth MaxiFlash VCI Including Latest Protocols | Bluetooth MaxiFlash VCMI Including Latest Protocols | |
| Screen | 9.7inch Touchscreen 1536 X 2048 DPI / TFT-LCD ASAHI GLASS | 12.9inch Touchscreen - | |
| Battery | 15,000 mAh | 18,000 mAh | |
| Processor | 2.2GHz + 1.8GHz OCTA-CORE | 2.2GHz + 1.8GHz OCTA-CORE | |
| Memory | 128GB SSD / 4GB RAM | 256GB SSD / 4GB RAM | |
| Camera | 16MP Rear / 16MP Front | 16MP Rear / 5MP Front | |
| Docking Station | — | Included | |
| EVDiag Box | Included | Included | |
| SOFTWARE | |||
| Operating System | Android 7.0 | Android 7.0 | |
| Software Updates | 1 Year Free Update Via Wi-Fi | 1 Year Free Update Via Wi-Fi | |
| Automatic Detection | Auto-Vin / Auto-Scan Scan Vin / Plate Scan | Auto-Vin / Auto-Scan Scan Vin / Plate Scan | |
| Secure Gateway Access | Authorized FCA Access With Autoauth Account | Authorized FCA Access With Autoauth Account | |
| License Plate Reader | Available On Select Vehicles | Available On Select Vehicles | |
| Vehicle Coverage | US, Asian & European Electric, Gas, Diesel and Hybrid vehicles | US, Asian & European Electric, Gas, Diesel and Hybrid vehicles | |
| OBDII Test Modes | All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6 | All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6 | |
| Service Resets | 36 Service Features | 36 Service Features | |
| Diesel PM | Reset Diesel Emissions Light & Medium Duty Vehicles | Reset Diesel Emissions Light & Medium Duty Vehicles | |
| System Diagnostics | Access All Modules In all systems | Access All Modules In all systems | |
| High-voltage System Diagnostics | Diagrams of high-voltage system block | Diagrams of high-voltage system block | |
| Battery Pack Diagnostics | SOC and SOH analysis | SOC and SOH analysis | |
| Component Activations | Bi-Directional Control | Bi-Directional Control | |
| Enhanced Functions | Coding + Adaptations | Coding + Adaptations | |
| ADAS Calibration | ADASUpgrade & Frame Kit* Purchase Required | ADASUpgrade & Frame Kit* Purchase Required | |
| Battery Analysis | — | — | |
| Complete TPMS Function | — | — | |
| Topology Module Mapping | Color-coded All System status screen on supported vehicles | Color-coded All System status screen on supported vehicles | |
| Oscilloscope | — | VCMI 5-in-one device, VCI multimeter, waveform generator, CAN Bus tester | |
| Split Screen Display | — | View multiple functions at once |
