MaxiSYS MSUltra ADAS

Name: MaxiSYS MSUltra ADAS | Autel
SKU: MSULTRAADAS
Price: 5495.00 USD
Availability: InStock

Advanced Diagnostic Service Tablet

This 12.7-inch wireless touchscreen tablet comes replete with all the functionality expected in an advanced diagnostic and service tablet including the ability read and erase codes, view Freeze Frame and view and graph Live Data, perform Active Tests and perform coding and adaptions, plus it includes ADAS calibration and Wheel Alignment software. Compatible with the IA900WA frame system. The tablet is equipped with a Bluetooth-enabled VCI and J2534 passthru programming device, includes one-year free software and is covered by a one year limited warranty.

For pricing, contact your authorized Autel tool dealer.

SKU: MSULTRAADAS Category: ADAS Calibration

Where To Buy

Description
Specifications
Downloads

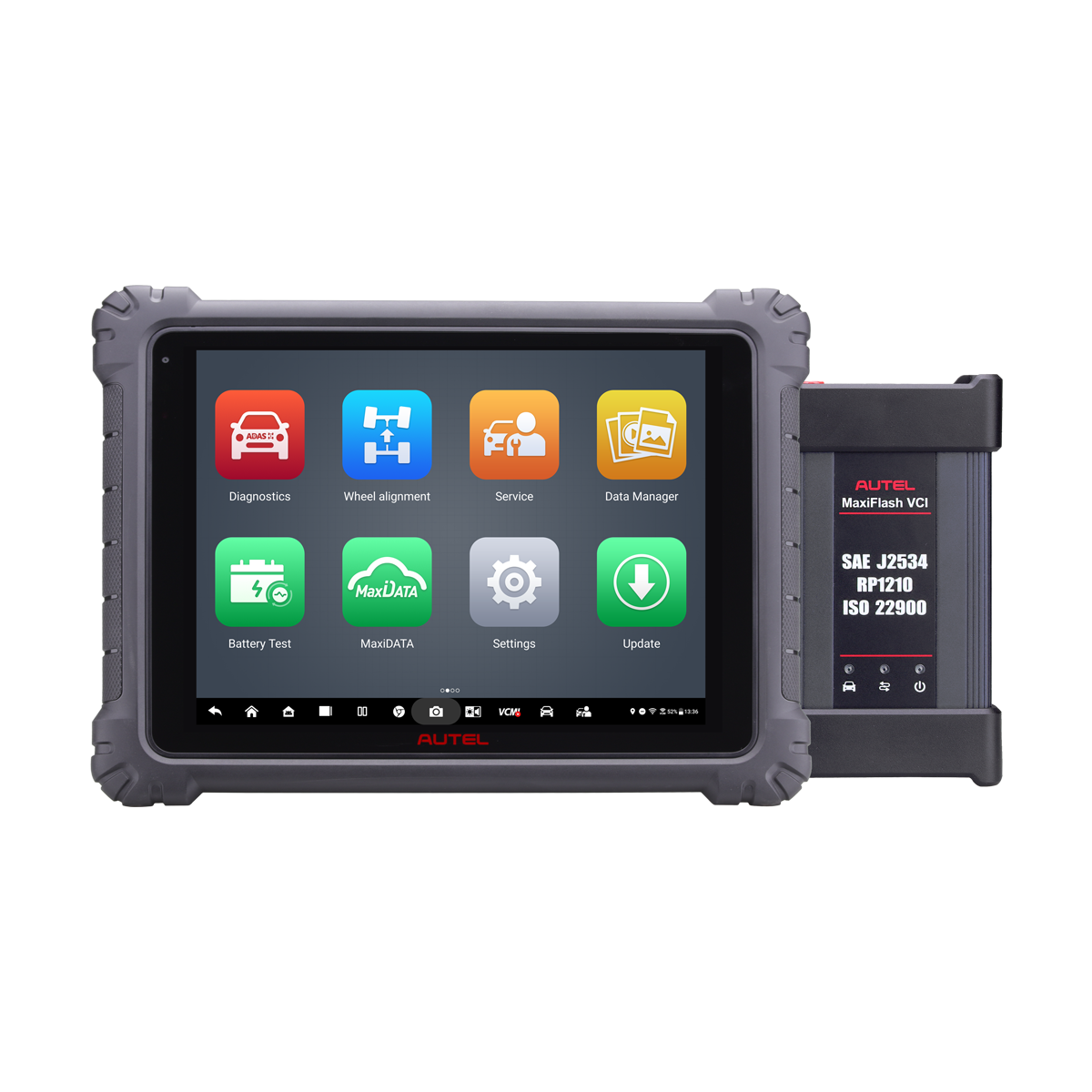

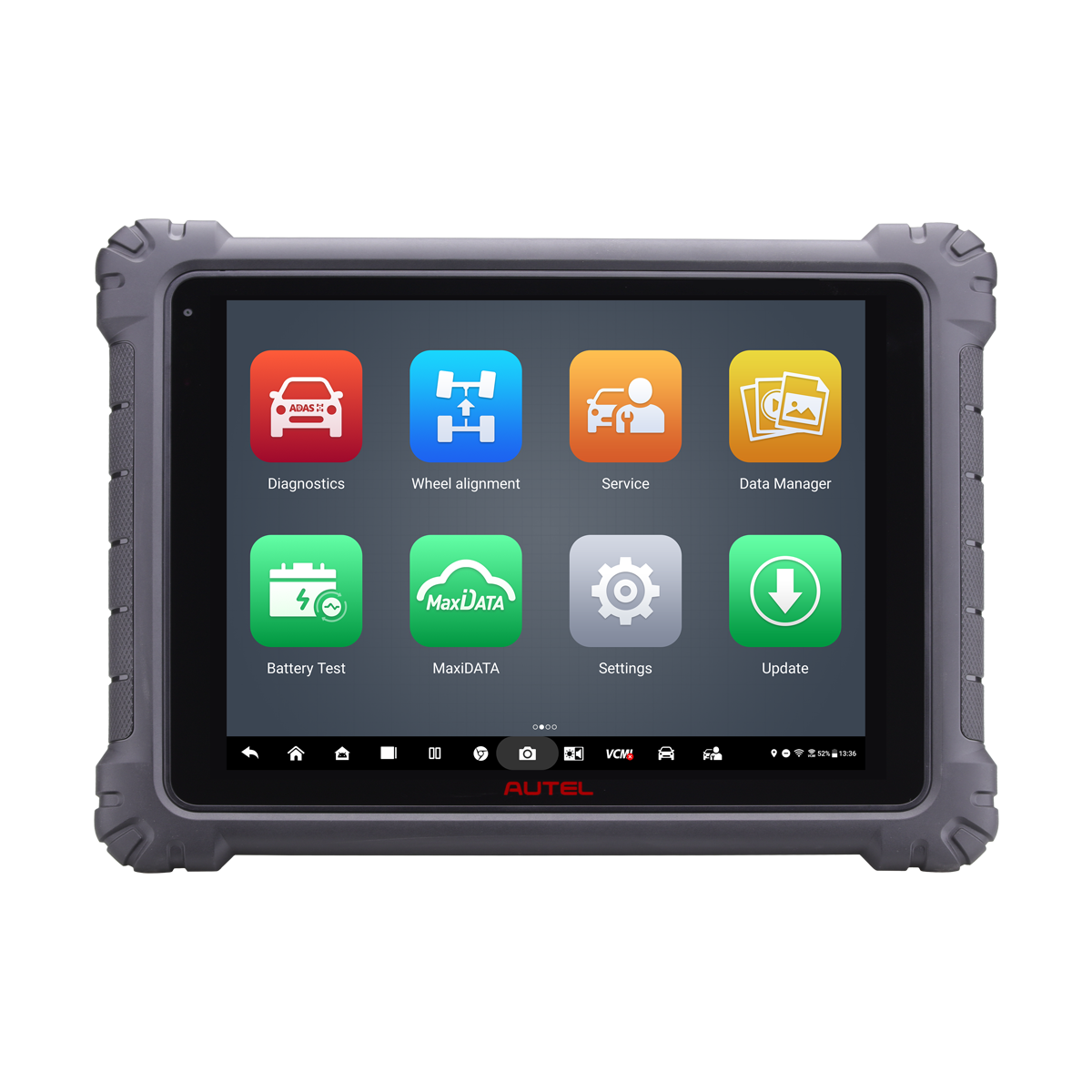

12.7-inch touchscreen Android-based advanced diagnostics tablet
Includes ADAS calibration and wheel alignment software update
Compatible with IA900WA frame system
Advanced diagnostic functionality compatible with U.S., Asian and European vehicles, 1996 ad newer
Read and Erase codes, view Freeze Frame and view and graph Live Data
Perform Active Test and adaptations and coding
Includes MaxiFlash VCI and J2534 passthru programming device
Covered by one year limited warranty
Includes one year of free software updates

Specifications

Operating System	Android 7.0
Processor	Octa-core processor (4 x 2.3 GHz; 4 x 1.7 GHz)
Memory	4GB RAM & 256GB On-board Memory
Display	12.7 inch with 2732 x 2048 resolution & capacitive touchscreen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temperature	-10 to 60°C (14 to 140°F)
Dimensions (WxHxD)	366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″)
Weight	2.18kg (4.81 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
