MaxiSYS ULTRA S2
Advanced Diagnostic Tablet

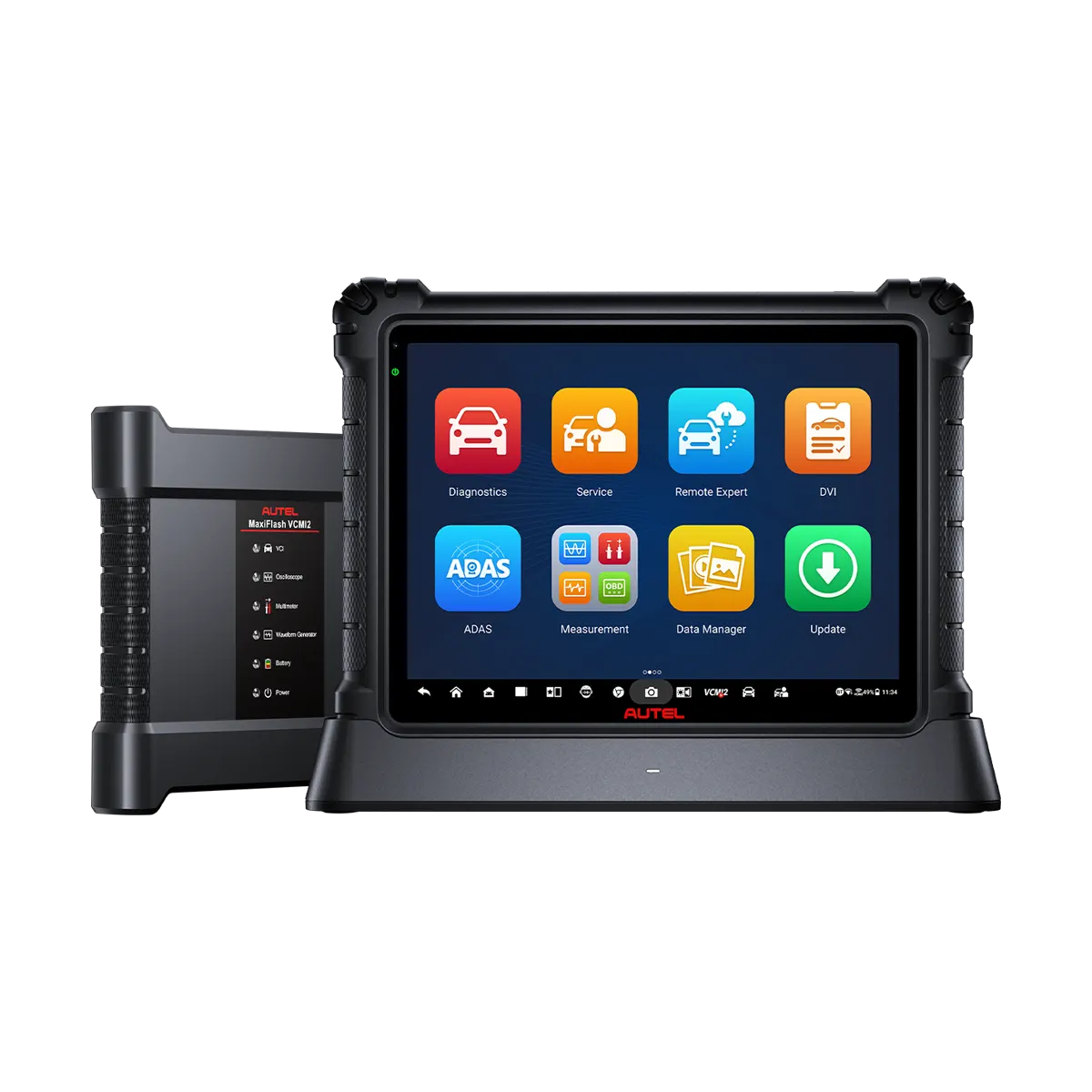

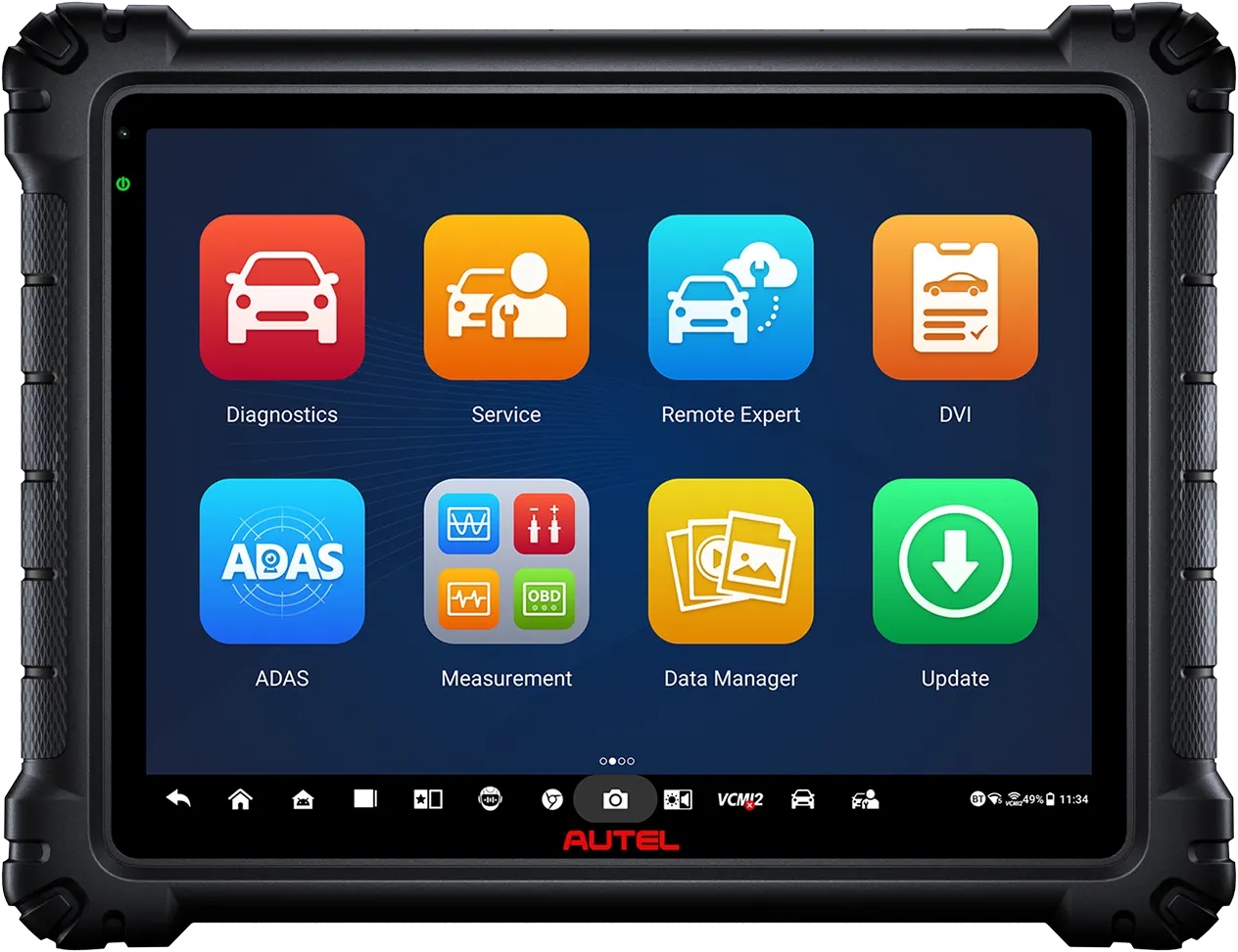

MaxiSYS Ultra S2 is a 13.7-inch touchscreen Android-based tablet featuring 512 gigabytes of storage and a 6-in-1 vehicle communication and measurement device. The Ultra S2 provides comprehensive coverage of U.S., Asian, and European vehicles, 1996 and newer, with advanced diagnostics, including active tests, special functions, and coding and adaptations. Additional features on this flagship Autel advanced diagnostic tablet include Topology 3.0: OE-Style System Analysis of Multi-Speed Communication Protocol Networks, Active Module and Network Analysis: Locate and Directly Ping ECUs to Test Signal Quality and Network Integrity; new Live Data visualization strategies for more efficient system diagnostics; an improved and integrated 4-channel oscilloscope that can be launched directly while performing Live Data analysis; a Multi-point digital visual inspection application that guides the technician through a comprehensive inspection and documentation of the vehicle status for revenue-generating opportunities. This new DVI includes an AI-powered image analysis for auto-detection of dents and scratches; a new streamlined VCMI with standalone Remote Expert capability; and introducing MAX, hands-free virtual assistance that enables the technician to access tablet functions with simple audible commands. The tablet comes with one year of free access to Motor TRUSPEED repair data, free Autel software updates, and a year of limited warranty coverage.
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads
- What's Included
- Sold Separately
- Compare Similar
- MaxiSYS Ultra S2 is a 13.7-inch touchscreen Android-based tablet featuring 512 gigabytes of storage and a 6-in-1 vehicle communication and measurement device
- Comprehensive coverage of U.S., Asian, and European vehicles, 1996 and newer, with advanced diagnostics, including active tests, special functions, and coding and adaptations

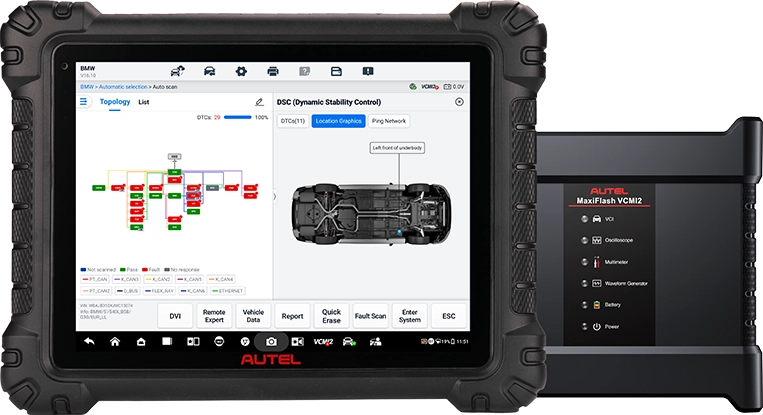

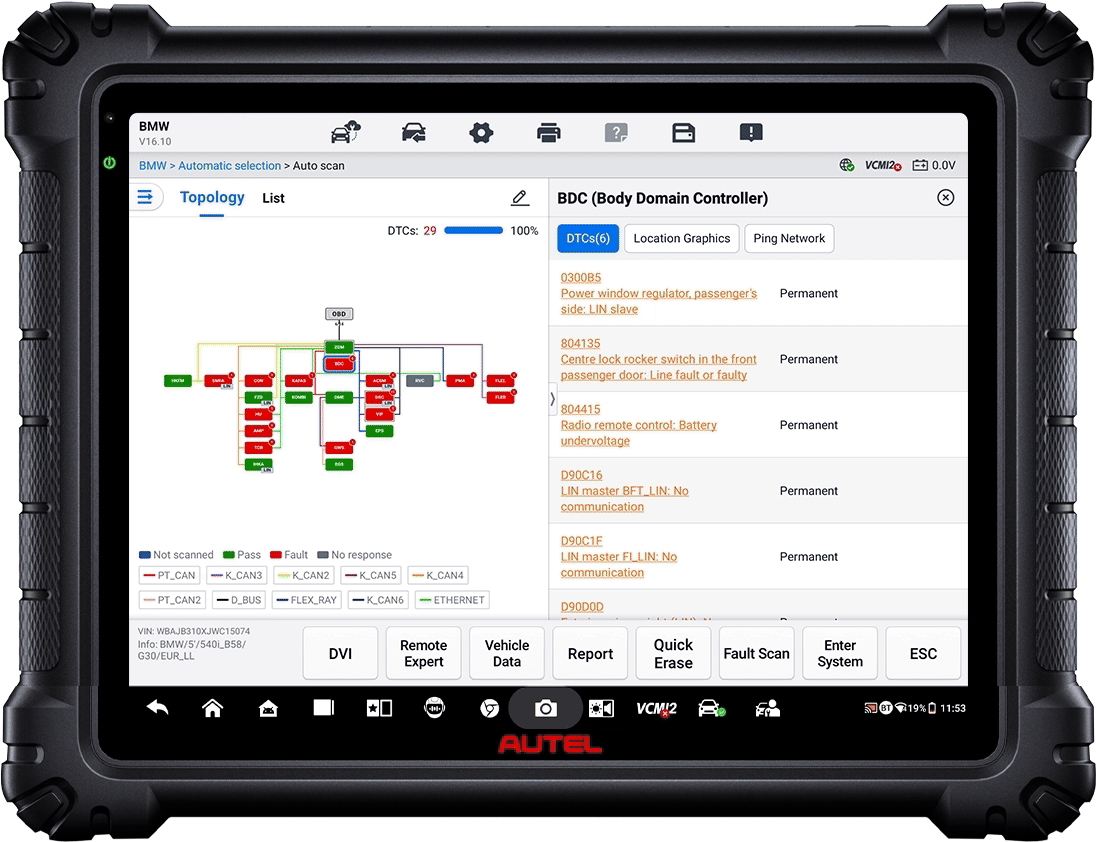

- Topology 3.0: OE-Style System Analysis of Multi-Speed Communication Protocol Networks, Active Module and Network Analysis: Locate and Directly Ping ECUs to Test Signal Quality and Network Integrity

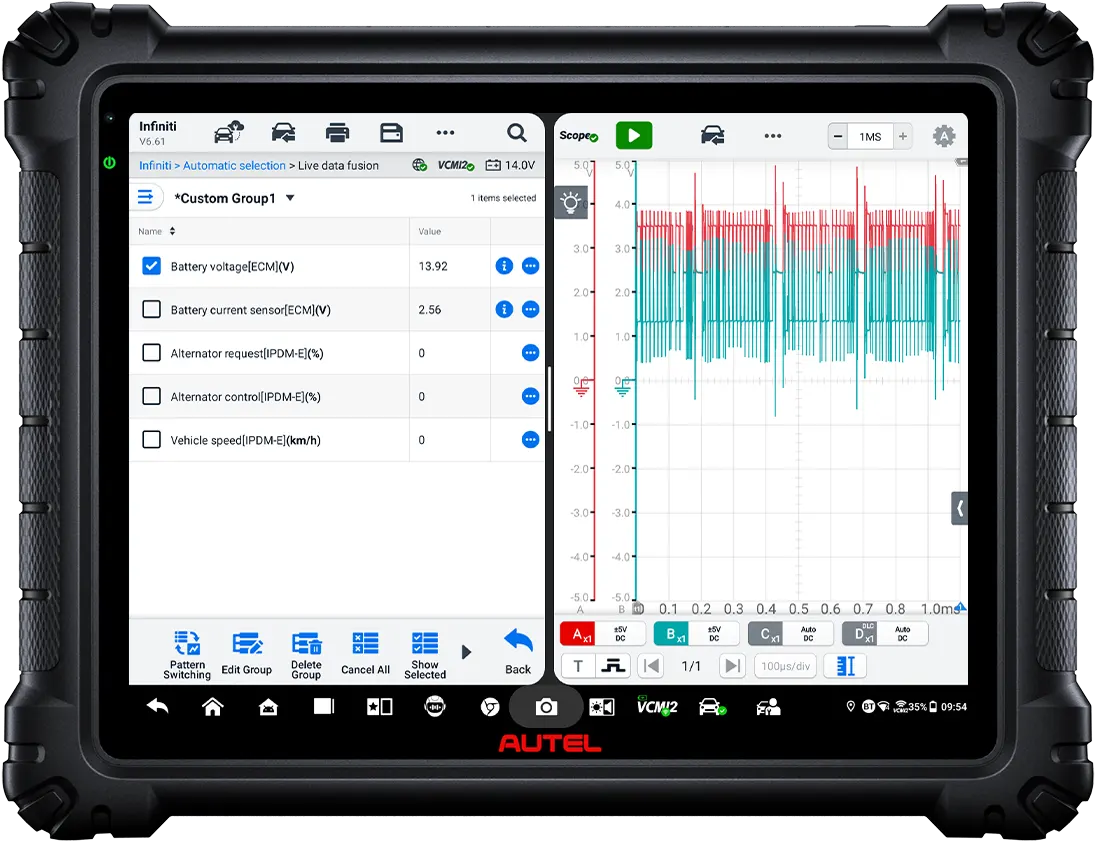

- Enhanced Oscilloscope: Launch Scope directly from Live Data; EV Tests, including AC/DC Charging, HV Component, Interlock Loop Signal, Power-On Ctrl, Resolver Sensor, and Thermal Management Sys; Added Parasitic Current Draw, Swing Tests

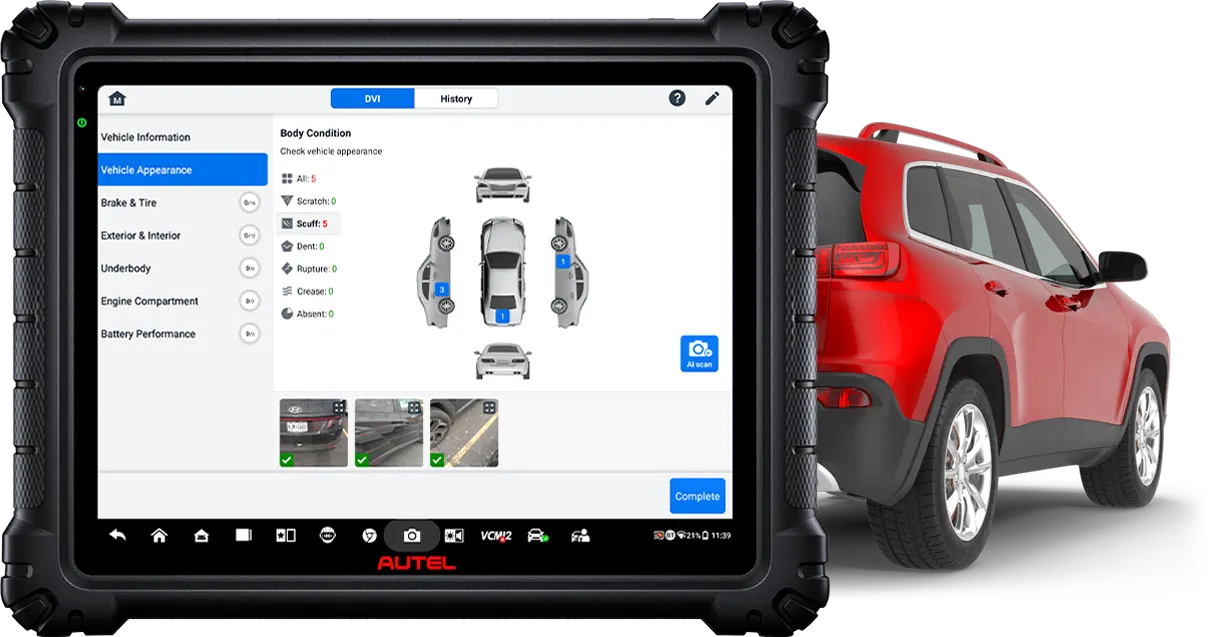

- Multi-point Digital Vehicle Inspection: AI-powered image analysis for auto-detection of dents and scratches; Pair with Autel TBE200 Tire Tread Examiner and ITS600 TPMS tool to produce detailed tire analysis

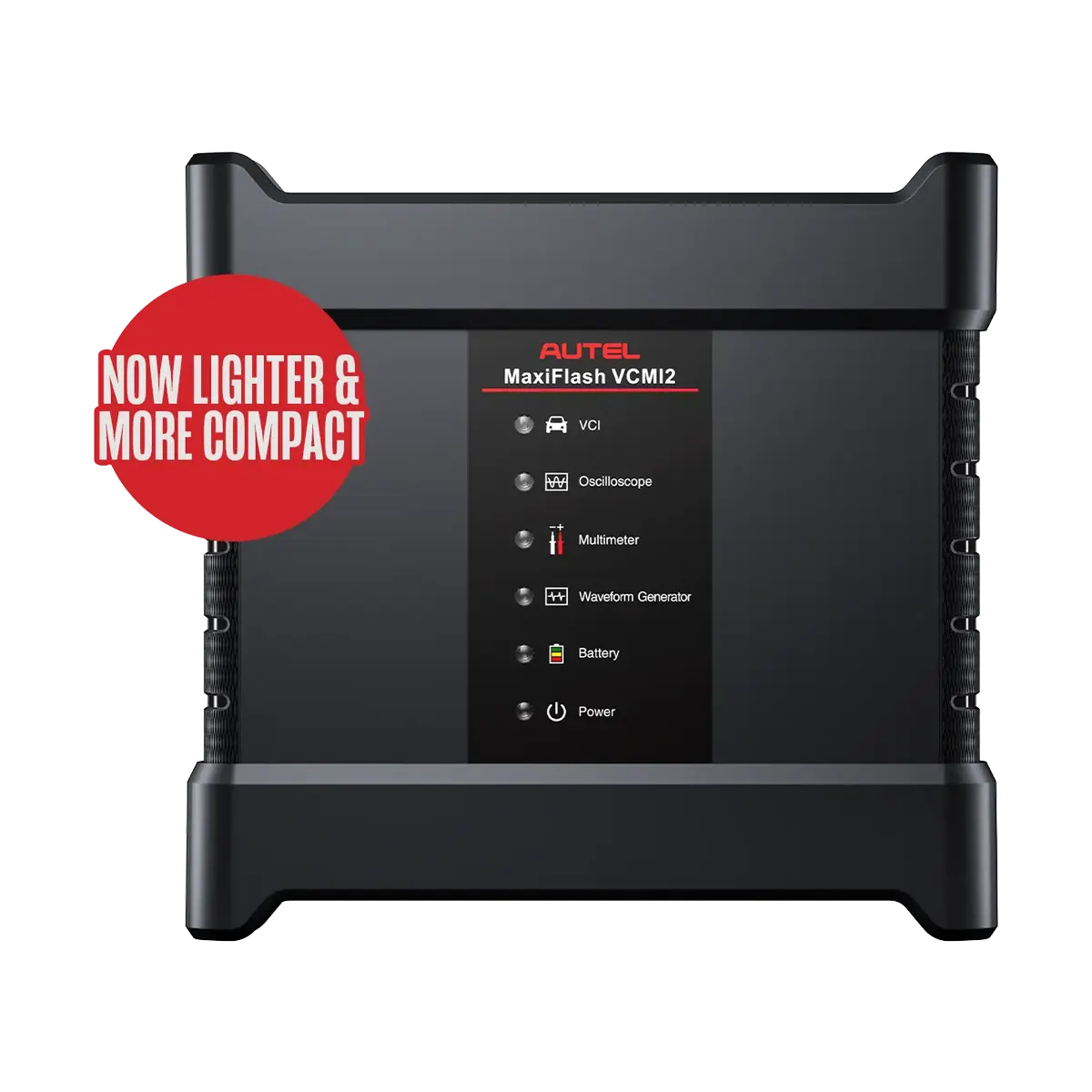

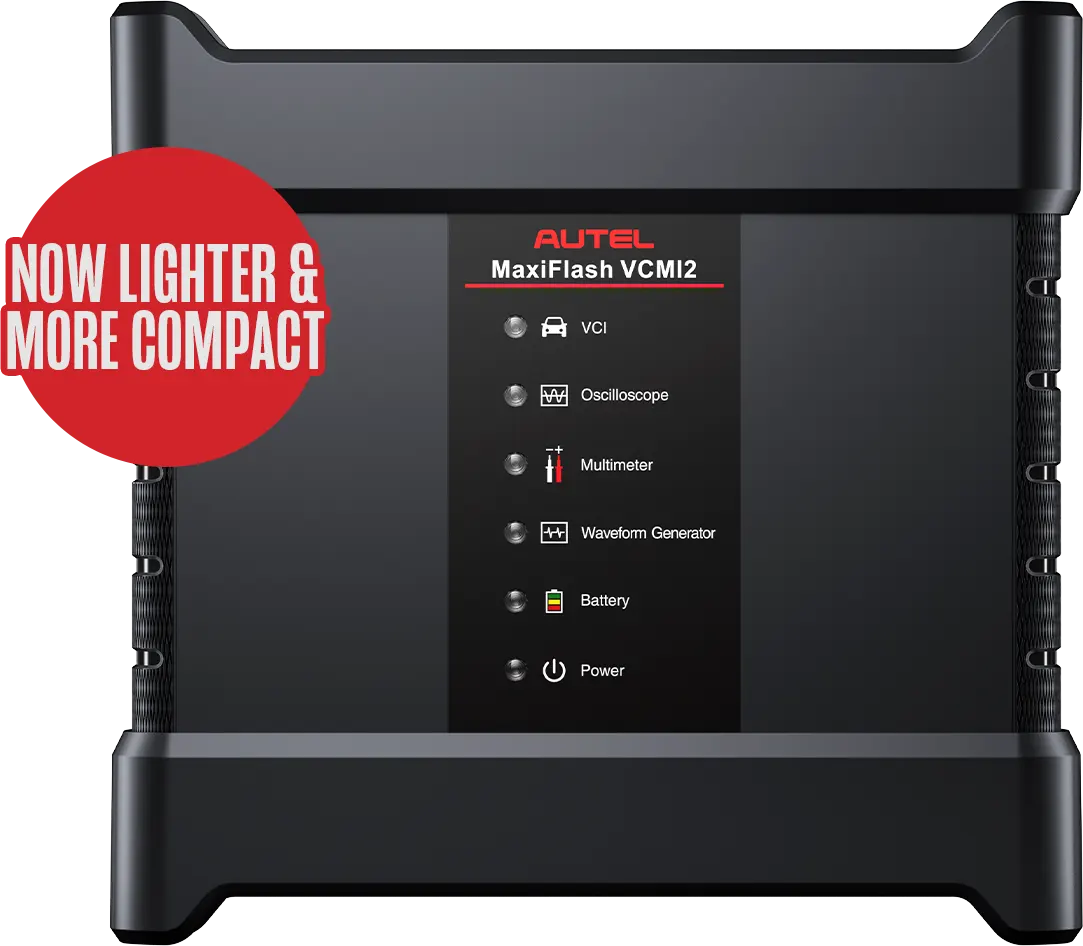

- Includes MaxiFlash VCMI2: an advanced VCI/J2534 pass-thru programmer, 4-channel Oscilloscope, Multimeter, Waveform generator, CAN-Bus Tester, and standalone Remote Expert device, all in a lighter, streamlined chassis

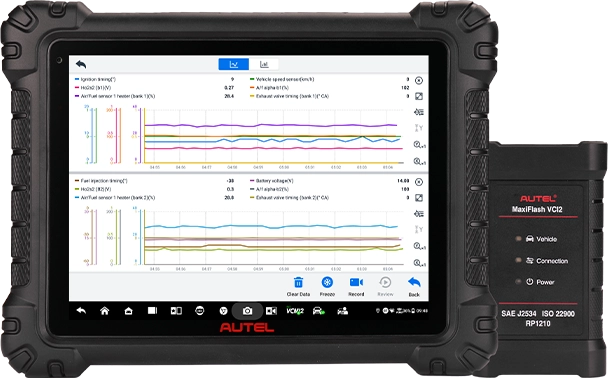

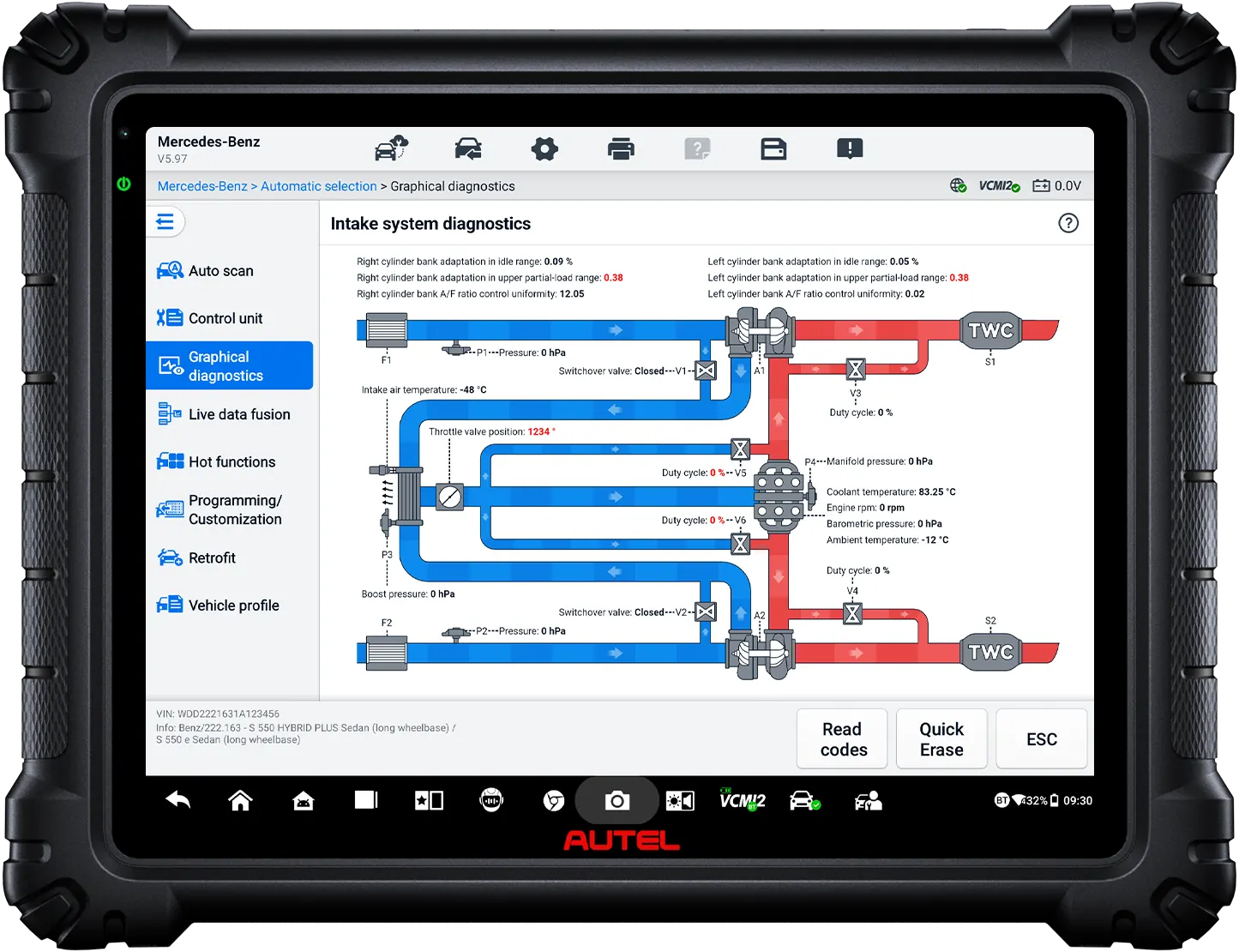

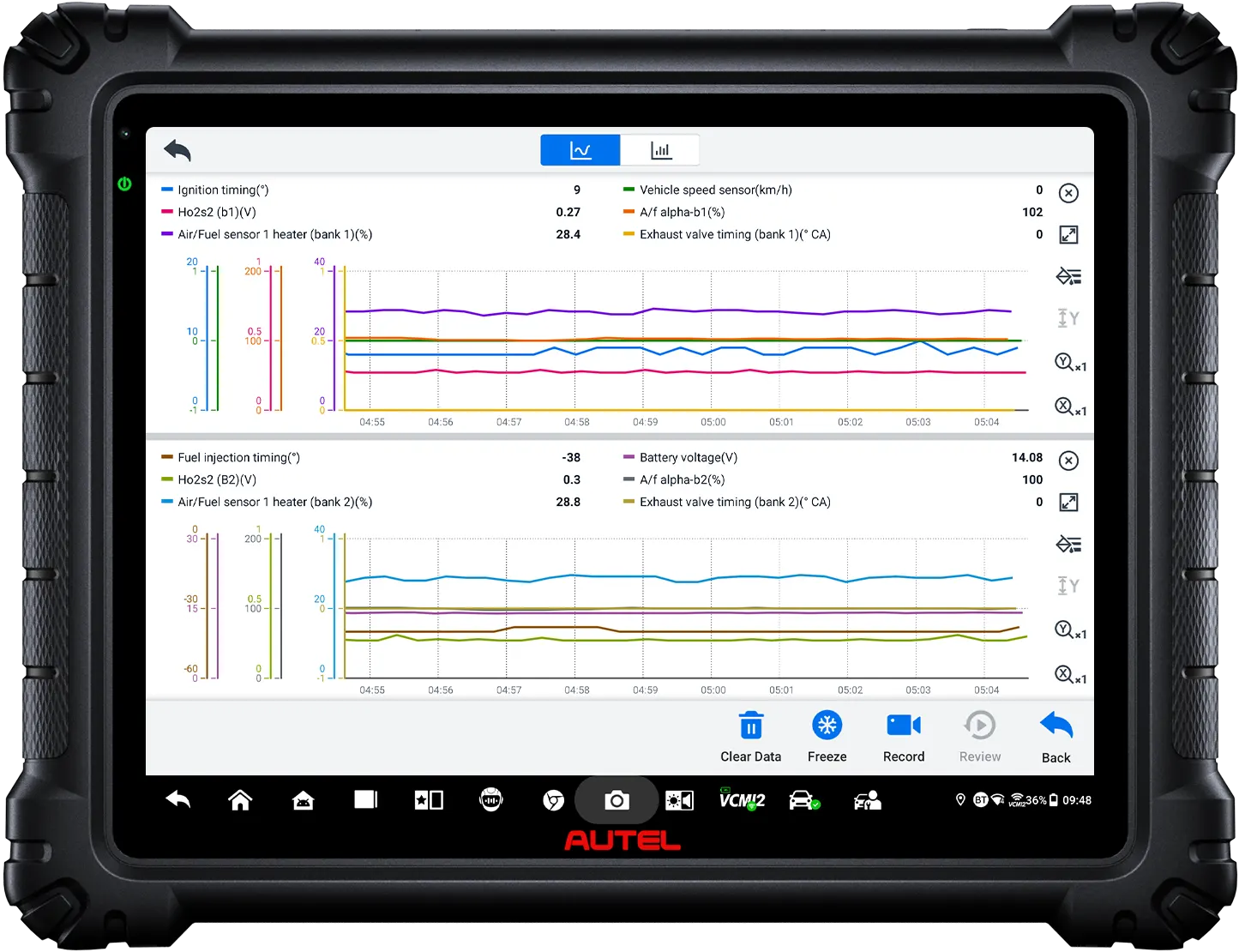

- Data Visualization: Enhanced graphing capability to visualize multiple parameters to identify the relationship between PIDs and pinpoint system anomalies

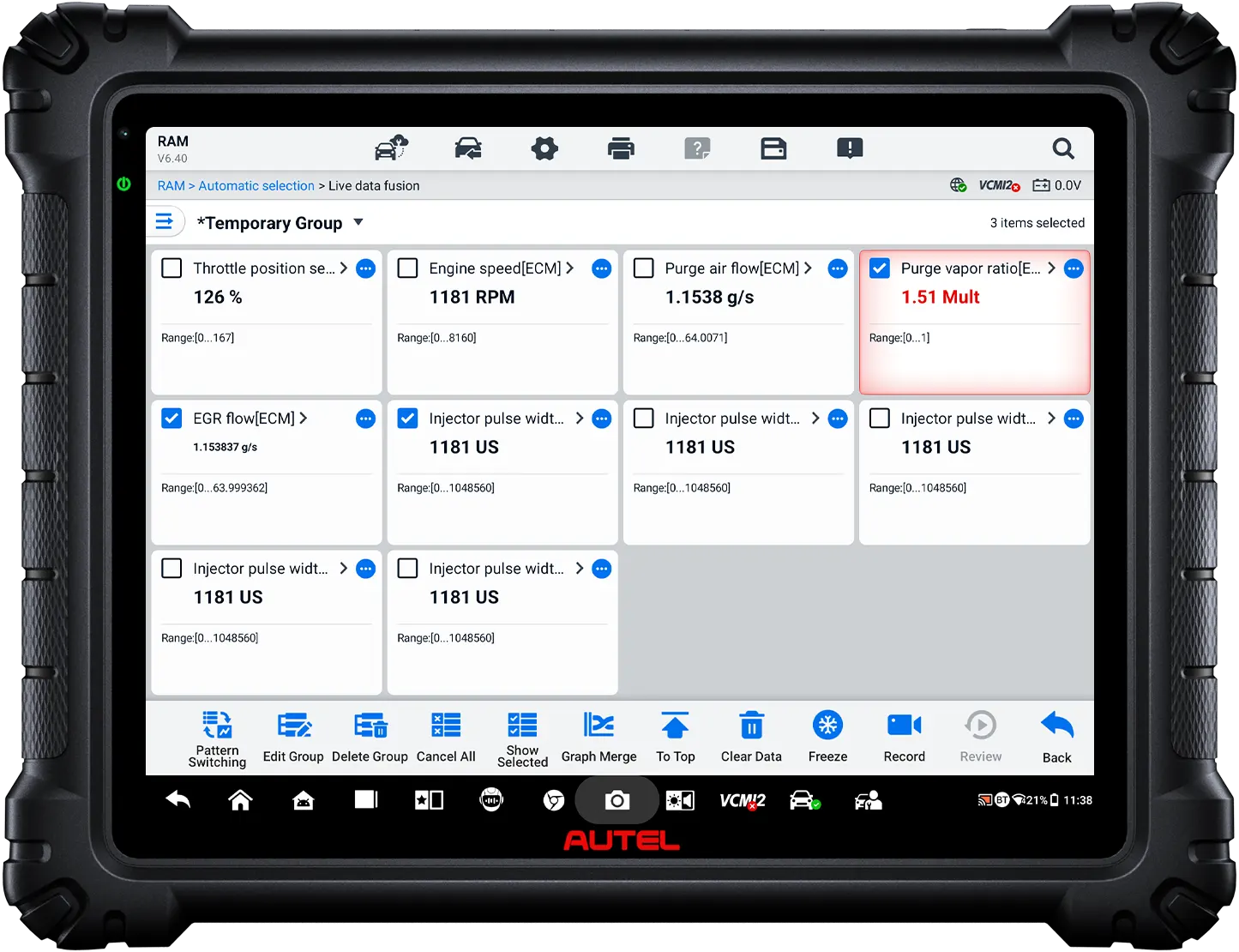

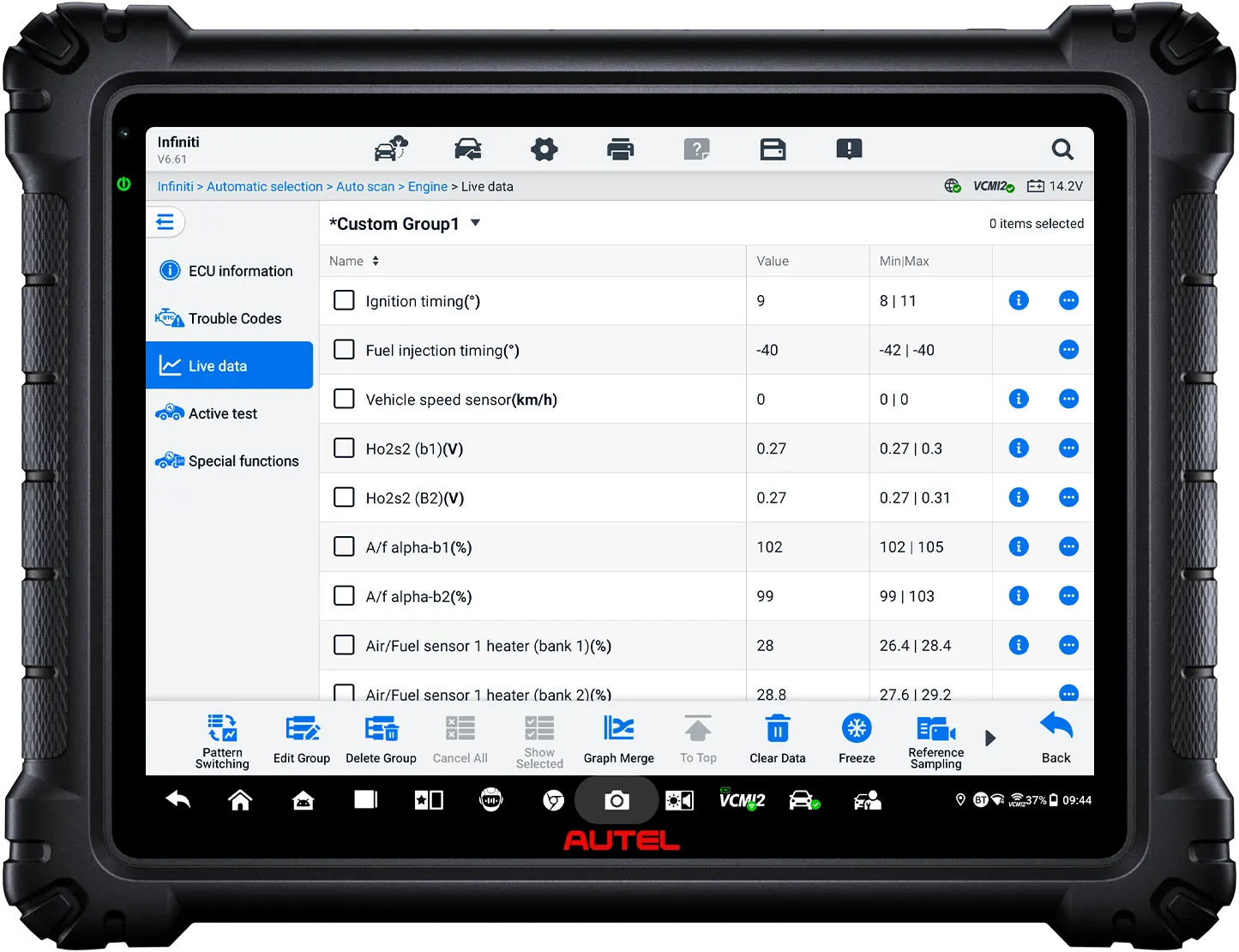

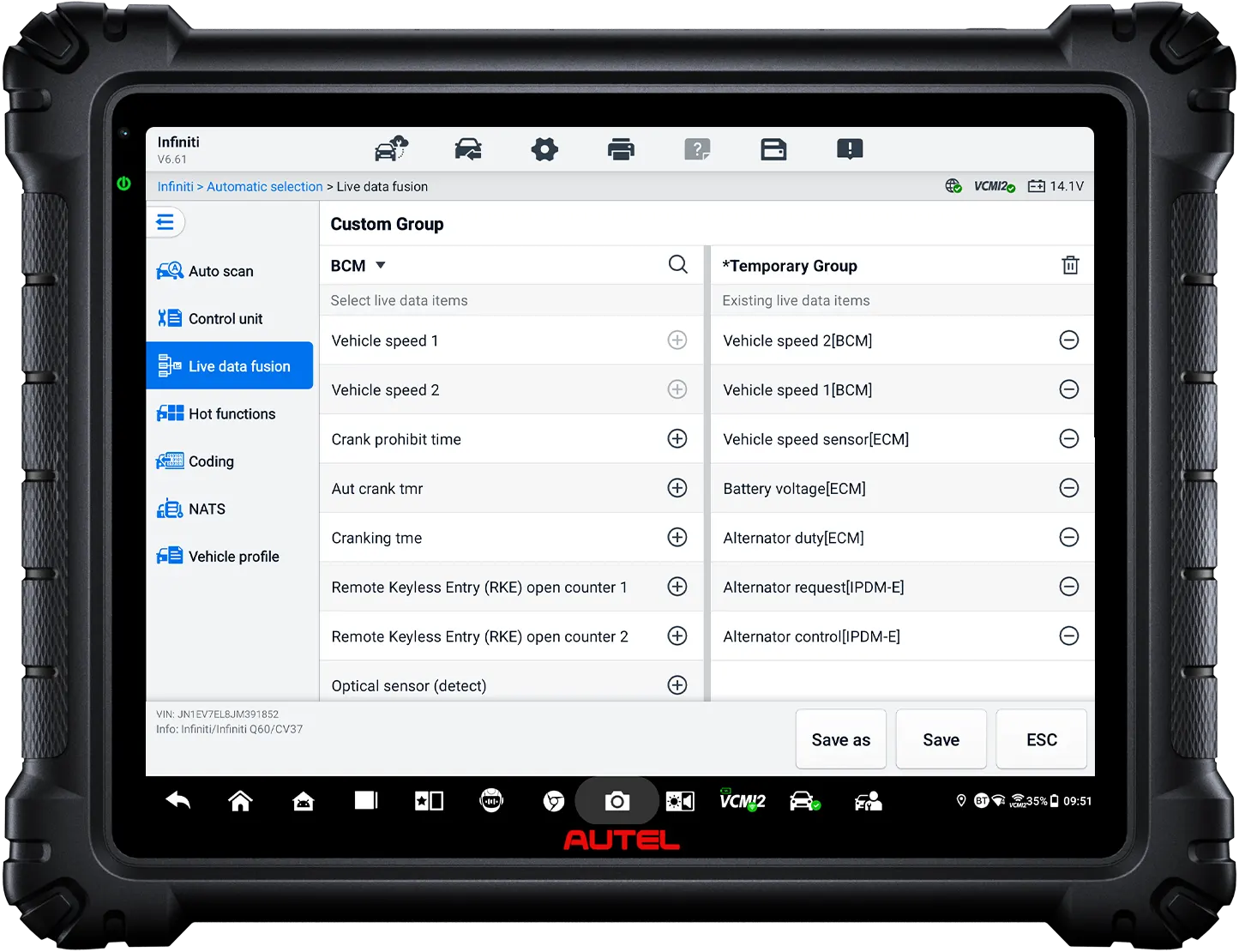

- Live Data Fusion: Record and compare value changes across multiple systems Parameter Grouping: Multi-PID selection for analyzing related parameters simultaneously

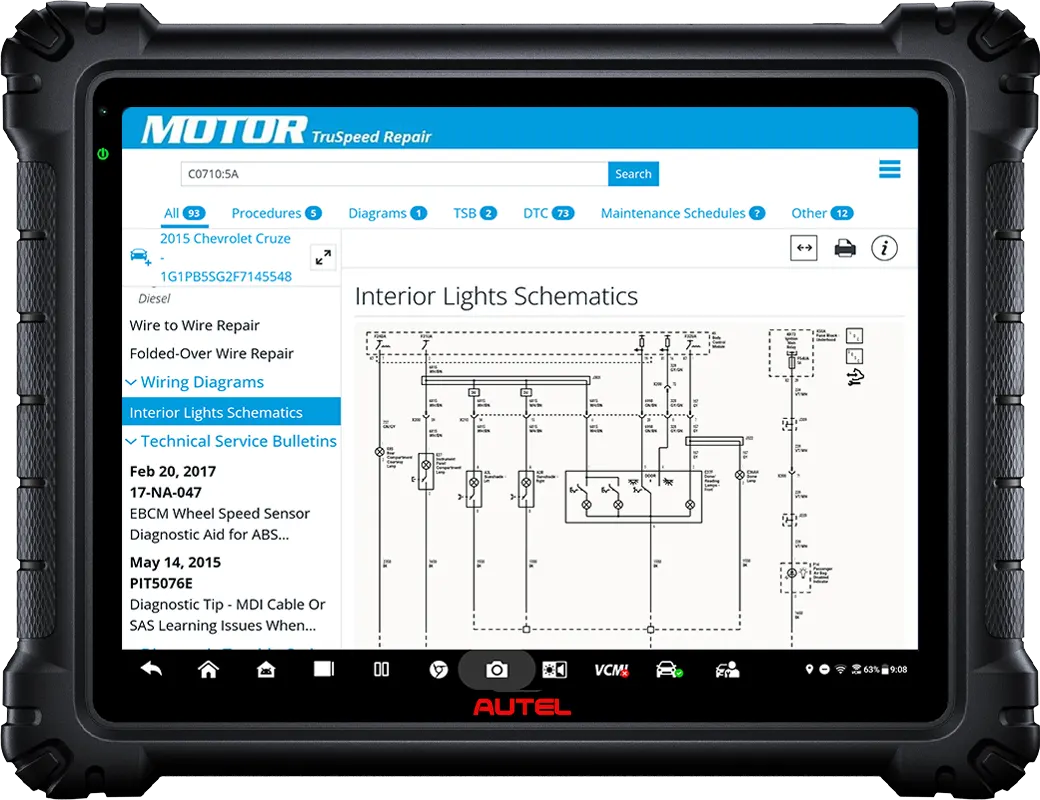

- Includes one-year free access to Motor TRUSPEED repair data
- Reference Sampling: Record, store, and review selected PIDs for pre- and post-repair comparison that will flag min, max, and average
- Service Menu features 48-plus maintenance and service tasks; direct access to commonly performed service functions and resets
- Hands-free navigation of the Ultra S2 interface with MAX, a virtual assistant
- Enhanced Docking Station with Tablet “Fast Charge”
- Includes one year of software updates and limited warranty
| Operating System | Android 13 |
| Processor | QCS6490 2.7G 8-core |
| Memory | 12GB+512GB |
| Display | 13.7" Anti-glare Screen 2176x1600 |
| Connectivity |
|
| Camera |
|
| Power and Battery |
|
| VCI | VCMI 2 |
| Oscilloscope | 4 Channel |
| Multimeter | Supported |
| Charging Dock | Fast Charge |
| Startup Time | 18s |
| Voice Assistance | Supported |
| Topology | Based on ECU Network + module location |
| Auto Scan | Yes |
| Graphic Live Data Screen | Multi-system |
| Diagnostics Software | Comprehensive Vehicle Coverage Ultra S2 Software |

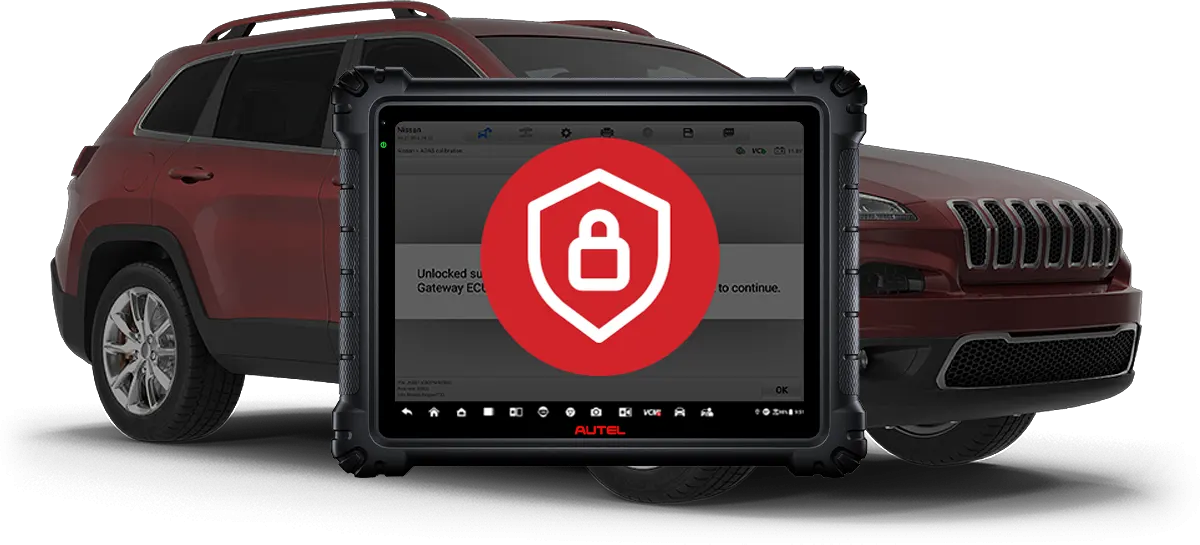

| Security Gateway | Stellantis, Nissan, Mercedes-Benz, Volkswagen/Audi |
| OEM-Sourced Repair Data | "MOTOR TruSpeed 1 Year Free" |
Protocols |
DoIP, CanFD, J2534, D-PDU |
| MaxiSYS MS919 | MaxiSYS MSUltra | MaxiSYS ULTRA S2 | |
|---|---|---|---|
 |  |  | |
| HARDWARE | |||
| Connection | Bluetooth MaxiFlash VCMI, Dual Wi-Fi 5
Including Latest Protocols | Bluetooth MaxiFlash VCMI, Dual Wi-Fi 5
Including Latest Protocols | Bluetooth MaxiFlash VCMI2, Dual Wi-Fi 6
Including Latest Protocols |
| Screen | 9.7-Inch Touchscreen
1536 x 2048 DPI / TFT-LCD Asahi Glass | 12.7-Inch Touchscreen
(2732 x 2048) TFT-LCD Capacitive Touchscreen | 13.7-Inch Anti-glare Touchscreen
(2176x1600) |
| Battery | 15,000 mAh | 18,000 mAh | 18,000 mAh |
| Processor | 2.2GHz + 1.8GHz
OCTA-CORE | 2.2GHz + 1.8GHz
OCTA-CORE | QCS6490 2.7G
OCTA-CORE |
| Memory | 128GB SSD / 4GB RAM | 256GB SSD / 4GB RAM | 512GB SSD / 12GB RAM |
| Camera | 16MP Rear / 16MP Front | 16MP Rear / 5MP Front | 16MP Rear / 16MP Front |
| Docking Station | — | Included | Fast Charge |
| SOFTWARE | |||
| Operating System | Android 7.0 | Android 7.0 | Android 13 |
| Software Updates | 1 Year Free
Update Via Wi-Fi | 1 Year Free
Update Via Wi-Fi | 1 Year Free
Update Via Wi-Fi |
| Automatic Detection | Auto-Vin / Auto-Scan Scan Vin / Plate Scan | Auto-Vin / Auto-Scan Scan Vin / Plate Scan | Auto-Vin / Auto-Scan Scan Vin / Plate Scan |
| Secure Gateway Access | Stellantis, Nissan, Mercedes-Benz, and VW/Audi
Purchase required | Stellantis, Nissan, Mercedes-Benz, and VW/Audi
Purchase required | Stellantis, Nissan, Mercedes-Benz, and VW/Audi
Purchase required |
| License Plate Reader | Available On Select Vehicles | Available On Select Vehicles | Available On Select Vehicles |
| Vehicle Coverage | US, Asian & European
1996 And Newer Passenger / Light Duty Some Medium Duty | US, Asian & European
1996 And Newer Passenger / Light Duty Some Medium Duty | US, Asian & European
1996 And Newer Passenger / Light Duty Some Medium Duty |
| OBDII Test Modes | All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6 | All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6 | All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6 |
| Service Resets | 26 Service Features | 40 Service Features | 48 Service Features |
| Diesel PM | Reset Diesel Emissions
Light & Medium Duty Vehicles | Reset Diesel Emissions
Light & Medium Duty Vehicles | Reset Diesel Emissions
Light & Medium Duty Vehicles |
| System Diagnostics | Access All Modules
In all systems | Access All Modules
In all systems | Access All Modules
In all systems |
| Component Activations | Bi-Directional Control | Bi-Directional Control | Bi-Directional Control |
| Enhanced Functions | Coding /Adaptations | Coding /Adaptations | Coding /Adaptations |
| ADAS Calibration | ADASUpgrade & Frame Kit*
Purchase Required | ADASUpgrade & Frame Kit*
Purchase Required | ADASUpgrade & Frame Kit*
Purchase Required |
| Battery Analysis | MAXIBAS Software** | MAXIBAS Software** | MAXIBAS Software** |
| Complete TPMS Function | — | — | — |
| Topology Module Mapping | Color-coded All System status screen
on supported vehicles | Color-coded All System status screen
on supported vehicles | Color-coded All System status screen
on supported vehicles |
| Oscilloscope | VCMI 5-in-one device: VCI multimeter, Waveform Generator, CAN BUS tester | VCMI 5-in-one device:Also includes VCI, J2534 Multimeter, Waveform Generator, CAN BUS tester | VCMI2 6-in-one device:Also includes VCI, J2534 Multimeter, Waveform Generator, CAN BUS tester, Standalone Remote Expert Device |

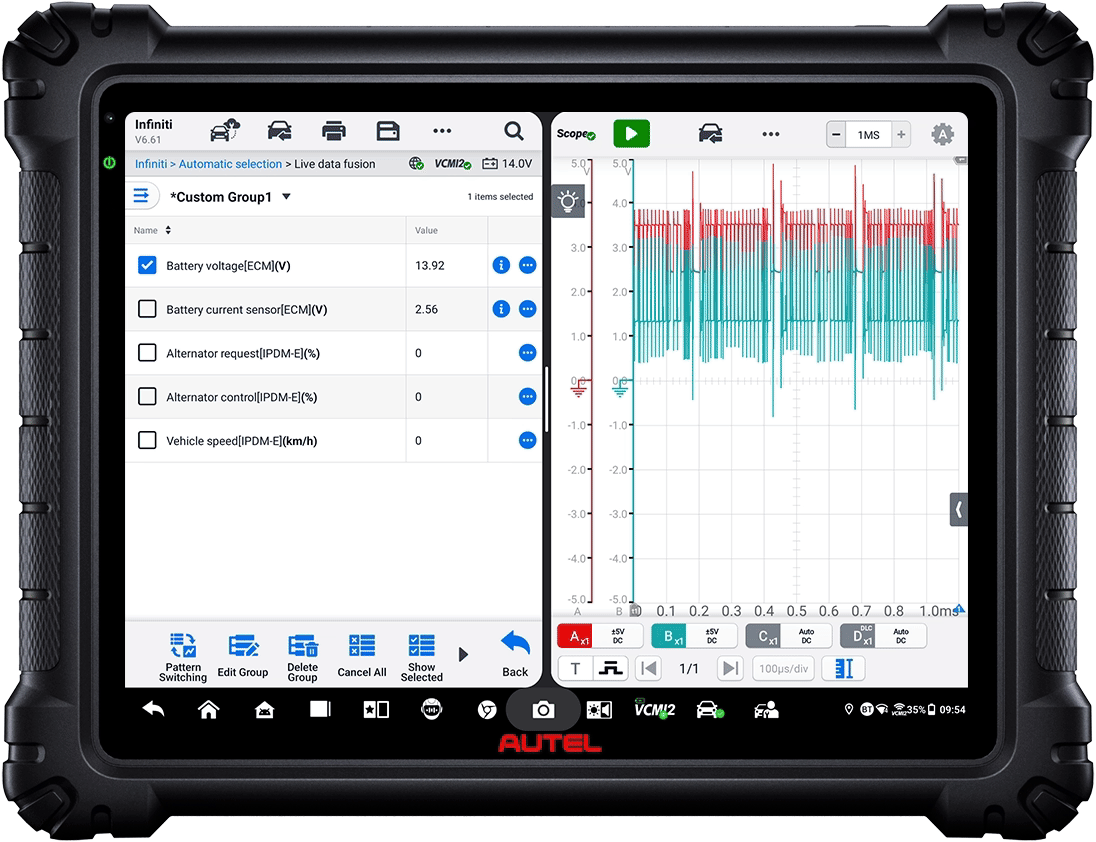

| Split Screen Display | — | View multiple functions at once | View multiple functions at once |
