MaxiTPMS ITS600 CV
ITS600 CV TPMS Tablet

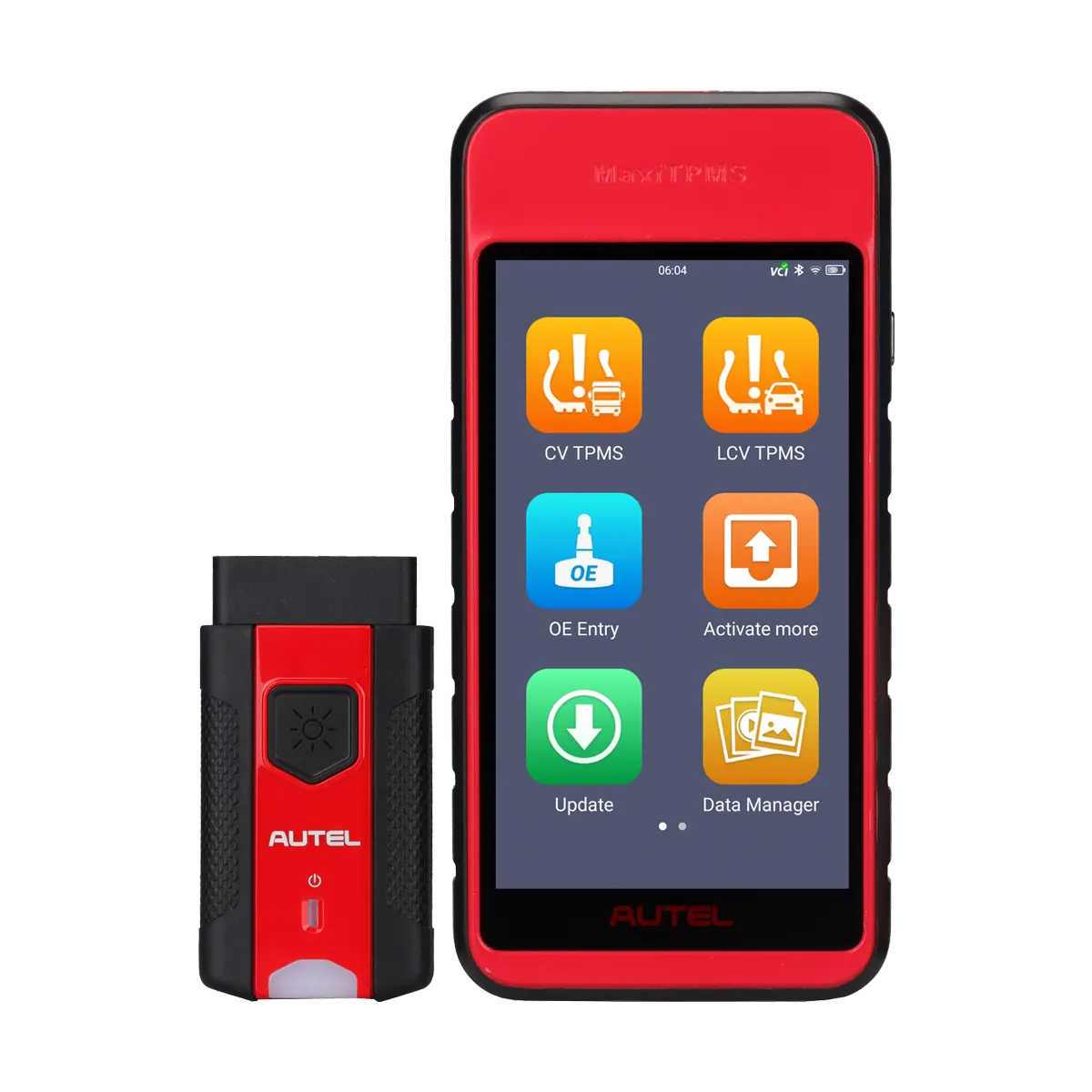

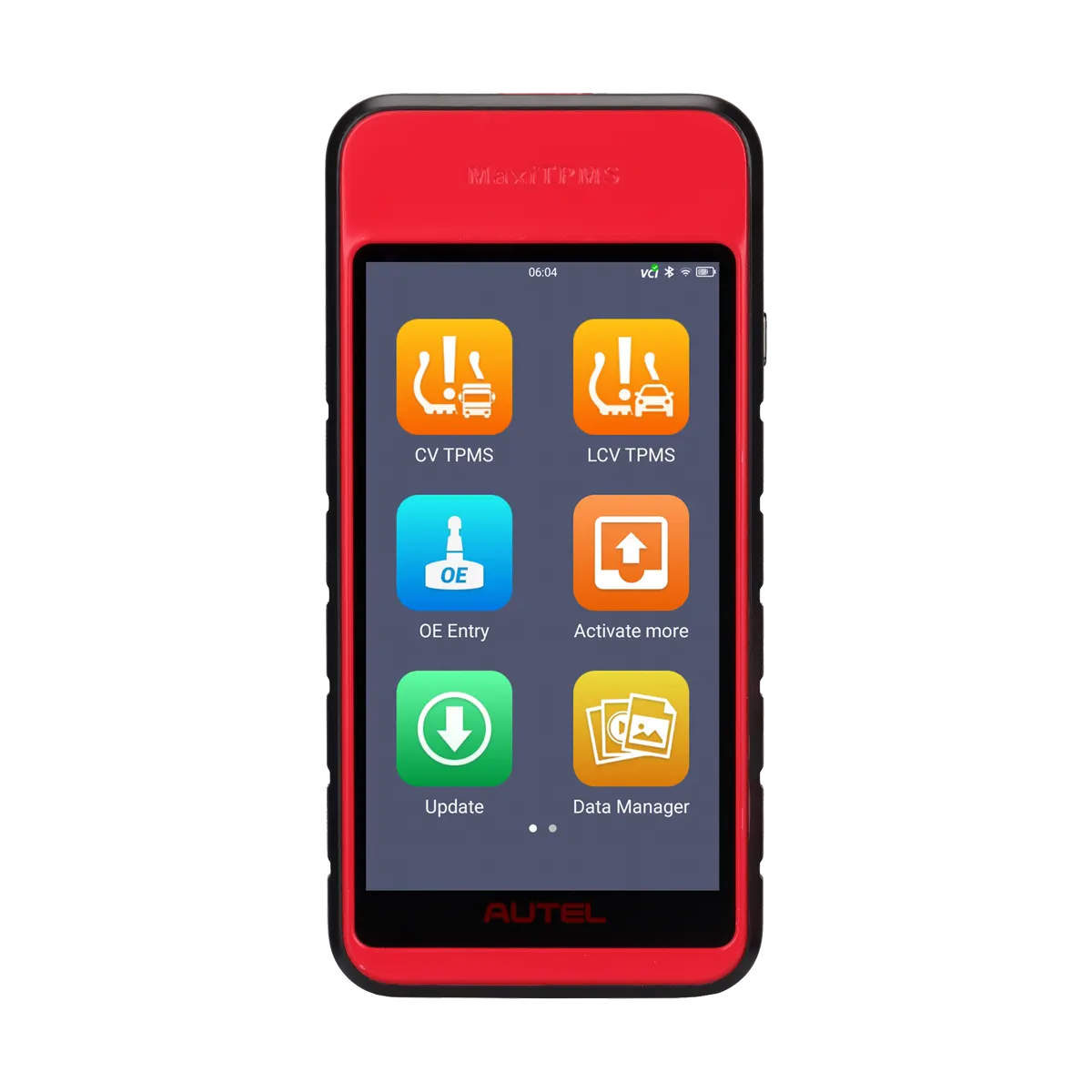

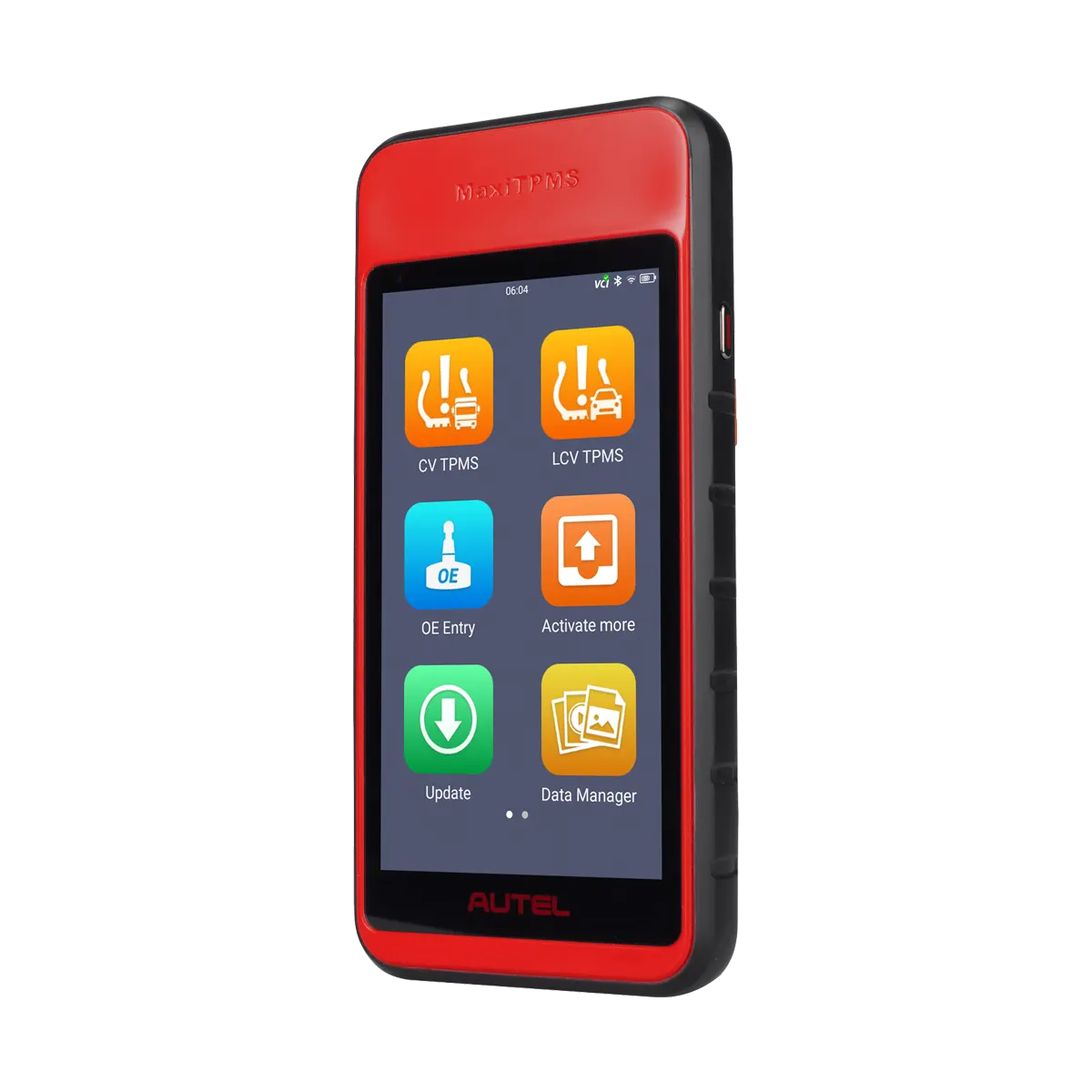

The Autel MaxiTPMS ITS600 CV is an Android-based tablet with a 5.5-inch touchscreen tablet with comprehensive TPMS service capabilities for light, medium and heavy-duty vehicles that are equipped with direct TPMS. The tool can activate, read and relearn all known sensors on commercial vehicles and program the Autel CVS-A01 universal programmable sensor to replace OE and aftermarket sensor. The unit ships with a Bluetooth-enabled VCI for wireless operation, and Deutsch 6 and 9-pin, and UNIU-4 DLC adapters. Generate, Print, and Share TPMS and Tire Service Reports. Add Passenger Vehicle TPMS, and CV Diagnostics coverage with upgrade purchase. A one-year limited warranty covers the ITS600 CV.
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads

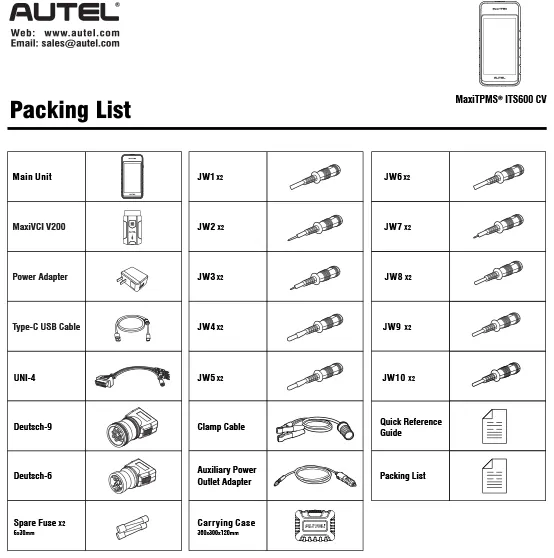

- What's Included
- Sold Separately
- Compare Similar
- Complete TPMS Service tool for Commercial Vehicles
- Android-based tablet with a 5.5-inch touchscreen display with Bluetooth-enabled VCI
- Industry-leading coverage for TPMS-enabled Trucks, Trailers, and Buses
- Activate, Read, and Relearn all Known TPMS sensors
- Program Autel MX-Sensor CVS-A01 433 MHZ Sensor to replace OE and programmed aftermarket sensors

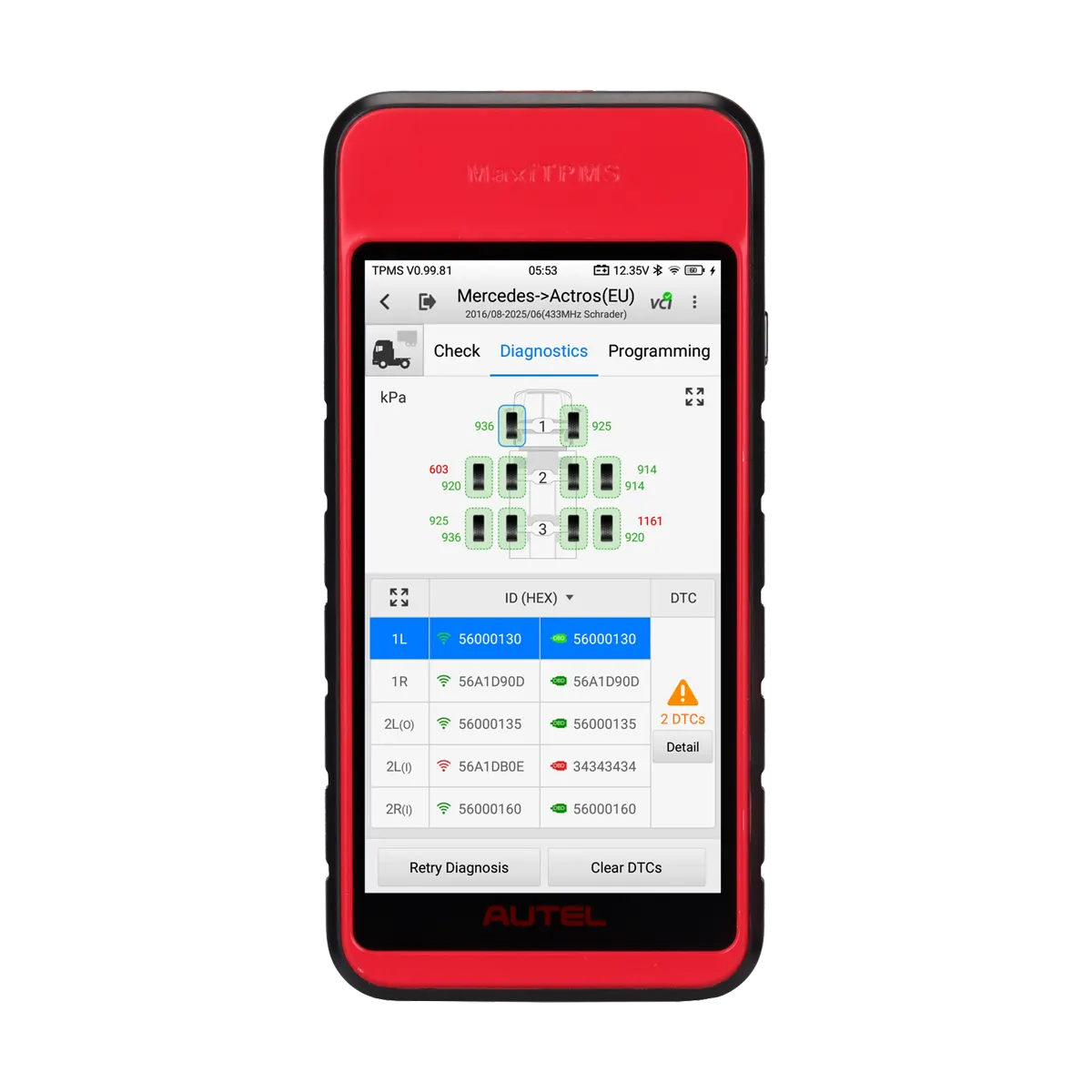

- Separate Tractor and Trailer interfaces display up to 46 wheels and 12 axles
- Includes Deutsch 6 and 9-pin, and UNIU-4 DLC adapters
- Generate, Print, and Share TPMS and Tire Service Reports
- Add Passenger Vehicle TPMS, and CV Diagnostics coverage with upgrade purchase
- Coverage by one-year limited warranty
| Operating System | Android™ 9.0 |
| Processor | Quad-core processor (1.5 GHz) |
| Memory | 2 GB RAM DDR4 & 64 GB ROM |
| Display | 5.5-inch LCD capacitive touchscreen with 1280 x 720 resolution |
| Rear Camera | 8 MP |
| Connectivity |
|
| Sensors | Light sensor for brightness auto adjustment |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12 V (9-24 V) |
| Battery Charging Input | 5 V/2 A |
| Power Consumption | 700 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Dimensions (WxHxD) | 183.0 mm (7.2") x 89.0 mm (3.5") x 22.0 mm (0.87") |
| Weight | 368 g (0.8 lb.) |
Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, ISO 13400, CAN FD, SAE-J1939, SAE-J2411 Single Wire Can (GMLAN) |
