MaxiTPMS TS608 Kit
Advanced Service + All Systems Diagnostics

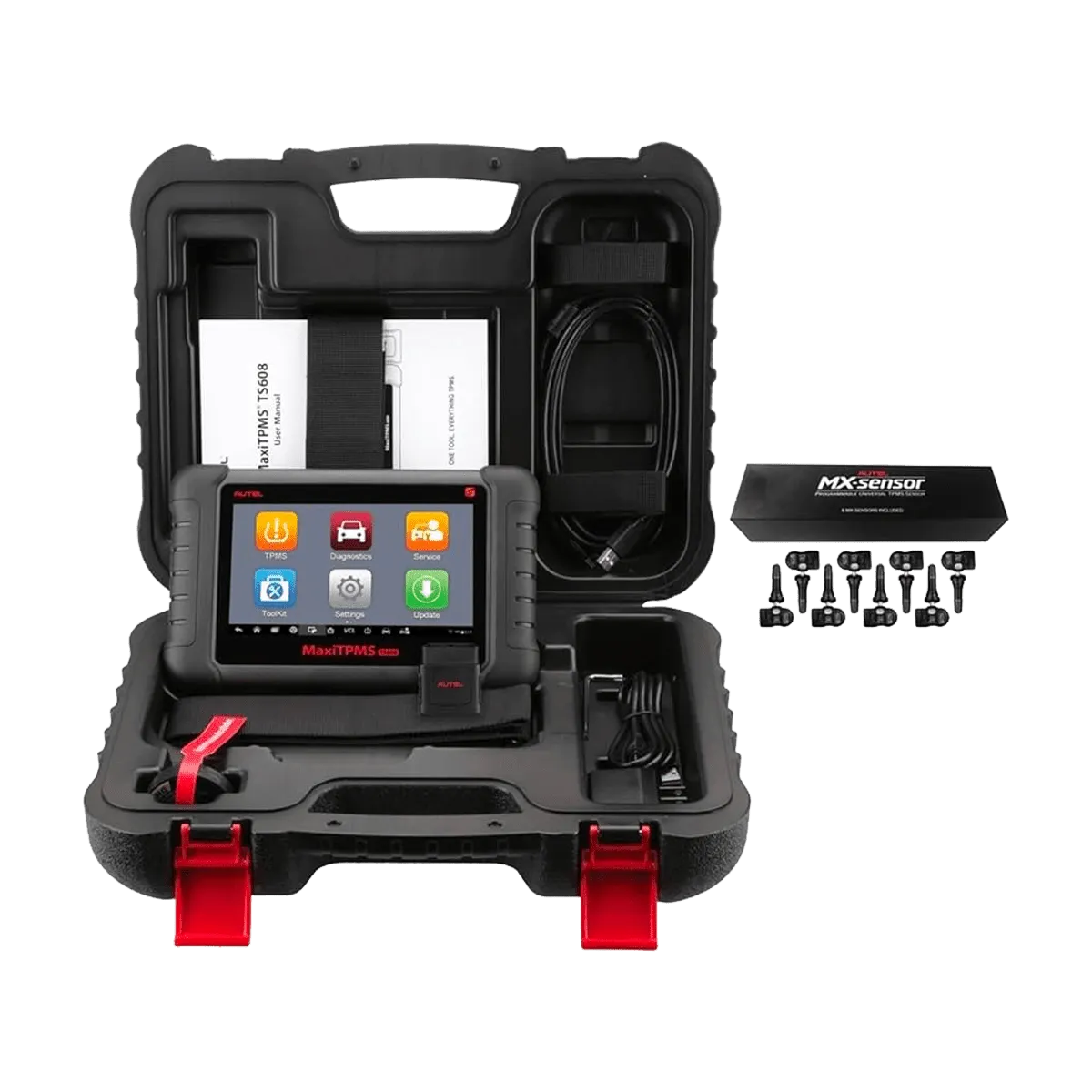

The TS608K-1 Kit includes the TS608 TPMS tool and one bulk box of eight programmable Autel 1-Sensors. The TS608 is a combination advanced service, all systems diagnostic, and complete TPMS tool. The 7-inch touchscreen tablet comes equipped with an Android 4.4.2 operating system, a 1.6GHz quad-core processor, 32G hard drive, and the Autel MaxiSYS system suite software. The TS608 features an enhanced TPMS status screen, can read/activate/relearn all known sensors, has two methods of MX-Sensor programming, performs placard value resets on supported vehicles, and displays on-tool MX-Sensor relearn procedures including OBDII relearn. It offers essential diagnostics for all modules in all systems, AutoSCAN and AutoVIN (2006+), can do key fob signal tests, and currently has 20 service functions including ABS brake bleed. The TS608 is updatable via Wi-Fi and includes a wireless Bluetooth MaxiSYS-VCIMini. A 1-year tool warranty and 1 year of free software updates are available with purchase. This tool is eligible for TCP expanded coverage.
| Availability: | This product has been discontinued. |
|---|
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads

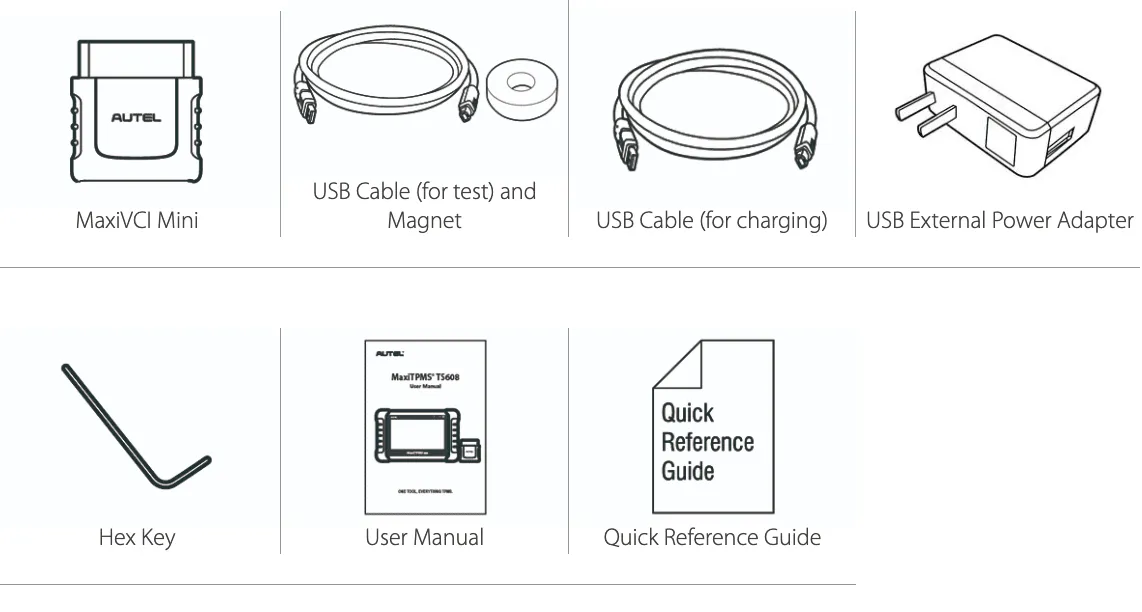

- What's Included
- Sold Separately
- Compare Similar
- AutoVIN 2006+ / AutoSCAN: All Modules in All Systems
- 20 Service Functions /Generates Printable Diagnostic Reports
- Includes 8 programmable Autel 1-Sensors
- 2 Programming Options: MX-Sensors Only
- Enhanced TPMS Status Screen: Detects & Displays System Faults
- Read & Erase Trouble Codes/ Test ABS, SRS, EPB
- 1Yr FREE Software & 1Yr Warranty/ Eligible for Extended TCP Coverage
- 7” Touchscreen /1.6GHz Quad-Core Processor/ 32GB Memory /2GB RAM
- Android 4.4.2 /Wi-Fi Software Updates
- Display Manufacturer-Specific Relearn Procedures; Perform OBDII Relearns
- Placard Value Reset on Supported Vehicles
- I/M Readiness / Emissions Testing
- Reset Diesel Emissions on Select Light/Med. Duty Vehicles / DPF Regeneration
- Coding & Adaptations
- Includes Bluetooth OBDII MaxiSYS-VCIMini
- Read/Activate/Relearn All Known Sensors
- Covers Domestic, Asian and European Vehicle Manufacturers (1996+)
- View Live & Freeze Frame Data
- Enhanced Mode 6 Diagnostics / All 10 Test Modes
- Key Fob Signal Test
- Oil & Service Resets/ Battery Registration
- Set Inspection 1&2 Service Intervals
- Tests: O2 Monitor, On-Board Monitor, and O2 Sensor
- Open & Close EPB
- Diagnose EPB/SBC Caliper Functionality
- Reset Steering Angle Sensors (SAS)
- Display Sensor ID, Battery Life (supported sensors) and Psi
- MaxiSYS System Suite Applications – Shop Manager
- Save Files with Micro SD Card (32G max. not included)
- 5,000mAh Lithium-polymer Battery
| Recommended Use | Indoor |
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Cortex-A9 processor (1.6 GHz) |
| Memory | 1GB RAM DDR3 & 64GB ROM |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity |
|
| Sensors | Light sensor for brightness auto adjust |
| Audio Input/Output |
|
| Power and Battery |
|
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temperature | -10 to 60°C(14 to 140°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 270.8 mm (10.0") x 176.0 mm (6.9") x 36.0 mm (1.4") |
| Net Weight | 885 g (2.31 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

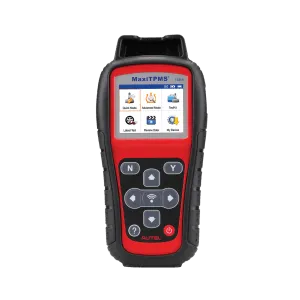

| MaxiTPMS TS508 | MaxiTPMS TS608 | MaxiTPMS ITS600 | |
|---|---|---|---|
 |  |  | |
| HARDWARE | |||
| Connection | OBDII Cable | Bluetooth MaxiVCI-Mini | Bluetooth VCI-200 |
| Screen | 2.3-Inch Display 320 x 240 DPI / LED Color Screen | 7-Inch Touchscreen 1024 x 600 DPI / LED Color Screen | 5.5-Inch Touchscreen 1280 x 720 DPI / LED Color Screen |
| Battery | 3,200 mAh | 5,000 mAh | 5,000 mAh |
| Processor | — | 1.6GHz QUAD-CORE | 1.5GHz QUAD-CORE |
| Memory | — | 32GB SSD / 1GB RAM (up to) 32GB micro SD card not included | 64GB SSD / 1GB RAM |
| Camera | — | — | 8.0 MP with flashlight |
| SOFTWARE | |||
| Operating System | Easy tool navigation | ANDROID 4.4.2 | ANDROID 9.0 |
| Software Updates | FREE for life of tool | 1 Year Free Update Via Wi-Fi | FREE for life of tool* update via wi-fi |
| Automatic Detection | — | Auto-Vin / Auto-Scan | Auto-Vin / Auto-Scan Scan Vin / Plate Scan |
| Service Resets | — | 17 Service functions Standard Features | 4 Service Functions OLS / EBS / SAS / BMS |
| System Diagnostics | — | All Systems Diagnostics all modules in all systems | — |
| Battery Analysis | — | — | Battery Testing Software*** with update |
| TPMS Sensor | — | ||
| TPMS Diagnostics | TPMS Status Screen | Enhanced TPMS Status Screen | Enhanced TPMS Status Screen |
| Read/Activate/Relearn | All known sensor brands | All known sensor brands | All known sensor brands |
| Programming Methods | 2 Methods MX-Sensors only | 2 Methods MX-Sensors only | 2 Methods MX-Sensors - Fast Batch Programming |
| Relearn Procedures | OBDII Relearn With on-tool procedures | OBDII Relearn With on-tool procedures | OBDII Relearn With on-tool procedures |
| Print Sensor Data | USB cord to PC | Wi-Fi to PC | Wi-Fi to PC |
| MaxiSYS System Suite | — | Remote support & data logging | Remote Support & Data Logging |
| TPMS Mode Options | Quick or Advance 2 Modes TPMS service | — | — |
| Compatible with TBE200 | — | — | Complete TPMS & Tire Health Report |
| Tire Registration | — | — | On-tool DOT Tire Registration & Recall Lookup** |
