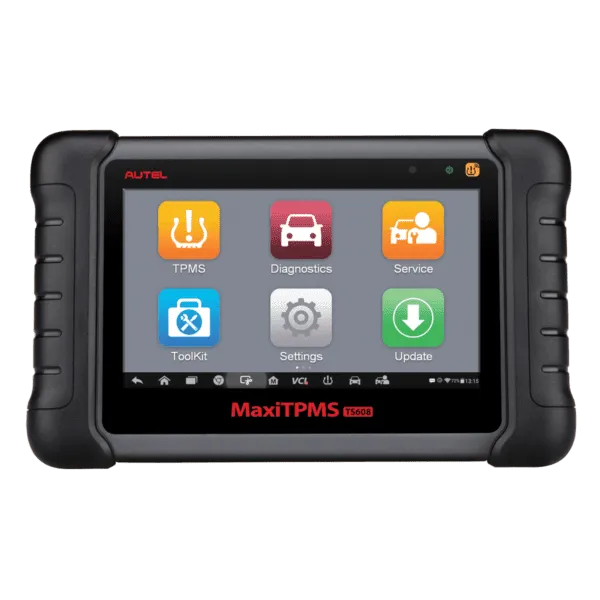

MaxiTPMS TS608
Advanced Service + All Systems Diagnostics + Complete TPMS
The TS608 is a combination advanced service, all systems diagnostic, and complete TPMS tool. The 7-inch touchscreen tablet comes equipped with an Android 4.4.2 operating system, a 1.6GHz quad-core processor, 32G hard drive, and the Autel MaxiSYS system suite software. The TS608 features an enhanced TPMS status screen, can read/activate/relearn all known sensors, has two methods of MX-Sensor programming, performs placard value resets on supported vehicles, and displays on-tool MX-Sensor relearn procedures including OBDII relearn. It offers essential diagnostics for all modules in all systems, AutoSCAN and AutoVIN (2006+), can do key fob signal tests, and currently has 20 service functions including ABS brake bleed. The TS608 is updatable via Wi-Fi and includes a wireless Bluetooth MaxiSYS-VCIMini. A 1-year tool warranty and 1 year of free software updates are available with purchase. This tool is eligible for TCP expanded coverage.
| Availability: | This product has been discontinued. |
|---|---|
| TS6081YRUPDATE: | Total Care (TCP) for TS608 $295.00 |
- AutoVIN 2006+ / AutoSCAN: All Modules in All Systems
- 20 Service Functions /Generates Printable Diagnostic Reports
- Enhanced TPMS Status Screen: Detects & Displays System Faults
- Read & Erase Trouble Codes/ Test ABS, SRS, EPB
- 1Yr FREE Software & 1Yr Warranty/ Eligible for Extended TCP Coverage
- 7” Touchscreen /1.6GHz Quad-Core Processor/ 32GB Memory /2GB RAM
- Android 4.4.2 /Wi-Fi Software Updates
- Display Manufacturer-Specific Relearn Procedures; Perform OBDII Relearns
- Placard Value Reset on Supported Vehicles
- I/M Readiness / Emissions Testing
- Reset Diesel Emissions on Select Light/Med. Duty Vehicles / DPF Regeneration
- Coding & Adaptations
- Includes Bluetooth OBDII MaxiSYS-VCIMini
- Read/Activate/Relearn All Known Sensors
- Covers Domestic, Asian and European Vehicle Manufacturers (1996+)
- View Live & Freeze Frame Data
- Enhanced Mode 6 Diagnostics / All 10 Test Modes
- Key Fob Signal Test
- Oil & Service Resets/ Battery Registration
- Set Inspection 1&2 Service Intervals
- Tests: O2 Monitor, On-Board Monitor, and O2 Sensor
- Open & Close EPB
- Diagnose EPB/SBC Caliper Functionality
- Reset Steering Angle Sensors (SAS)
- Display Sensor ID, Battery Life (supported sensors) and Psi
- MaxiSYS System Suite Applications - Shop Manager
- Save Files with Micro SD Card (32G max. not included)
- 5,000mAh Lithium-polymer Battery

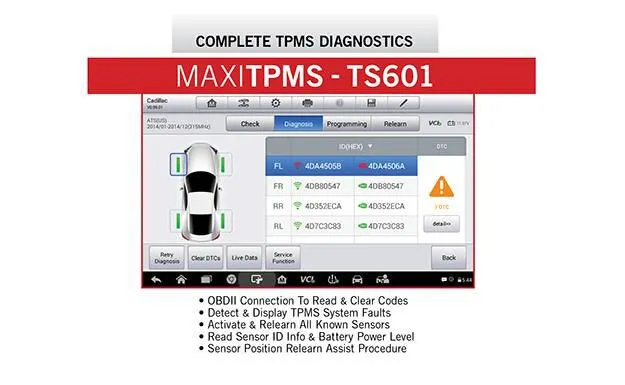

Complete TPMS Functions
- Activate all known TPMS sensors and read sensor status
- Diagnose ECU for complete TPMS health check with DTC description
- Read DTCs from ECU and erase DTCs
- Program MX-Sensors by copying original sensor IDs or creating new IDs randomly
- On-tool relearn procedure and wide OBD relearn coverage
- Toolkit, special TPMS functions

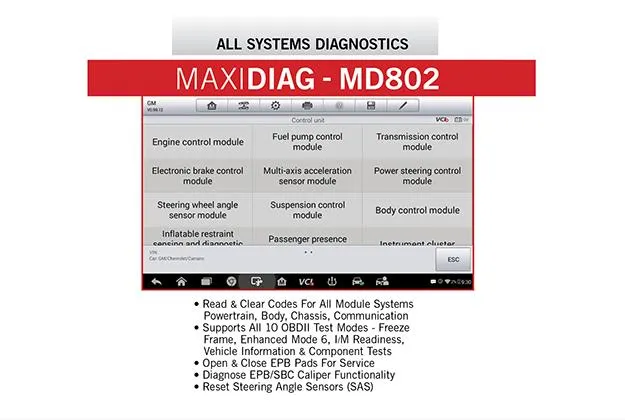

All Systems Diagnostics
- Read/clear codes for all available electronic systems
- Turn off warning lights
- Display live data in text, graph & analog for easy data review
- Supports all 10 test modes of the latest J1979 OBD II test specs
- Enhanced OBDII Mode 6

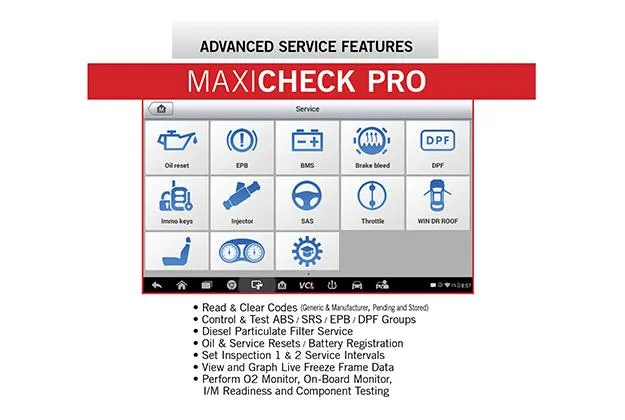

Advanced Service Features
- Relearn parking brake pad after replacement
- Reset Steering Angle Sensor (SAS)
- Reset service mileage and service intervals
- Forced regeneration and adjusting injectors
- Support battery registration and reset
- Support IMMO functions

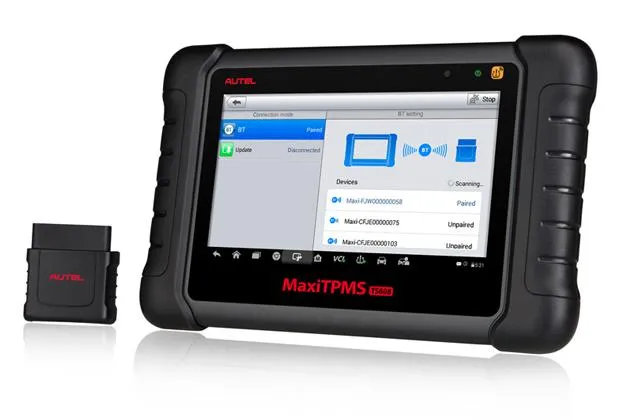

Wireless BLUETOOTH MaxiVCI Mini
The latest compact size Wireless Bluetooth® MaxiVCI Mini OBDII connector can transmit vehicle data to the tablet without a physical connection. Enhanced wireless bluetooth connectivity between the tablet and VCI device allows greater service mobility and easier TPMS sensor interaction while the tablet is still connected to the vehicle for data transmission.
Additional information
| Availability: | This product has been discontinued. |
|---|---|
| TS6081YRUPDATE: | Total Care (TCP) for TS608 $295.00 |
Specifications
| Recommended Use | Indoor |
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Cortex-A9 processor (1.6 GHz) |
| Memory | 1GB RAM DDR3 & 64GB ROM |
| Display | 7-inch LCD capacitive touchscreen with 1024×600 resolution |
| Connectivity |
|
| Sensors | Light sensor for brightness auto adjust |
| Audio Input/Output |
|
| Power and Battery |
|
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temperature | -10 to 60°C(14 to 140°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% – 95% non-condensing |
| Dimensions (W x H x D) | 270.8 mm (10.0") x 176.0 mm (6.9") x 36.0 mm (1.4") |
| Net Weight | 885 g (2.31 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
Videos

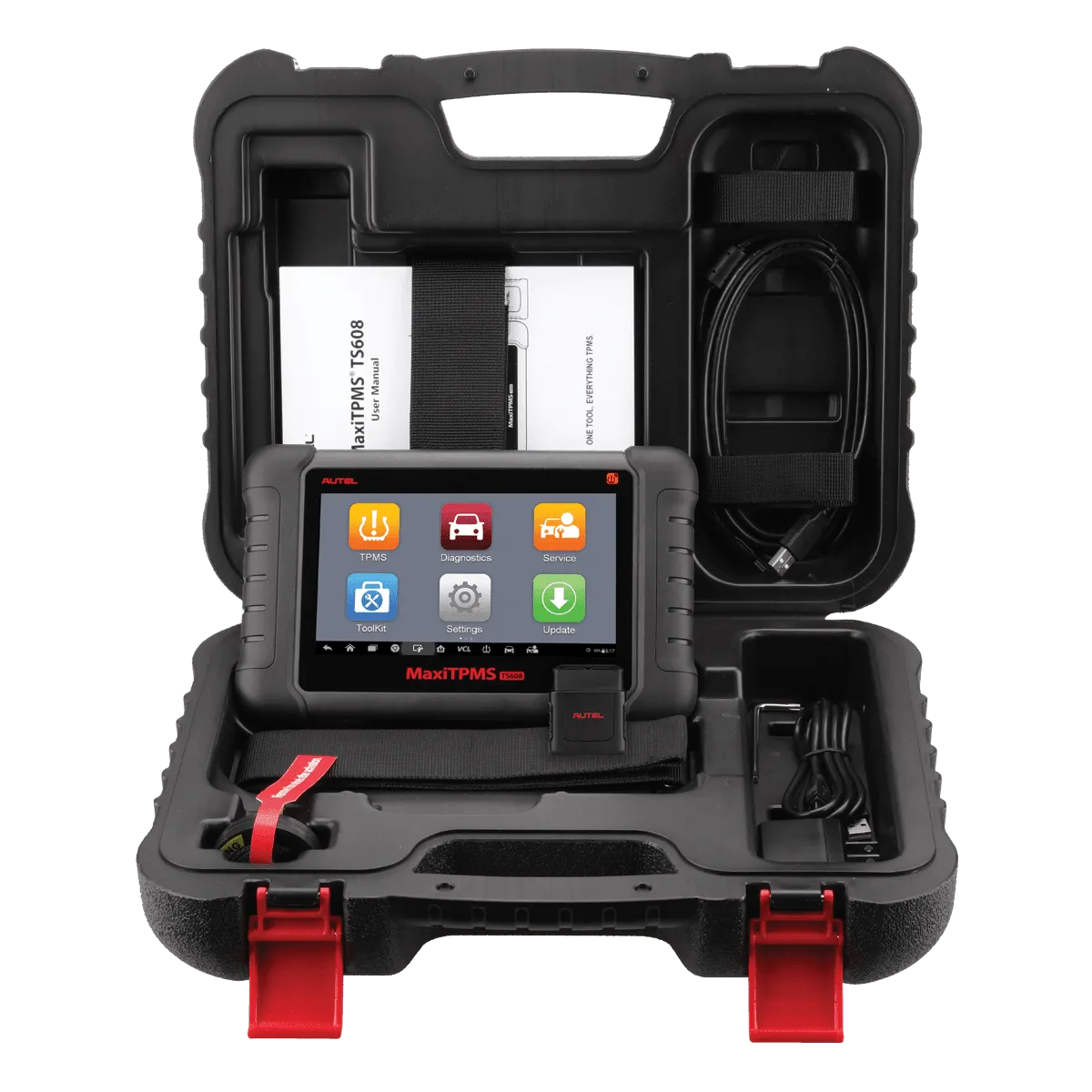

What's Included
Compare Similar
| MaxiTPMS TS508 | MaxiTPMS TS608 | MaxiTPMS ITS600 | |
|---|---|---|---|
 |
 |
 |
|
| HARDWARE | |||
| Connection |
OBDII Cable
|
Bluetooth MaxiVCI-Mini
|
Bluetooth VCI-200
|
| Screen |
2.3-Inch Display
320 x 240 DPI / LED Color Screen
|
7-Inch Touchscreen
1024 x 600 DPI / LED Color Screen
|
5.5-Inch Touchscreen
1280 x 720 DPI / LED Color Screen
|
| Battery |
3,200 mAh
|
5,000 mAh
|
5,000 mAh
|
| Processor |
—
|
1.6GHz
QUAD-CORE
|
1.5GHz
QUAD-CORE
|
| Memory |
—
|
32GB SSD / 1GB RAM
(up to) 32GB micro SD card not included
|
64GB SSD / 1GB RAM
|
| Camera |
—
|
—
|
8.0 MP
with flashlight
|
| SOFTWARE | |||
| Operating System |
Easy tool navigation
|
ANDROID 4.4.2
|
ANDROID 9.0
|
| Software Updates |
FREE for life of tool
|
1 Year Free
Update Via Wi-Fi
|
FREE for life of tool*
update via wi-fi
|
| Automatic Detection |
—
|
Auto-Vin / Auto-Scan
|
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan |
| Service Resets |
—
|
17 Service functions
Standard Features
|
4 Service Functions
OLS / EBS / SAS / BMS
|
| System Diagnostics |
—
|
All Systems Diagnostics
all modules in all systems
|
—
|
| Battery Analysis |
—
|
—
|
Battery Testing Software***
with update
|
| TPMS Sensor |
—
|
||
| TPMS Diagnostics |
TPMS Status Screen
|
Enhanced
TPMS Status Screen
|
Enhanced
TPMS Status Screen
|
| Read/Activate/Relearn |
All known sensor brands
|
All known sensor brands
|
All known sensor brands
|
| Programming Methods |
2 Methods
MX-Sensors only
|
2 Methods
MX-Sensors only
|
2 Methods
MX-Sensors – Fast Batch Programming
|
| Relearn Procedures |
OBDII Relearn
With on-tool procedures
|
OBDII Relearn
With on-tool procedures
|
OBDII Relearn
With on-tool procedures
|
| Print Sensor Data |
USB cord to PC
|
Wi-Fi to PC
|
Wi-Fi to PC
|
| MaxiSYS System Suite |
—
|
Remote support & data logging
|
Remote Support & Data Logging
|
| TPMS Mode Options |
Quick or Advance
2 Modes TPMS service
|
—
|
—
|
| Compatible with TBE200 |
—
|
—
|
Complete TPMS & Tire Health Report
|
| Tire Registration |
—
|
—
|
On-tool DOT Tire Registration & Recall Lookup**
|
