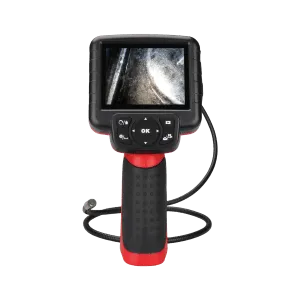

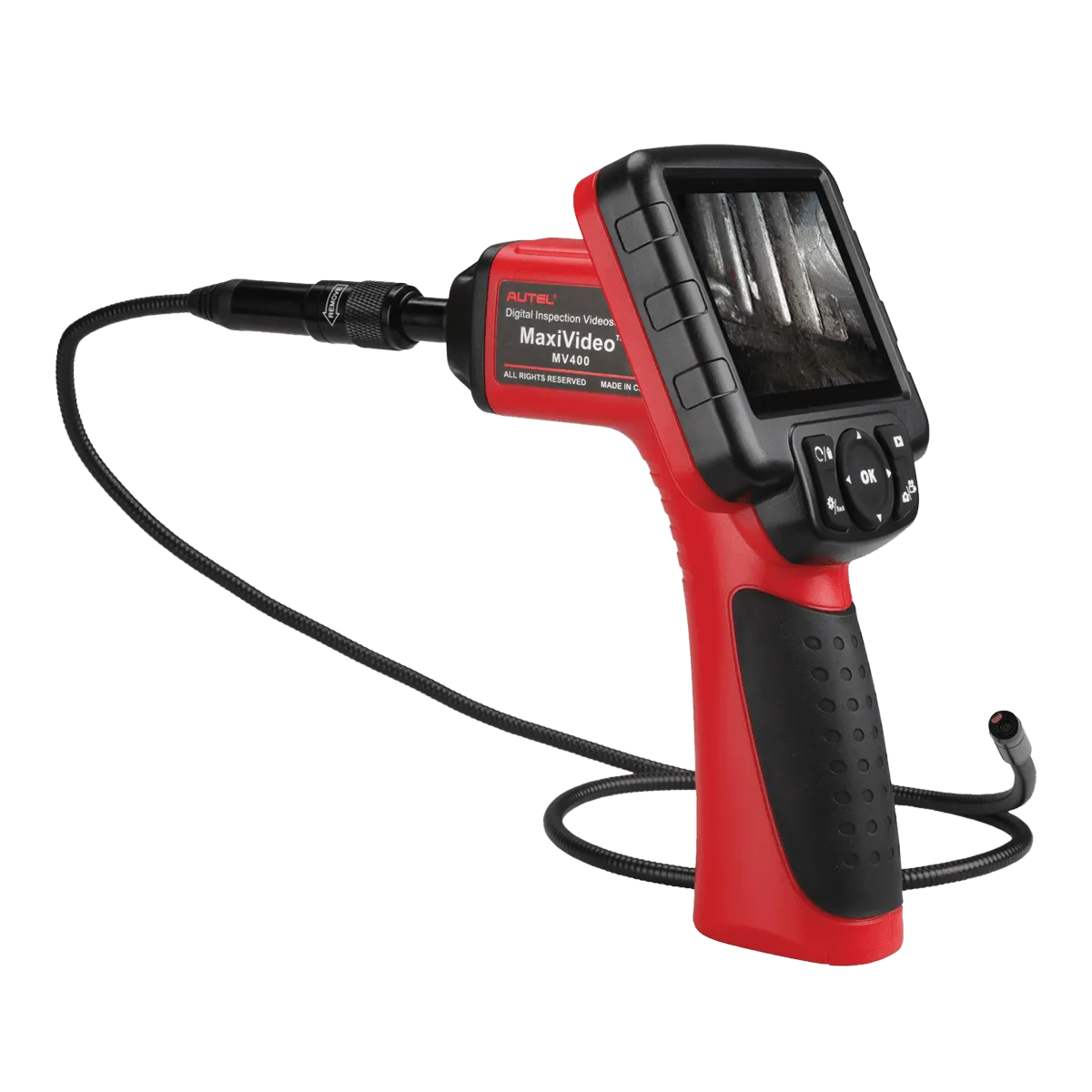

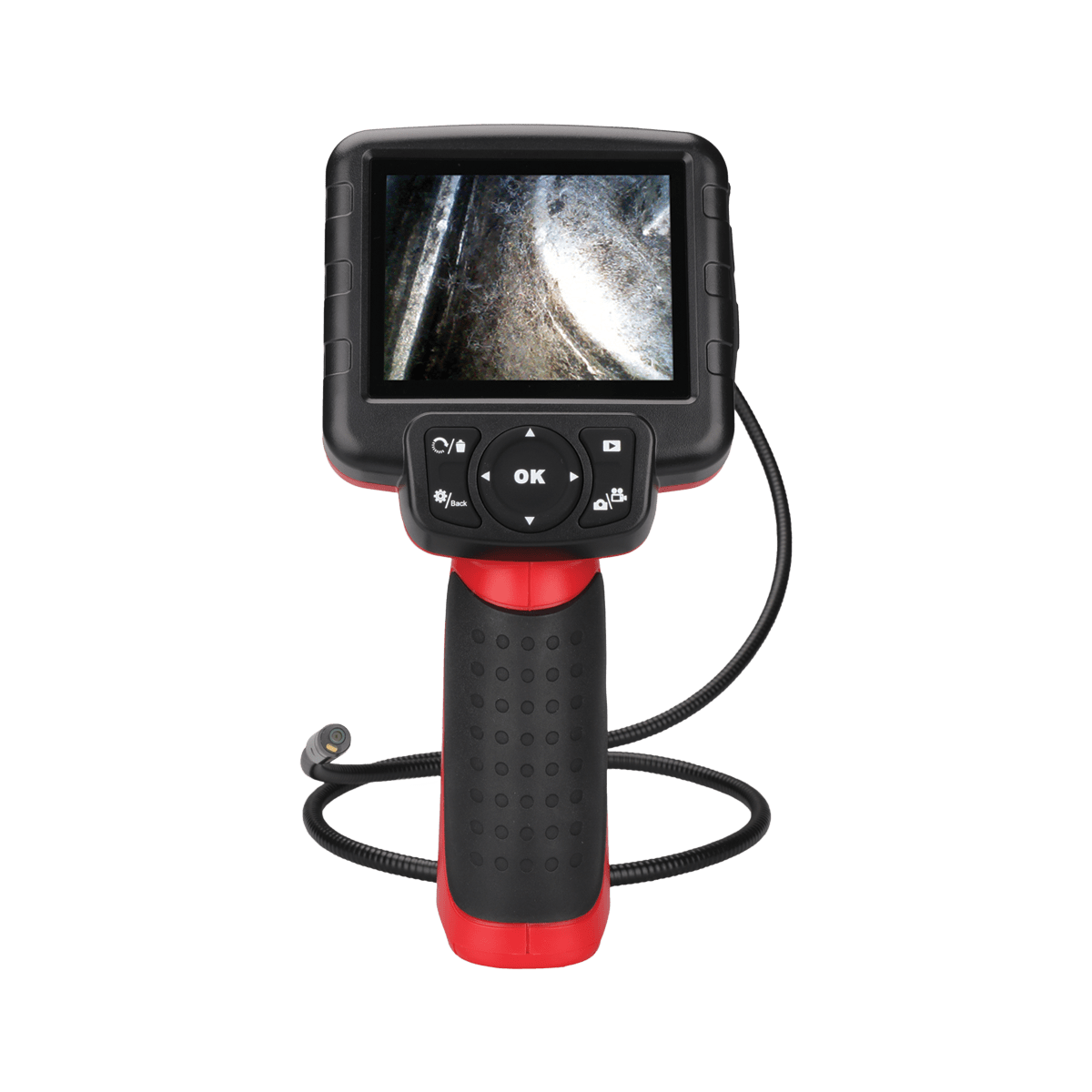

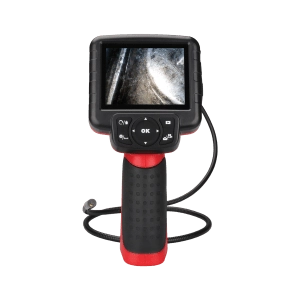

MaxiVIDEO MV400-5.5
Digital Inspection Videoscope
The MV400 digital videoscope is a 3.5” color LCD screen with a 40-inch long shaft with a 5.5mm imager head and LED to record digital still images and MPEG2 or MPEG1 videos. The scope is lightweight, and the semi-rigid shaft is watertight. The MV400 includes an easy-to-use, multi-language interface. The 3.5” high resolution full color LCD (320×240) with Oil and scratch resistant tempered glass lens. The MV400 Built-in rechargeable Li-ion battery with up to 3-4 hours of continuous use. The tool features a Wide camera angle for images with 640×480 resolution, On-screen horizontal/vertical reverse and 5x digital zoom for increased viewing. The narrow probe diameter available in either 8.5mm (0.33″) or 5.5 mm (0.22″) and fits most spark plug holes. A 1-year limited warranty is included.
| Availability: | This product has been discontinued. |
|---|
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads

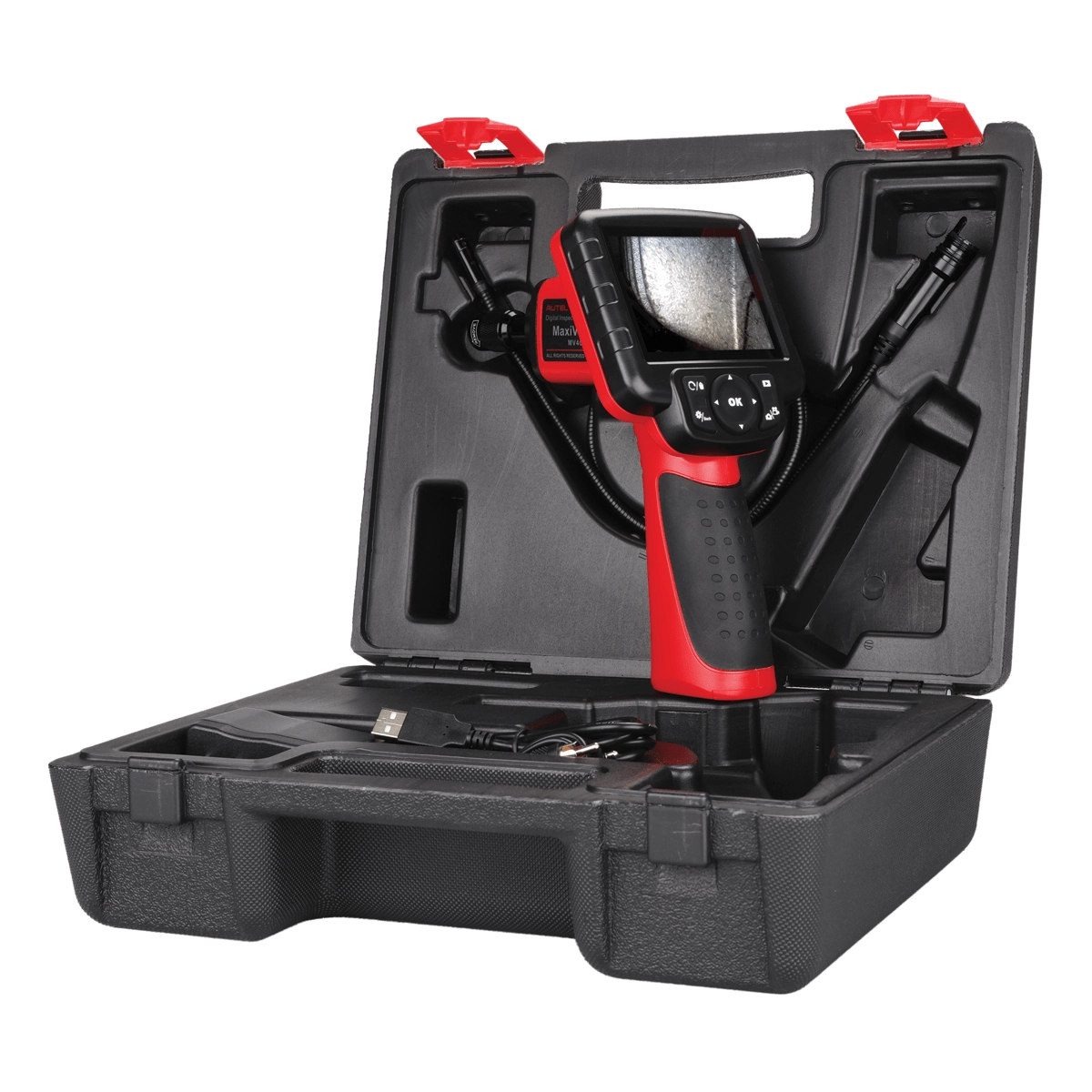

- What's Included
- Sold Separately
- Compare Similar
- 3.5″ Color Display with 5.5mm Imager Head
- Record/Playback High Resolution Images & Videos
- Images 640×480, Videos 320×240
- Bright LED Light for Inspecting Confined Areas
- FREE Lifetime Software (lifetime of tool) & 1Yr Warranty

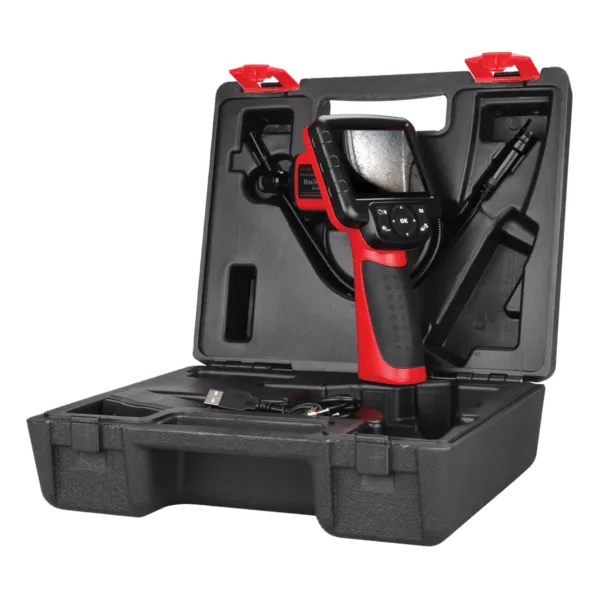

- Includes Magnet, Mirror & Hook Attachments
- 5x Digital Zoom/View As Close As 1″
- 1m (3.28-Ft) Imager Head & Cable Reach
- Waterproof Head & Cable up to 3m (10-Ft)
- On-Screen Horizontal/ Vertical Reverse
- Optimal Viewing Distance: 0.95-30cm/ 3/8-12″
- Upload Files to PC via Mini USB Cable
- Save Files with Micro SD Card (32G max. not included)
- Built-In, Rechargeable Lithium-ion Battery
| Recommended Use | Indoor |
| Optimal Viewing Distance | 1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head 3/8" to 12" (0.95cm to 30cm) with 5.5mm diameter imager head |
| Image Capture | JPG images (640x480) AVI videos (320 x 240) |
| Screen Type Display | 3.5" TFT LCD |
| Display Resolution | 320 x 240 |
| Power Supply | Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh) |
| Tested Battery Life | 3-4 hours of continuous use |
| Dimensions | 199 x 100 x 178mm (7.83" x 3.94" x 7.0") |
| Recording Medium | Micro SD card (Micro SD card is optional and not included) |
| Imager Head | 8.5mm (0.33") is standard and 5.5mm (0.22") is optional |
| Waterproof | Imager head and cable to 3m (10‘) |
| Additional Ports |
|
| Operating Temperature | Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Video Output | RCA |
| TV Out |
|

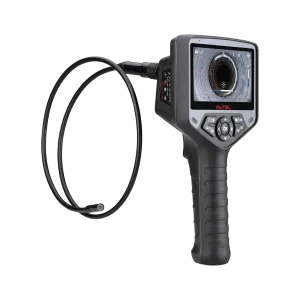

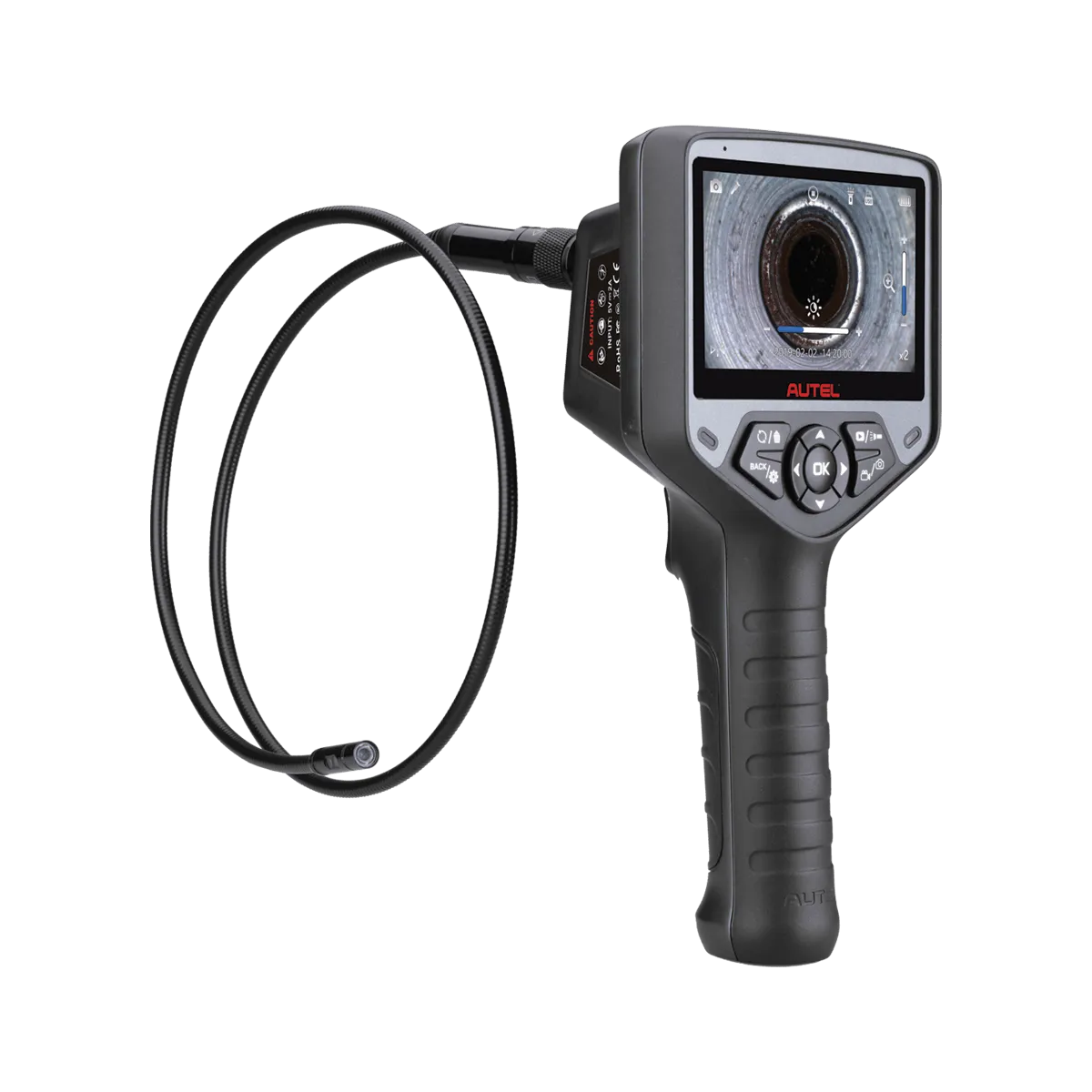

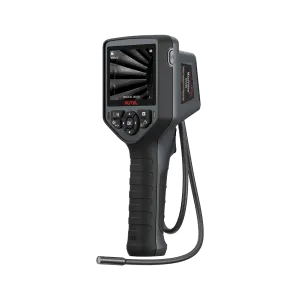

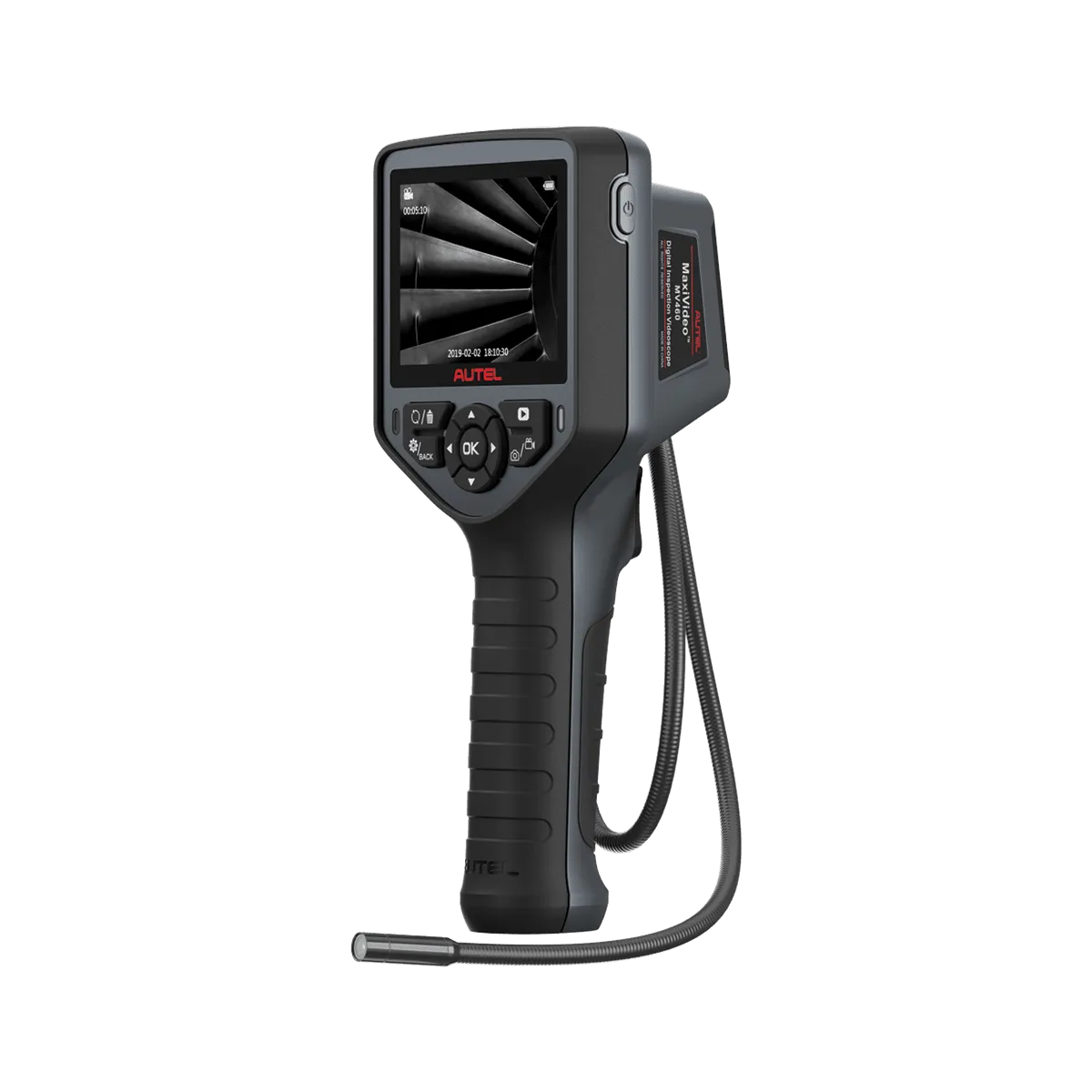

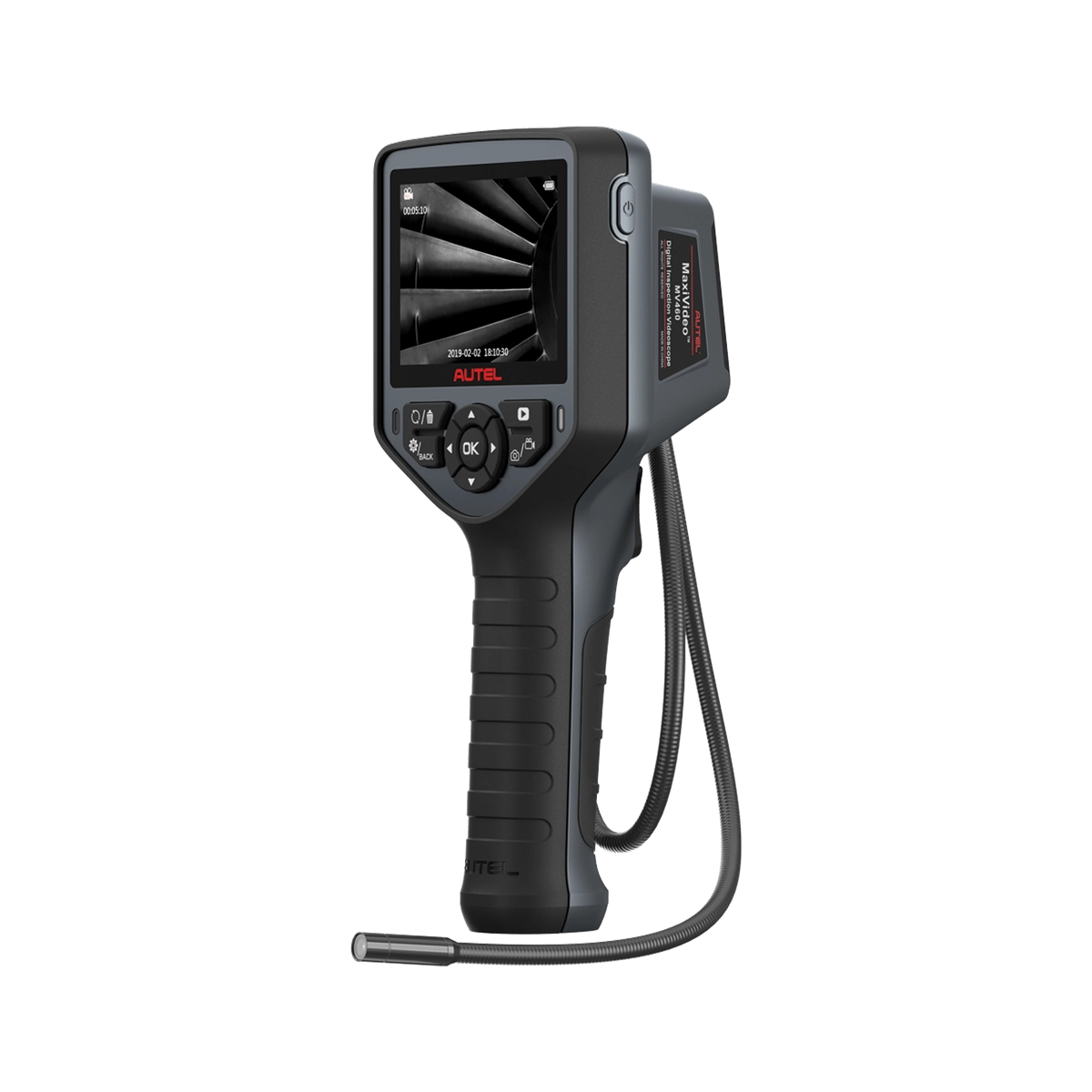

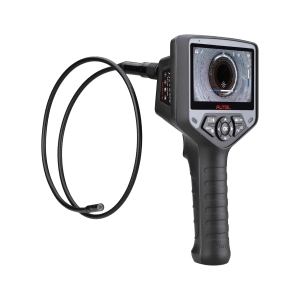

| MaxiVIDEO MV400 | MaxiVideo MV460 | MaxiVideo MV480 | |
|---|---|---|---|
 |  |  | |
| High Resolution & Full-color Digital LCD Display | 3.5" (320×240)
| 3.5" (640 x 480) | 4.1" (1200×720) |
| Record & Play-back High Resolution Still Images & Videos | 640×480 | 1920 x 1080 | 1920 x 1080 |
| Wireless Monitor Enables Remote Viewing | — | — | — |
| Touchscreen for Convenient Operation | — | — | — |
| Single Button for Quick Photo & Video Recording | — | ✓ | ✓ |
| Add Audio Annotation for Detail Presentation | — | — | ✓ |
| On-screen Photo Editing & Markup | — | — | — |
| Dual Cameras See Straight Ahead or At a 90° Angle | — | — | ✓ |
| Digital Zoom for Detailed Viewing | 5x | 7x | 7x |
| View Objects as Close as 1" | ✓ | ✓ | ✓ |
| BOn-screen Horizontal/Vertical Reverse | ✓ | ✓ | ✓ |
| On-screen 90° Clockwise Rotation | — | ✓ | ✓ |
| Built-in & Adjustable LED Illuminates Viewing Area | ✓ | ✓ | ✓ |
| HDMI Port for Monitor View | — | ✓ | ✓ |
| Mini USB Connector for Uploading Images & Videos | ✓ | ✓ | ✓ |
| 1m Long Semi-rigid Flexible Watertight Shaft | ✓ | ✓ | ✓ |
| Narrow Probe Diameter Available in Both 5.5mm & 8.5mm | ✓ | 8.5mm (5.5mm Optional) | 8.5mm (5.5mm Optional) |
| Micro SD Card Slot for Greater Memory Capacity | ✓ | ✓ | ✓ |
| Oil & Scratch Resistant Tempered Glass Lens | ✓ | ✓ | ✓ |
| Ergonomic & Durable Tool Housing | ✓ | ✓ | ✓ |
| Built-in Rechargeable Li-ion Battery | ✓ | ✓ | ✓ |
| Multilingual Support | ✓ | ✓ | ✓ |
| Water Resistant Camera Head | ✓ | ✓ | ✓ |
