MaxiVIDEO MV480
Digital Inspection Videoscope

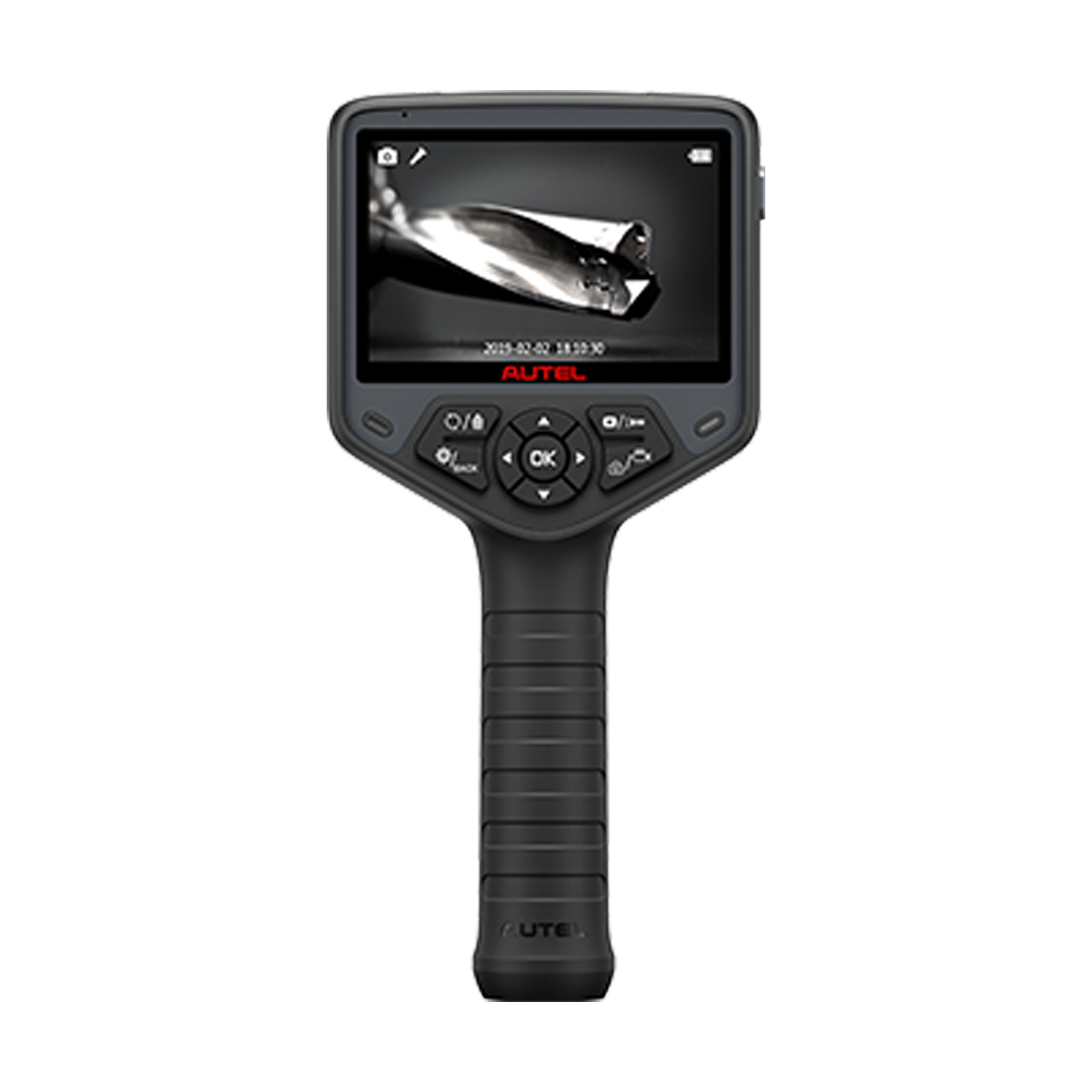

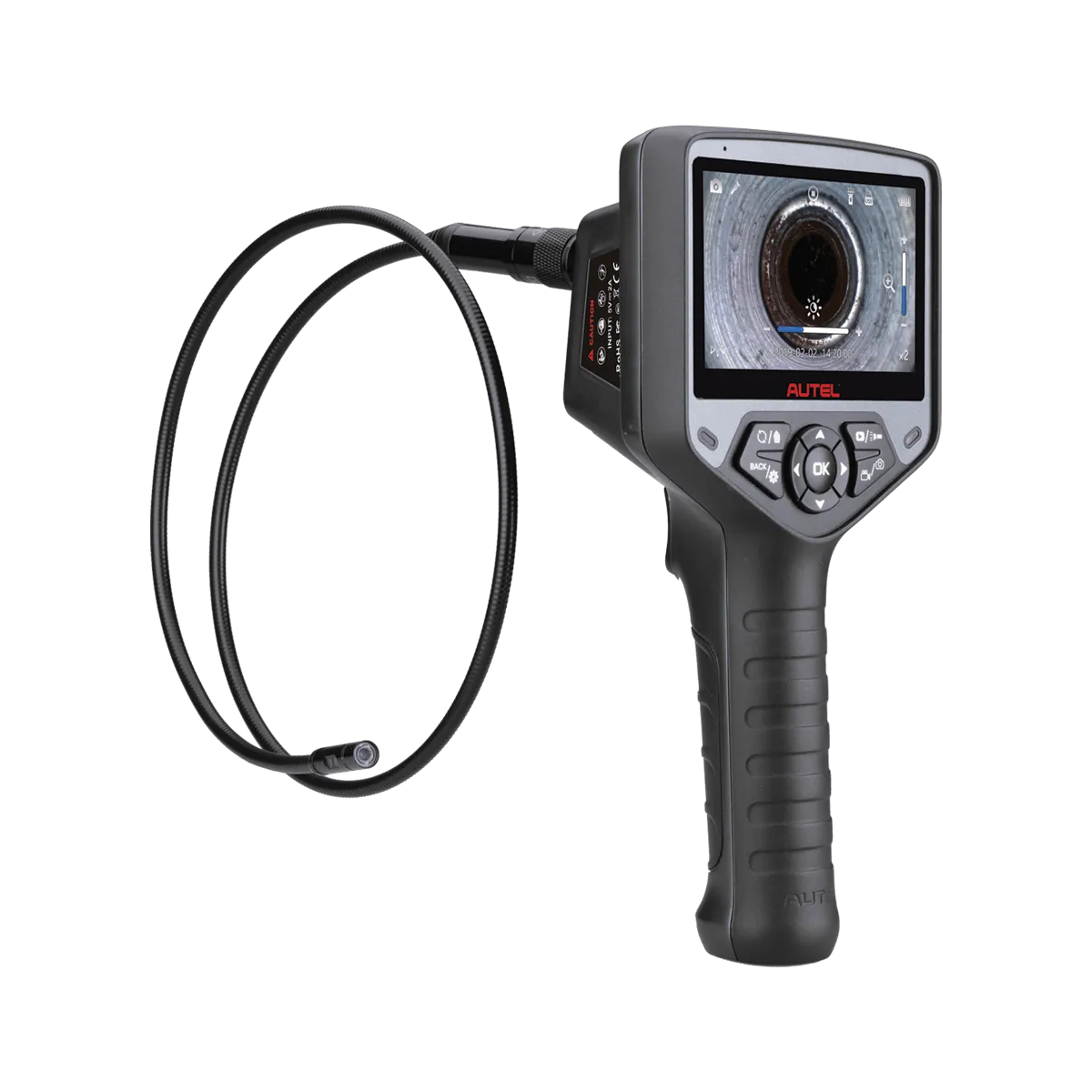

The MaxiVideo MV480 dual-camera digital videoscope is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible 39.4-inch cable, 10-level adjustable LED light, and 70-degree field of view. The MV480 2-megapixel camera captures high resolution (1920 x 1080) stills and videos with 1-button quick image capture and video recording. The dual-camera 8.5mm probe provides front and side cameras that can be viewed independently or together for a wider viewing angle. The MV480 also features a new audio annotation function and bright LED flashlight on the back of the handle. The handheld unit features a 4.1-inch 1200×720 full color LCD display, and a built-in 2600 mAh battery with up to 4 hours of continuous use.
- Record/Playback High Resolution Images and Videos (1920 x 1080)
- Dual Front and Side Cameras for Wider Viewing Angle
- 4.1” Color LCD Display (1200 x 720)
- 1-Button Quick Image Capture and Video Recording
- 70-Degree Field of View for Expanding Viewing Angle
- Add Audio Annotation for Detailed Review
- Micro HDMI-output Enables Streaming to Larger Monitors
- Freeze-Frame Camera Stills or Video Recording
- On-Screen Horizontal/Vertical Reverse
- 7x Digital Zoom for More Detailed Inspection
- Includes 8GB Micro-SD card, Supports Up to 128GB
- Includes Mini-USB Cable for Uploading Images and Videos
- More than 10,000 Lux, Adjustable 10-Level LED Illumination
- Built-In Rechargeable 2,600 mAh Battery for 4 Hours of Continuous Use
- 39.4-Inch Semi-Rigid, Flexible, Watertight Cable
- Includes Magnet and Hook Cable Accessories
- 8.5mm Probe Fits Most Spark Plug Holes
- Compatible with 5.5mm Camera Head (Sold Separately)
- Includes 1-Year Warranty on Materials and Workmanship
Specifications
| Recommended Use | Indoor |
| Optimal Viewing Distance | 0.79" to 2" (2 cm to 5 cm) |
| Image Capture |
|
| Screen Type Display | 4.1" TFT LCD |
| Display Resolution | 1200 x 720 pixels |
| Power Supply | Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh) |
| Tested Battery Life | Approximately 4 hours of continuous use |
| Dimensions | 243 x 116 x 122mm (9.6" x 4.6" x 4.8") |
| Weight | 0.422 kg (0.93lbs) |
| Recording Medium | Micro SD card (8GB Standard/128GB Max) |
| Image Controls | Zoom, low light vision |
| Lighting | Fully adjustable LED, Flashlight |
| Cable Reach | 1m (39.4") |
| Imager Heads | 8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels) |
| Waterproof | To a depth of 1m (39.4") (Imager heads and cable only) |
| Additional Ports |
|
| Operating Temperature |
|
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Operating Humidity | 5% – 95% non-condensing |
Videos
What's Included
Compare Similar
| MaxiVIDEO MV400 | MaxiVideo MV460 | MaxiVideo MV480 | |
|---|---|---|---|
 |
 |
 |
|
| High Resolution & Full-color Digital LCD Display |
3.5" (320×240)
|
3.5" (640 x 480)
|
4.1" (1200×720)
|
| Record & Play-back High Resolution Still Images & Videos |
640×480
|
1920 x 1080
|
1920 x 1080
|
| Wireless Monitor Enables Remote Viewing |
—
|
—
|
—
|
| Touchscreen for Convenient Operation |
—
|
—
|
—
|
| Single Button for Quick Photo & Video Recording |
—
|
✓
|
✓
|
| Add Audio Annotation for Detail Presentation |
—
|
—
|
✓
|
| On-screen Photo Editing & Markup |
—
|
—
|
—
|
| Dual Cameras See Straight Ahead or At a 90° Angle |
—
|
—
|
✓
|
| Digital Zoom for Detailed Viewing |
5x
|
7x
|
7x
|
| View Objects as Close as 1" |
✓
|
✓
|
✓
|
| BOn-screen Horizontal/Vertical Reverse |
✓
|
✓
|
✓
|
| On-screen 90° Clockwise Rotation |
—
|
✓
|
✓
|
| Built-in & Adjustable LED Illuminates Viewing Area |
✓
|
✓
|
✓
|
| HDMI Port for Monitor View |
—
|
✓
|
✓
|
| Mini USB Connector for Uploading Images & Videos |
✓
|
✓
|
✓
|
| 1m Long Semi-rigid Flexible Watertight Shaft |
✓
|
✓
|
✓
|
| Narrow Probe Diameter Available in Both 5.5mm & 8.5mm |
✓
|
8.5mm (5.5mm Optional)
|
8.5mm (5.5mm Optional)
|
| Micro SD Card Slot for Greater Memory Capacity |
✓
|
✓
|
✓
|
| Oil & Scratch Resistant Tempered Glass Lens |
✓
|
✓
|
✓
|
| Ergonomic & Durable Tool Housing |
✓
|
✓
|
✓
|
| Built-in Rechargeable Li-ion Battery |
✓
|
✓
|
✓
|
| Multilingual Support |
✓
|
✓
|
✓
|
| Water Resistant Camera Head |
✓
|
✓
|
✓
|
