MaxiTPMS TS508KMV-1 Kit: TS508 Tool, (8) 1-Sensors, 1 MVK
MaxiTPMS TS508KMV-1 – Advanced TPMS Service Tool + (8) 1-Sensors + 1 MVK

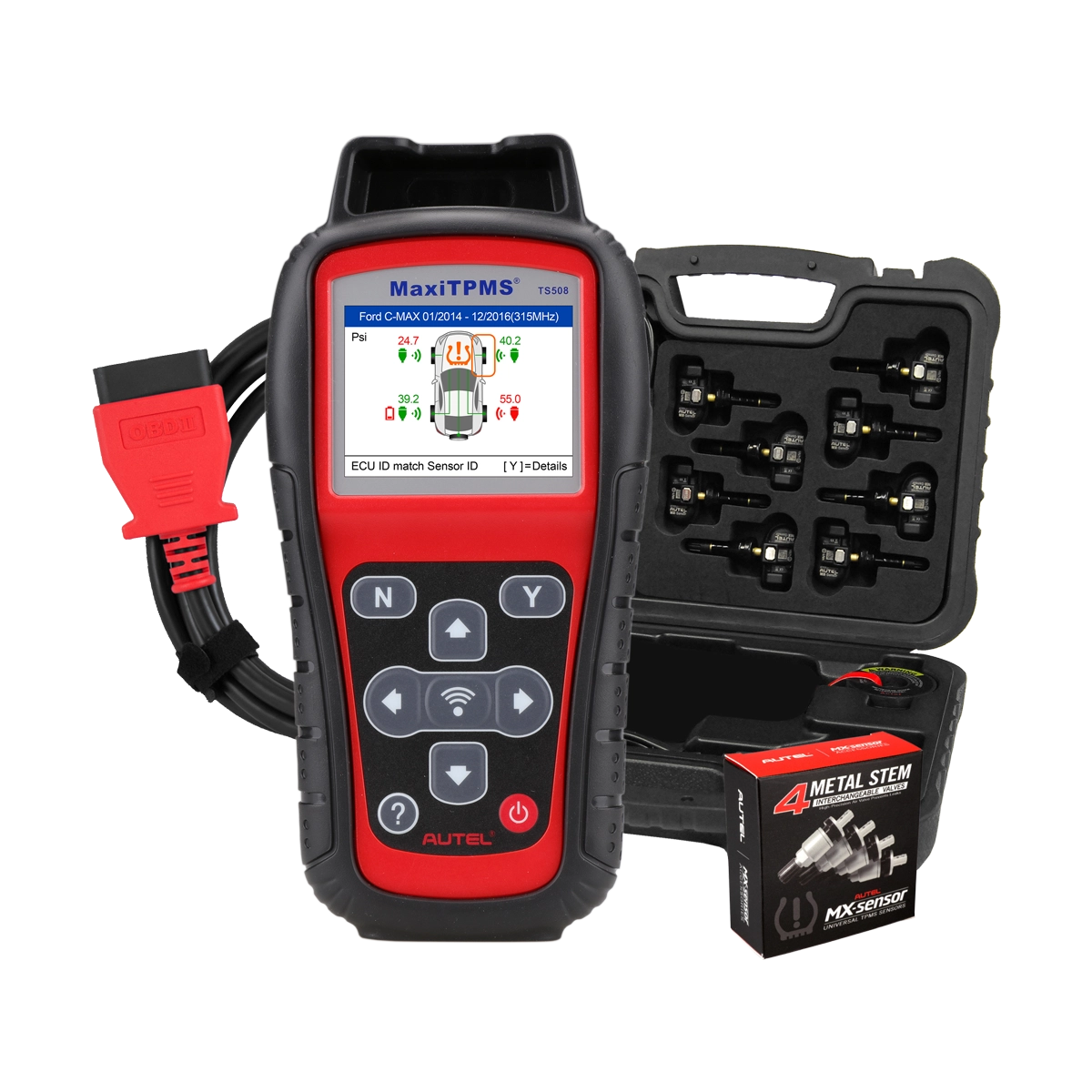

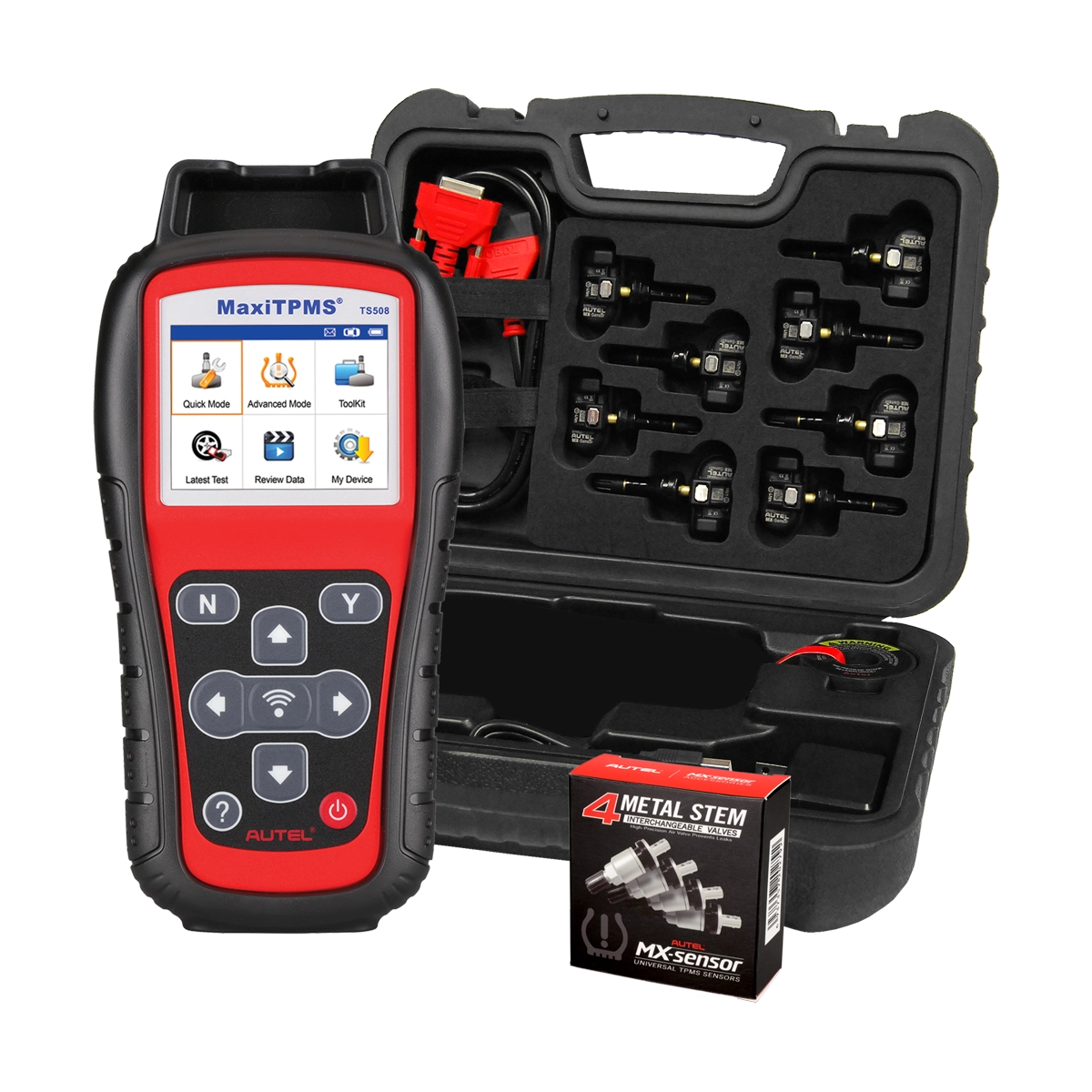

The TS508KMV-1 is a kit with an advanced TPMS Service Tool, eight 1-Sensors and a Metal Valve Kit with four aluminum replacement valve stems. The TS508 is an easy-to-use hand-held TPMS service tool with complete TPMS capabilities. It can activate all known sensors, includes 4 MX-Sensor programming methods, and displays vehicle-specific Relearn procedures. The provided OBDII cable allows OBDII Relearns on select vehicles. The TS508 is compatible with all TPMS-equipped domestic, Asian and European vehicles. It features Autel’s exclusive TPMS system status screen that enables technicians to quickly determine the next step in repair. The TS508 includes free software updates for the life of tool and a 1-year warranty.
| Availability: | This product has been discontinued. |
|---|
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Downloads
- What's Included
- Sold Separately
- Compare Similar
- 8 Autel 1-Sensors Included
- 1 Metal Valve Kit Included
- Quick Mode & Advanced Mode Options
- Read/Activate/Relearn All Known Sensors
- Detect & Display TPMS System Faults
- Display Vehicle-Specific Relearn Procedures; Perform OBDII Relearns
- Placard Value Reset on Supported Vehicles
- 4 Programming Options: MX-Sensors Only
- TPMS System Status Screen
- Key Fob Signal Test
- FREE Lifetime Software (lifetime of tool) & 1Yr Warranty
- Display Sensor ID, Battery Life (on supported sensors) and Psi
- Includes OBDII Cable
- Software Updates via PC / Easy-To-Use Navigation
- 2.3″ Color Display 320×240
- 3200mAh Lithium-polymer Battery
| Display | TFT color display (320 x 240 dpi) |
| Power | 3.7 V Li-polymer battery; 3200 mAh |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimensions (LxWxH) | 215 mm (8.46") / 105 mm (4.13") / 37 mm (1.46") |
| Weight | 0.39 kg (0.86 lb.) |
| Connectivity | Mini USB 2.0 x 1 |
| Warranty | 1 year |
| Software Update | Free |
