In today’s collision repair environment, certified repair centers face an unprecedented challenge: meeting the strict demands of OEM mandates while delivering precise, verifiable results for Advanced Driver-Assistance Systems (ADAS). For modern vehicles where safety-critical ADAS components are standard, the stakes are high. A misaligned camera or sensor isn’t just a failed repair—it’s a potential safety hazard.
Certified centers are caught at the intersection of compliance and precision. OEM mandates require the use of OEM software for calibrations, yet the physical setup—placement of calibration targets and alignment of sensor modules—is just as critical. Traditional manual setups, even in skilled hands, are vulnerable to tiny errors and environmental inconsistencies that can compromise the calibration, leading to comebacks, frustrated technicians, and dissatisfied customers.
Fortunately, a new hybrid approach bridges this gap. By combining the precision of the IA1000’s guided ADAS setup systems with the compliance of OEM factory tools, collision centers can achieve both exacting accuracy and full regulatory compliance—a true “best of both worlds” solution.
Precision Physical Setup with the Autel IA1000 and Guided ADAS

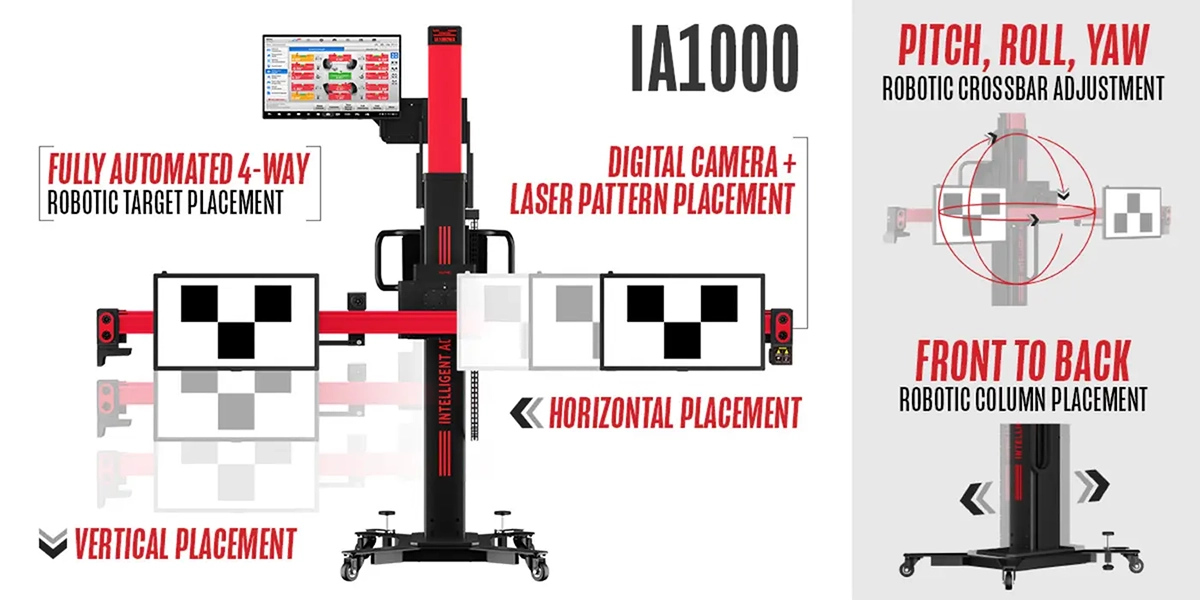

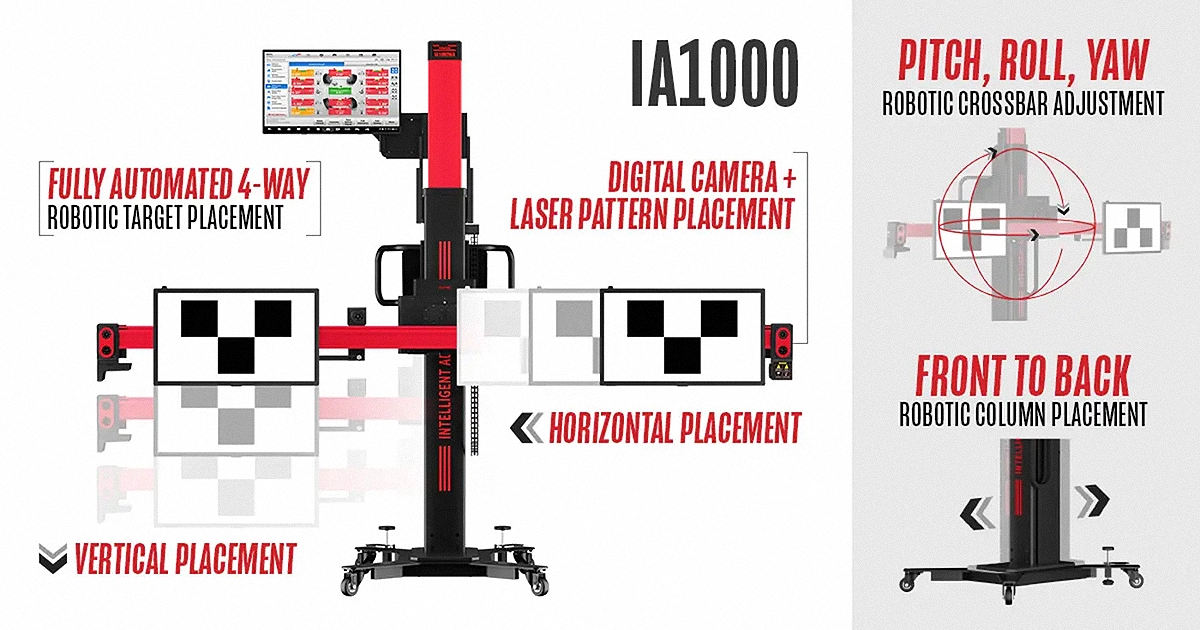

The Autel IA1000 system is widely recognized as the industry leader for setup precision. Its advanced optical placement and automated frame alignment ensure that calibration targets are positioned with pinpoint accuracy. Key features include:
- Optical Placement: Guarantees target placement exactly as specified by the OEM.
- Digital Targets with Adaptive Illumination: Adjusts brightness automatically to ambient lighting, ensuring sensors always have a clear reference.
- Automated Frame Alignment: Centers the frame perfectly with the vehicle’s centerline, removing a major source of human error.
- Environmental Compensation: Measures and corrects for workshop imperfections, such as floors that slope or pitch, ensuring the vehicle’s actual sensors—not the floor—are perfectly aligned.
- Comprehensive Reporting: Generates a detailed, data-driven report documenting frame angle, pitch, roll, and target placement—verifiable proof of a precise setup.
By handling the physical side of calibration, the Autel system provides a level of accuracy impossible with manual methods. This ensures that when the OEM factory tool is later applied, the calibration procedure proceeds flawlessly.
OEM Factory Tools: Ensuring Compliance
While precision is critical, compliance is non-negotiable. And that’s why this method is especially valuable for certified collision centers that mandate the use of factory-approved software procedures. In the hybrid workflow, the factory tool is used exclusively for these procedural steps—ensuring certified collision centers remain fully compliant without compromising setup accuracy
Step-by-Step Hybrid Calibration in Action
In a recent video, Autel’s Sr. Executive of Sales, ADAS Stew Peregrine demonstrated the efficiency of this hybrid method as he calibrated a 2025 Toyota RAV4—using the IA1000 and the OEM factory software:
- Initial Setup: Both the Autel system and OEM tool are connected and prepared.
- Automated Centering: The Autel frame self-adjusts to center on the vehicle.
- Height & Distance Positioning: The system moves targets to OEM-specified height (1,350 mm) and distance (1,216 mm), eliminating manual measurements.
- Target Illumination: Digital targets adjust to workshop lighting for optimal sensor recognition.
- First Position Calibration: Using the OEM tool, the technician actuates the first calibration step.
- Second Position Movement & Calibration: The IA1000 automatically moves the target to the next required position (550 mm). The OEM tool performs the second calibration.
- Third Position Movement & Final Calibration: The IA1000 sets the final position on the right side of the vehicle. The OEM tool completes the last calibration step, confirming full procedural compliance.
Each step is guided, precise, and verifiable, eliminating the guesswork and time-consuming manual measurements that historically led to errors or comebacks.
Verifiable Results: Proof of Accuracy
A post-calibration report provides tangible evidence of precision. For example, after calibrating the 2025 Toyota RAV4:
- Frame Angle: 0 degrees
- Frame Pitch: 0.01 degrees
- Frame Roll: 0 degrees
Remarkably, this level of accuracy is achieved even on a workshop floor with a known two-degree slope. Manual methods could never consistently achieve this, illustrating the clear advantage of guided setup systems in modern collision repair.
The Bottom Line: Compliance Meets Precision
Collision repair today is defined by both technological sophistication and regulatory compliance. A workflow that forces a choice between meeting OEM mandates and achieving precise sensor setup is no longer acceptable.
The hybrid approach—using Autel’s Guided ADAS with the IA1000 for physical positioning paired with OEM factory tools for software actuation—resolves this challenge elegantly. It empowers technicians to achieve:
- Complete OEM Compliance: Every calibration is actuated using the approved factory tool.
- Unmatched Setup Accuracy: Advanced optical placement and environmental compensation eliminate human error and ensure sensors are perfectly aligned.
- Verifiable Proof of Work: Detailed reports document every measurement and adjustment, protecting shops against comebacks and liability.
Ultimately, this integrated approach safeguards both the integrity of the repair and the safety of the driver. By delivering the precision of guided setup with the procedural legitimacy of OEM tools, collision centers can confidently restore ADAS functionality to factory standards—without compromise.
