Originally published: April 8, 2026
This ADAS Calibration Lab article highlights how Guided ADAS combines optical positioning with OEM software to create a more complete, efficient, and validated calibration workflow.
In today’s collision repair environment, ADAS calibration is no longer just about completing a procedure—it’s about completing it accurately, consistently, and in alignment with OEM requirements.
Many shops rely on either aftermarket systems or factory tools alone. But as ADAS systems become more sensitive, that separation can introduce gaps—either in target positioning precision or OEM validation.
That’s where Autel Guided ADAS comes in.
Guided ADAS combines Autel’s optical positioning setup technology with OEM factory software, creating a calibration process that is both precise and verified in setup and scanned plus triggered through manufacturer software.
What Is Guided ADAS?
Guided ADAS refers to the ability to integrate:
- Autel digital optical targeting and guided placement workflow
- OEM factory calibration tools for execution and validation
In practice, this means:
- Targets are positioned using optical measurement and guided prompts
- Scan and Calibration is triggered using the OEM scan tool
- Target setup validated and reported with Autel cameras, Scan and Calibration reported by OE Software.
This approach reflects what’s shown in the calibration process—leveraging the strengths of both systems in a single workflow.
A Closer Look: Guided ADAS in Action

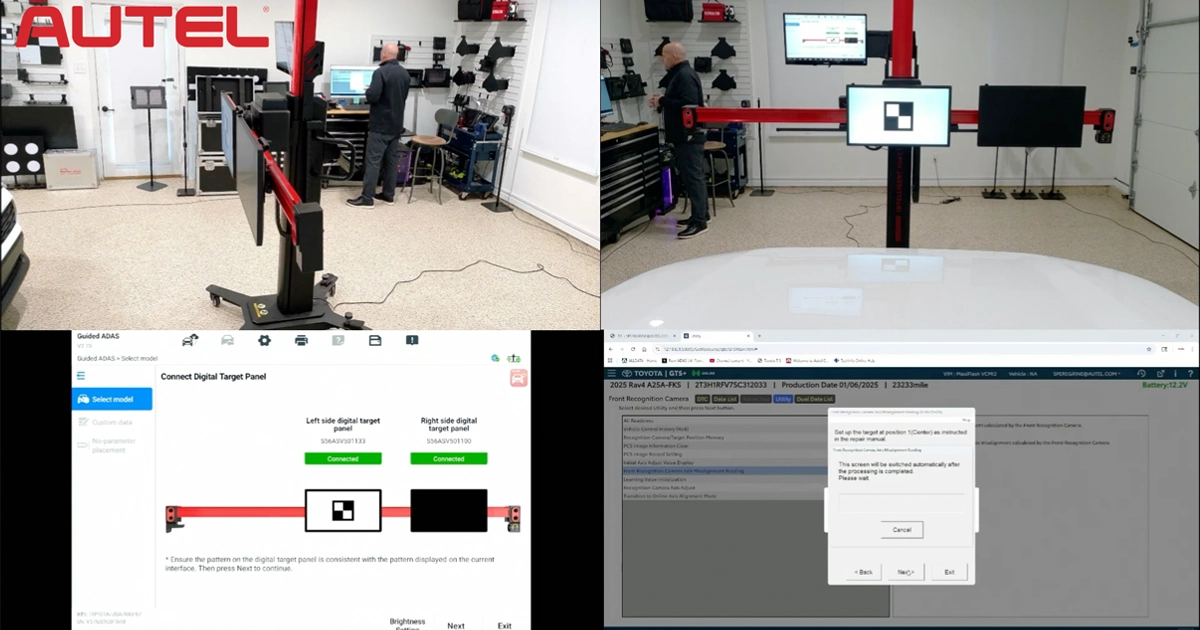

Using a Toyota RAV4 calibration, the process demonstrates how Guided ADAS works step by step.
- Optical Frame Centering
- The Autel IA1000 system centers the frame optically
- Frame and target position is established before calibration begins
- Verifying Target Position
- Distance: 1216 mm
- Height: 1350 mm
- OEM Tool Execution and Validation
- Each step is initiated through the factory software
- Audible and visual confirmations indicate successful completion
- Guided, Multi-Step Workflow
- Initial calibration at the zero position
- Repositioning the frame (e.g., 550 mm offset)
- Repeating calibration steps at each position
- The Autel system guides placement
- The OEM tool verifies the result
- Reporting and Documentation
- A calibration report is generated
- Data such as VIN and mileage are included
- Results are uploaded for record keeping
The workflow begins with positioning the calibration frame relative to the vehicle.
This creates a consistent baseline for the rest of the procedure.
Accurate placement is confirmed using specific measurements:
Digital targets illuminate and adjust based on the environment, helping ensure visibility and positioning accuracy during setup.
Once target setup is complete, the OEM tool is used to run the calibration.
If alignment or setup is incorrect, the process does not proceed—ensuring that only valid calibrations are accepted.
The calibration is performed in stages, including:
At each stage:
This structured workflow helps maintain consistency across the entire calibration process.
After completion:
This provides documentation for both internal tracking and external requirements.
Accounting for Real-World Shop Conditions
One notable aspect of the process is how it handles environmental variables.
In the example:
- The shop floor had an approximate 2° pitch to the right
The system compensates for this during frame placement, helping ensure that calibration measurements remain accurate despite floor conditions.
Where Guided ADAS Adds Value
Based on the demonstrated workflow, Guided ADAS provides several practical advantages:
- More Precise Target Placement
- OEM-Verified Calibration
- Structured, Guided Workflow
- Reduced Risk of Invalid Calibration
- Environmental Awareness
- Built-In Documentation
Optical positioning supports accurate and repeatable setup compared to manual measurement alone.
All calibration steps are executed and confirmed using the factory tool.
Step-by-step prompts and confirmations help standardize the process.
The OEM software notifies tech if a step is not successfully completed.
Compensation for factors like floor pitch supports more reliable results.
Automatic report generation supports record keeping and compliance.
What This Means for Calibration Workflows
Guided ADAS represents a shift toward integrated calibration processes—where positioning, execution, and validation are no longer separate steps handled by different systems independently.
Instead, they are combined into a single workflow that:
- Uses optical technology for setup
- Relies on OEM tools for scanning and triggering calibration
- Guides the technician through each step
For collision repair facilities, especially those working within OEM programs, this approach supports both accuracy and procedural compliance.
The Bottom Line
ADAS calibration requires both precise setup and verified execution.
Guided ADAS brings those two elements together—combining Autel’s optical positioning and guided workflow with OEM factory software.
The result is a process that aligns with what modern calibration demands:
- Consistency
- Accuracy
- Validation
Because in ADAS calibration, how the process is performed matters just as much as completing it.
FAQ
What is Guided ADAS?
It’s the integration of Autel’s optical positioning and guided workflow with OEM factory tools for calibration execution and validation.
Why use both systems together?
Optical systems improve placement accuracy, while OEM tools ensure the scan and the calibration is triggered using manufacturer software.
What happens if a step fails?
The OEM tool will not allow the process to continue until the issue is corrected.
Does the system account for shop conditions?
Yes, it compensates for factors like floor pitch and lighting to yield a true successful result.
