MaxiBAS BT608
Battery Testing and Analysis
The BT608 is a comprehensive battery and electrical system diagnostics tool featuring Adaptive Conductance technology to identify low-capacity batteries and thereby reduce battery misdiagnosis. The Android-based, Wi-Fi touchscreen tablet tool displays a quick battery health status, enables an automatic battery registration and features advanced AutoVIN and ScanVIN functionality for quick vehicle identification and battery specifications. The tool features a built-in thermal printer and one year warranty.
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Videos
- Downloads
- What's Included
- Compare Similar
- Test 6- and 12-volt Batteries: 100 – 3000 CCA
- Test 12- and 24-volt Cranking/Charging Systems
- Test Flooded, AGM, AGM_Spiral, EFB and GEL Batteries
- Uses Adaptive Conductance Technology to Detect Battery Capacity Reducing Misdiagnosis

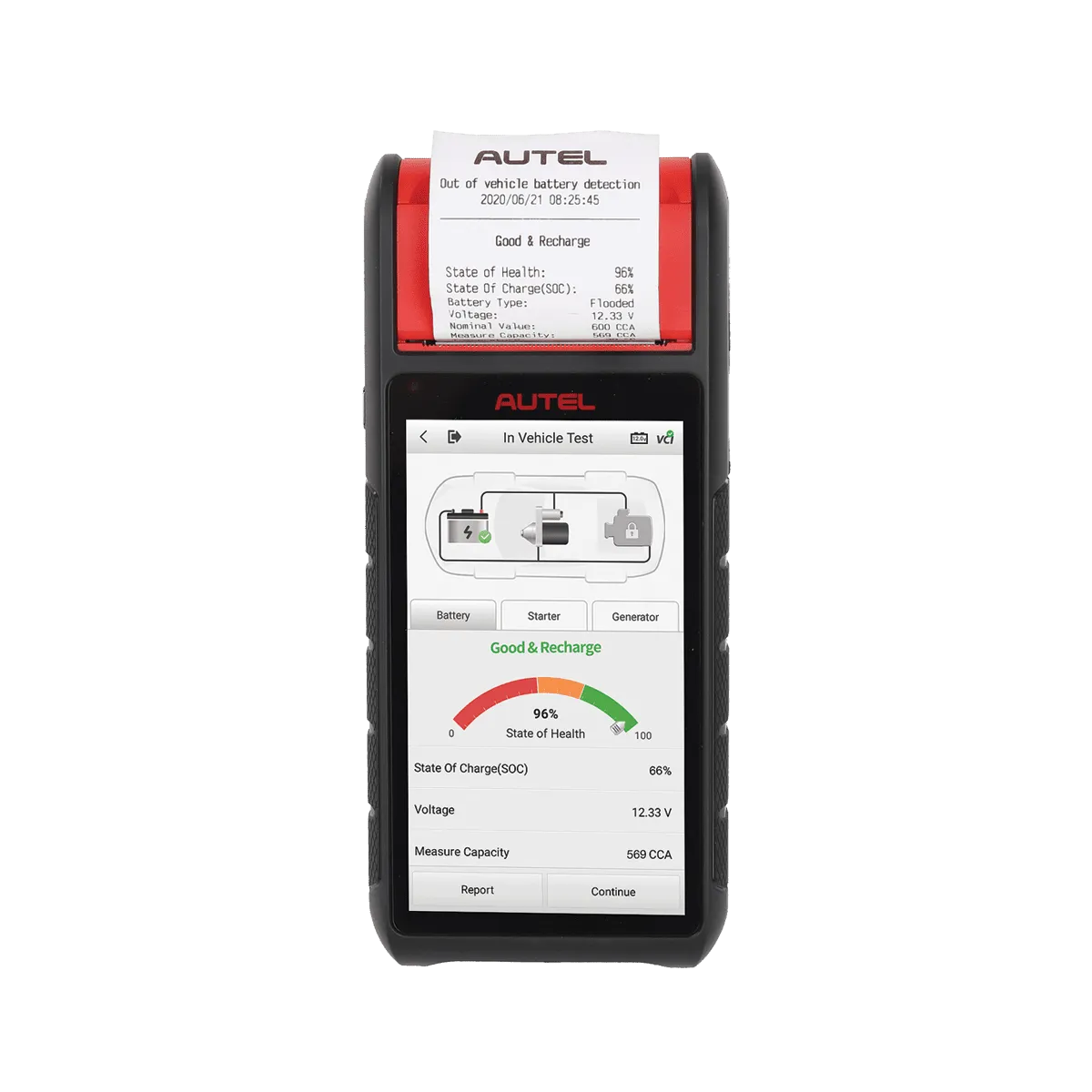

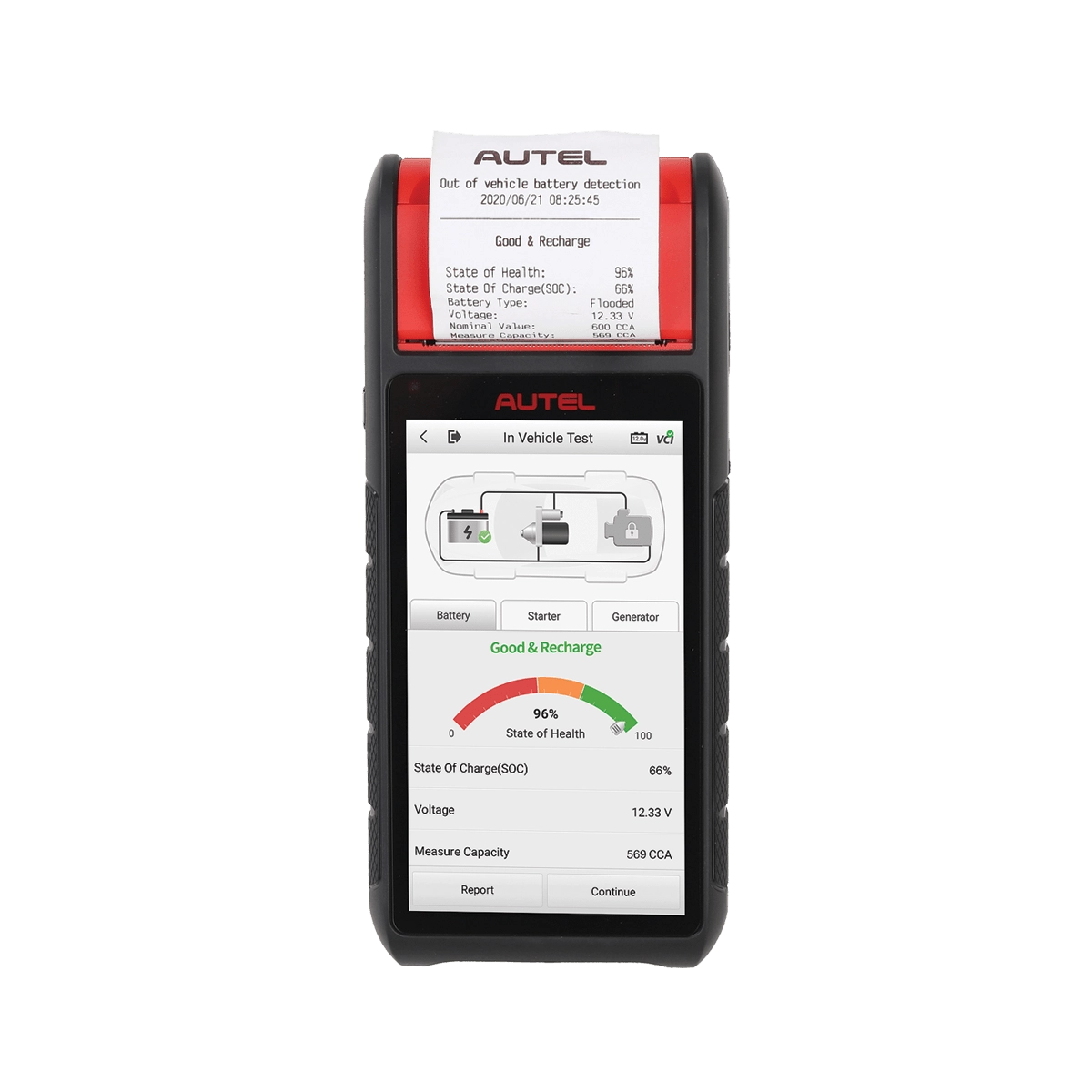

- Auto Battery Reset / Print Test Reports Via Built-in Thermal Printer
- AutoScan and VinScan for Quick Vehicle Identification and Battery Specifications
- Illustration Instruction Guides for Battery Positioning and Testing
- 5.5-inch Touchscreen / Android 9.0 / Wi-Fi Software Updates
- Read and Erase Error Codes

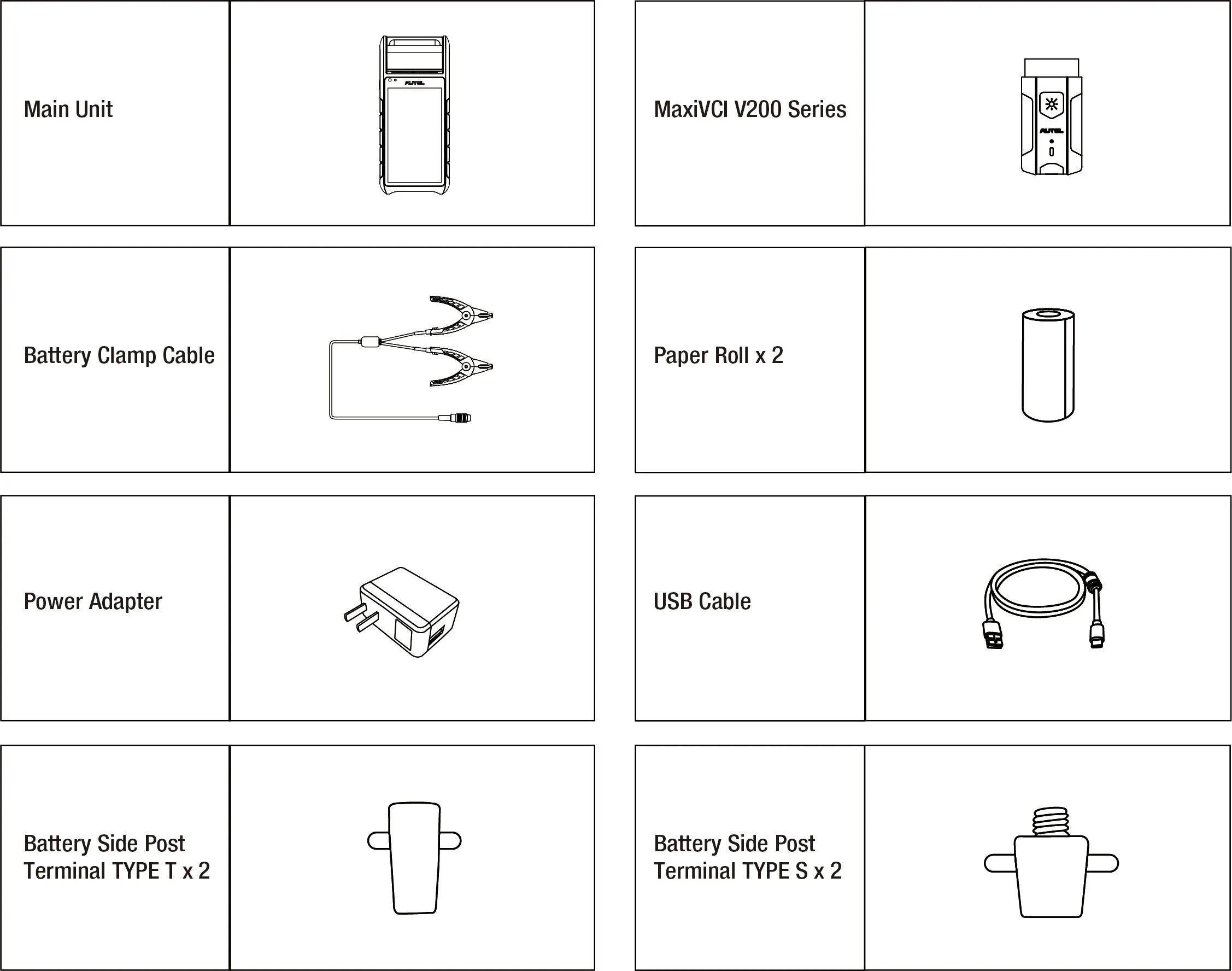

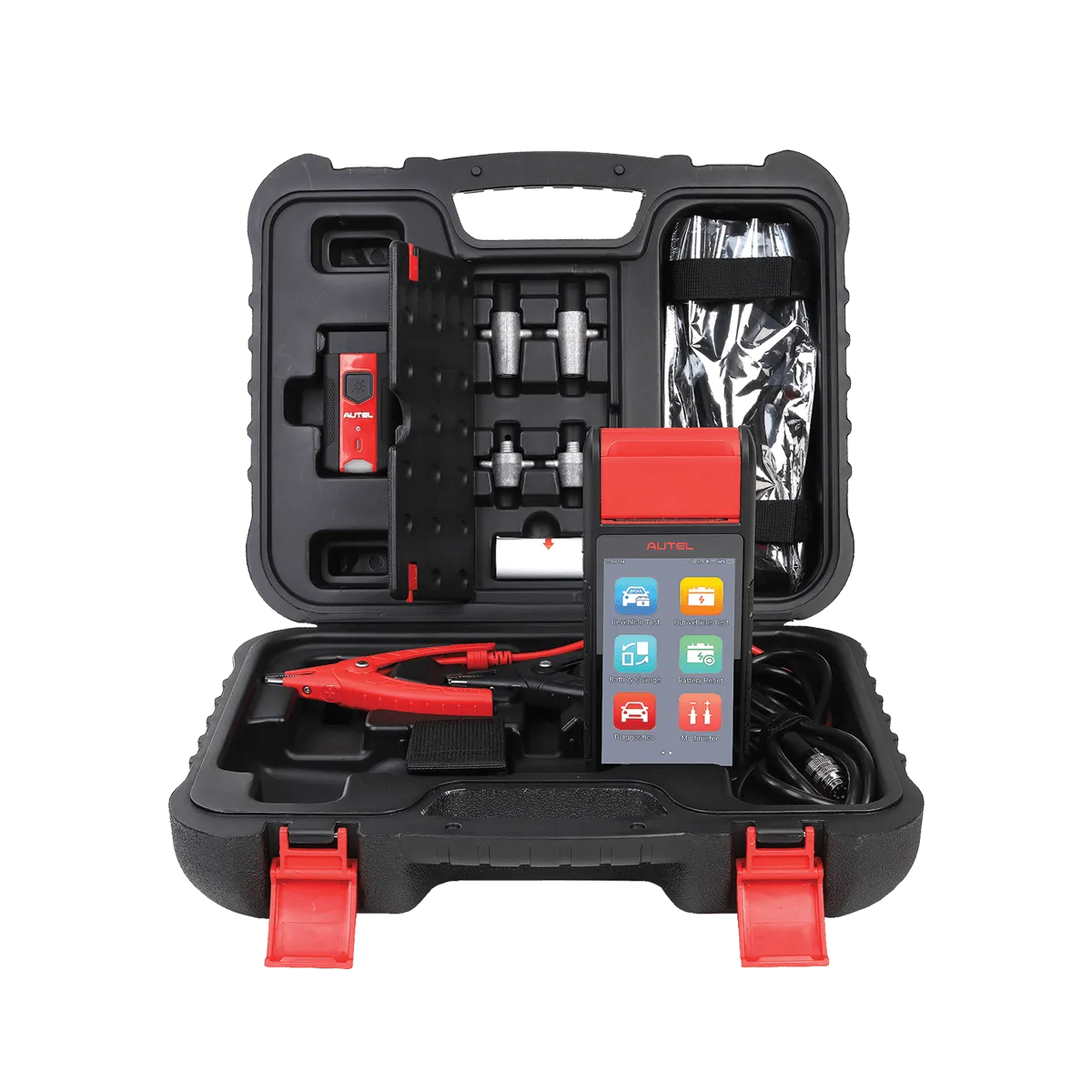

- Includes Bluetooth VCI, Clamp Cables, Four Battery Side Post Terminals (Types S & T) and Thermal Paper Roll
- Wireless Tablet Tool / 1.5 GhZ Quad-Core Processor, 32GB Memory, 2GB RAM and 6-Hour Battery Life
| Operating System | Android 9.0 |
| Screen Display | 5.5" LCD touch screen with 720*1280 resolution |
| Storage | 32 GB |
| Connectivity |
|
| Camera | 8 Megapixel |
| Input Voltage | 5V DC |
| Working Current | < 450 mA at 7.7 V DC |
| Internal Battery | 7.7 V, 3000 mAh |
| CCA Range | 100 to 3000 A |
| Voltage Range | 1.5 to 36 V |
| Operating Temperature | 0° to 50° C (32° to 122° F ) |
| Storage Temperature | -10° to 60° C (14° to 140° F ) |
| Dimensions (W x H x D) | 204 mm (8.03") x 90 mm (3.54") x 32 mm (1.25") |
| Weight | 510 g (1.12 lb.) |

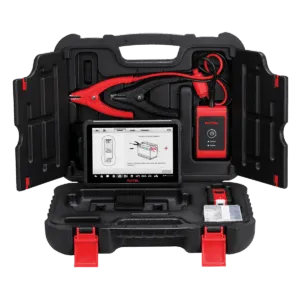

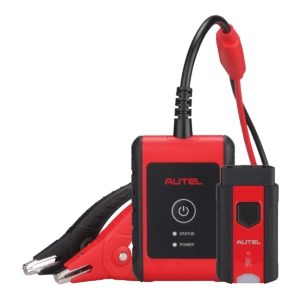

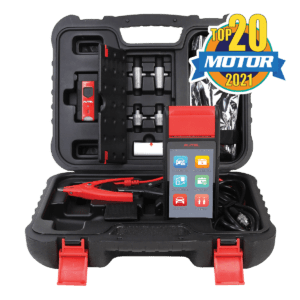

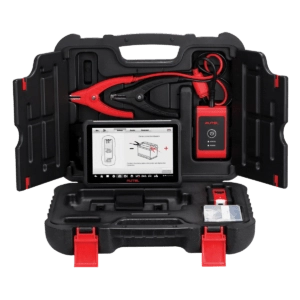

| MaxiBAS BT508 | MaxiBAS BT608 | MaxiBAS BT609 | |
|---|---|---|---|
 |  |  | |
| HARDWARE | |||
| Screen | — | 5.5-Inch Touchscreen
720 x 1280 DPI / LED Color Screen | 7-Inch Touchscreen
1280 x 800 DPI / LED Color Screen |
| Battery | — | 3,000 mAh 6H | 6,000 mAh 6H |
| Processor | CORTEX-M4 | 1.5 GHz
CORTEX-A35 QUAD-CORE | 1.5 GHz
CORTEX-A35 QUAD-CORE |
| Memory | — | 32GB SSD / 2GB RAM | 64GB SSD / 2GB RAM |
| Camera | — | 8.0MP | 8.0MP |
| SOFTWARE | |||
| Operating System | — | ANDROID 9.0 | ANDROID 9.0 |
| FEATURES | |||
| CCA Range | 100-2000 CCA | 100-3000 CCA | 100-3000 CCA |
| Battery Type | Flooded, AGM, AGM Spiral, EFB, GEL | Flooded, AGM, AGM Spiral, EFB, GEL | Flooded, AGM, AGM Spiral, EFB, GEL |
| Battery Ratings | CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB | CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB | CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB |
| Battery Voltage | 6V, 12V | 6V, 12V | 6V, 12V |
| Electrical System | 12V, 24V | 12V, 24V | 12V, 24V |
| Voltage Range | 1.5-36V | 1.5-36V | 1.5-36V |
| Temperature Compensation | — | Included | Included |
| Battery Registration | 53 Vehicle Makes | 53 Vehicle Makes | 53 Vehicle Makes |
| Electrical Reset | Included | Included | Included |
| System Detection | AUTOVIN | AUTOVIN, VINSCAN, PLATE SCAN | AUTOVIN, VINSCAN, PLATE SCAN |
| Battery Location Diagrams | Included | Included | Included |
| Battery Health Report | Included | Included | Included |
| Built-In Printer | — | Included | — |
| Email Report | Included | Included | Included |
| Cloud-Base Service | Included | Included | Included |
| Multimeter | — | Optional | Optional |
| Amp Clamp | — | Optional | Optional |
| DIAGNOSTICS | |||
| All System with Autoscan | One Vehicle Brand Only | Included | Included |
| All Maintenance Resets | — | — | Included |
| Diagnostic Software Update | Charge for additional vehicle brands & annual update | No Annual Update Fee | Annual Update Fee |
