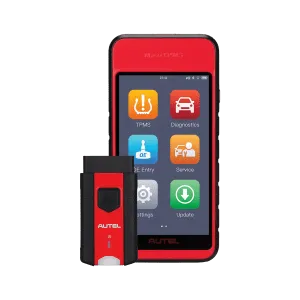

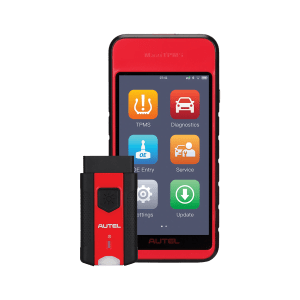

MaxiTPMS ITS600 Pro
Handheld TPMS Service & Diagnostic Tablet
The MaxiTPMS ITS600 Pro is a wireless, touchscreen Android-based tablet offering complete TPMS diagnostics and service functions and featuring All Systems Diagnostics and an extensive menu of the most performed service tasks. The tablet features a 5.5-inch color display and a Bluetooth-enabled vehicle communication interface (VCI). The ITS600Pro can activate, read and relearn all known sensors and can program the 1-sensor to replace 99% of the vehicles on the road today. The tablet performs all systems diagnostics to read/erase codes and view all freeze frame and live data. The ITS600Pro is compatible with the TBE200 Tire Tread & Brake Disc Wear analysis tool (sold separately). The tablet includes one year warranty coverage and one year of free diagnostic & service software updates.
| ITSUPDATE: | Total Care (TCP) for ITS600PRO $124.50 |
|---|
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads

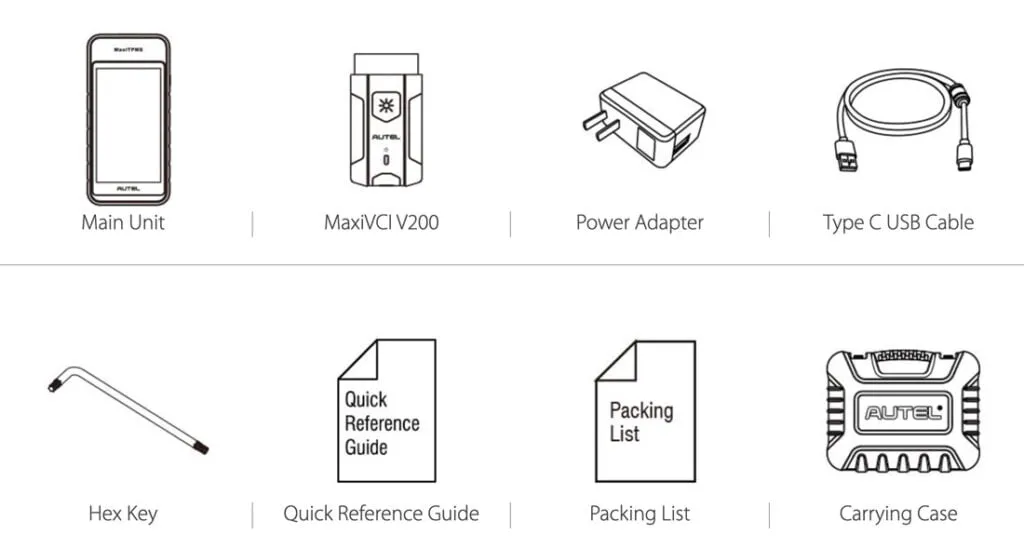

- What's Included
- Sold Separately
- Compare Similar
- 5.5-inch, Wireless Touchscreen Android Tablet
- Complete TPMS Service Tool
- Activates, Reads and Reads All Known Sensors
- Programs 1-Sensor to replace 99% Sensors
- All Systems Diagnostics: Read/Erase Codes & View Freeze Frame and Live Data
- Extensive Service Menu incl 20 common service tasks
- Includes Wireless Bluetooth Vehicle Communication Interface (VCI)
- Rapid VIN Acquisition Via Optical VINscan Function
- One Year Warranty Coverage of Diagnostics Software Updates

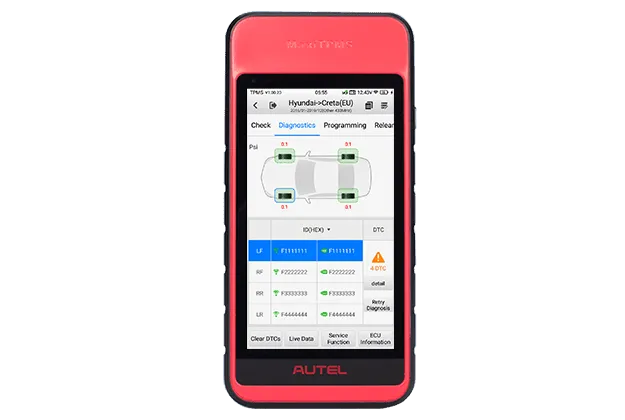

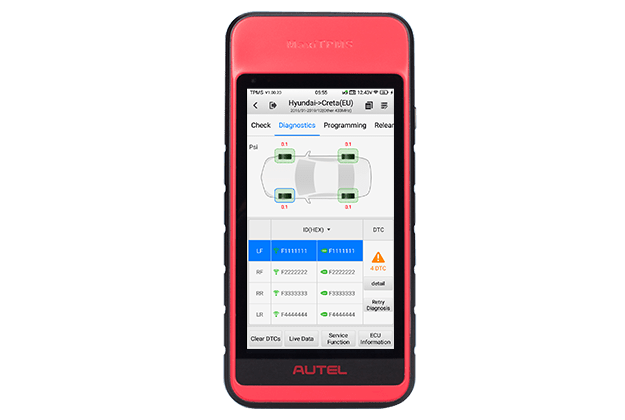

Everything TPMS Solutions
- Activates, reads and relearns all known sensors
- Enhanced, at-a-glance diagnostics status screen
- Fast OBDII relearn for most vehicles
- Program MX-Sensors to replace 99% of OE sensors
- Two MX-Sensor program modes; batch program up to 20 MX-Sensors
- Includes wireless Bluetooth vehicle communication interface (VCI)
- Tire pressure placard value reset
- Read/Clear TPMS system codes & view live data
- Free Wi-Fi software updates for the life of the tool

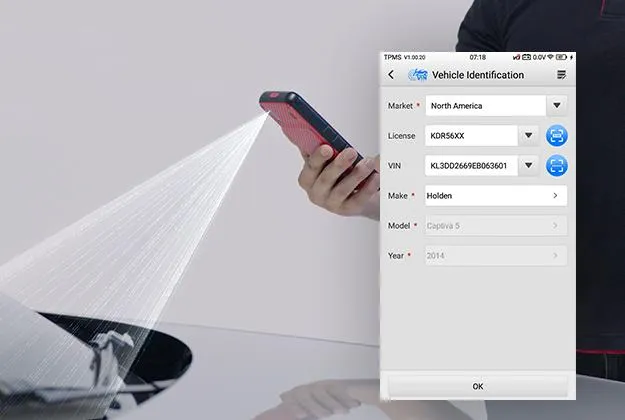

Quick Vehicle ID Technology
- Rapid VIN acquisition via optical VINScan
- QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input
- Identify MMY and sensor OE part number via VIN decoding

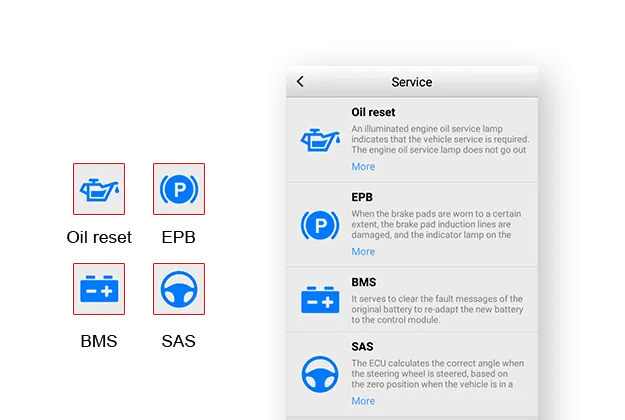

Diagnostic & Service
- Oil light reset
- Electronic brake service
- Battery registration
- Steering angle reset
- Included service function updates are free for the life of the tool
- All systems diagnostics and maintenance services software available with Pro Upgrade purchase

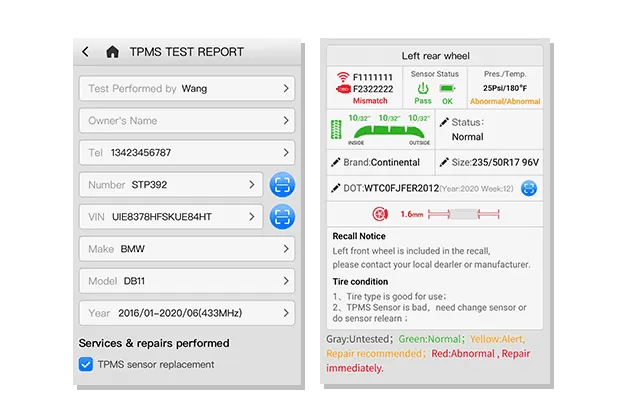

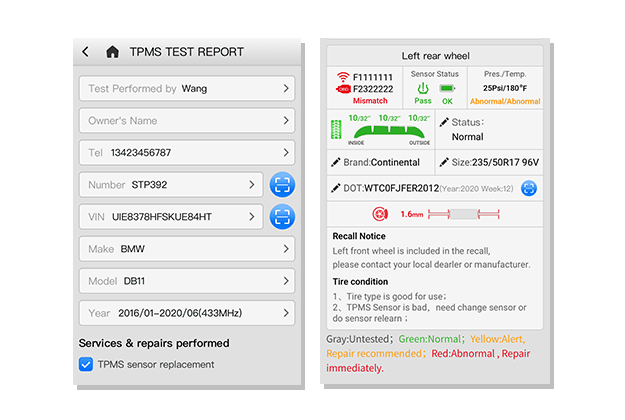

TPMS Test Report
DOT
- Quick & Easy Tire DOT Number Scan
- Tire Expiration Notice
- Tire Recall Lookup Tread Depth & Brake Disc Wear
- Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200
- Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics
| Recommended Use | Indoor |
| Operating System | Android™ 9.0 |
| Processor | Quad-core processor (1.5 GHz) |
| Memory | 2GB RAM DDR4 & 64GB ROM |
| Display | 5.5-inch LCD capacitive touchscreen with 1280x720 resolution |
| Connectivity |
|
| Camera |
|
| Sensors | Light sensor for brightness auto adjust |
| Audio Input/Output |
|
| Power and Battery |
|
| Battery Charging Input | 5 V/2 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
| Operating Temperature | -10 to 45°C(14 to 113°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 183.0 mm (7.2") x 89.0 mm (3.5") x 22.0 mm (0.87") |
| Net Weight | 368g (0.8 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66 |

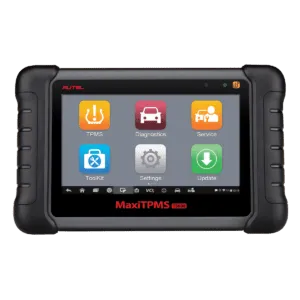

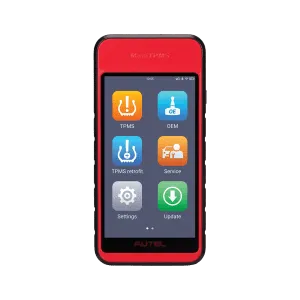

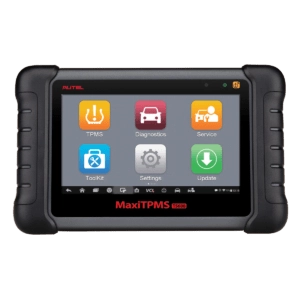

| MaxiTPMS TS608 | MaxiTPMS ITS600 | MaxiTPMS ITS600Pro | |
|---|---|---|---|
 |  |  | |
| HARDWARE | |||
| Connection | Bluetooth MaxiVCI-Mini | Bluetooth VCI-200 | Bluetooth VCI-200 |
| Screen | 7-Inch Touchscreen
1024 x 600 DPI / LED Color Screen | 5.5-Inch Touchscreen
1280 x 720 DPI / LED Color Screen | 5.5-Inch Touchscreen
1280 x 720 DPI / LED Color Screen |
| Battery | 5,000 mAh | 5,000 mAh | 5,000 mAh |
| Processor | 1.6GHz
QUAD-CORE | 1.5GHz
QUAD-CORE | 1.5GHz
QUAD-CORE |
| Memory | 32GB SSD / 1GB RAM
(up to) 32GB micro SD card not included | 64GB SSD / 1GB RAM | 64GB SSD / 1GB RAM |
| Camera | — | 8.0 MP
with flashlight | 8.0 MP
with flashlight |
| SOFTWARE | |||
| Operating System | ANDROID 4.4.2 | ANDROID 9.0 | ANDROID 9.0 |
| Software Updates | 1 Year Free
Update Via Wi-Fi | FREE for life of tool*
update via wi-fi | 1 year FREE*
update via Wi-Fi |
| Automatic Detection | Auto-Vin / Auto-Scan | Auto-Vin / Auto-Scan Scan Vin / Plate Scan | Auto-Vin / Auto-Scan Scan Vin / Plate Scan |
| Service Resets | 17 Service functions
Standard Features | 4 Service Functions
OLS / EBS / SAS / BMS | 20 service functions |
| System Diagnostics | All Systems Diagnostics
all modules in all systems | — | Essential Diagnostics
All modules in all systems |
| Battery Analysis | — | Battery Testing Software***
with update | Battery Testing Software***
with update |
| TPMS Sensor | — | ||
| TPMS Diagnostics | Enhanced
TPMS Status Screen | Enhanced
TPMS Status Screen | Enhanced
TPMS Status Screen |
| Read/Activate/Relearn | All known sensor brands | All known sensor brands | All known sensor brands |
| Programming Methods | 2 Methods
MX-Sensors only | 2 Methods
MX-Sensors - Fast Batch Programming | 2 Methods
MX-Sensors - Fast Batch Programming |
| Relearn Procedures | OBDII Relearn
With on-tool procedures | OBDII Relearn
With on-tool procedures | OBDII Relearn
With on-tool procedures |
| Print Sensor Data | Wi-Fi to PC | Wi-Fi to PC | Available on tool |
| MaxiSYS System Suite | Remote support & data logging | Remote Support & Data Logging | Remote support & data logging |
| TPMS Mode Options | — | — | — |
| Compatible with TBE200 | — | Complete TPMS & Tire Health Report | Complete TPMS & Tire Health Report |
| Tire Registration | — | On-tool DOT Tire Registration & Recall Lookup** | On-tool DOT Tire Registration & Recall Lookup** |
