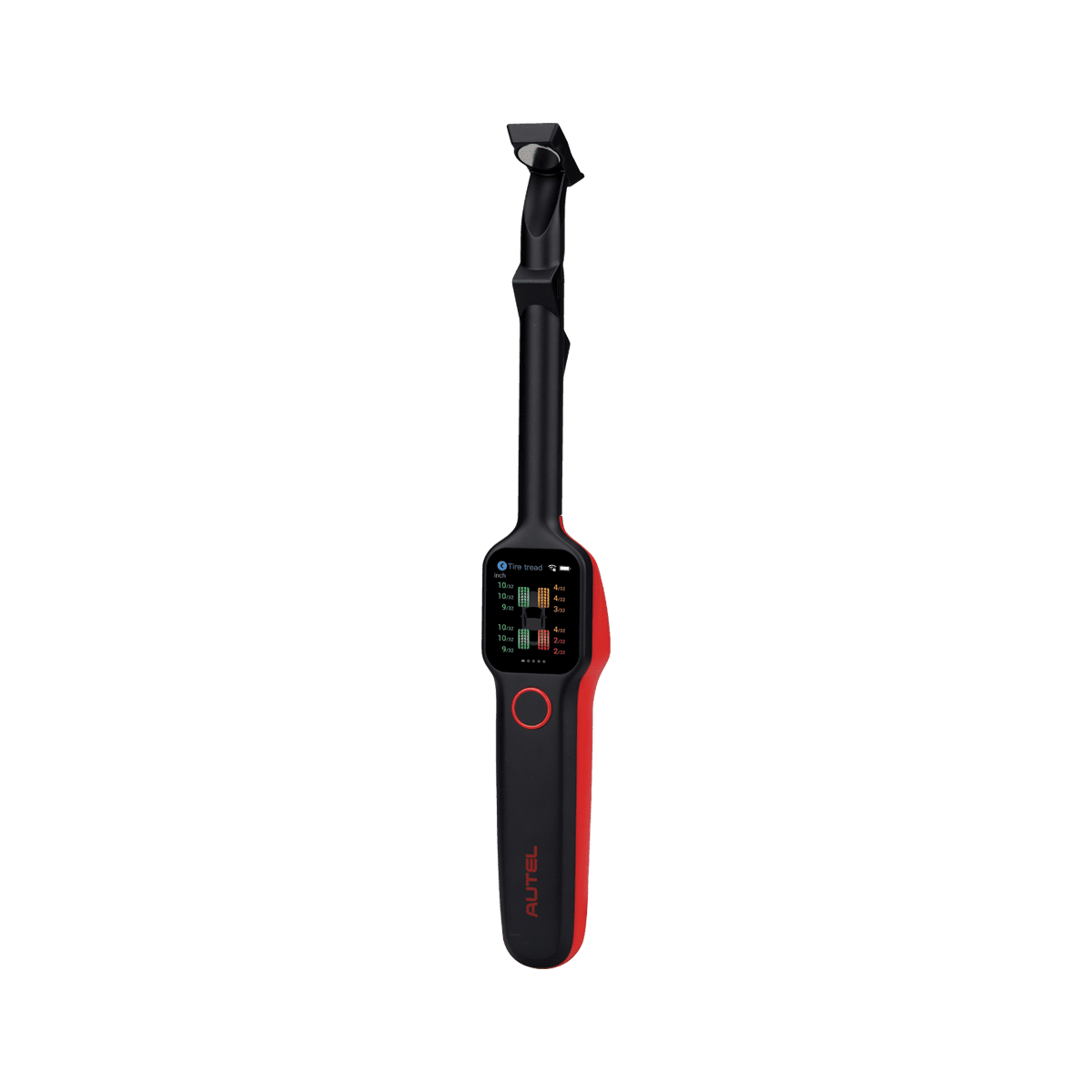

MaxiTPMS TBE200
Laser-Enabled Tire Tread Depth Examiner
The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. The full color graphical display illustrates wear and displays replacement and service recommendations including tire and brake disc replacement and tire rotation and 4-wheel alignment. The TBE200, which features a 1.65” AMOLED Super Retina touchscreen display, , enables users to document tire wear and damage and scan Tire Identification Number (TIN) via its 4-megapixel macro camera and 8-megapixel zoomable camera. Use tool separately, or with compatible Autel TPMS tablet to view and print detailed TPMS reports. Includes a one-year limited warranty.
- Tire Tread and Brake Disc Wear Examiner
- Laser-Enabled; No Need to Remove Tire
- 1.65” AMOLED Super Retina Touchscreen Display
- Full Color Graphical Display Illustrates Wear
- Compatible with Passenger, Commercial and Off-road Vehicles
- Displays Recommendations for Tire and Brake Disc Replacement, 4-wheel Alignment and Tire Rotation
- 4-megapixel, 4 cm Macro Camera and 8-megapixel Zoomable Camera to Document Tire Damage
- Tire health report QR code for easy sharing
- Work Alone or with New MaxiTPMS ITS600 Tablet
- Scan Tire Identification Number (TIN)
- 3000 mAh Lithium-Ion Battery
Laser Measurement
- Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
- Laser measurement with 0.1mm accuracy
- Full tread measurement
- Quick Check both tread depth & brake disc
Real-time Tire Health Analysis
- Real-time measurement data on touchscreen
- Measurement data curve display
- Uneven wear analysis
- Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
- Scan DOT, tire expiration notice, tire recall lookup
- Take photos of tire wear & damage
Comprehensive Test Report
Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics (Requires ITS600)
Easy To Use QR Code Report Download & Sharing
Generate QR codes for tire tread depth and brake disc measurements to allow for easy report sharing & download via mobile phones or tablets.
Specifications
| Recommended Use | Indoor |
| Processor | 4x ARM Cortex-A35 (1.5 GHz) |
| Memory | 1GB RAM LPDDR3 & 4GB ROM |
| Display | 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution |
| Connectivity |
|
| Camera | CMOS WXGA, 1 megapixel & 8 megapixel, 30fps |
| Audio Output | Output: Beep |
| Power and Battery |
|
| Tested Battery Life | Around 8 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 300 mA (AMOLED on with default brightness) @3.7 V |
| Operating Temperature | -10 to 45°C(14 to 113°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 283.0 mm (11.14") x 39.0 mm (1.54") x 33.5 mm (1.32") |
| Net Weight | 188 g (0.41 lb.) |
Videos
What's Included
Compare Similar
| MaxiTPMS TBE100 | MaxiTPMS TBE200 | |
|---|---|---|
 |
 |
|
| HARDWARE | ||
| Screen |
1.65″ AMOLED Super Retina Touchscreen
|
1.65″ AMOLED Super Retina Touchscreen
|
| Battery |
Lithium-ion 3000mAh
|
Lithium-ion 3000mAh
|
| Processor |
Vibration Reminder
|
Vibration Reminder
|
| Memory |
4GB Flash / 1GB RAM
|
4GB Flash / 1GB RAM
|
| Camera |
1 Megapixel Macro Camera
|
1 Megapixel, 4cm Macro Camera; 8 Megapixel 10cm zoomable Camera
|
| COMPARE FEATURES | ||
| Tire tread depth/ brake disc wear measurement |
Yes
|
Yes
|
| No need to remove the wheel during measurement |
Yes
|
Yes
|
| Laser measurement |
Yes
|
Yes
|
| Measurement accuracy |
0.1mm
|
0.1mm
|
| Real-time measurement data on touchscreen |
Yes
|
Yes
|
| Measurement data curve display |
Yes
|
Yes
|
| Full tread measurement |
Yes
|
Yes
|
| Uneven wear analysis |
Yes
|
Yes
|
| Replacement & Maintenance suggestions |
Tire replacement, brake disc replacement, tire rotation, four tire alignment
|
Tire replacement, brake disc replacement, tire rotation, four tire alignment
|
| Quick Check |
Yes
|
Yes
|
| Test detail for single tire tread / brake disc |
Yes
|
Yes
|
| Comprehensive Test Report with TPMS |
(With the ITS600)
|
(With the ITS600)
|
| Scan DOT |
—
|
Yes
|
| Tire expiration notice |
—
|
Yes
|
| Tire recall lookup |
—
|
Yes
|
| Take photos of tire wear and damage |
—
|
Yes
|
| Compatible with |
Passenger cars, off-roads, commercial vehicles
|
Passenger cars, off-roads, commercial vehicles
|
