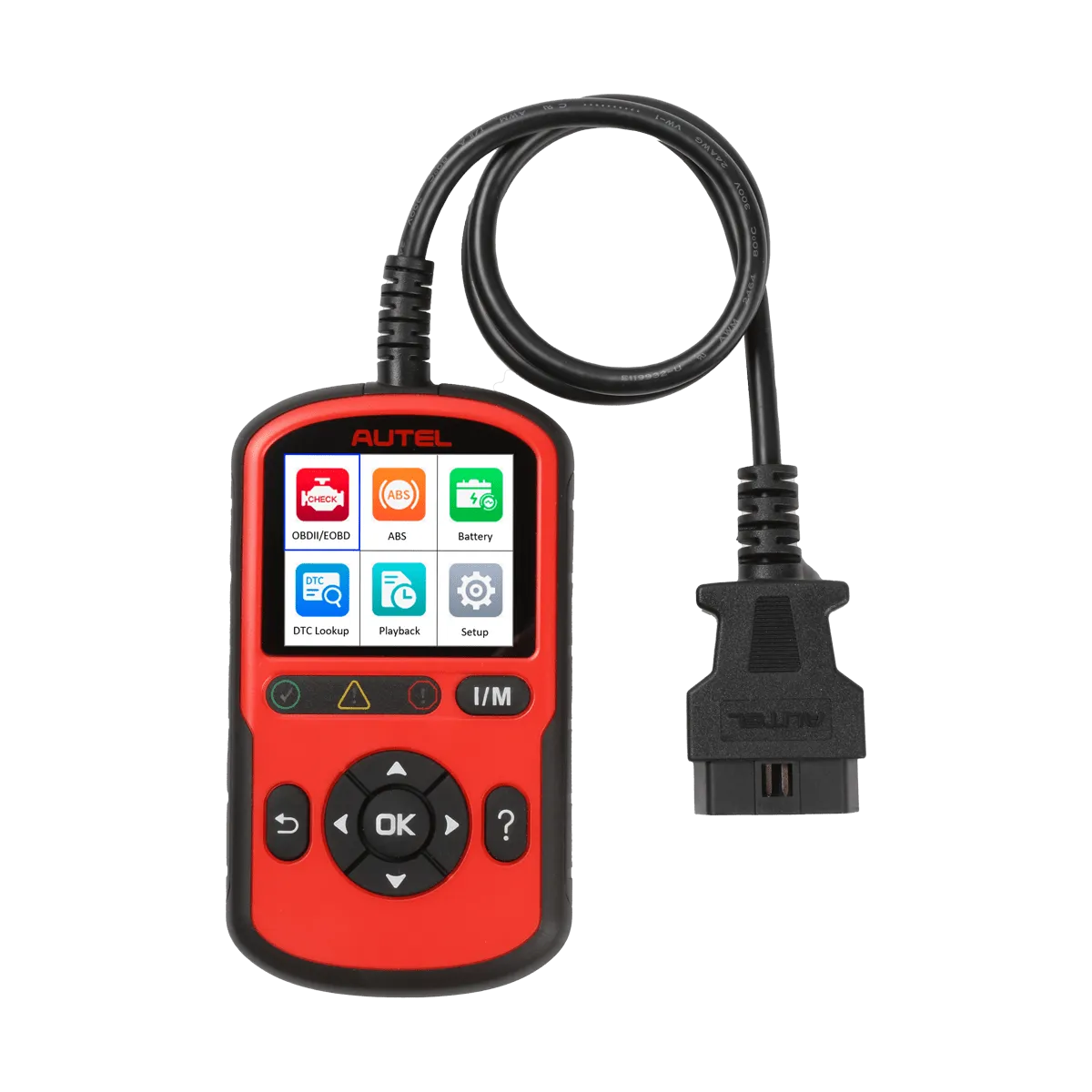

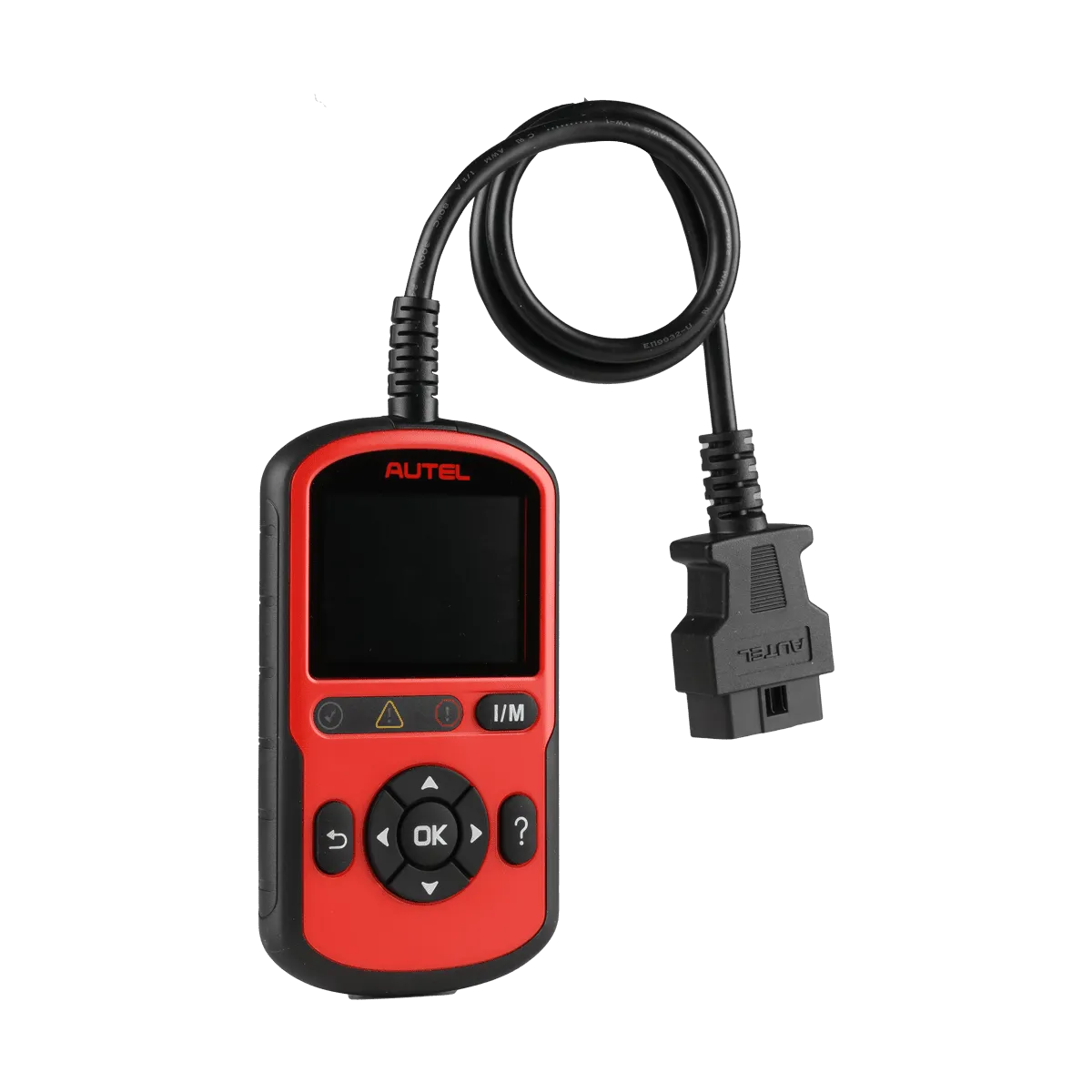

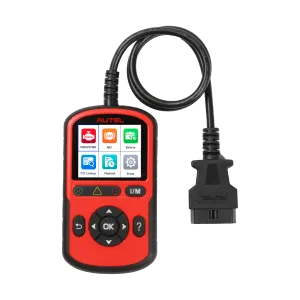

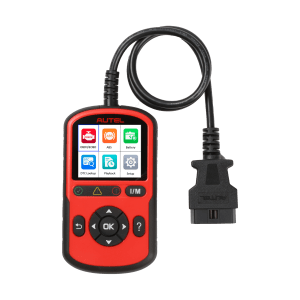

AutoLINK AL549
Engine and ABS Code Reader and Battery, Starting and Charging Tester with color display
Use the AutoLink AL549 to quickly scan U.S., Asian, and European vehicles, 1996 and newer for engine, and ABS codes. Read and erase codes, view Freeze Frame and Live Data. Color-coded Fault and IM Readiness status. Enhanced PCM and ABS coverage. Supports all 10 Modes of OBD II. Basic battery, starter, and charging system tester. Record and Playback data feature. Print via PC and included USB cable. One-Year Limited Warranty.
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads
- What's Included
- Sold Separately
- Compare Similar
- Universal OBD II and ABS Code Reader
- Read and Erase Codes, View Freeze Frame and Live Data
- Basic Battery, Starting, and Charging system testing via OBD II port
- Compatible with U.S., Asian, and European vehicles, 1996 and newer
- Supports all 10 Modes of OBD II
- IM Readiness/Monitor Monitoring
- Color-Coded Fault and Readiness Status
- Supports all 10 Modes of OBD II
- Includes USB cable for software update and printing (via PC and download free Maxi PC Suite)
- One-Year Limited Warranty
| Display | 2.8-inch LCD (320 x 240 dpi) |
| Connectivity |
|
| Operating Temp | 0 to 60 ℃ (32 to 140 ℉) |
| Storage Temp | -20 to 70 ℃ (-4 to 158 ℉) |
| Power | 8.0 to 18.0 V provided via the vehicle battery |
| Dimensions (LxWxH) | 150.6 mm (5.9”) x 85 mm (3.3”) x 19.9 mm (0.8”) |
| Weight |
|

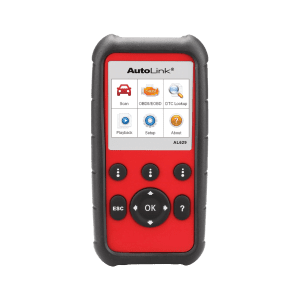

| AutoLINK AL329 | AutoLINK AL629 | AutoLINK AL549 | |
|---|---|---|---|
| AutoLINK AL329 Remove | AutoLINK AL629 Remove | AutoLINK AL549 Remove | |
 |  |  | |
| HARDWARE | |||
| Connection | OBDII Cable | OBDII Cable | OBDII Cable |
| Screen | 1.6-Inch Display
220 x 176 DPI / LED Color Screen | 2.8-Inch Display
320 x 240 DPI / LED Color Screen | 2.8-inch
320 x 240 dpi / LCD |
| Memory | — | 16GB Micro SD Card
Included | — |
| SOFTWARE | |||
| Operating System | Easy tool navigation | Easy tool navigation | Easy tool navigation |
| Software Updates | FREE for life of tool | FREE for life of tool | |
| Automatic Detection | Auto-Vin 2006+ | Auto-Vin 2006+
Manufacturer-specific codes | -
|
| Vehicle Coverage | US, Asian & European
1996 And Newer | US, Asian & European
1996 And Newer | US, Asian & European
1996 And Newer |
| OBDII Test Modes | Live & Freeze Frame Data | All 10 Test Modes
Live & freeze frame / enhanced mode 6 | All 10 Test Modes
Live & freeze frame |
| FEATURES | |||
| Language | Tri-Lingual | Tri-Lingual | Tri-Lingual |
| Print Data | USB Cord to PC | USB Cord to PC | USB Cord to PC |
| One Click I/M Readiness | Quick Key Indicator Lights | — | — |
| Internet Updates | USB Cord to PC | USB Cord to PC | USB Cord to PC |
| Electrical Tests | — | — | — |
| Voltage Test Probes | — | — | — |
| Emissions Component Test | I/M Readiness | I/M Readiness
O2 & on-board monitor | I/M Readiness
|
| MIL | Read MIL status | Read MIL status | Read MIL status |
| Data | — | Save & Playback | |
| Testing | — | Component Test | Component Test |
| Mode 6 | — | Enhanced | — |
| Read/Erase DTCS | Engine | Engine/ABS/SRS/TRANS | Engine/ABS |
| Manufacturer-Specific Codes | — | — | — |
