MaxiDiag MD600CV

Name: MaxiDiag MD600CV | Autel
SKU: MD600CV
Price: 979.00 USD
Availability: InStock

Heavy-duty Diagnostic Tablet

The Autel MaxiDiag MD600CV is the go-to heavy-duty diagnostics and service wireless touchscreen tablet for fleet technicians and owners/operators needing to perform quick systems triage and maintenance and service tasks. This Android-based handheld performs advanced diagnostics on Class 3 to 9 vehicles, supports Expert Mode for systems including Engine, Exhaust, Gearbox, ABS, EBS, SUS, and BCM, and offers a robust service menu of tasks specific to heavy-duty vehicles, including industry-leading DPF Regen coverage. Tool Includes wireless MAXIVCI V200 that supports J1708, J1939, J1587, J1850, CDL, PLC, and VPW protocols. The MD600CV includes one year of free software and a one-year Limited Warranty.

For pricing, contact your authorized Autel tool dealer.

SKU: MD600CV Categories: Heavy Duty & Fleet, HD Advanced Diagnostics

Where To Buy

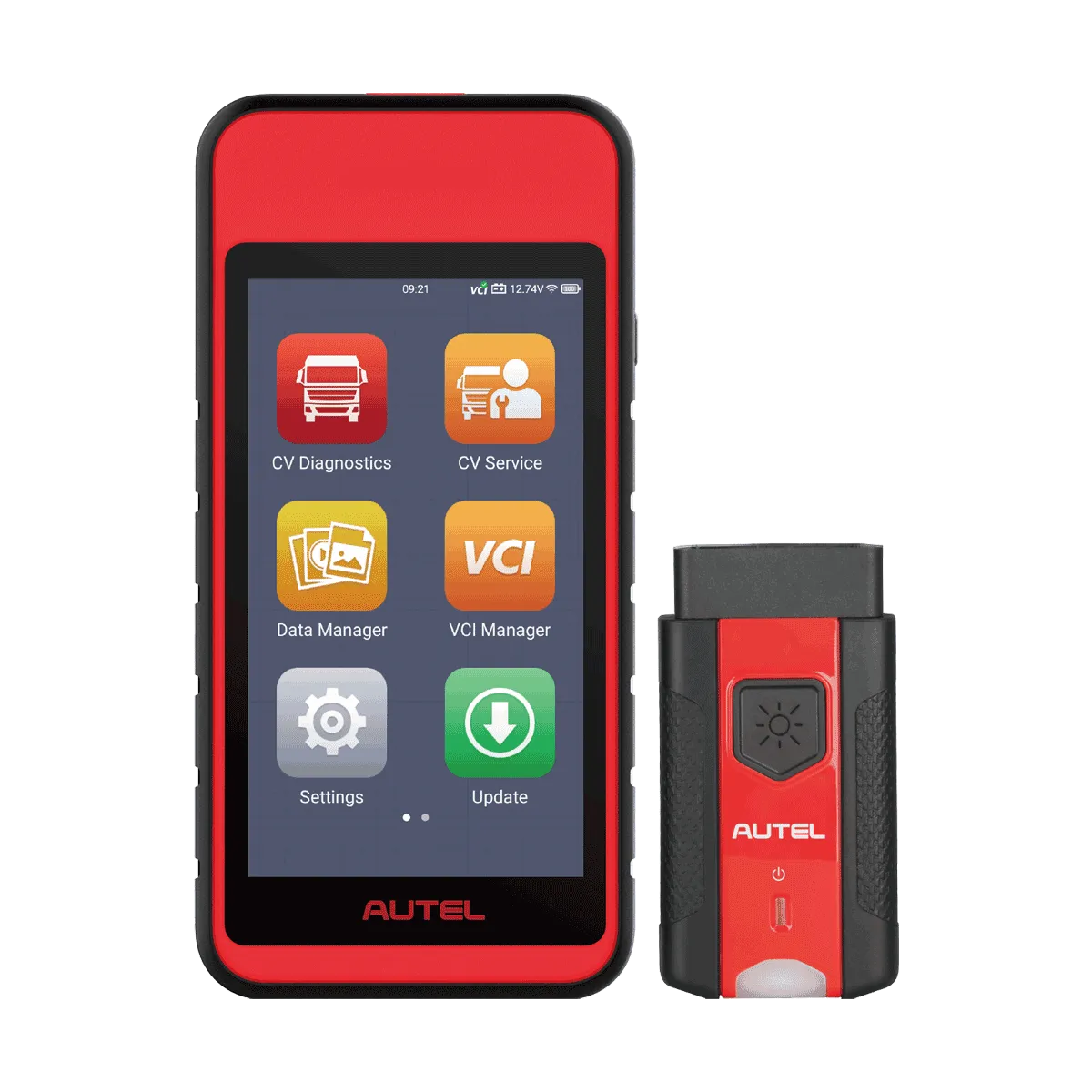

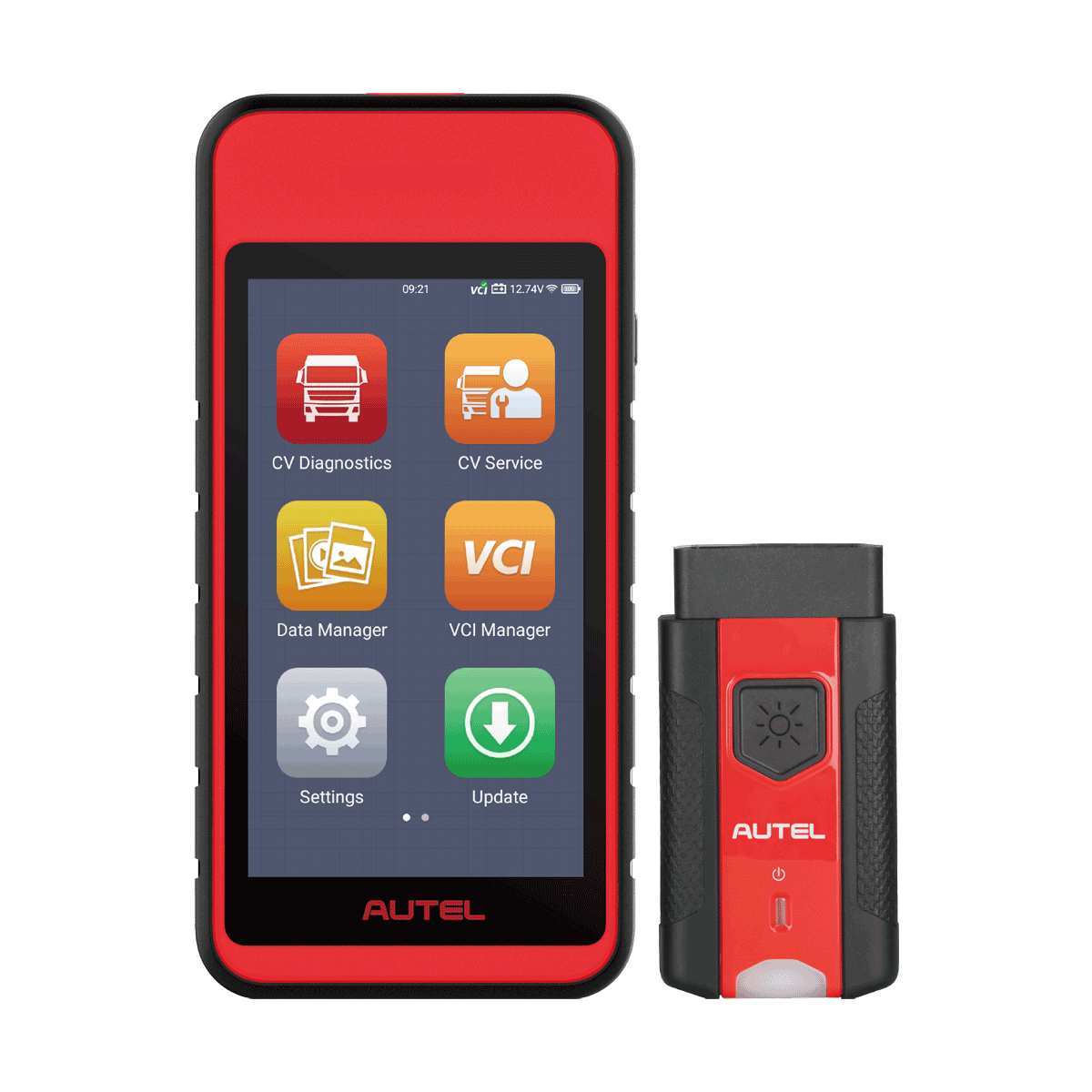

Wireless Android tablet for Light, Medium and Heavy-duty vehicle diagnostics and service, compatible with Class 3 to Class 9 vehicles.
Read/Erase Codes, View Live Data, Perform Bi-Directional Active Tests
Performs common service and maintenance tasks, including DPF Regen, Oil Light Reset, Injector Coding/Reset, and Brake Bleed
Includes Wireless VCI and supports J1708, J1939, J1587, J1850, CDL, PLC, and VPW protocols
Includes Deutsch 6 and 9 Pin connectors
Supports AutoScan and Expert Mode for direct access to OE-specific components including, engine, transmission and braking systems
Easy report generation and printing
Ideal triage tool for Owners/Operators
Perfect solution for Fleet service and repair with extensive commercial vehicle coverage and functionality
Trailer ABS diagnostics (Trailer PLC connector required, sold separately)
Includes One Year Free Software and One Year Limited Warranty

Operating System	Android 9.0
Processor	Quad-core processor (1.5 GHz)
Memory	2 GB RAM & 64 GB ROM
Display	5.5-inch LCD capacitive touchscreen with 1280 x 720 resolution
Rear Camera	8 MP
Connectivity	Wi-Fi (802.11 a/b/g/n/ac) USB Type-C Bluetooth
Sensor	Ambient Light Sensor (ALS)
Audio Input/Output	Input: Microphone Output: Speaker
Power and Battery	3.8 V/5000 mAh lithium-polymer battery Charges via 5 V DC power supply
Charging Input	5 V/2 A adapter
Power Consumption	700 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-10°C to 60°C (14°F to 140°F)
Dimensions (W x H x D)	89 mm x 183 mm x 22 mm (3.5" x 7.2" x 0.87")
Net Weight	368 g (0.8 lb.)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, ISO 13400, CAN FD
