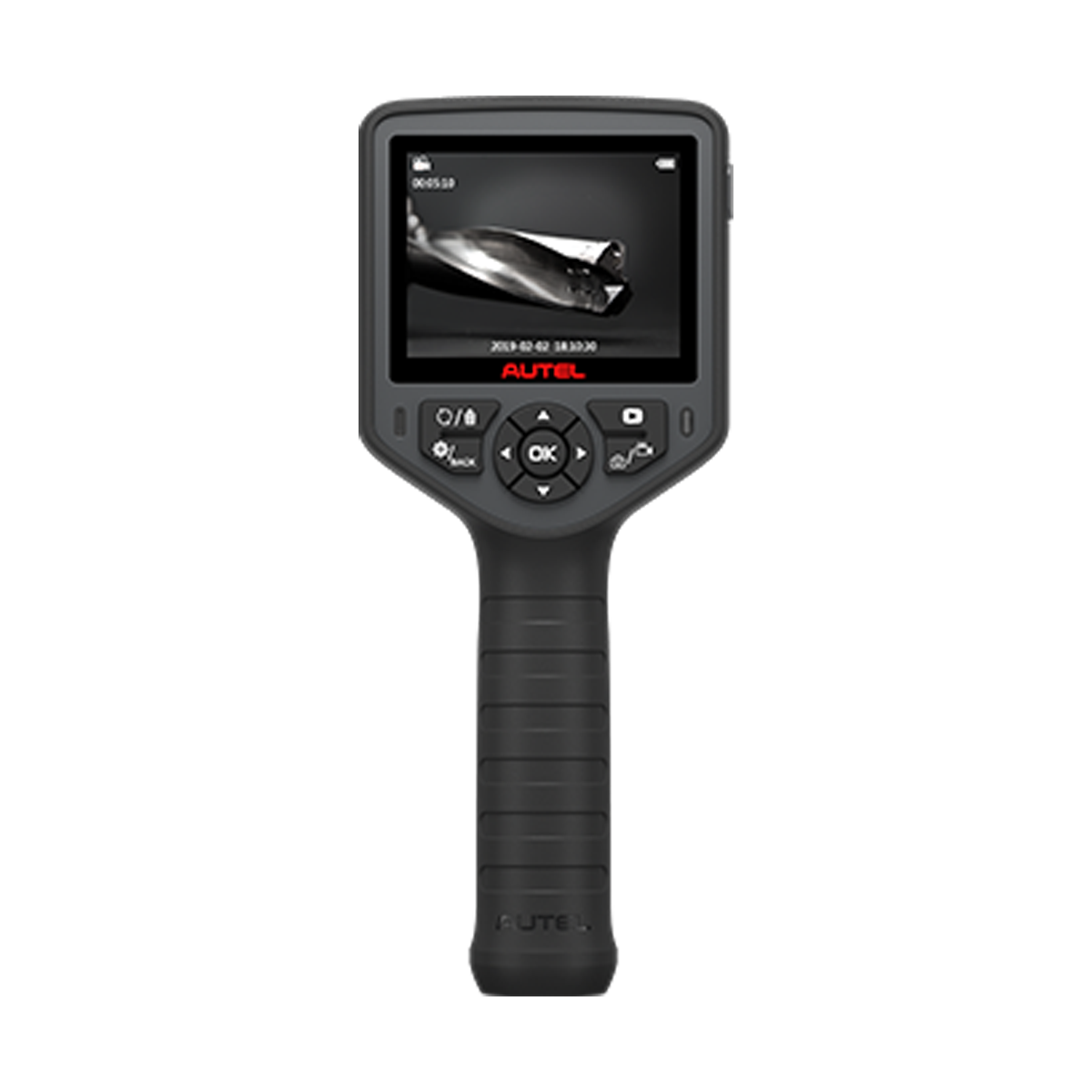

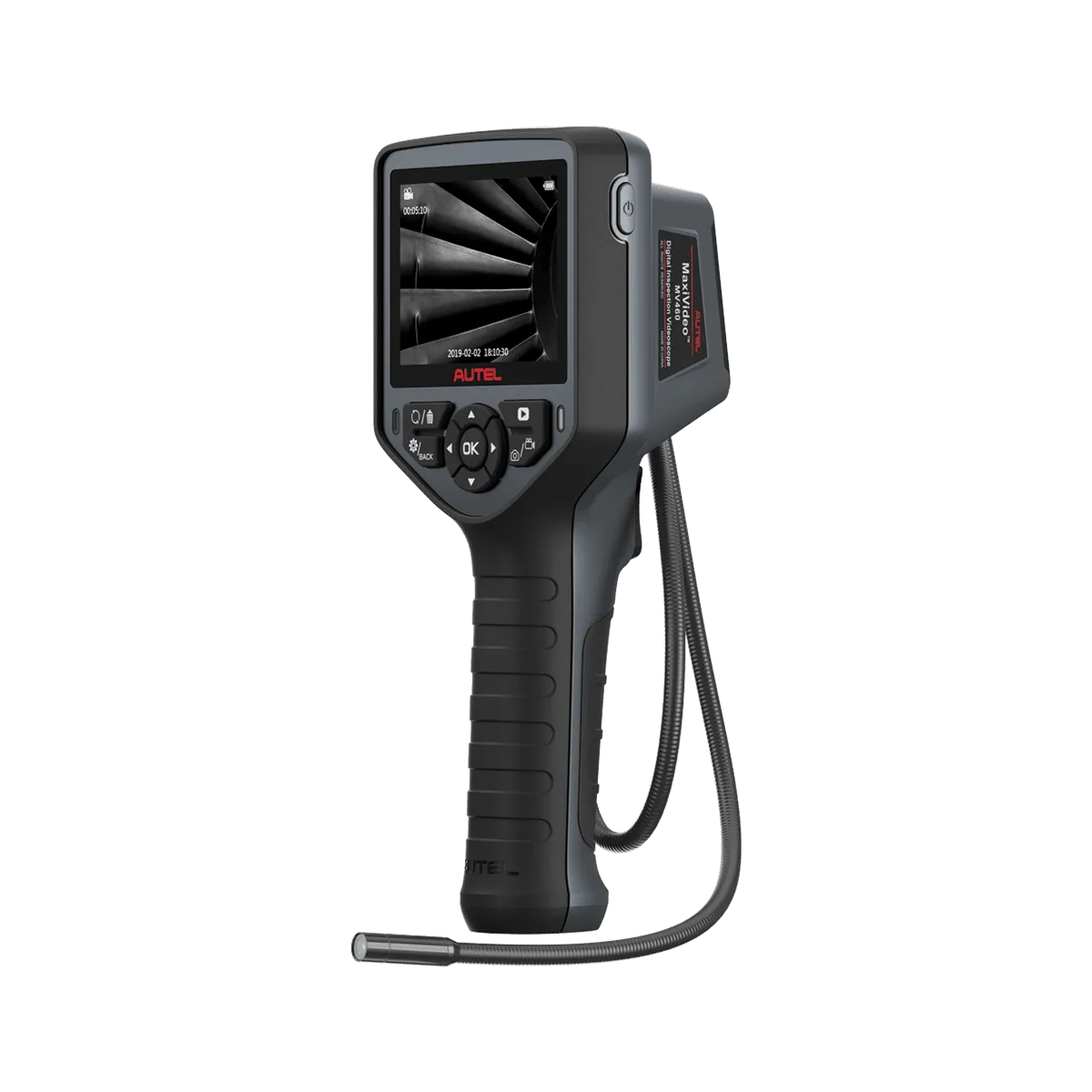

MaxiVIDEO MV460
Digital Inspection Videoscope
The MaxiVideo MV460 digital videoscope is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible 39.4-inch cable, 10-level adjustable LED light, and 70-degree field of view. The MV460 2-megapixel camera captures high resolution (1920 x 1080) stills and videos with 1-button quick image capture and video recording. The handheld unit features a 3.5-inch 640×480 full color LCD display, and 8.5mm camera probe, and a built-in 2600 mAh battery with up to 4 hours of continuous use.
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads
- What's Included
- Sold Separately
- Compare Similar
- Record/Playback High Resolution Images and Videos (1920 x 1080)
- 3.5” Color LCD Display (640 x 480)
- 1-Button Quick Image Capture and Video Recording
- 70-Degree Field of View for Expanding Viewing Angle
- Micro HDMI-output Enables Streaming to Larger Monitors
- Freeze-Frame Camera Stills or Video Recording
- On-Screen Horizontal/Vertical Reverse
- 7x Digital Zoom for More Detailed Inspection
- Includes 8GB Micro-SD card, Supports Up to 128GB
- Includes Mini-USB Cable for Uploading Images and Videos
- More than 10,000 Lux, Adjustable 10-Level LED Illumination
- Built-In Rechargeable 2,600 mAh Battery for 4 Hours of Continuous Use
- 39.4-Inch Semi-Rigid, Flexible, Watertight Cable
- Includes Magnet, Hook, and Mirror Cable Accessories

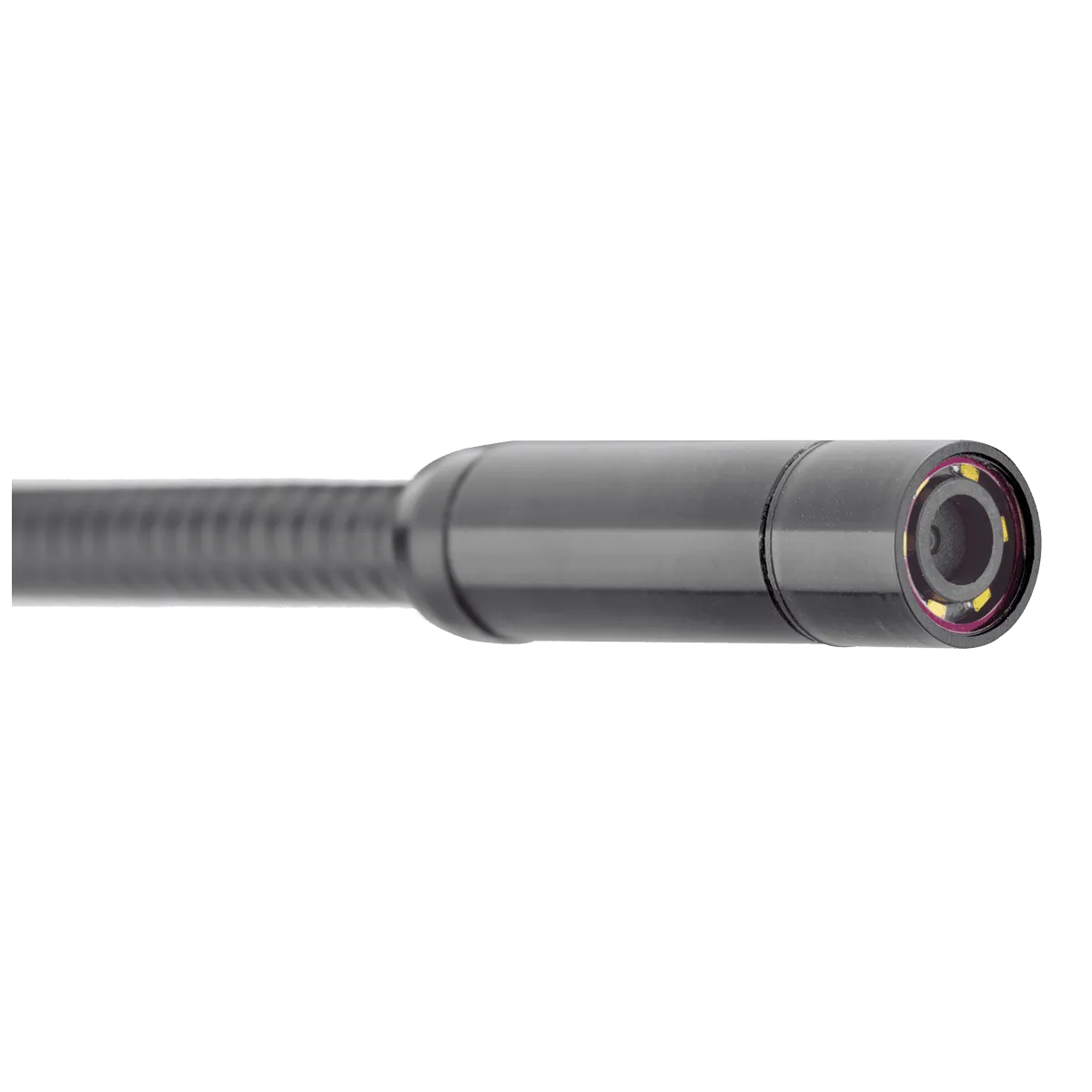

- 8.5mm Probe Fits Most Spark Plug Holes
- Compatible with 5.5mm Camera Head (Sold Separately)
- Includes 1-Year Warranty on Materials and Workmanship
| Recommended Use | Indoor |
| Optimal Viewing Distance | 0.79" to 2" (2 cm to 5 cm) |
| Image Capture |
|
| Screen Type Display | 3.5" TFT LCD |
| Display Resolution | 640 x 480 pixels |
| Power Supply | Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh) |
| Tested Battery Life | Approximately 4 hours of continuous use |
| Dimensions | 235 x 97 x 125mm (9.3" x 3.8" x 4.9" ) |
| Weight | 0.393kg (0.87lbs) |
| Recording Medium | Micro SD card (8GB Standard/128GB Max) |
| Image Controls | Zoom, low light vision |
| Lighting | Fully adjustable LED |
| Cable Reach | 1m (39.4") |
| Imager Heads | 8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels) |
| Waterproof | To a depth of 1m (39.4") (Imager heads and cable only) |
| Additional Ports |
|
| Operating Temperature |
|
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Operating Humidity | 5% - 95% non-condensing |
 |
MaxiVideo MV460 User Manual | Download |
| MaxiVIDEO MV400 | MaxiVideo MV460 | MaxiVideo MV480 | |
|---|---|---|---|
 |  |  | |
| High Resolution & Full-color Digital LCD Display | 3.5" (320×240)
| 3.5" (640 x 480) | 4.1" (1200×720) |
| Record & Play-back High Resolution Still Images & Videos | 640×480 | 1920 x 1080 | 1920 x 1080 |
| Wireless Monitor Enables Remote Viewing | — | — | — |
| Touchscreen for Convenient Operation | — | — | — |
| Single Button for Quick Photo & Video Recording | — | ✓ | ✓ |
| Add Audio Annotation for Detail Presentation | — | — | ✓ |
| On-screen Photo Editing & Markup | — | — | — |
| Dual Cameras See Straight Ahead or At a 90° Angle | — | — | ✓ |
| Digital Zoom for Detailed Viewing | 5x | 7x | 7x |
| View Objects as Close as 1" | ✓ | ✓ | ✓ |
| BOn-screen Horizontal/Vertical Reverse | ✓ | ✓ | ✓ |
| On-screen 90° Clockwise Rotation | — | ✓ | ✓ |
| Built-in & Adjustable LED Illuminates Viewing Area | ✓ | ✓ | ✓ |
| HDMI Port for Monitor View | — | ✓ | ✓ |
| Mini USB Connector for Uploading Images & Videos | ✓ | ✓ | ✓ |
| 1m Long Semi-rigid Flexible Watertight Shaft | ✓ | ✓ | ✓ |
| Narrow Probe Diameter Available in Both 5.5mm & 8.5mm | ✓ | 8.5mm (5.5mm Optional) | 8.5mm (5.5mm Optional) |
| Micro SD Card Slot for Greater Memory Capacity | ✓ | ✓ | ✓ |
| Oil & Scratch Resistant Tempered Glass Lens | ✓ | ✓ | ✓ |
| Ergonomic & Durable Tool Housing | ✓ | ✓ | ✓ |
| Built-in Rechargeable Li-ion Battery | ✓ | ✓ | ✓ |
| Multilingual Support | ✓ | ✓ | ✓ |
| Water Resistant Camera Head | ✓ | ✓ | ✓ |
