Advanced EV Diagnostics

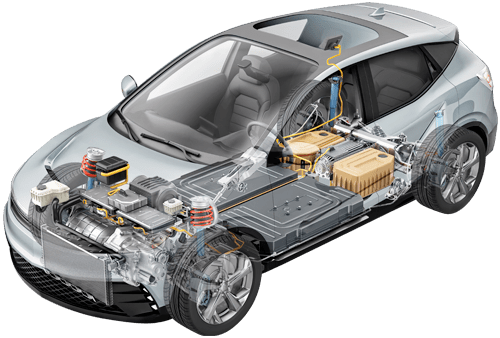

Complete EV Tooling Solutions
For hybrid, plug-in hybrid, and full electric vehicles

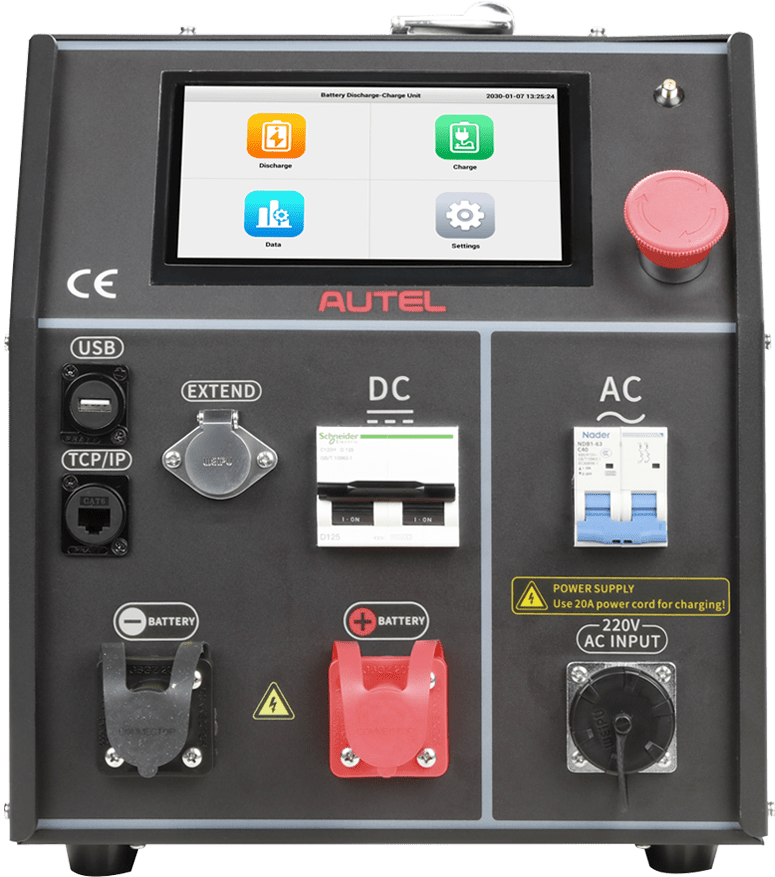

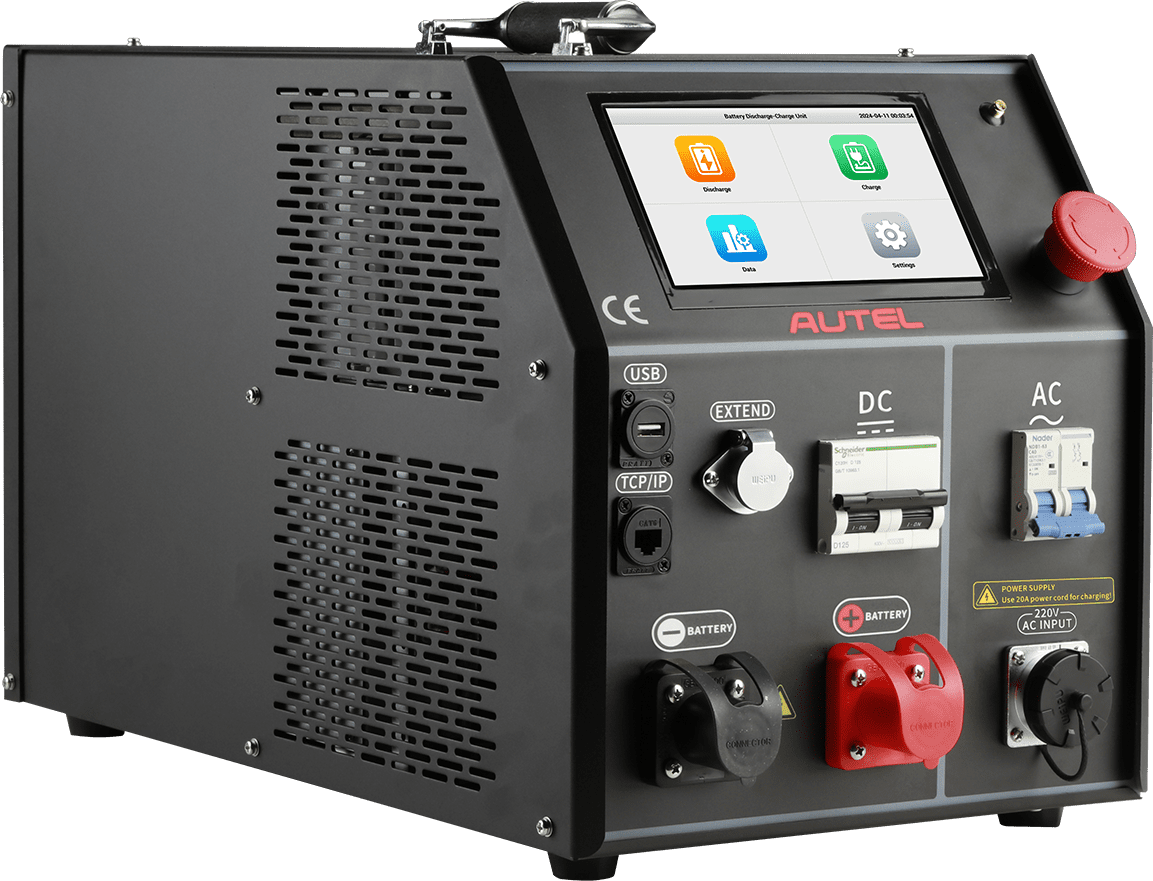

CDT 100
EV Battery Discharger
and Charger Unit
The MaxiEV CDT100 is a high voltage battery charger and discharger. Improve battery pack capacity with constant current charge, and discharge modes. The CDT100 displays single-cell maximum/minimum voltage and other data onscreen in graphs, columns, and report forms with optional connecters (included in kit). Zoom-in and zoom-out display capability.
- Wide voltage design, suitable for discharge, charge, and activation testing of modules with different voltage levels
- Set Constant Current and Power, Charge and Discharge modes for varied applications
- Improves charging efficiency by ensuring full charge
- Issues warnings for reverse connection, overtemperature, overcurrent, fan failure and overcharge
- Display single-cell min/max voltage and other data on screen with zoom-in/out display capability
- Optimize battery pack capacity with current discharge/charge modes
CDT100 Specifications
| Charge-Discharge Voltage Range | DC 2-285V |
| Accuracy | ±0.5 FS |
| Cell Voltage Range | 0-5V |
| Cell Voltage Accuracy | 0.001V |
| Discharge Current Range | 150A/7.2kW Max. |
| Discharge Current Accuracy | ±1 FS |
| Charge Current Range | 100A/4.4kW Max. |
| Charge Current Accuracy | ±1 FS |
| Power Supply AC | 110/220V |
| Working Mode | Discharge, charge, activation |
| Device Safety | Multi-protection of DC input overvoltage, reverse connection, discharge overcurrent, system overtemperature |
| Dimensions (Weight) | 530x300x350mm (23.4kg) |
Battery & Vehicle
Transport
Safely discharge batteries to DOT transport guidelines (Air: 20%, Land/Sea: 40%).
Mechanical & Collision
Repair Shops
Direct charging and discharging before, during, and after vehicle repair. Discharge the battery before placing the vehicle in the baking booth.
Salvage Yards &
Vehicle Warehouses
Prevent thermal runaway events (fires) by discharging batteries.

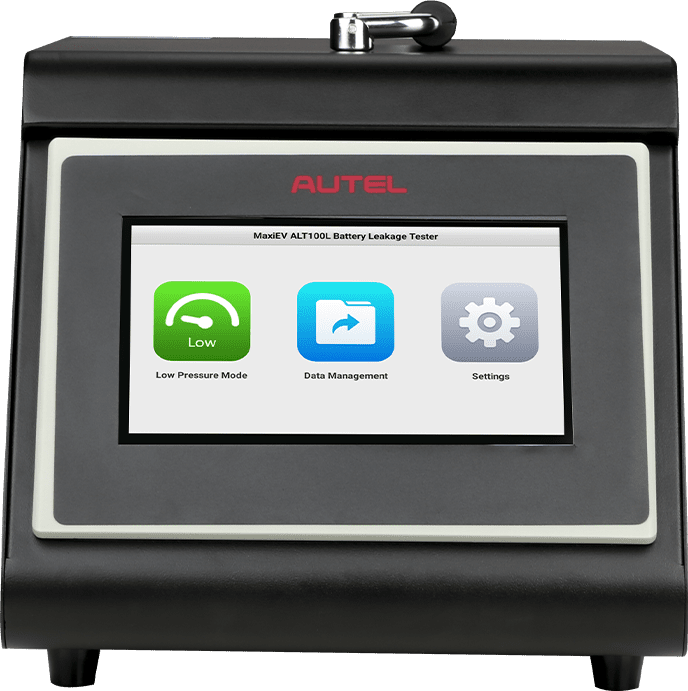

ALT100L
EV Battery enclosure
integrity tester
The MaxiEV ALT100L tests high voltage battery enclosures and high voltage thermodynamics systems for leaks. Offers real-time, dual pressure display of current pressure and leakage fluctuation with high-sensitive pressure sensing that significantly improves test accuracy and stability. The ALT100L offers customizable presets: Pack ID and volume, target pressure, testing phase time, alarm settings, and save and print reports. Offers onscreen test monitoring, and automatically saves test parameters for easy retest adjustments.
- High-sensitive pressure sensing significantly improves test accuracy & stability
- Dual Pressure Display: Real-time display of current pressure & leakage fluctuations
- Saves test parameters for easy retest adjustments
- Saves test result screenshots to USB for report generation
- Tests high voltage battery enclosures & thermodynamic systems such as coolant and A/C for leaks
- Customizable Presets: Pack ID and volume, target pressure, testing phase time, & alarm settings
- On-screen monitoring of tests progress
- Audible & visual abnormal or failed test results
ATL100L Specifications
| Test Power | 20W Max |
| Test Pressure Range | 0-30KPa |
| Sensor Resolution | 1 Pa |
| Test Accuracy | ±5pa |
| Communication Port | RS-232 / USB |
| Data Storage | Internal memory/ download via USB disk |
| Power Supply | AC 110V |
| Air Supply | 0.1‒1.0 MPa dry compressed air |
| Air Inlet Port/Test Port | φ6mm air pipe/φ6mm air pipe |
| Work Temperature/Humidity | 10%‒90% @25°C, without condensation |
| Dimensions (Weight) | 280*300*200 mm 3.5kg |
Expand Your Capabilities

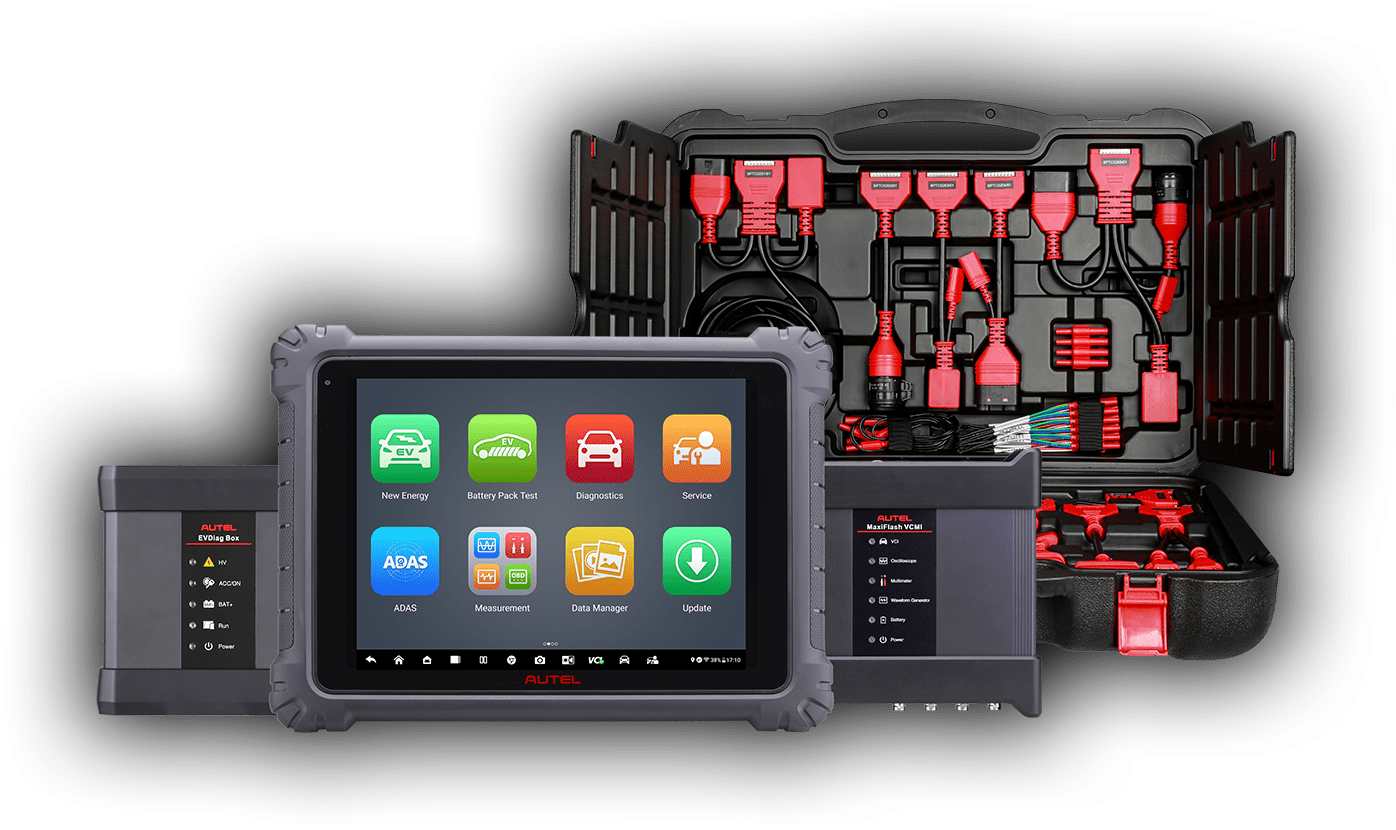

Unlock your full revenue potential with Autel MaxiSys Ultra EV. Already own an Autel tablet? Expand your capabilities with the EV Diagnostics Upgrade Kit.

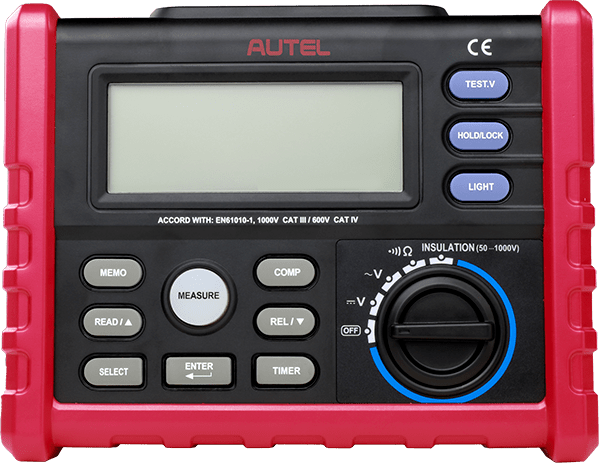

ITS100
EV Insulation
Resistance Tester
The MaxiEV ITS100 is a EV Insulation resistance tester. With the ITS100, technicians can apply a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the tested component or system and measure the resulting current flow to identify issues like damage, deterioration, or contamination of the insulation. Provides easily interpretable visualized data for informed decision-making during vehicle maintenance.
- Maximum test voltage of 1000V (DC) and 750V (AC)
- IEC/EN 61010-1 1000V CAT Ⅲ, and 600 V CAT Ⅳ compliant
- Accurate resistance measurement before loading into the vehicle
- Provides easily interpretable visualized data for informed decision-making during vehicle maintenance
- Relative, timely, and continuity measurements
- Automatic power-off function to conserve battery power
- Discharge capacitors & test/diagnose isolation faults or shorts
- Tests high voltage wiring and components such as stator windings for shorts
ITS100 Specifications
| Insulation Resistance Range | 0.01MΩ ~ 10.00GΩ |
| Insulation Test Output Voltage | 50V, 100V, 250V, 500V, 1000V |
| Resistance Test | 0.01Ω~200Ω |
| DC Voltage Test | 0.1~ 1000V |
| AC Voltage Test | 0.1V~750V |
| Dimensions (Weight) | 180*140*65mm (0.9kg) |

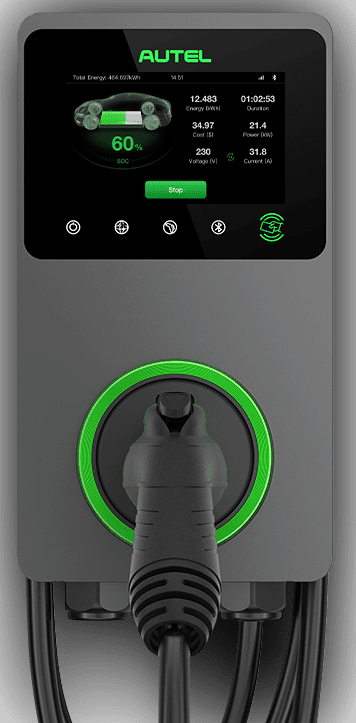

AC Elite Business
EV Charger With in-Body Holster
- Compatible with all EV & Plug-in Hybrid Vehicles
- Adjustable Charging up to 50 Amps
- Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485
