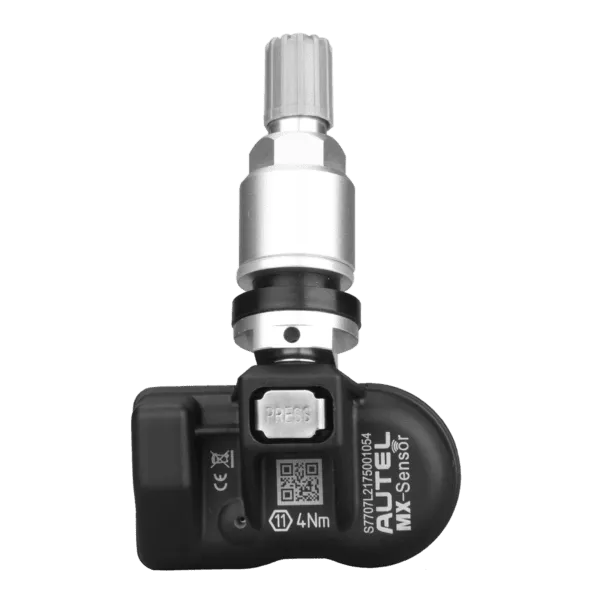

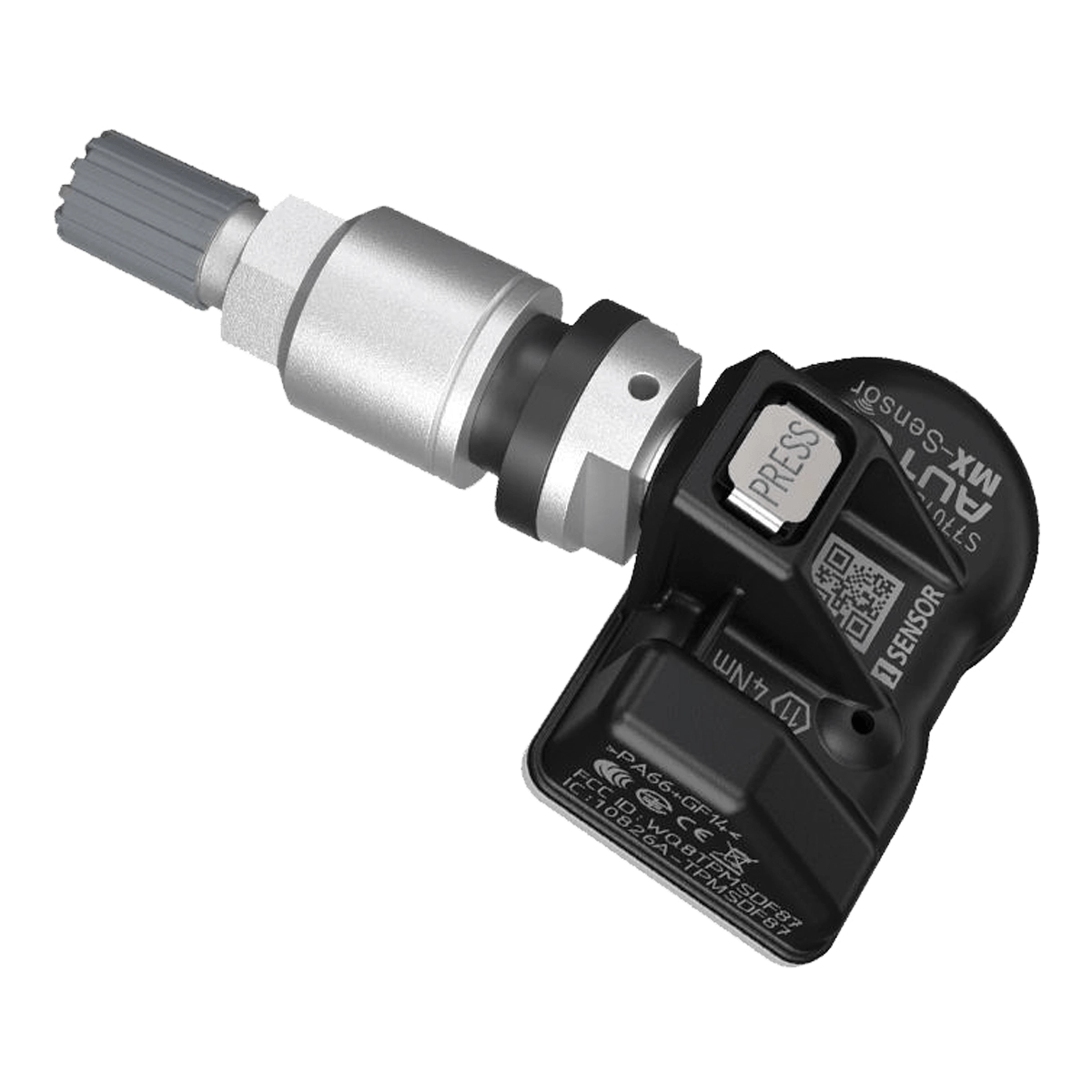

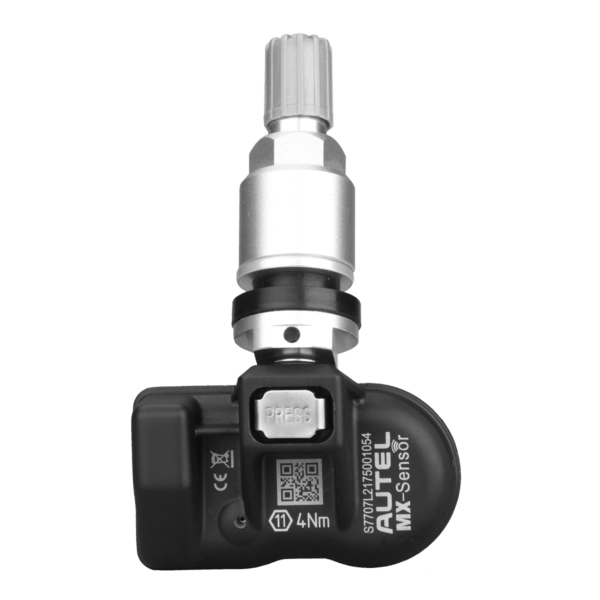

MX-Sensor 1-Sensor (Aluminum)

Press-in Aluminum Valve Stem

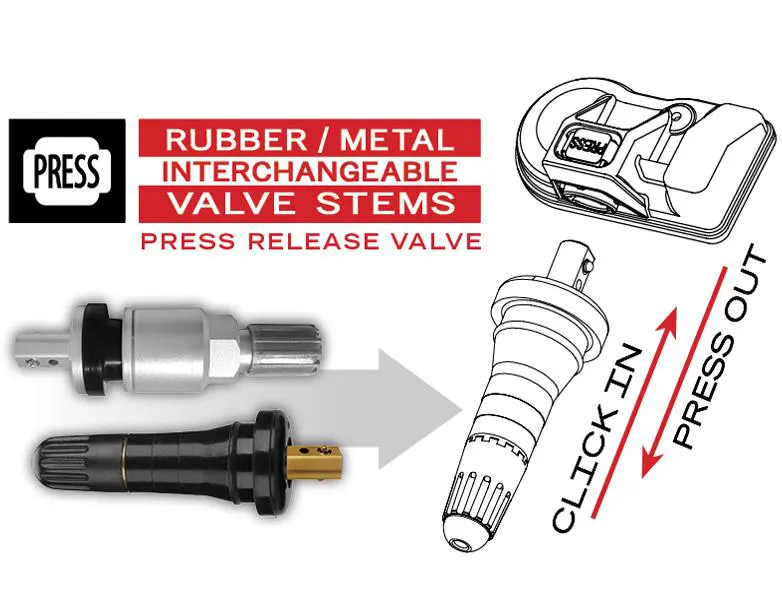

The 1-Sensor is a programmable universal TPMS sensor. It features a combined frequency of 315MHz and 433MHz with aluminum valve stems. The press release button allows for rubber or metal valve stems to be replaced interchangeably. The 1-Sensor is reprogrammable, 99% compatible with OE sensors, and meets SAE standards J1205 and J1206. Replacement valve stems are available for purchase in rubber or metal.

SKU: 1-SensorM Categories: ,

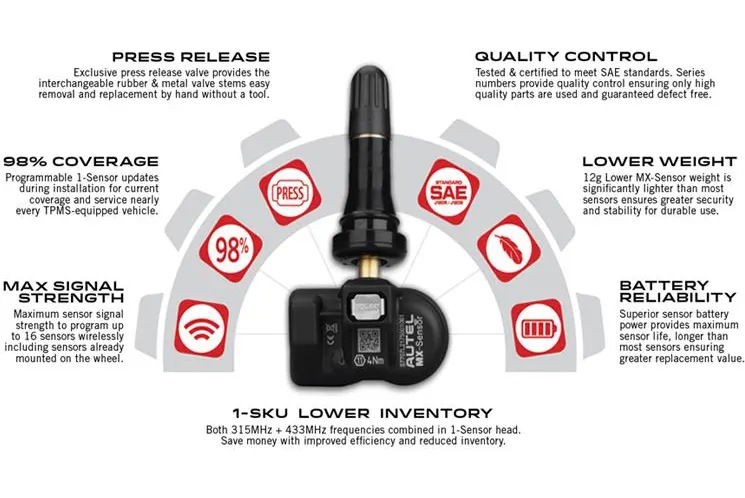

  • Combined Frequency: 315MHz & 433MHz
  • Programmable with Autel TPMS Service Tools

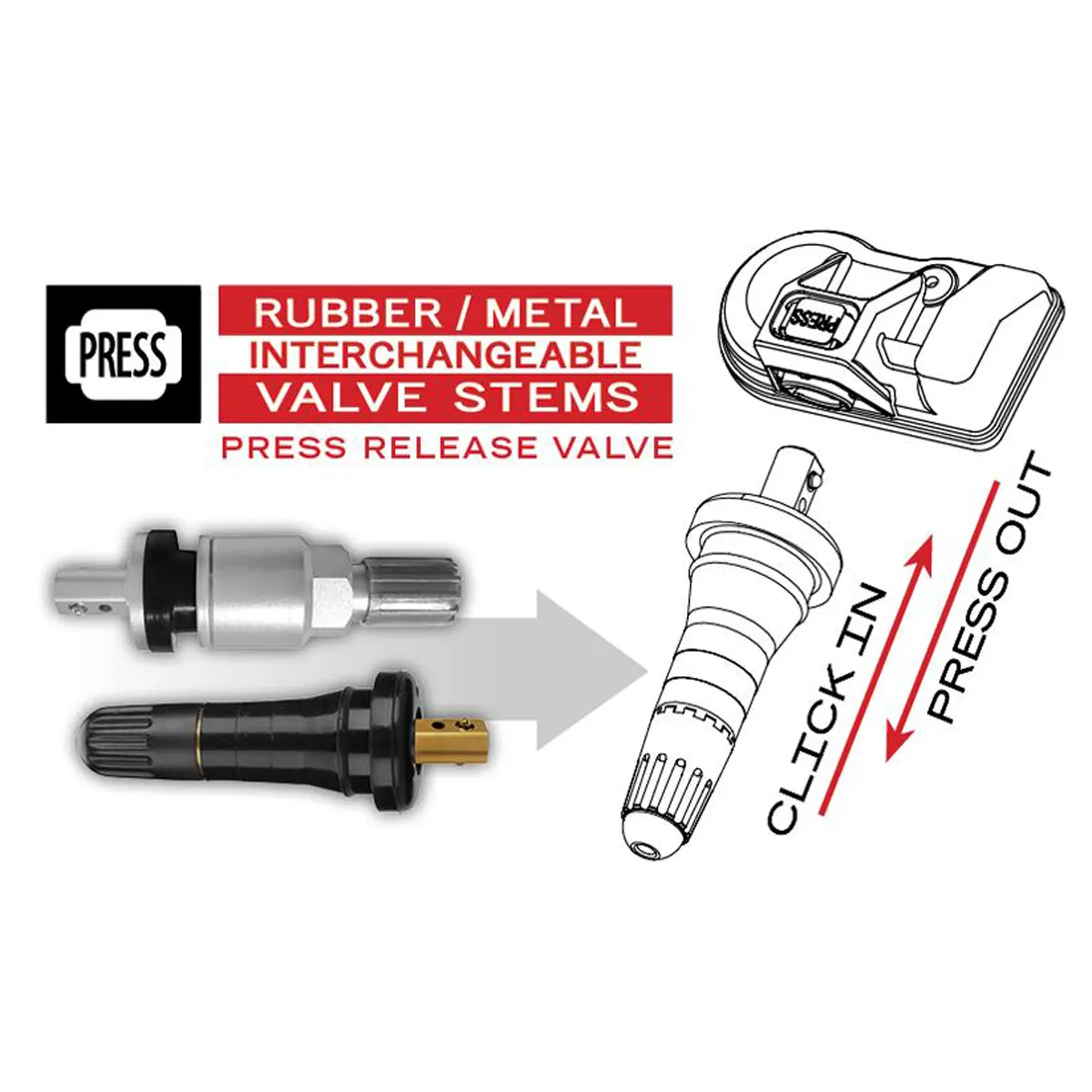

  • Exclusive Press Release Button to Easily Replace Valve Stems
  • Program to Replace 99% of OE Sensors
  • Compatible with Autel Interchangeable Rubber, Aluminum or Color Metal Valve Stems
  • Meets SAE Standards J1205 & J1206
  • Maximum Signal Strength / Battery Reliability

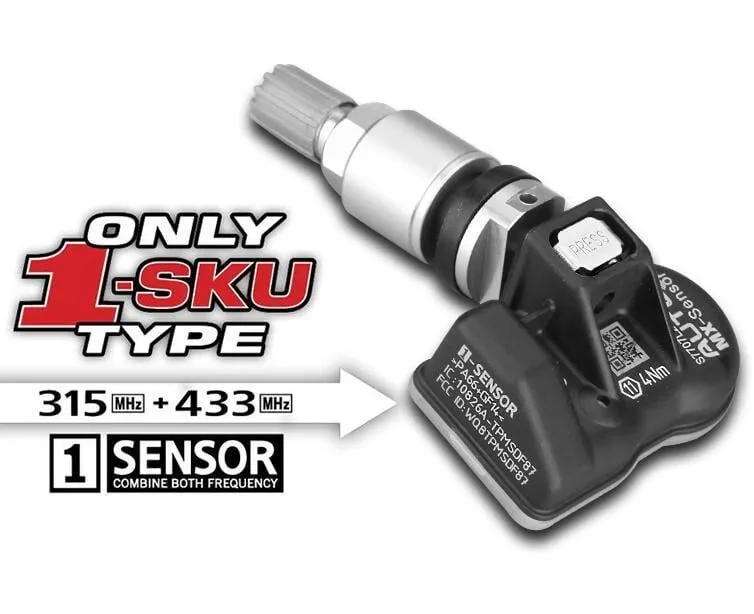

1-SKU Type

98% VEHICLE COVERAGE LIMITED 1-SKU INVENTORY

An easy to use and cost effective necessity for any shop performing TPMS repairs, the Autel 1-SKU sensor inventory solution with 98% vehicle coverage eliminates the need for distributors to carry the hundreds of sensors to fulfill shop orders. On the shop level, needing only 1-Sensor to service nearly every TPMS equipped vehicle means lower repair cost and higher install efficiency.


MAXIMUM SIGNAL STRENGTH WIRELESS PROGRAMMING

The extraordinary sensor signal strength allows AUTEL 1-Sensor to be easily programmed wirelessly even when the sensors have already been mounted to the wheel. And with strong signal strength, now up to 16 sensors can be programmed in one session with AUTEL latest TPMS tools. AUTEL MX-Sensor is 100% clone-able. No relearn is required when the MX-Sensor is cloned with the original sensor ID and put in the same position.

1-SKU Type


1-SKU Type

SUPERIOR BATTERY RELIABILITY LOWER SENSOR WEIGHT

With the highest quality materials and advanced TPMS technology, AUTEL 1-Sensor provides superior battery life and reliability, to match OE sensor battery performance. The 1-Sensor body weighs only 12g, making it significantly lighter than most sensors in the market, which ensures better sensor stability and performance.


SAE TESTED & CERTIFIED STRICT QUALITY CONTROL

AUTEL high-quality MX-Sensor is tested and certified to meet SAE industry standard J1205 / J1206 testing. AUTEL guarantees MX-Sensor are free from manufacturing defects for a period of 24 months or 24,000 miles, whichever option comes first. Each Autel MX-Sensor has a series number for assuring quality control. The series number is imprinted on the sensor or can be read with Autel TPMS tools. With the series number, Autel can track the sensor quality from our factory manufacturing to ensure only the highest quality parts are installed.

1-SKU Type


Vehicle Coverage

Features

Greatly reduce sensor inventory investment with the 1-SKU Autel MX-Sensor 1-Sensor solution providing 98% vehicle coverage.


Complete TPMS Solution

Autel is the only manufacturer to produce both TPMS sensors and easy-to-use TPMS tools to offer a truly complete TPMS solution.

  • Most Current Vehicle Coverage
  • More Compatible Tools & Sensors
  • Easiest To Use Tool Navigation
  • Quicker TPMS Repairs & Service
TPMS Solution

Specifications

Battery Life 4-6 years
Operating Temperature -40°C to +125°C
Storage Temperature -40°C to +35°C
Operating Humidity ≤90%
Operating Frequency 315 MHz / 433 MHz
Pressure Monitoring Range 0 to 800 kPa
Pressure Reading Accuracy ±10 kPa
Temperature Reading Range -40°C to +125°C
Temperature Reading Accuracy ±5°C
G Sensor Reading Accuracy ±15%
Transmission Power 5-8 dBm
Battery 3.0 V
Dimensions (W x H x D) 42.4 mm x 24.1 mm x 16 mm
Weight (Without Valve) 11g

Videos

Downloads

PDF 1-Sensor Aluminum (Press-in) Quick Start Guide Download
PDF 1-Sensor Aluminum (Press-in) Introduction Download
PDF 1-Sensor Aluminum (Press-in) Flyer Download
PDF MaxiTPMS TS508 Function List Download

What's Included

MX-Sensor 1-Sensor Accessories
