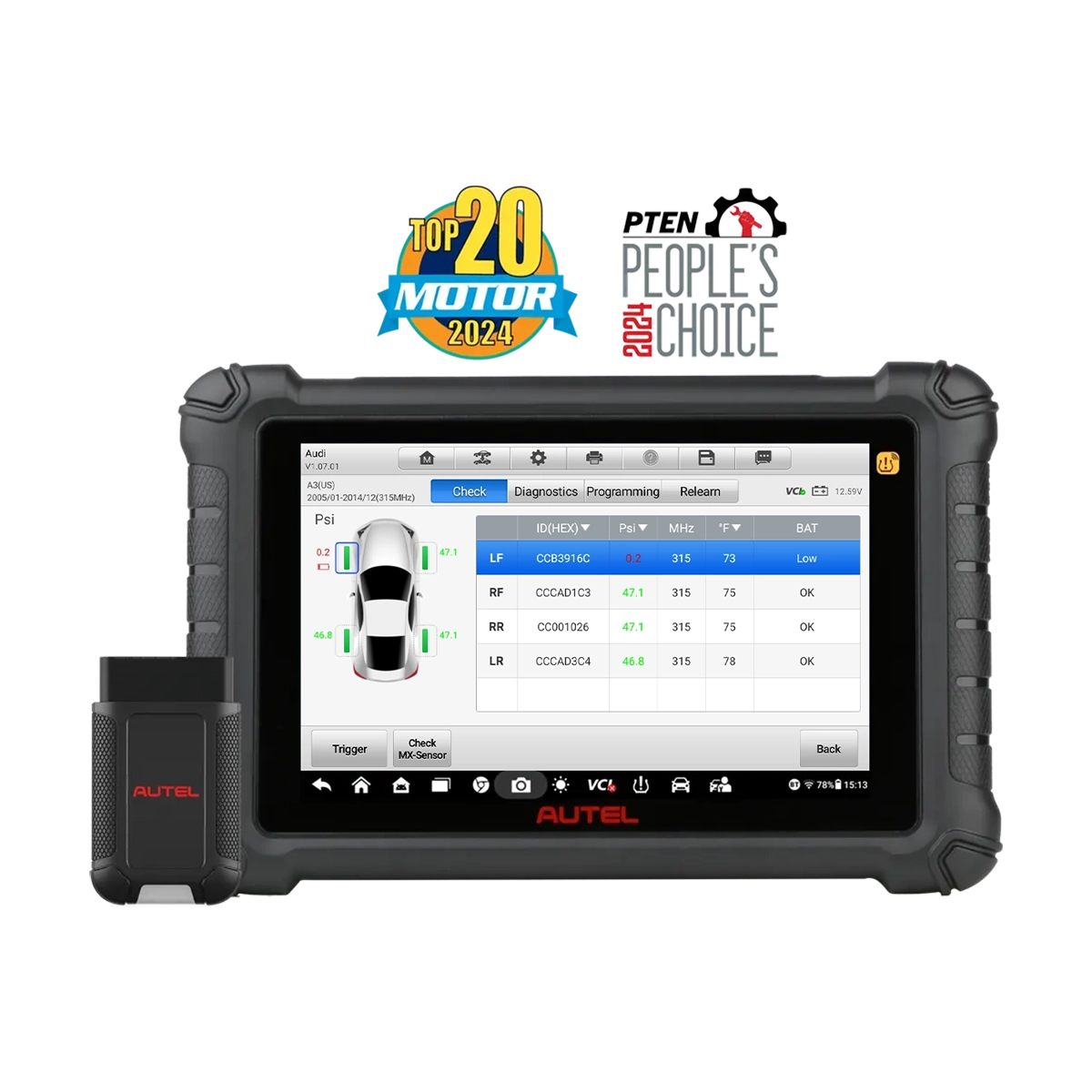

MaxiTPMS TS900
Three-in-One TPMS, Diagnostics, & Service Wireless Tablet
The MaxiTPMS TS900 is an 8-inch, three-in-one, TPMS, diagnostics, Service, wireless touchscreen tablet. The TS900 can activate, read and relearn all known TPMS sensors, including Tesla OE sensors, and program the Autel 1-Sensor to replace 99 percent of the TPMS sensors on the road today. The TS900 is also compatible with the Autel BLE Sensor, preprogrammed for Tesla vehicles. The TS900 offers both basic all-systems diagnostics, such as the ability to read and clear codes and view Freeze Frame and Live Data, and advanced features, such as Active Tests and Special Functions. The TS900 can generate, print, and share Pre- and Post-Scans. The Android 11-based tablet features an extensive Service Menu providing direct access to more than 40 service functions, including Oil and Service Lights reset, Electronic Parking Brake reset, Brake Bleed, Air Bag reset, and Occupancy Seat calibration. The TS900 offers an advanced processor, 4GB operating memory, and 64 GB storage memory. The tablet comes with a one-year limited warranty.
| TS9001YRUP: | Total Care (TCP) for TS900 $299.00 |
|---|
- Compatible with U.S., Asian, and European vehicles, 1996 and newer
- Activate, Read, and Relearn ALL known TPMS sensors, including Tesla OE sensors
- Program Autel 1-Sensors to replace TPMS sensors on 99 percent of TPMS-equipped vehicles on the road
- Compatible with Autel BLE Sensor for Tesla vehicles and vehicles using Bluetooth Low Energy (BLE) TPMS sensors
- Features Android 11 operating system, 4GB operating memory, and 64GB storage memory
- All Systems Diagnostics with bi-directional controls, Active Tests and Special Functions, Pre- and Post Scans that are easy-to-print-and-share
- Enhanced vehicle communication interface (VCI), the MaxiFlash V150, that supports the latest vehicle communication protocols
- Industry-leading Relearn-by-OBD coverage
- Extensive Service Menu with 40-plus service tasks
- One year Limited Warranty and free TPMS software updates for the life of the tool
Additional information
| TS9001YRUP: | Total Care (TCP) for TS900 $299.00 |
|---|
Specifications
| Recommended Use | Indoor |
| Operating System | Android™ 11 |
| Processor | RK3566 Quad-core Arm Cortex-A55 processor (1.8 GHz) |
| Memory | 4GB RAM & 64GB ROM |
| Display | 8-inch LCD screen with 1280 x 800 resolution |
| Rear Camera | 8MB |
| Connectivity |
|
| Sensors | Ambient light sensor for brightness auto changing |
| Audio Input/Output |
|
| Power and Battery |
|
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/3 A |
| Power Consumption | Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temperature | 0 to 50°C((32 to 122°F) |
| Storage Temperature | -10 to 60°C (14 to 140°F) |
| Operating Humidity | 5% – 95% non-condensing |
| Dimensions (W x H x D) | 259.87 mm (10.23") x 168.98 mm (6.65") x 33.60 mm (1.32") |
| Net Weight | 998 g (2.2 lbs) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD |
Compare Similar
| MaxiTPMS TS900 | MaxiTPMS TS608 | MaxiTPMS TS508WF/TS508 | |
|---|---|---|---|
| Image |  |
 |
 |
| HARDWARE | |||
| Connection |
USB Type-C, USB 2.0, WiFi, Bluetooth, Mini SD Card
|
Bluetooth MaxiVCI-Mini
|
Via OBD II to vehicle Data Link Connector (DLC)
|
| Screen |
8-Inch LCD Touchscreen
1280 x 800 Resolution
|
7-Inch Touchscreen
1024 x 600 DPI / LED Color Screen
|
2.3 Inch TFT Color Display
320 x 240 Resolution
|
| Battery |
3.7V / 7700mAh
Lithium-Polymer Battery
|
5,000 mAh
|
3200 mAh
Lithium-polymer Battery
|
| Processor |
1.8GHz
Quad-core
|
1.6GHz
QUAD-CORE
|
—
|
| Memory |
4GB RAM & 64GB ROM
(up to) 64GB micro SD card not included
|
32GB SSD / 1GB RAM
(up to) 32GB micro SD card not included
|
—
|
| Camera |
8MP Rear
|
—
|
—
|
| SOFTWARE | |||
| Operating System |
ANDROID 11
|
ANDROID 4.4.2
|
—
|
| Software Updates |
1-year tool warranty
1 year of free software updates
|
1 Year Free
Update Via Wi-Fi
|
1 Year Warranty
FREE Lifetime Software Updates
|
| Automatic Detection |
Auto-Vin / Auto-Scan
|
Auto-Vin / Auto-Scan
|
—
|
| Service Resets |
Over 40 Service functions
Advanced Features
|
17 Service functions
Standard Features
|
2 TPMS Service modes
Quick Mode & Advanced Mode
|
| System Diagnostics |
All Systems Diagnostics
all modules in all systems
|
All Systems Diagnostics
all modules in all systems
|
—
|
| Battery Analysis |
—
|
—
|
—
|
| TPMS Diagnostics |
Enhanced
TPMS Status Screen
|
Enhanced
TPMS Status Screen
|
TPMS Status Screen
|
| Read/Activate/Relearn |
All known sensor brands
Compatible with the Autel BLE Sensor
|
All known sensor brands
|
All known sensor brands
|
| Programming Methods |
2 Methods
MX-Sensors only
|
2 Methods
MX-Sensors only
|
2 Methods
MX-Sensors only
|
| Relearn Procedures |
OBDII RELEARN
WITH ON-TOOL PROCEDURES
|
OBDII Relearn
With on-tool procedures
|
OBDII Relearn
With on-tool procedures
|
| Print Sensor Data |
Wi-Fi to PC
|
Wi-Fi to PC
|
USB to PC
|
| MaxiSYS System Suite |
Remote support & data logging
|
Remote support & data logging
|
—
|
| TPMS Mode Options |
TPMS Health Report
|
—
|
TPMS System Status Screen
|
| Compatible with TBE200 |
—
|
—
|
—
|
| Tire Registration |
—
|
—
|
—
|
