MaxiSYS MA600 Portable ADAS System

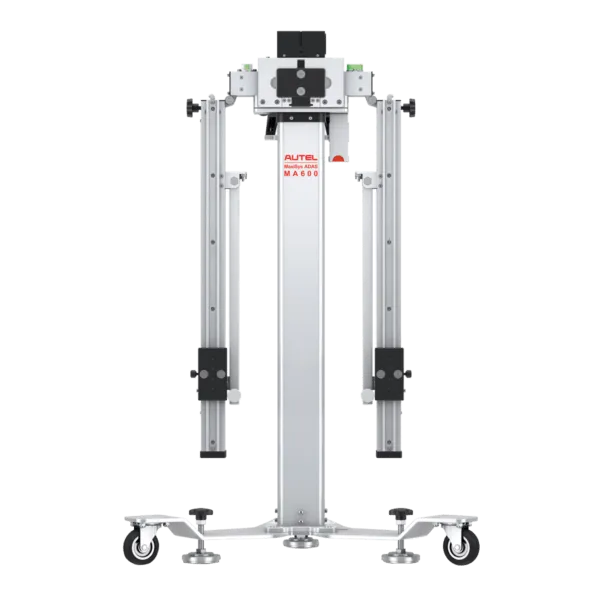

Autel’s MA600 Portable ADAS Calibration system includes a collapsible aluminum calibration frame, 2-line and 5-line centering and aligning lasers, laser-assisted reflectors and Lane Departure Warning (LDW) calibration target set for the calibration of vehicle camera systems. The MA600 is compatible with the MaxiSYS ADAS tablet, or the MaxiSYS MS906BT or higher tablet series when upgraded with ADAS software (purchased separately).
| Frame: MA600 | |
| Packages: MA600 |
- Portable ADAS Calibration System
- Perform Vehicle LDW Camera Calibrations
- Collapsible Aluminum Calibration Frame with Travel Case
- Includes 2-Line Centering and 5-Line Alignment Lasers
- Includes LDW Targets for Numerous Vehicle Manufacturers
- Compatible Autel ADAS Tablet and MaxiSYS MS906BT Tablet Series and Higher when Upgraded with ADAS Software
Portable

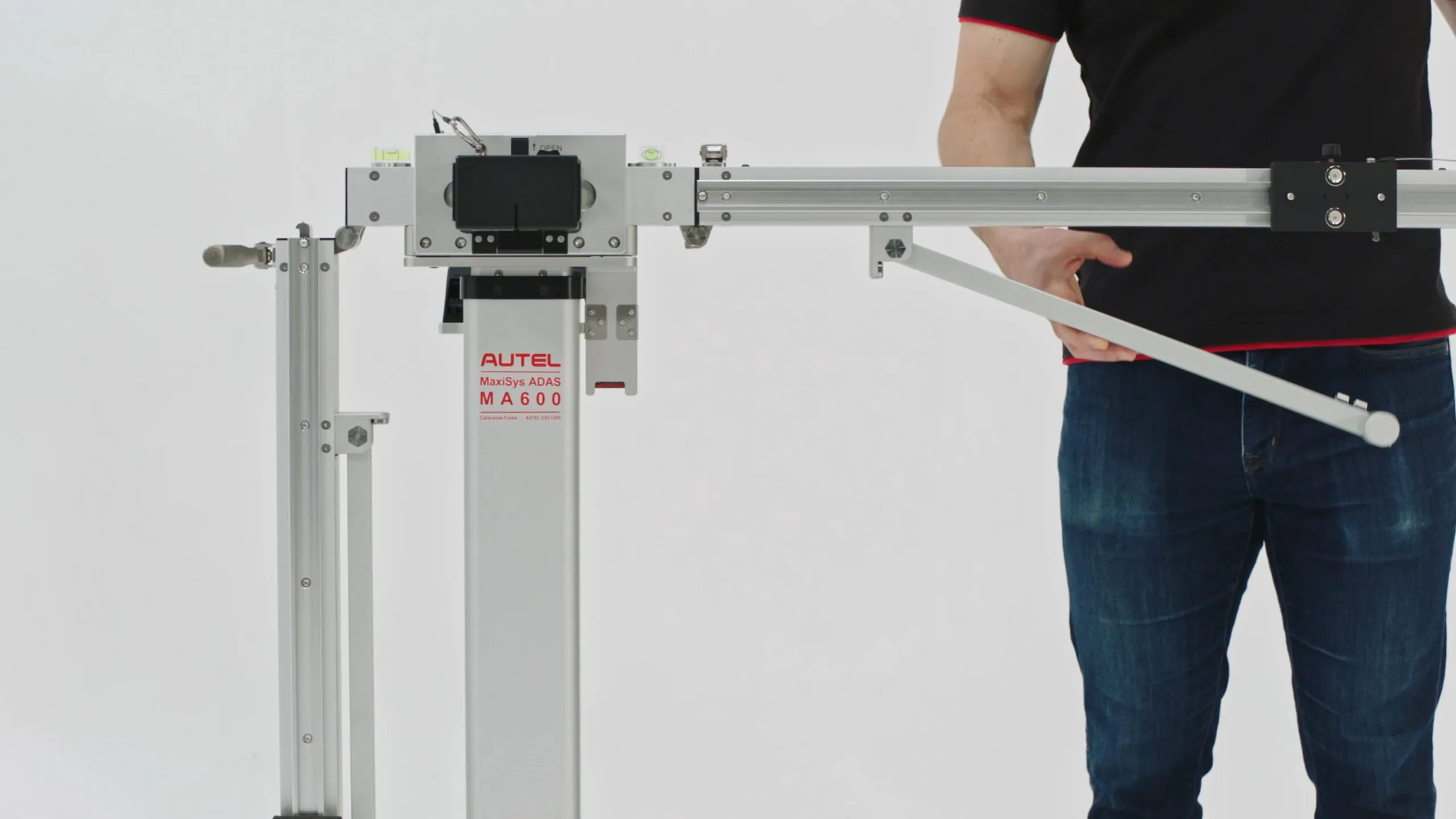

Easily foldable frame create freedom to calibrate faster in many locations
Precise

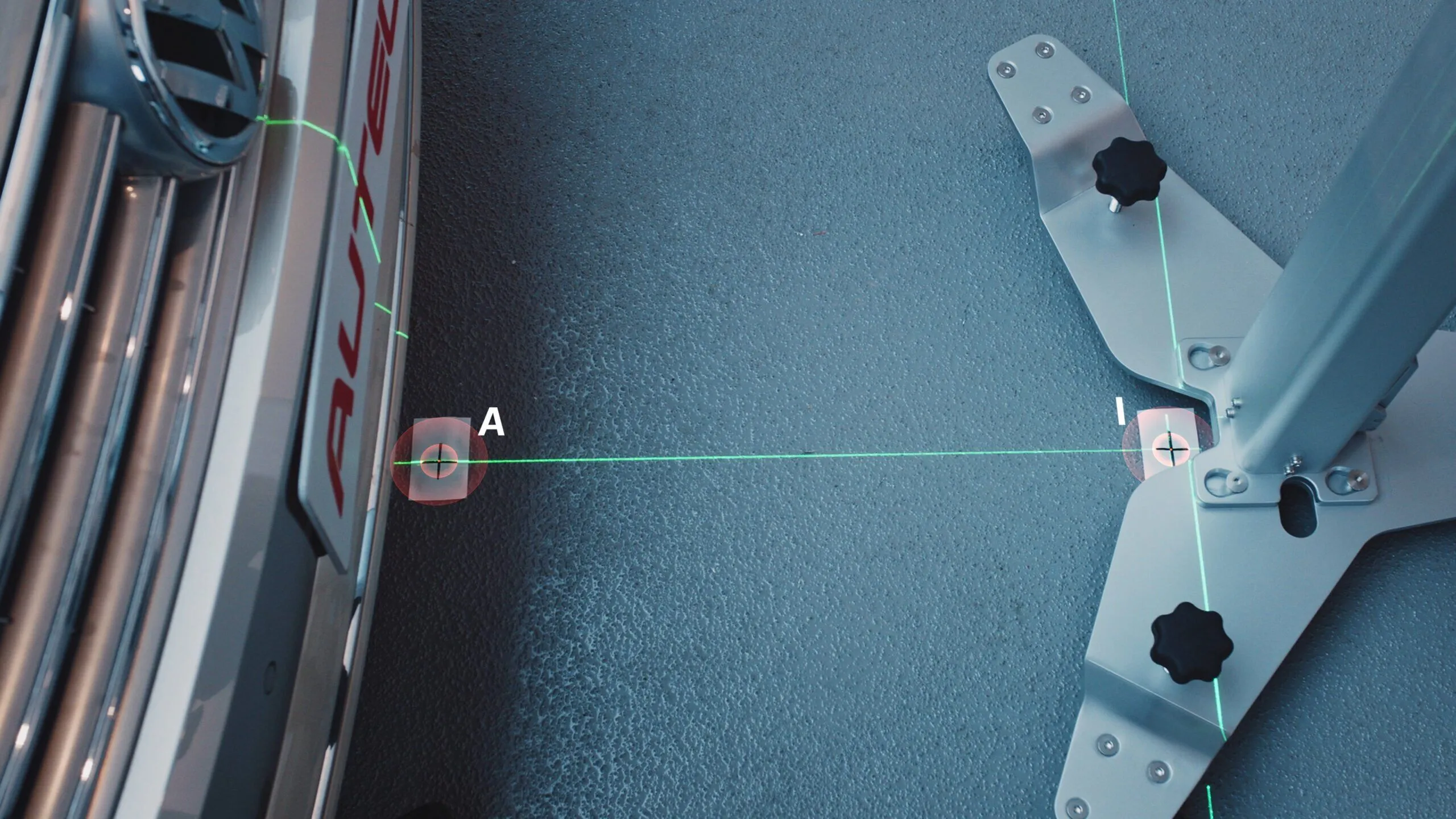

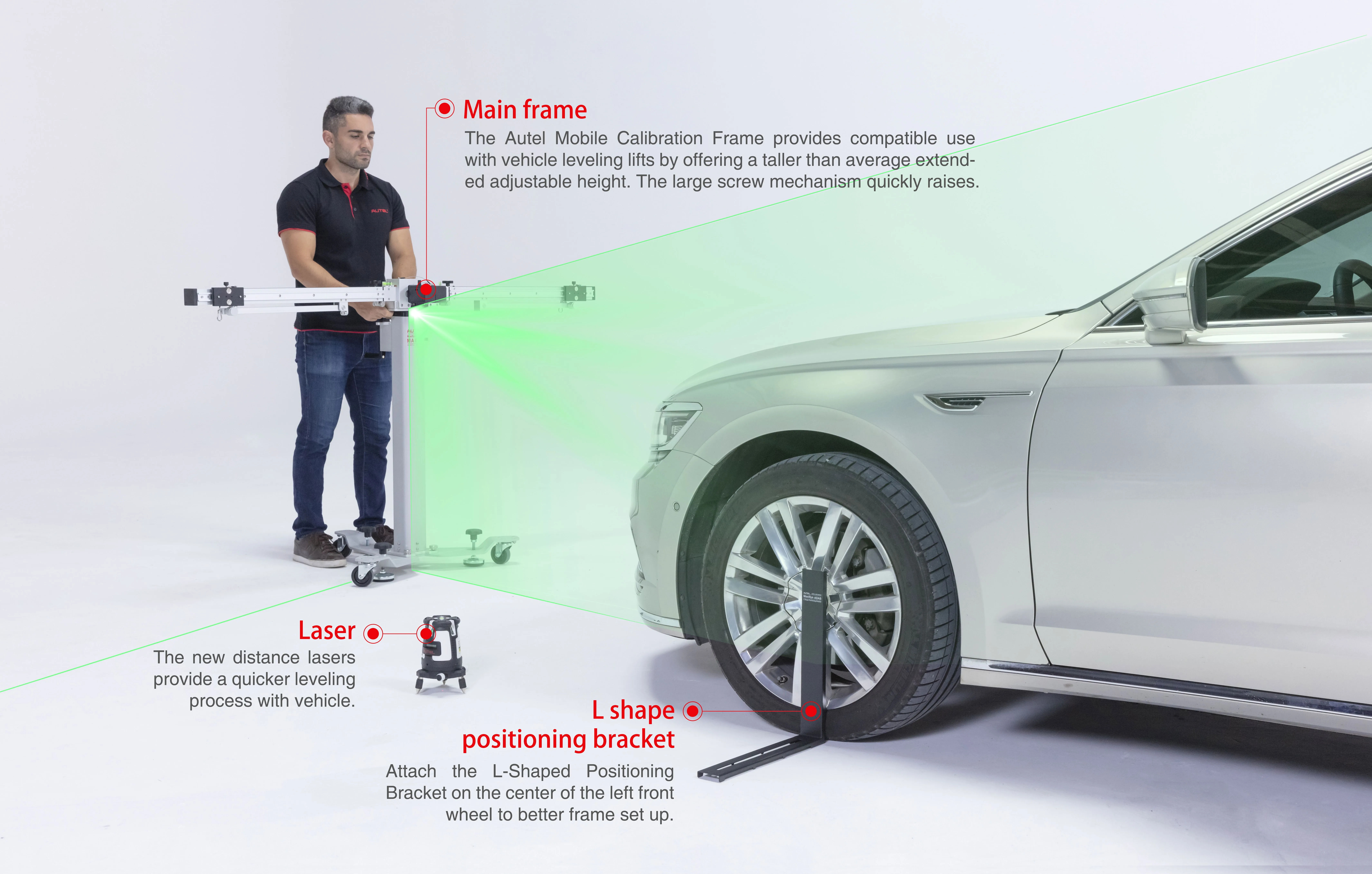

The new distance laser and accessories provide a quicker leveling process with vehicle for Millimeter Ruler Accuracy
Adjustable

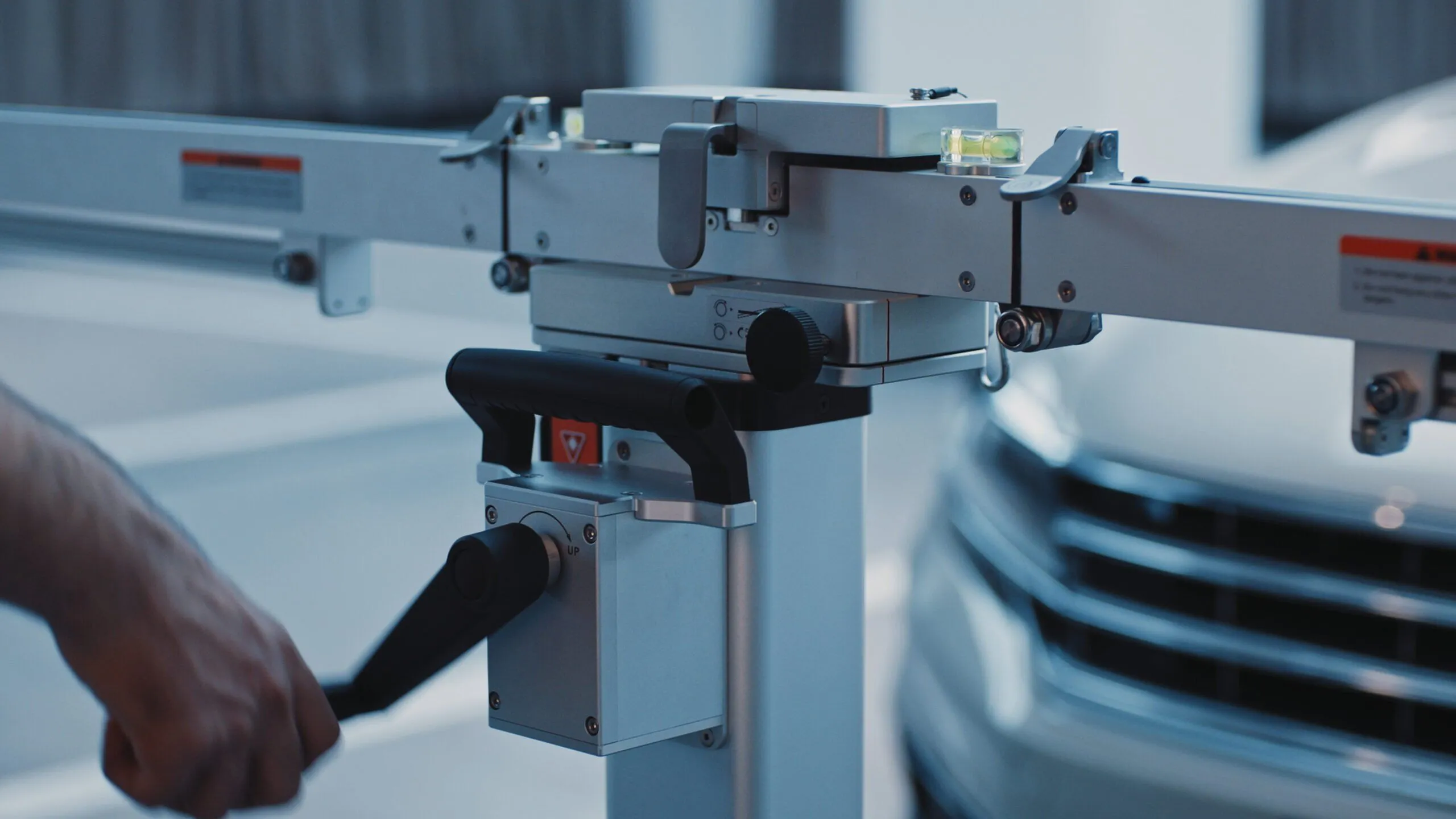

Fine-tuning nobs to easily
Specifications
| Tablet Specifications | |
| Tablet Operating System | Android™ 4.4.2, KitKat |
| Tablet Processor | Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) |
| Tablet Memory | 2GB RAM & 64GB On-board Memory |
| Tablet Display | 9.7-inch LED capacitive touch screen with 1024×768 resolution |
| Tablet Connectivity |
|
| Tablet Camera (rear) | 8.0 Megapixel, AF with Flashlight |
| Tablet Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Tablet Audio Input/output |
|
| Tablet Power and Battery |
|
| Tablet Input Voltage | 12 V (9-24 V) |
| Tablet Power Consumption | 6.5 W |
| Tablet Operating Temperature | 0 to 50°C (32 to 122°F) |
| Tablet Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Tablet Dimensions (WxHxD) | 300 mm (11.81„) x 220 mm (8.66„) x 50 mm (1.97„) |
| Tablet Weight |
|
| Tablet Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |
| Calibration Frame & Pattern Board Specifications | |
| Calibration Frame Dimensions (WxDxH) | 2510mm (98.82„) x 714mm (28.11„) x 1480-2105 mm (58.27-82.87„) |
| Calibration Frame Weight |
|
| Pattern Board Size (LxW) | 1360mm (53.54„) x 960mm (37.80„) |
| Crossbar Length | 2510mm (98.82„) |
| Measurement Range of Crossbar’s Height |
|
| Measurement Range of Pattern Board ‘s Height |
|
| Rated Power | 24 V, 3A |
| Laser Rated Power | 3V, 25mA |
| Laser Battery Type | AA 2×1.5V |
| Calibration Frame Working Temperature | 0°C to 50°C |
| Calibration Frame Storage Temperature | -20°C to 60°C |
| Laser Class | Class 2 |
| Certification | CE, FCC, RoHS |
Functions
MaxiSYS ADAS Functions
Lane Departure Warning (LDW)

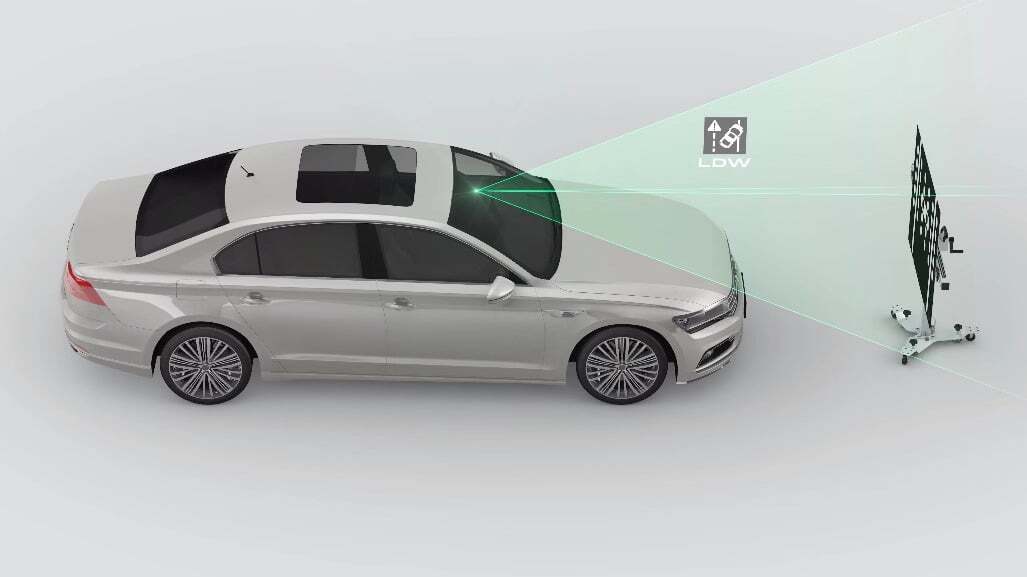

Warns driver when vehicle begins to move out of freeway lane. Designed to minimize causes collisions: driver error, distractions and drowsiness.

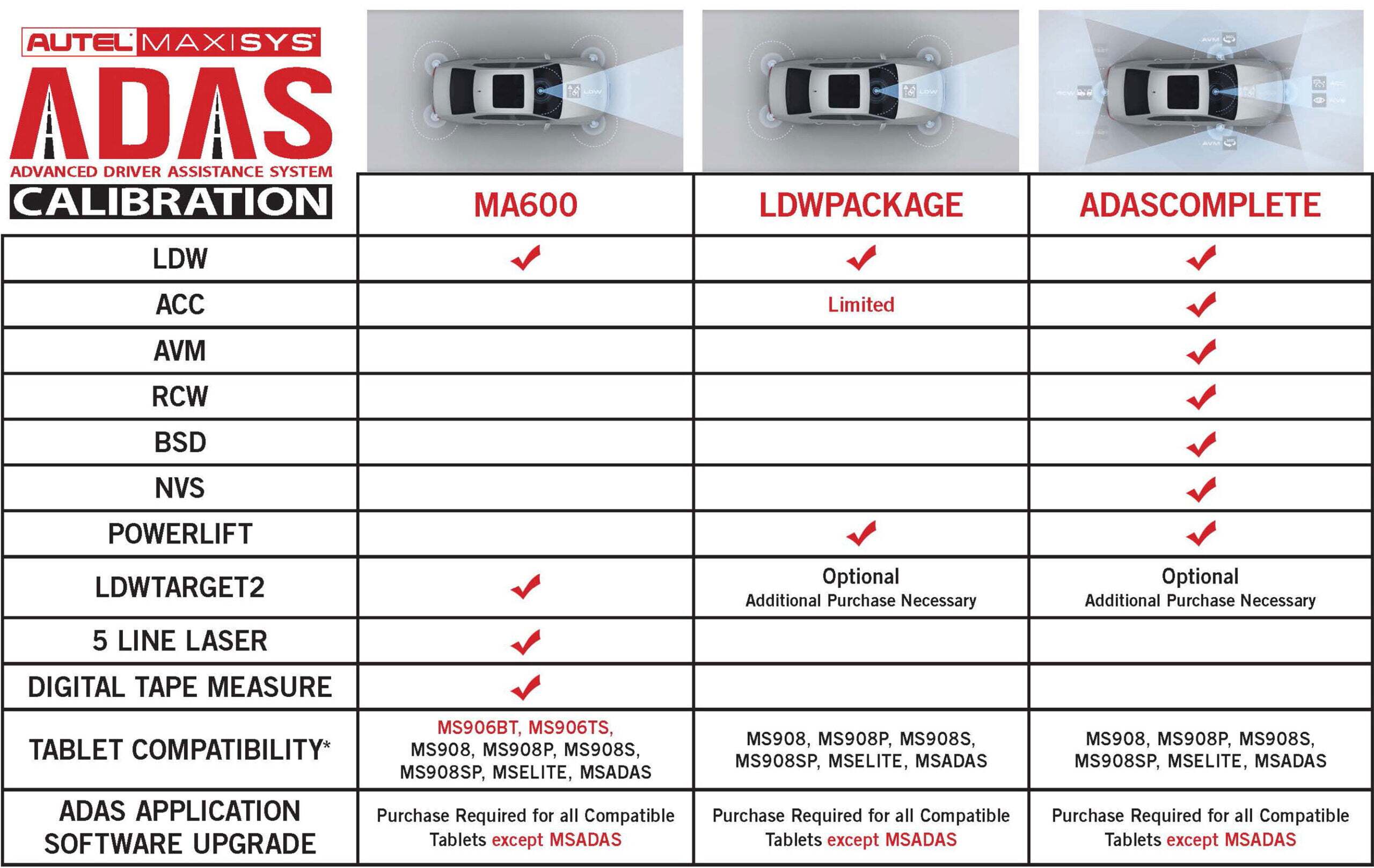

ADAS Calibration Frame Comparison

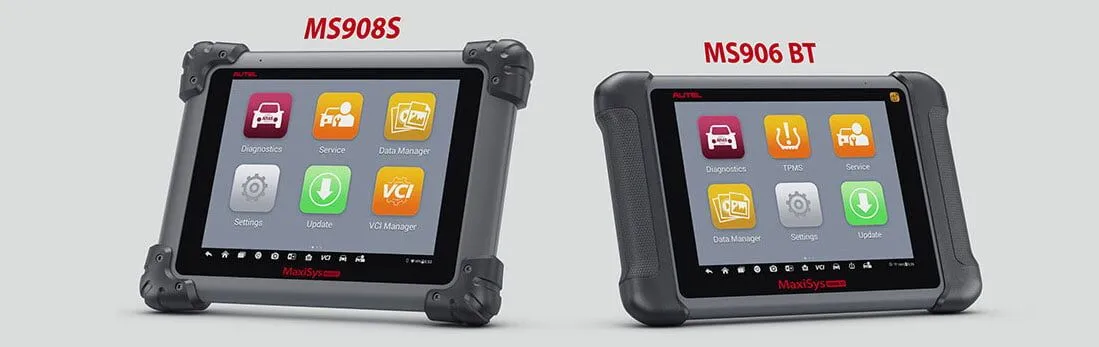

Tablet not included. The MA600 is compatible with the following tablets: MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE and MSADAS. All tablet models require an additional one-time purchase software application upgrade, except MSADAS. Tablets with previously active ADAS application software will not be compatible with MA600.
Software
Precise MaxiSYS ADAS Calibration Software
Based on the powerful MaxiSYS platform, Autel presents the MaxiSys ADAS with the original complete diagnostic functions and comprehensive ADAS calibration. Combined with the service manual, the procedures are presented with graphic instruction. The MaxiSYS tablet has the best possible OE-level diagnostic coverage to offer ADAS and diagnostic solutions for smarter repair and calibration.
MA600 Software Compatible with MaxiSYS 906 Models
Utilizing the 1.3GHz + 1.7GHz hexa-core processor, the MaxiSYS ADAS tablet doubles the speed with our revelutionary multi-task-capable Android Operating System.
Videos
Downloads
 |
Maxisys ADAS MA600 User Manual | Download |
|
ADAS MA600 Calibration Toolset User Manual | Download |
|
ADASAVM1 Expansion Package | Download |
|
ADASCAL2 Expansion Package | Download |
|
ADASUPGRADE Expansion Package | Download |
|
MaxiSYS MA600 2pg Brochure | Download |
|
MaxiSYS MA600 All Systems Brochure | Download |
|
MA600CAL1 Expansion Package | Download |
|
MA600CAL3 Expansion Package | Download |
|
MA600CAL4 Expansion Package | Download |
|
MA600CASE Expansion Package | Download |
|
MA600LDW3 Expansion Package | Download |
|
MA600NV1 Expansion Package | Download |
|
MA600RAD1 Expansion Package | Download |
|
MS906PROADAS Expansion Package | Download |
|
MS909ADAS Expansion Package | Download |
|
MA600 CORE2 Flyer | Download |
|
ADAS Comparison Chart | Download |
What's Included

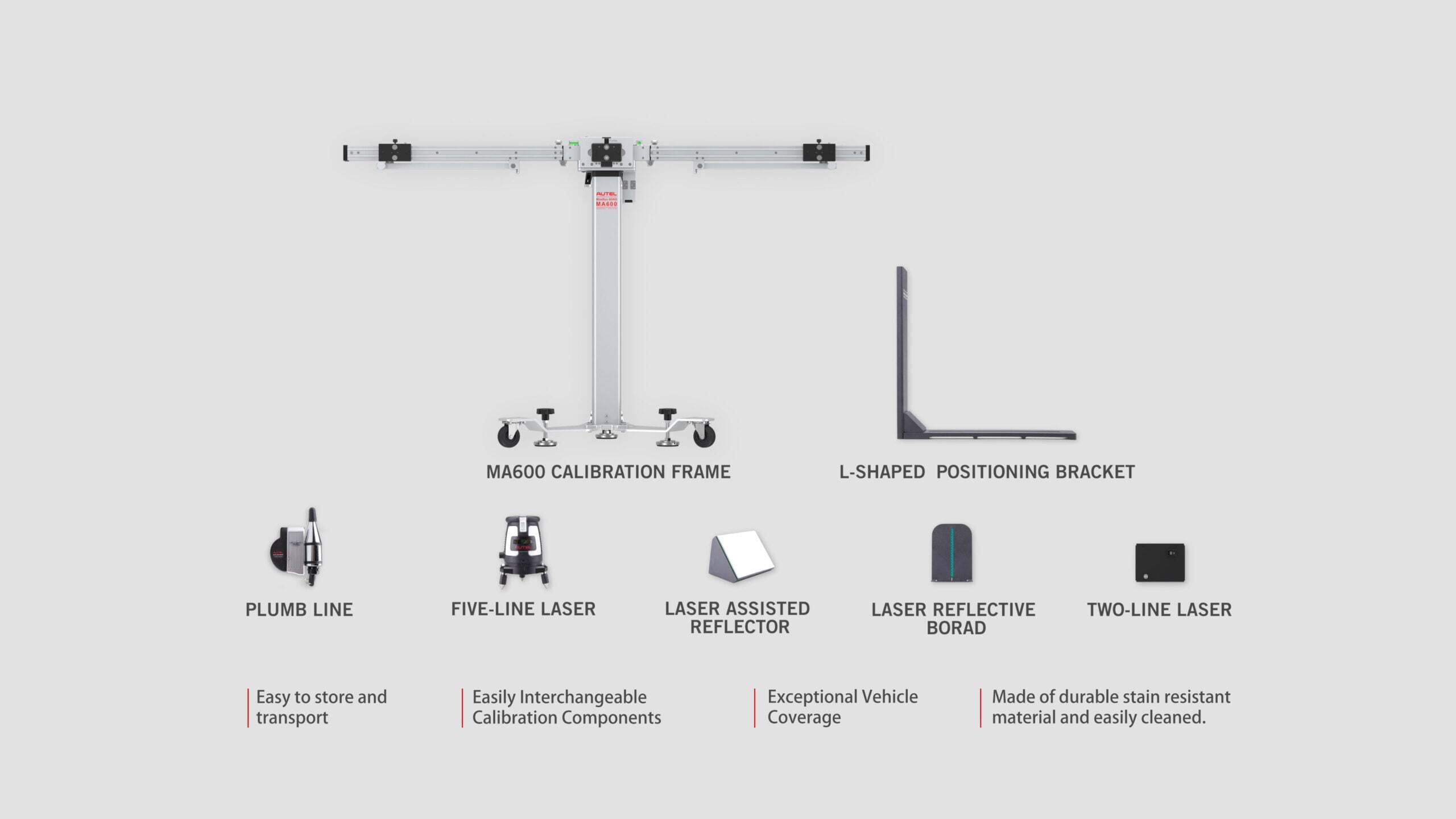

MaxiSys ADAS — MA600 Parts and Accessories

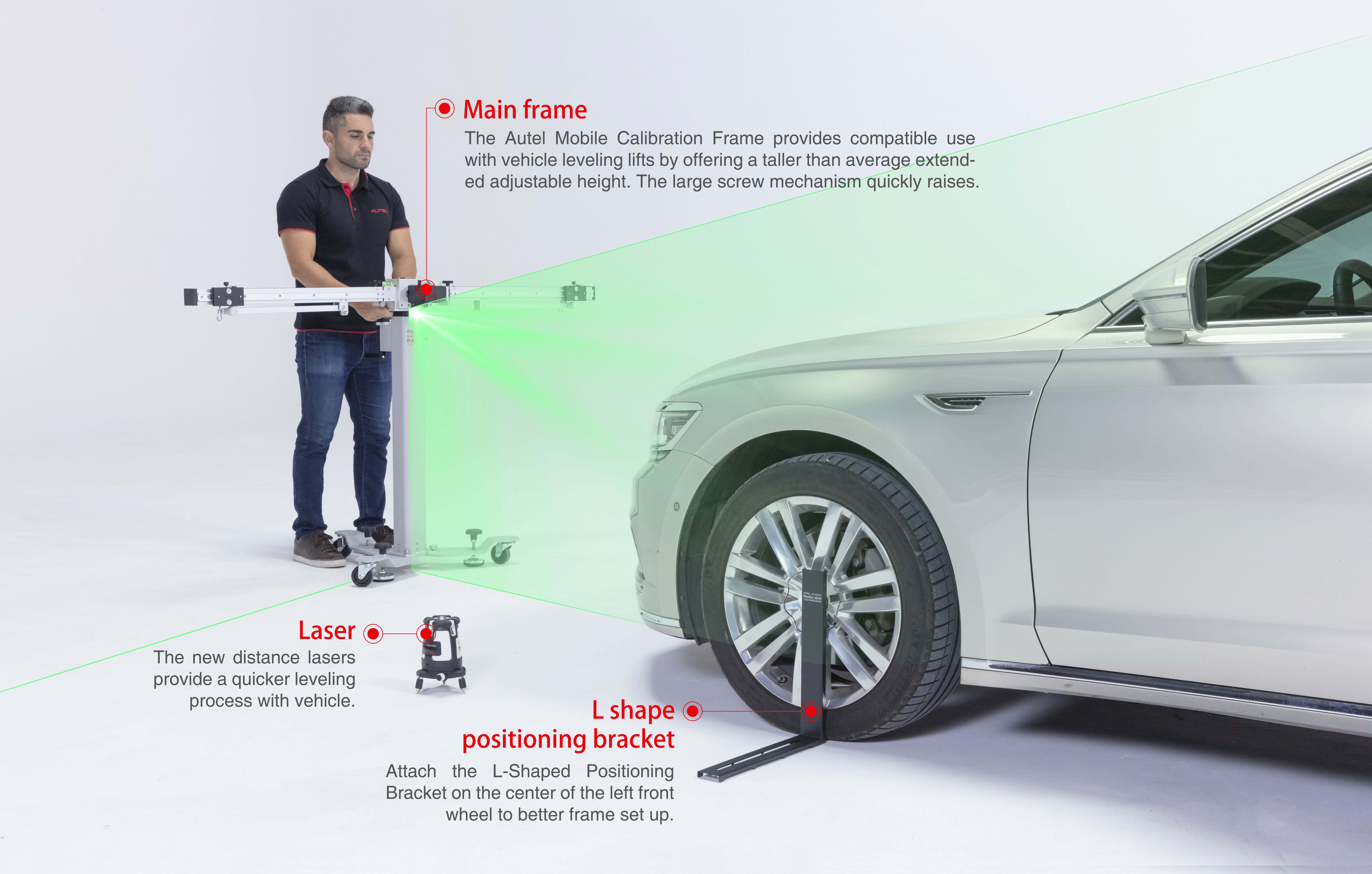

The MA600 provides accurate calibration procedures for camera based systems with accessories and oversize AVM patterns available to purchase separately. The new step-by-step tutorial graphics and fine line laser leveling process offers a quicker and more efficient vehicle centering and squaring to calibration frame procedure. It’s the new generation MaxiSYS MA600, smarter service made simple.
Adaptive Cruise Control (ACC)
Reflector

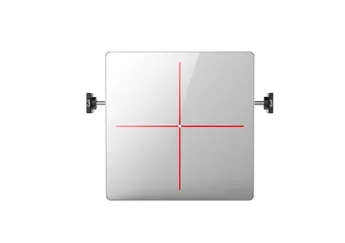

Calibrates radars for VW, Porsche, BMW, Nissan, Infiniti, Hyundai and KIA vehicles by attaching to the Mounting Plate Package.
Radar Calibration Plate
Calibrates the Continental radar for Nissan and Infiniti vehicles by attaching to Mounting Plate Package.
Radar Calibration Plate
Calibrates radar for Volkswagen vehicles by attaching to the Mounting Plate Package.
Compare Packages
| Autel ADAS Packages include: | Standard Frame Stationary |
MA600 Frame Portable |
IA900WA Frame Stationary |
MaxiSYS Tablet & MaxiFLASH VCI |
ADAS Software |
LDW | AVM | BSD | ACC | LIDAR | NVS | RCW | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ADAS LDW 2.0 PART NO. LDW20 Expands Lane Departure Warning |
 |
— | — | — |  |
 |
— | — | — | — | — | — |
 |
ADAS LDW 2.0T PART NO. LDW20T Expands Lane Departure Warning |
|
— | — |  MS909 |
|
|
— | — | — | — | — | — |
 |
MA600 LDW 2.0 PART NO. MA60020 Expands Lane Departure Warning |
— |  |
— | — | |
|
— | — | — | — | — | — |
 |
MA600 LDW 2.0T PART NO. MA60020T Expands Lane Departure Warning |
— | |
— | MS909 |
|
|
— | — | — | — | — | — |
 |
ADAS All Systems 2.0 PART NO. AS20 The Ultimate for Calibration Capabilities |
|
— | — | — | |
|
 |
 |
 |
 |
 |
 |
 |
ADAS All Systems 2.0T PART NO. AS20T The Ultimate for Calibration Capabilities |
|
— | — | MS909 |
|
|
|
|
|
|
|
|
 |
MA600 All Systems 2.0 PART NO. MAS20 The Ultimate for Calibration Capabilities |
— | |
— | — | |
|
|
|
|
|
|
|
 |
MA600 All Systems 2.0T PART NO. MAS20T The Ultimate for Calibration Capabilities |
— | |
— | MS909 |
|
|
|
|
|
|
|
|
 |
ADAS LDW 3.0 PART NO. LDW30 Expands Lane Departure Warning |
|
— | — | — | |
|
— | — | — | — | — | — |
 |
ADAS LDW 3.0T PART NO. LDW30T Expands Lane Departure Warning |
|
— | — | MS909 |
|
|
— | — | — | — | — | — |
 |
ADAS All Systems 3.0 PART NO. AS30 The Ultimate for Calibration Capabilities |
|
— | — | — | |
|
|
|
|
|
|
|
 |
ADAS All Systems 3.0T PART NO. AS30T The Ultimate for Calibration Capabilities |
|
— | — | MS909 |
|
|
|
|
|
|
|
|
 |
IA900WA PART NO. IA900WA The Ultimate for Calibration Capabilities |
— | — |  |
— | — | — | — | — | — | — | — | — |
 |
IA900WAT PART NO. IA900WAT The Ultimate for Calibration Capabilities |
— | — | |
Ultra ADAS |
|
— | — | — | — | — | — | — |
 |
IA900LDW PART NO. IA900LDW Expands Lane Departure Warning |
— | — | |
— | — | |
— | — | — | — | — | — |
 |
IA900LDWT PART NO. IA900LDWT Expands Lane Departure Warning |
— | — | |
Ultra ADAS |
|
|
— | — | — | — | — | — |
 |
IA900AS PART NO. IA900AS The Ultimate for Calibration Capabilities |
— | — | |
— | — | |
|
|
|
|
|
|
 |
IA900AST PART NO. IA900AST The Ultimate for Calibration Capabilities |
— | — | |
Ultra ADAS |
|
|
|
|
|
|
|
|
