Originally published by Brake & Front End, June 15, 2026
Modern vehicle repair has evolved far beyond reading trouble codes and replacing parts. Today’s technicians are increasingly called upon to diagnose network issues, perform electrical testing, update software, and complete module programming and flashing procedures.
Yet many shops already own a tool capable of performing all these functions—and may not realize it.
Recently, an Autel customer summed it up perfectly after learning more about the capabilities built into his diagnostic platform:
“I didn’t know I could have been programming modules all along with the Autel VCMI and OE software.”
That reaction highlights a reality throughout the industry. Many technicians use the Autel Vehicle Communication and Measurement Interface (VCMI) every day for diagnostics but have yet to explore everything the device can do.

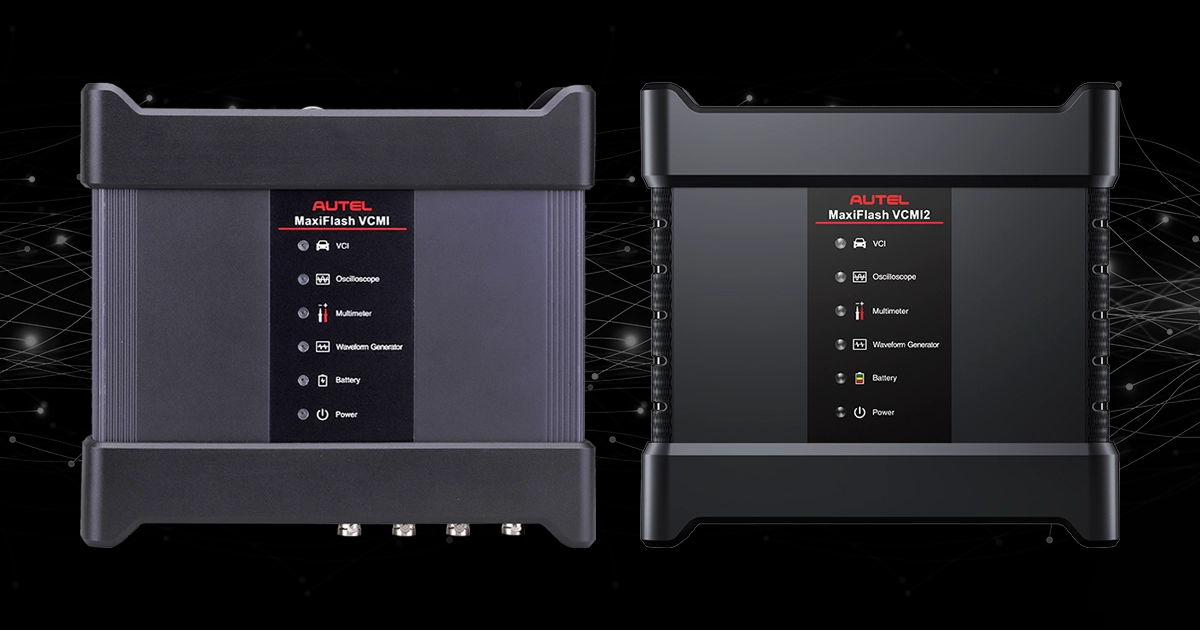

Included with the MaxiSYS Ultra and MS919 platforms, and now available as the next-generation VCMI 2 with the MaxiSYS Ultra S2 and MS919 S2, the VCMI is much more than a wireless vehicle communication interface. It combines multiple diagnostic and measurement tools into a single integrated platform designed to help shops tackle today’s increasingly complex repairs.
One Device, Multiple Functions
The VCMI and VCMI 2 serve as:
- Vehicle Communication Interface (VCI)
- J2534 Pass-Thru Programming Device
- 4-Channel Oscilloscope
- Digital Multimeter
- Waveform Generator
- CAN Bus Tester

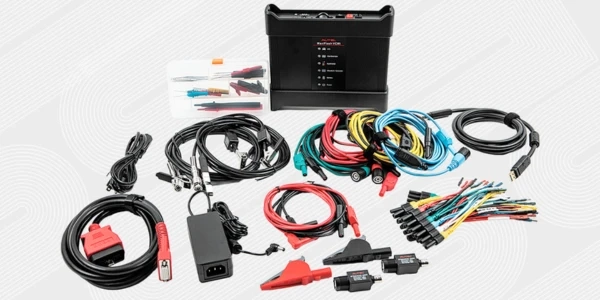

The package includes the operating and power cables, OBDII main cable, USB cable, oscilloscope leads, multimeter leads, flexible and standard back-pinning probes, Dolphin and Crocodile clips, attenuators, and additional accessories needed for advanced electrical testing.
Unlocking Programming and Flashing Opportunities
As vehicle manufacturers continue to release software updates, calibration files, and module revisions, programming and flashing have become an increasingly important part of vehicle repair.
Both the VCMI and VCMI 2 are J2534-compliant pass-thru programming devices, meaning technicians can use them to program or flash a module with OE software via a Windows PC. The applicable OE subscriptions are required. Visit https://www.oem1stop.com/ to learn about programming and link to OE software repositories, data and position statements.
These capabilities allow shops to:
- Program replacement modules
- Install software updates (Technical Service Bulletins (TSBs)
- Flash control modules
- Load calibration files
- Complete OEM-required service procedures
Many shops already own the hardware needed for OEM programming and flashing without realizing it. The VCMI ships with the MaxiSYS Ultra and MS919, while the VCMI 2 comes standard with the Ultra S2 and MS919 S2. Combined with a Windows PC, OEM software subscription, and internet access, the system provides a complete pathway to OEM programming and flashing services.
Two Ways to Complete Programming Jobs
Not every shop approaches programming and flashing the same way. Some prefer to perform all module programming and flashing in-house or contract with a mobile programmer.
Launched nationwide in 2022, Autel Remote Expert connects automotive technicians with experienced remote professionals who have access to OE tools and software. This service allows technicians to request assistance with complex tasks such as module flashing and ECU programming, which are then performed by an Expert connected remotely to the vehicle. By leveraging advanced multi-server networks and high-speed transmission, Remote Expert ensures that technicians receive the necessary OE data and support efficiently, while Experts can complete repairs from virtually anywhere in North America. Today, the platform averages about 1,600 sessions per month and boasts a network of about 80 Experts.
Both the VCMI and VCMI 2 are Remote Expert capable, allowing technicians to connect directly with experienced remote programming specialists through supported MaxiSYS tablets, or via Autel’s standalone XLink device.
For many repair facilities, that means fewer sublet repairs, less downtime, and the ability to complete more jobs in-house.
A Scope Technicians Actually Use
While programming often receives the most attention, one of the most powerful components of the VCMI platform is its integrated 4-channel oscilloscope.
Many technicians own scopes but use them only occasionally because of setup complexity or the need to switch between separate devices and software. The VCMI takes a different approach by integrating the oscilloscope directly into the MaxiSYS diagnostic platform.
Technicians can launch the scope directly from live data analysis screens and compare scan tool information with electrical signals in real time. The system provides four simultaneous channels for signal acquisition, allowing technicians to compare multiple signals and circuits at the same time.
Common applications include:
- Crankshaft and camshaft correlation
- Ignition waveform analysis
- Relative compression testing
- Injector diagnostics
- Sensor signal verification
- CAN Bus diagnostics
The oscilloscope provides real-time waveform visualization, trigger controls, time-base adjustments, voltage scaling, and advanced measurement tools, including peak voltage, pulse width, and frequency analysis. Waveforms can also be recorded and saved for playback and comparison.
The VCMI 2 expands these capabilities with guided oscilloscope tests, additional EV testing procedures, and dedicated parasitic current draw and swing tests designed to simplify electrical diagnostics.
For many technicians, the value isn’t simply having a scope—it’s having one that’s integrated into the same platform they already use every day.
CAN Bus Testing at the DLC
As vehicle network architecture becomes more complex, communication-related faults continue to challenge technicians.
The VCMI’s integrated CAN Bus tester helps technicians evaluate network health directly through the vehicle’s diagnostic connector. Rather than relying solely on communication-related fault codes, technicians can quickly assess network signal integrity and communication quality before moving into more advanced testing.
Combined with the oscilloscope’s ability to capture CAN High and CAN Low waveforms, technicians gain a more complete picture of what is happening on the network.
For modern vehicles containing dozens of interconnected modules, visibility can significantly reduce diagnostic time.
The Bottom Line
Vehicle diagnostics no longer stop at code reading. Today’s repairs increasingly require programming, flashing, network analysis, and advanced electrical testing.
The VCMI and VCMI 2 bring those capabilities together into a single platform.
Whether a shop is performing OEM module programming through J2534, connecting with a Remote Expert, diagnosing a communication fault, tracing a parasitic draw, or capturing ignition and sensor waveforms, the VCMI platform provides the tools needed to complete the repair.
For many technicians, the biggest discovery may be realizing that the equipment they’ve been using for diagnostics all along is capable of much more than they ever expected.
