Commercial Vehicle ADAS Calibration
As Lane Departure Warning and other ADAS systems become standard features on commercial vehicles, accurate calibration is required to ensure optimal performance and safety. Whether you’re a calibrator looking to expand your ADAS capabilities and customer base, or if you service a fleet and are considering ADAS calibrations for the first time, Autel offers a focused Commercial Vehicle ADAS calibration solution to maximize your efficiency.
Autel ADAS Frame Owners
If you’re an existing Autel MA600 or Standard ADAS Frame owner, and are aiming to enter the commercial vehicle and heavy duty ADAS calibration space, Autel offers upgrade accessories to service this emerging demand. An Autel MS909CV tablet is required.
In-House ADAS Calibration
If you’re a fleet operator and are currently subletting ADAS calibrations, or are anticipating the requirement of ADAS calibrations, Autel offers multiple systems and packages that will bring ADAS in-house to meet that emerging demand.
Complete ADAS Systems For Commercial Vehicles

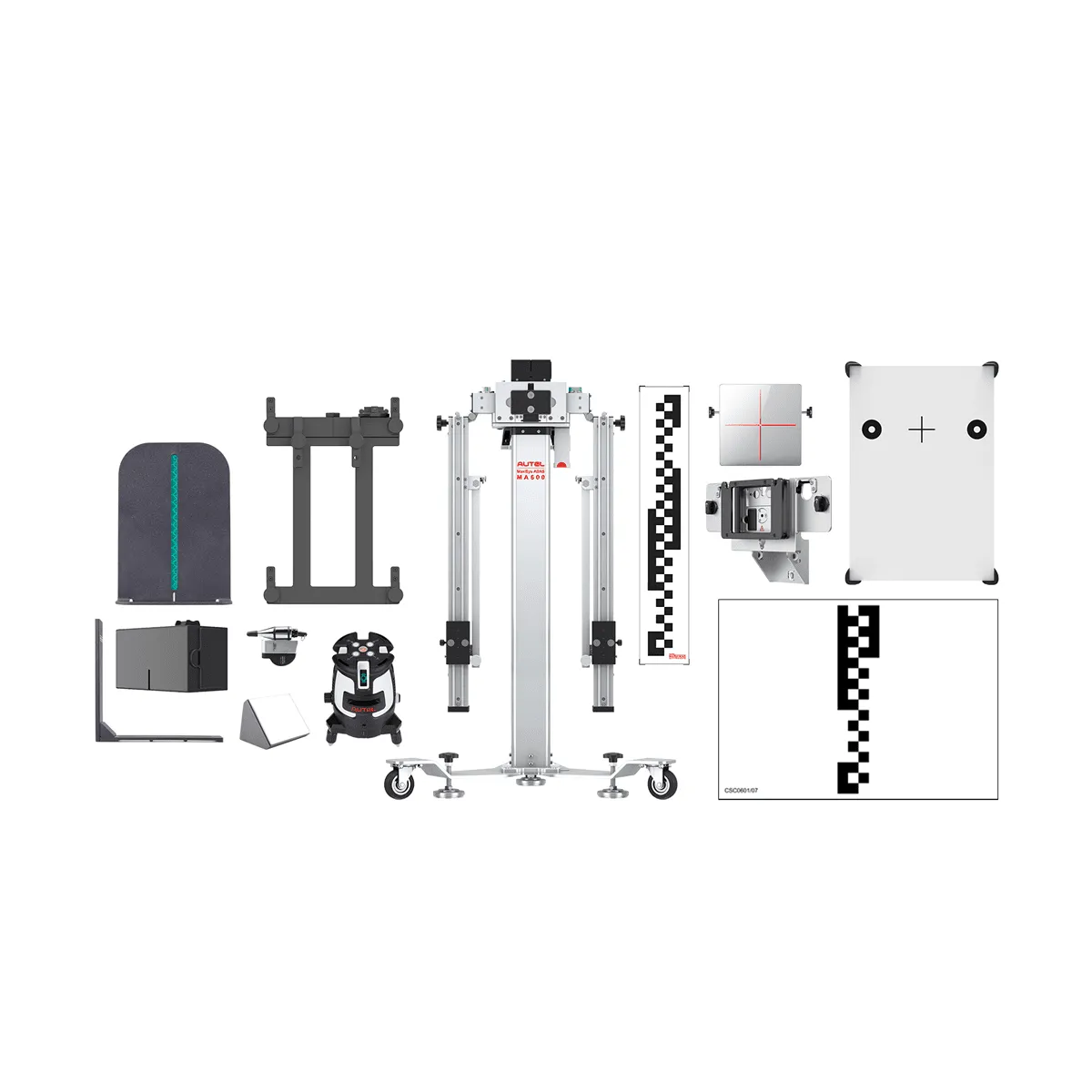

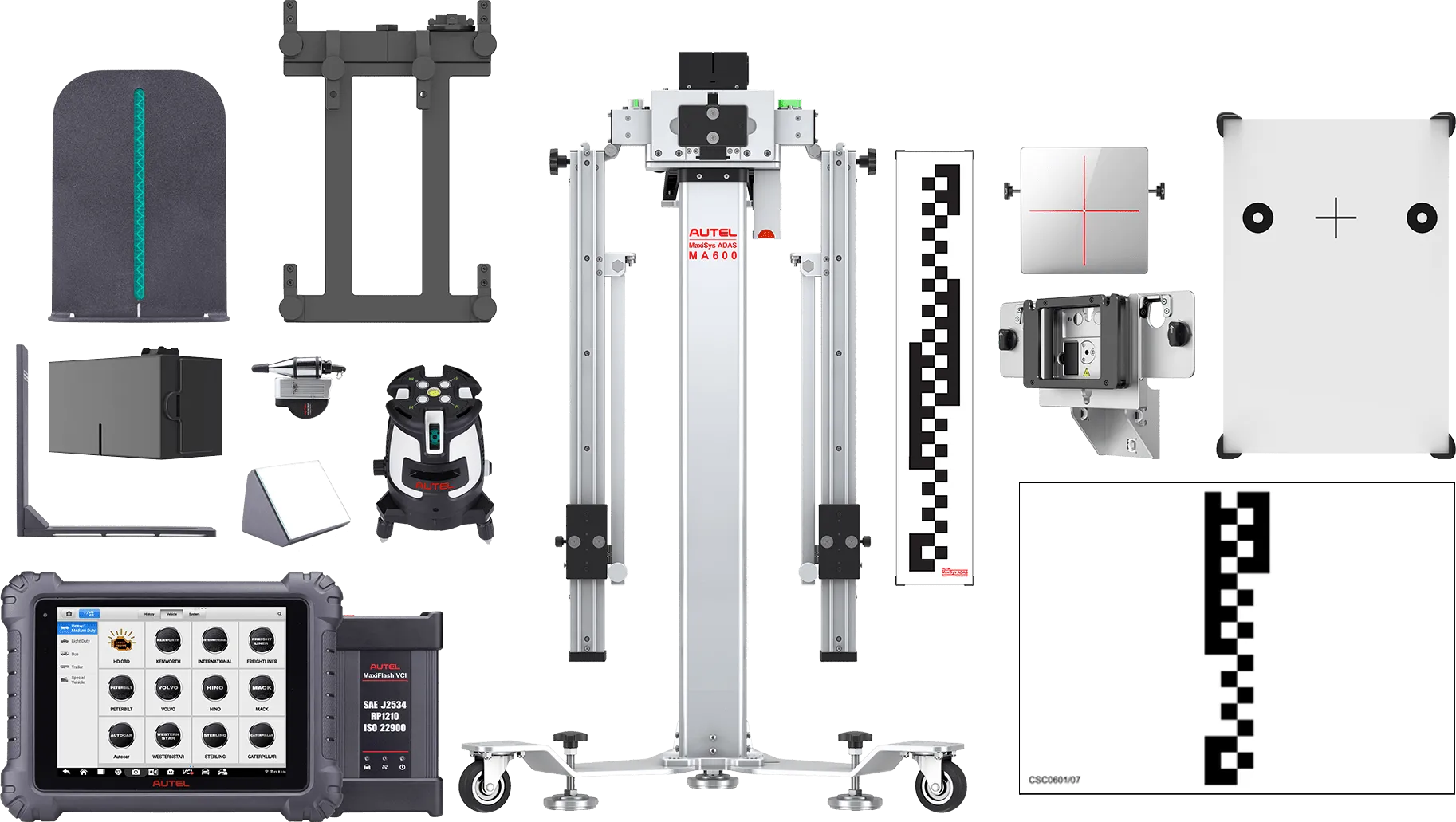

MA600 CV ADAS Packages
- Perform static front camera calibrations, including Lane Departure Warning system calibrations on applicable light, medium, and heavy-duty vehicles
- Includes MaxiSYS ADAS MA600 mobile frame and positioning tools, including 2- and 5 line lasers
- Compatible with MaxiSYS 909CV tablet currently supporting dynamic calibration on Class 3-5 vehicles and Class 6-8 vehicles and static calibration setup and software for Mercedes-Benz Sprinter and RAM ProMaster vans and for heavy-duty vehicles equipped with Bendix® Wingman® system.
- Includes LDW patterns for Mercedes-Benz Sprinter vans, RAM ProMaster vans, and front collision warning and LDW pattern (CV pattern CSC0611-06) for heavy-duty vehicles equipped with Bendix® Wingman® system.
- Includes CV pattern bracket
- Includes ACC reflector for radar-equipped Bendix® Wingman® system calibration
- Includes a one-year warranty
ADAS Accessories For Commercial Vehicles
Expand your existing Autel MA600 or Standard ADAS Frame to include heavy duty commercial vehicle ADAS calibrations – an Autel MS909CV tablet is required. The Autel CV ADAS pattern is compatible with both the MA600 and Standard Frame and currently not available on the IA800 or IA900. The ADAS CV Pattern Bracket is required on the MA600, but not on the Standard Frame.

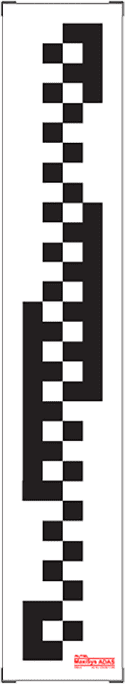

ADAS CV Pattern
- Lane Departure Warning (LDW) camera calibration pattern
- Calibrates camera of Bendix Wingman safety system
- Compatible with MaxiSYS ADAS Standard and MA600 frames
- Includes a one-year limited warranty

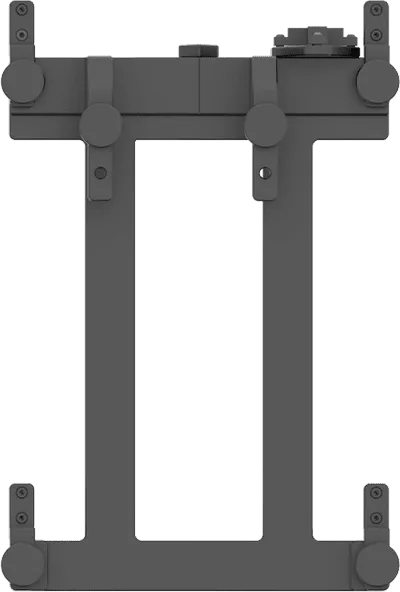

ADAS CV Pattern Bracket
- Required to use the CV LDW pattern, CSC0611-06, on the Autel MaxiSYS MA600 frame
- One-year limited warranty
Maximize Calibrations
With Minimal Space

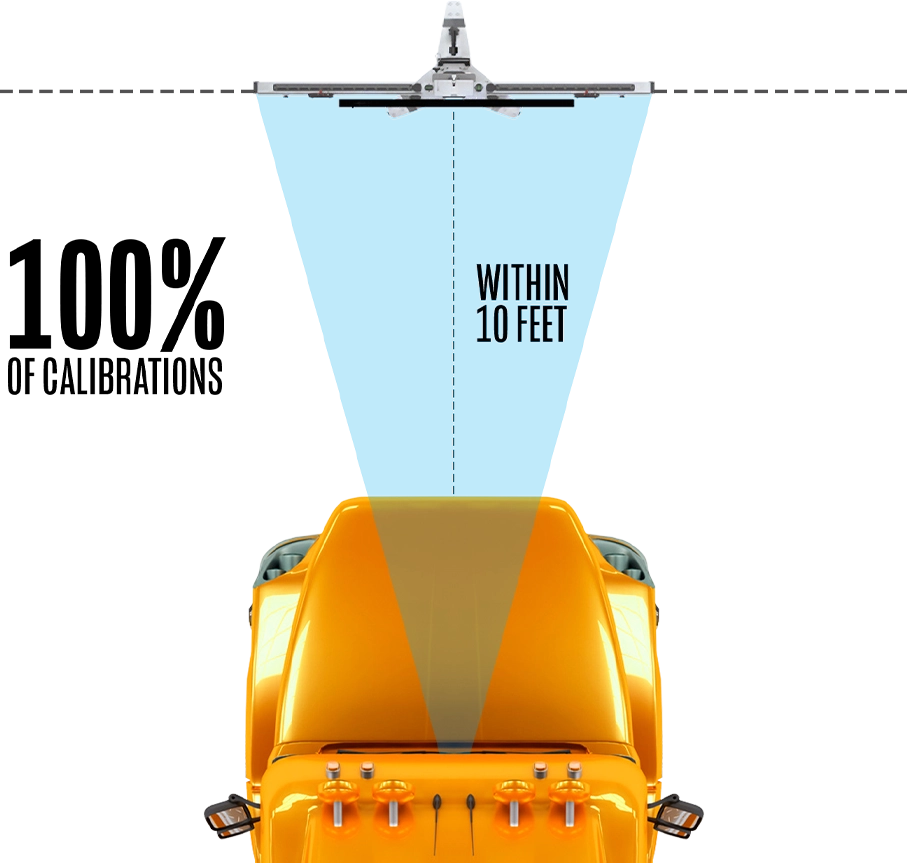

The majority of Land Departure Warning (LDW) ADAS calibrations on commercial and heavy duty vehicles can be performed with as little as 10 feet available in front of the vehicle.
Ready to get started?
Contact our ADAS experts
Autel ADAS
Training & Product Webinars
An Important Statement on Autel ADAS Systems
The Dangers of Using Non-Autel ADAS Components with Autel Software
When Autel speaks of our ADAS calibration products, we reference them as systems. And that is because each component is engineered to work as part of the whole. Each component of the system is dependent upon the specificity of the other to produce accurate calibrations that are verifiable to OE specifications.
Further, the Autel ADAS calibration software was developed for our systems only. The use of non-Autel components with our software will result in inaccurate calibrations. It’s vital to understand the precise nature by which these safety systems, cameras and sensors operate. Alignment and calibrations that are off by as little as one degree can result in up to 1.5-meter lateral miscalculations at 100-meter distance between vehicles. Such inaccuracies can lead to false ADAS interventions or accidents.
Shops knowingly calibrating vehicles with mismatched calibration components are fully responsible for calibration errors and will assume liability. Autel technical support staff will not support or assist in any calibration that uses non-Autel branded ADAS calibration products.
To learn more about the Autel comprehensive approach to accurate and verifiable ADAS calibration workflow solutions, contact an Autel ADAS calibration expert.
