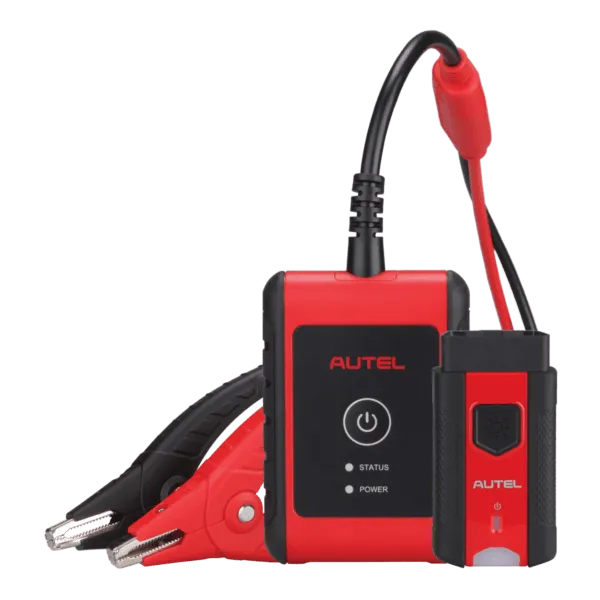

MaxiBAS BT508
Battery Testing and Analysis

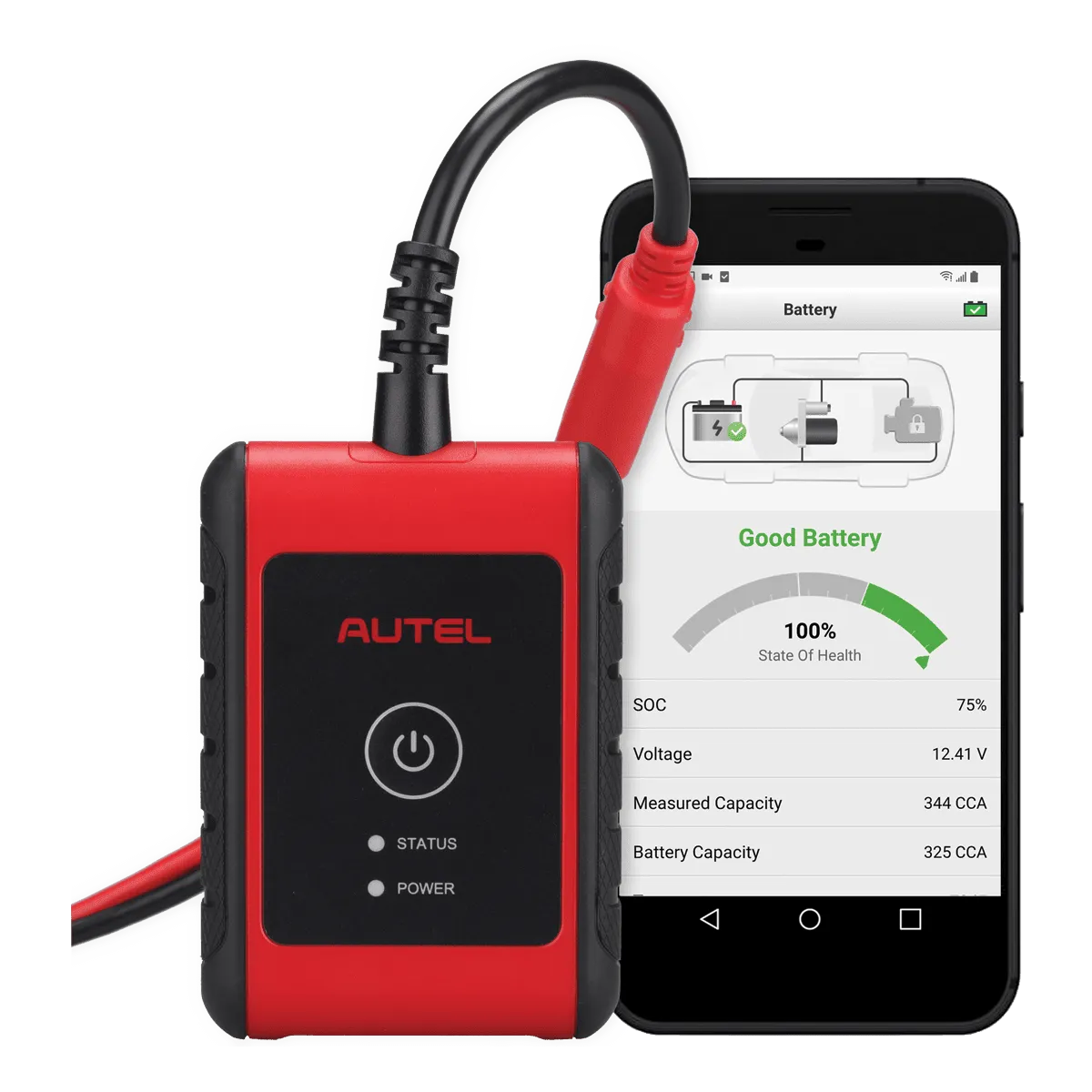

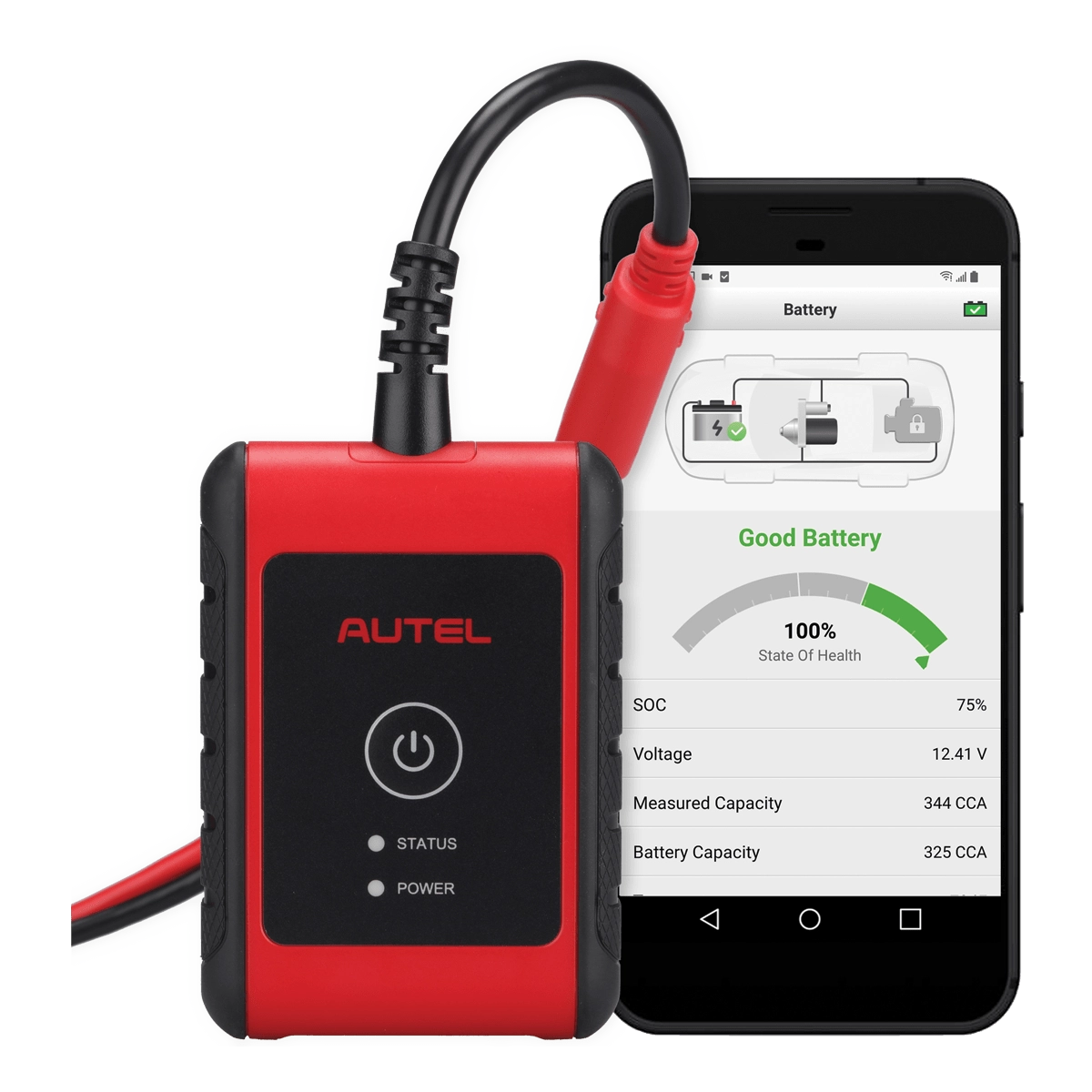

The BT508 is powerful yet, lightweight battery and electrical system tester that uses Adaptive Conductance, an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT508 to perform testing and display test results. The BT508 package includes a wireless Bluetooth vehicle communication interface enabling battery and electrical component registration.
- BT508 Battery and Electrical System Analysis Tool and App

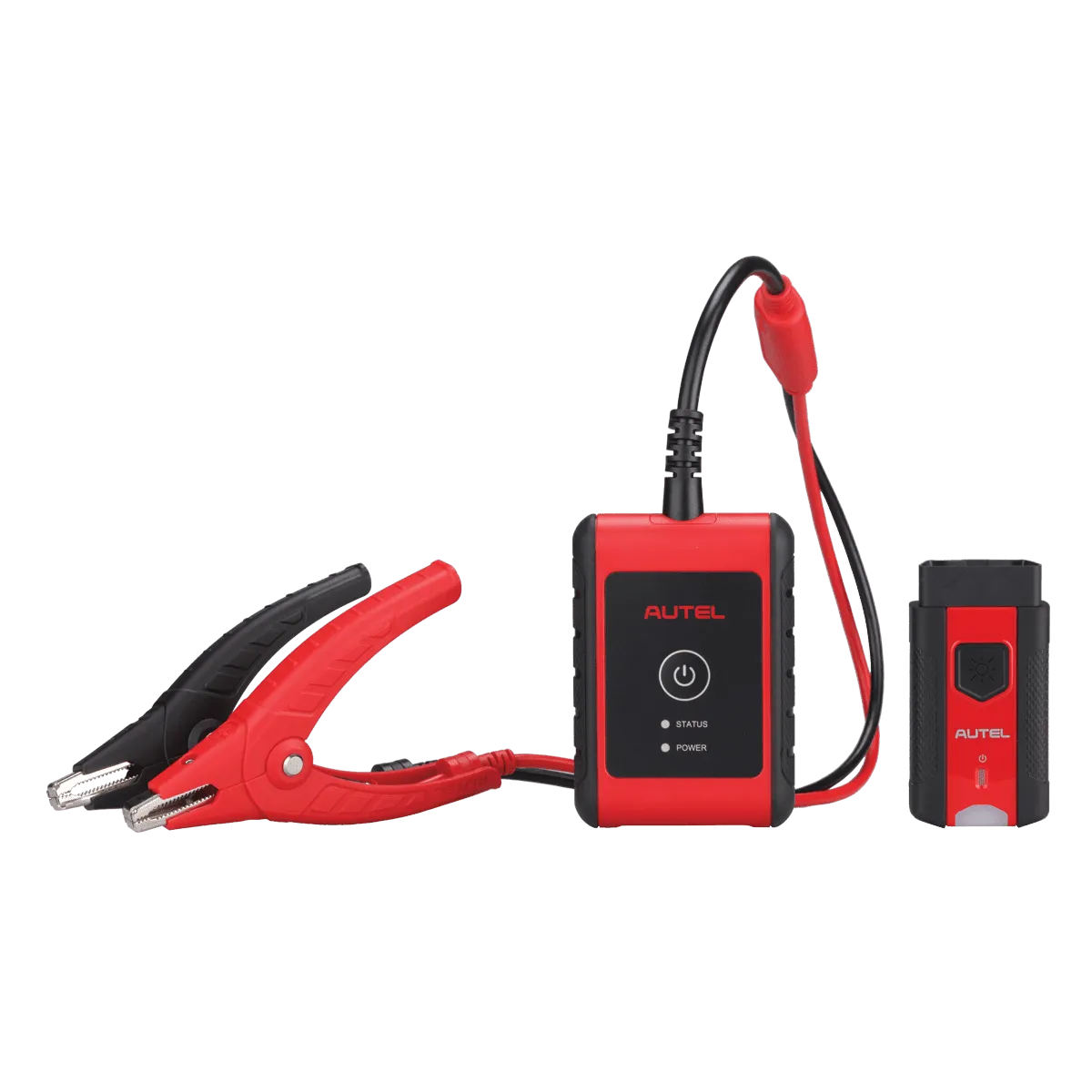

- Includes a wireless Bluetooth vehicle communication interface for battery and electrical component registration
- Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
- Test 6- and 12-volt batteries: 100 - 2000 CCA
- Test 12- and 24- cranking/charging systems
- Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
- Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
- Read and Erase Codes of All Available Systems
- Illustrated Guide for Battery Position and Testing
- Attached Cable with Clamps
Specifications
| Connectivity |
|
| Input Voltage | 5V DC |
| Working Current | < 150 mA at 12 V DC |
| CCA Range | 100 to 2000 A |
| Voltage Range | 6 to 36 V |
| Operating Temperature | -10° to 50° C (14° to 122° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Dimensions (W x H x D) | 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included) |
| Weight | 320 g (0.7 lb.) |
Videos
Downloads
 |
MaxiBAS BT508 User Manual | Download |
What's Included
Compare Similar
| MaxiBAS BT506 | MaxiBAS BT508 | MaxiBAS BT608 | |
|---|---|---|---|
| Image |  |
 |
 |
| HARDWARE | |||
| Screen |
—
|
—
|
5.5-Inch Touchscreen
720 x 1280 DPI / LED Color Screen
|
| Battery |
—
|
—
|
3,000 mAh 6H
|
| Processor |
Cortex-M4
|
CORTEX-M4
|
1.5 GHz
CORTEX-A35 QUAD-CORE
|
| Memory |
—
|
—
|
32GB SSD / 2GB RAM
|
| Camera |
—
|
—
|
8.0MP
|
| SOFTWARE | |||
| Operating System |
—
|
—
|
ANDROID 9.0
|
| FEATURES | |||
| CCA Range |
100-2000 CCA
|
100-2000 CCA
|
100-3000 CCA
|
| Battery Type |
Flooded, AGM, AGM Spiral, EFB, GEL
|
Flooded, AGM, AGM Spiral, EFB, GEL
|
Flooded, AGM, AGM Spiral, EFB, GEL
|
| Battery Ratings |
CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
|
CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
|
CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
|
| Battery Voltage |
6V, 12V
|
6V, 12V
|
6V, 12V
|
| Electrical System |
12V, 24V
|
12V, 24V
|
12V, 24V
|
| Voltage Range |
1.5-36V
|
1.5-36V
|
1.5-36V
|
| Temperature Compensation |
—
|
—
|
Included
|
| Battery Registration |
—
|
53 Vehicle Makes
|
53 Vehicle Makes
|
| Electrical Reset |
—
|
Included
|
Included
|
| System Detection |
—
|
AUTOVIN
|
AUTOVIN, VINSCAN, PLATE SCAN
|
| Battery Location Diagrams |
Included
|
Included
|
Included
|
| Battery Health Report |
—
|
Included
|
Included
|
| Built-In Printer |
—
|
—
|
Included
|
| Email Report |
—
|
Included
|
Included
|
| Cloud-Base Service |
Included
|
Included
|
Included
|
| Multimeter |
—
|
—
|
Optional
|
| Amp Clamp |
—
|
—
|
Optional
|
| DIAGNOSTICS | |||
| All System with Autoscan |
—
|
One Vehicle Brand Only
|
Included
|
| All Maintenance Resets |
—
|
—
|
—
|
| Diagnostic Software Update |
—
|
Charge for additional vehicle brands & annual update
|
No Annual Update Fee
|
