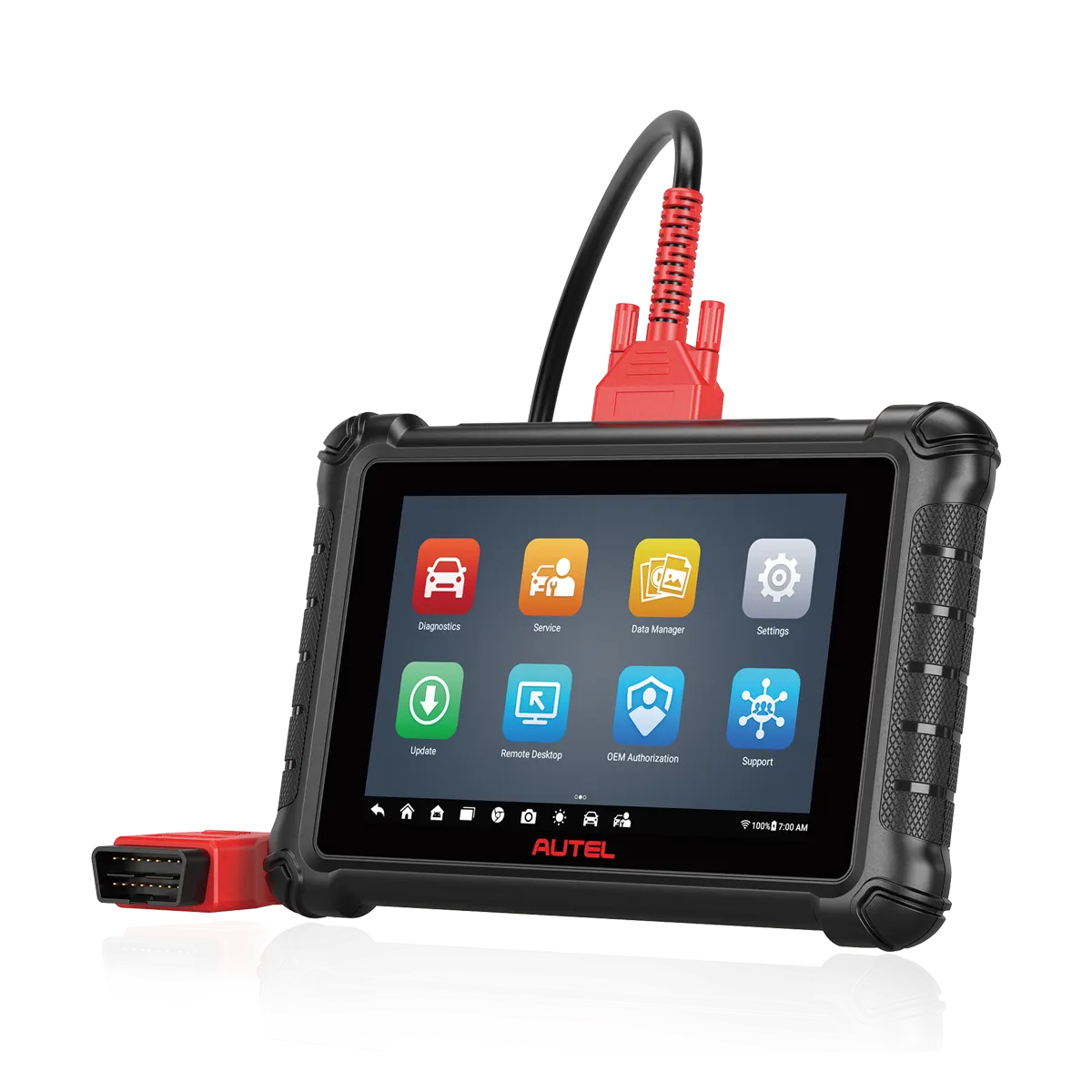

MaxiCheck MX900
ADVANCED SERVICE + ALL SYSTEMS DIAGNOSTICS
The MaxiCheck MX900 is an 8″ touchscreen, all-systems scanner, and service tablet. This powerful, corded tablet can read and erase codes, view Freeze Frame and, view and graph Live Data, and perform bi-directional Active Tests and Special Functions. The MX900 is also a full-featured service tablet with more than 40 Service and maintenance tasks, including Brake Bleed, Oil and Service lights resets, Battery registration, DPF regen, and Electronic Parking Brake and Steering Angle resets. The MX900 runs on Android 11 and is powered by 1.8 GHZ processor. The MaxiCheck MX900 comes with one year of free software updates, with subsequent updates available for purchase through the tool and linked Autel account only, and a limited warranty.
| MX9001YRUP: | Total Care (TCP) for MX900 $169.00 |
|---|
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads
- What's Included
- Sold Separately
- Compare Similar
- 8″ corded Wi-Fi-enabled touchscreen tablet
- Compatible with U.S., Asian, and European vehicles, 1996 and newer
- Read and erase codes, view and graph Live Data, view Freeze Frame data
- Perform bi-directional Active Tests and Special Functions
- Extensive, 40-plus Service Menu
- Android 11OS, 1.8 Ghz processor, and 7 hours of continuous battery life
- Update firmware and coverage software wirelessly
- One Year Limited Warranty
| Operating System | Android 11 |
| Processor | Quad-core processor |
| Memory | 64 GB |
| Display | 8-inch LCD touchscreen with 1280 x 800 resolution |
| Connectivity |
|
| Sensors | Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5 V/3 A |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Power Consumption | Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @ 3.7 V |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Storage Temperature | -10 to 60 °C (14 to 140 °F) |
| Operating Humidity | 5 % to 95 % non-condensing |
| Dimensions(W x H x D) | 168.9 mm (6.6”) x 259.8 mm (10.2”) x 33.6 mm (1.3”) |
| Net Weight | 925 g (2.04 lbs.) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, ISO13400, CAN FD |
