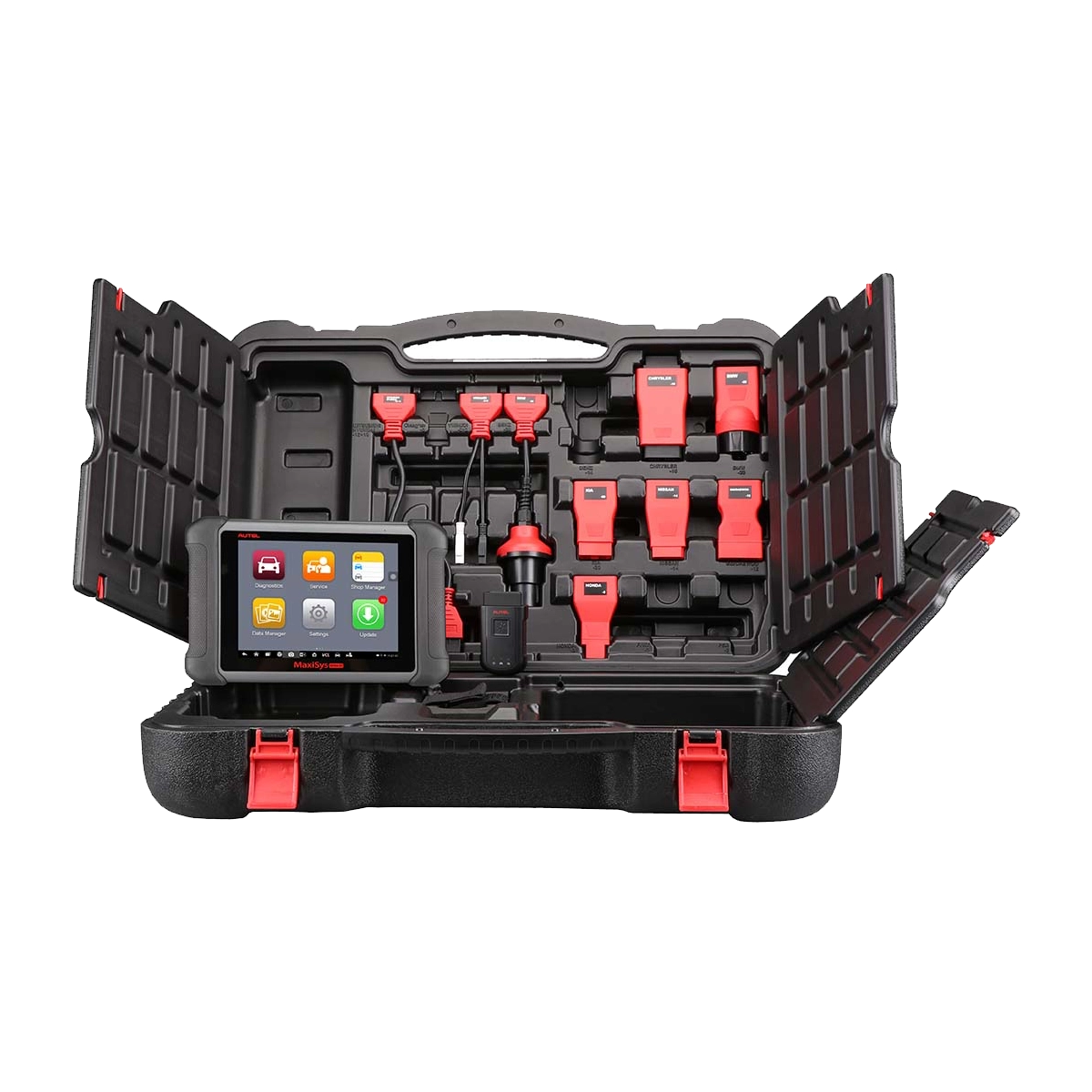

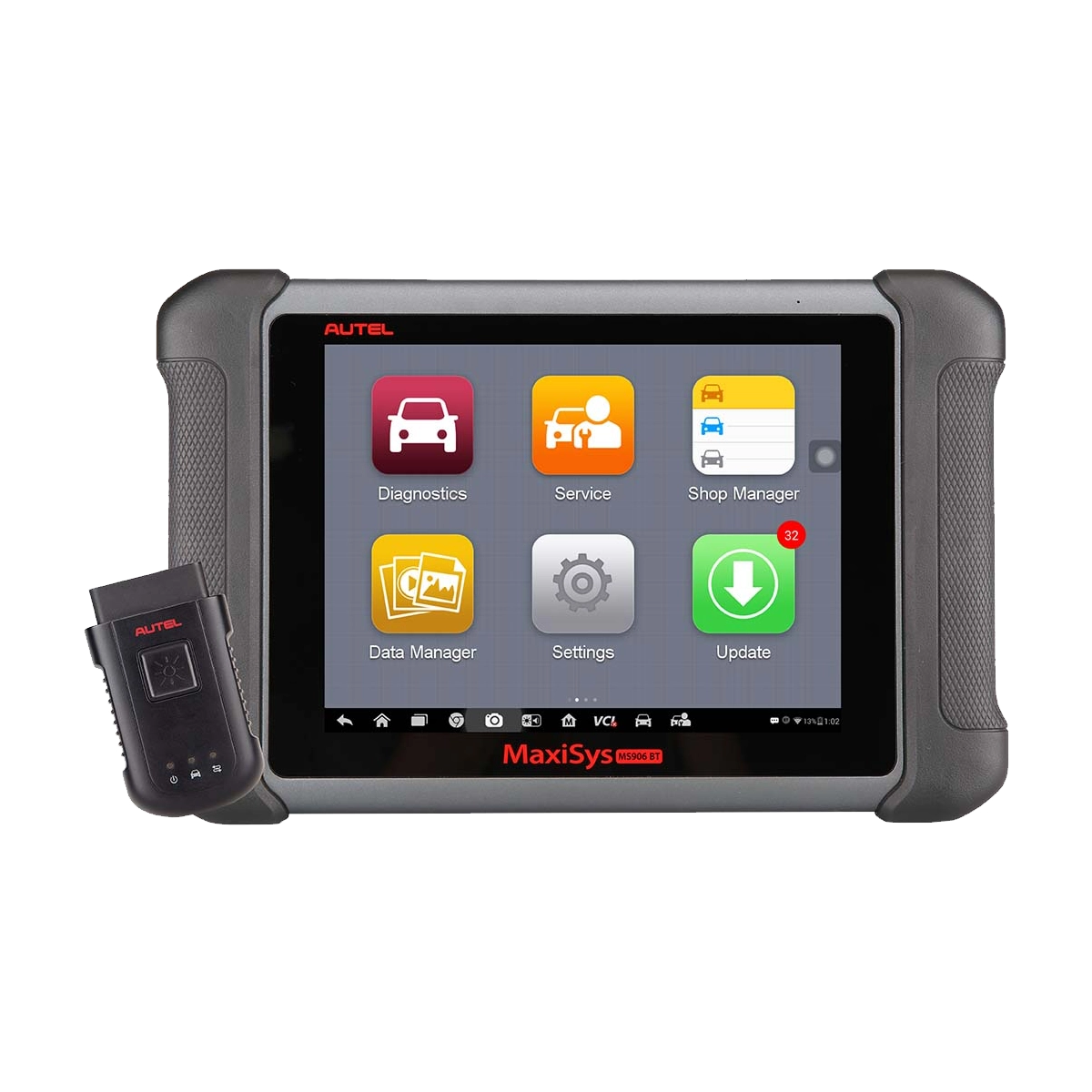

MaxiSYS MS906 BT
OBD2 Bi-Directional Bluetooth Diagnostic Scanner
MaxiSYS MS906BT is the latest addition to the MaxiSYS product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the MaxiSYS MS906BT efficiently provides comprehensive vehicle diagnostics and analysis.
| Availability: | This product has been discontinued. |
|---|---|
| MS906BT1YRUPDATE | Total Care (TCP) for MS906 BT $695.00 |
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads

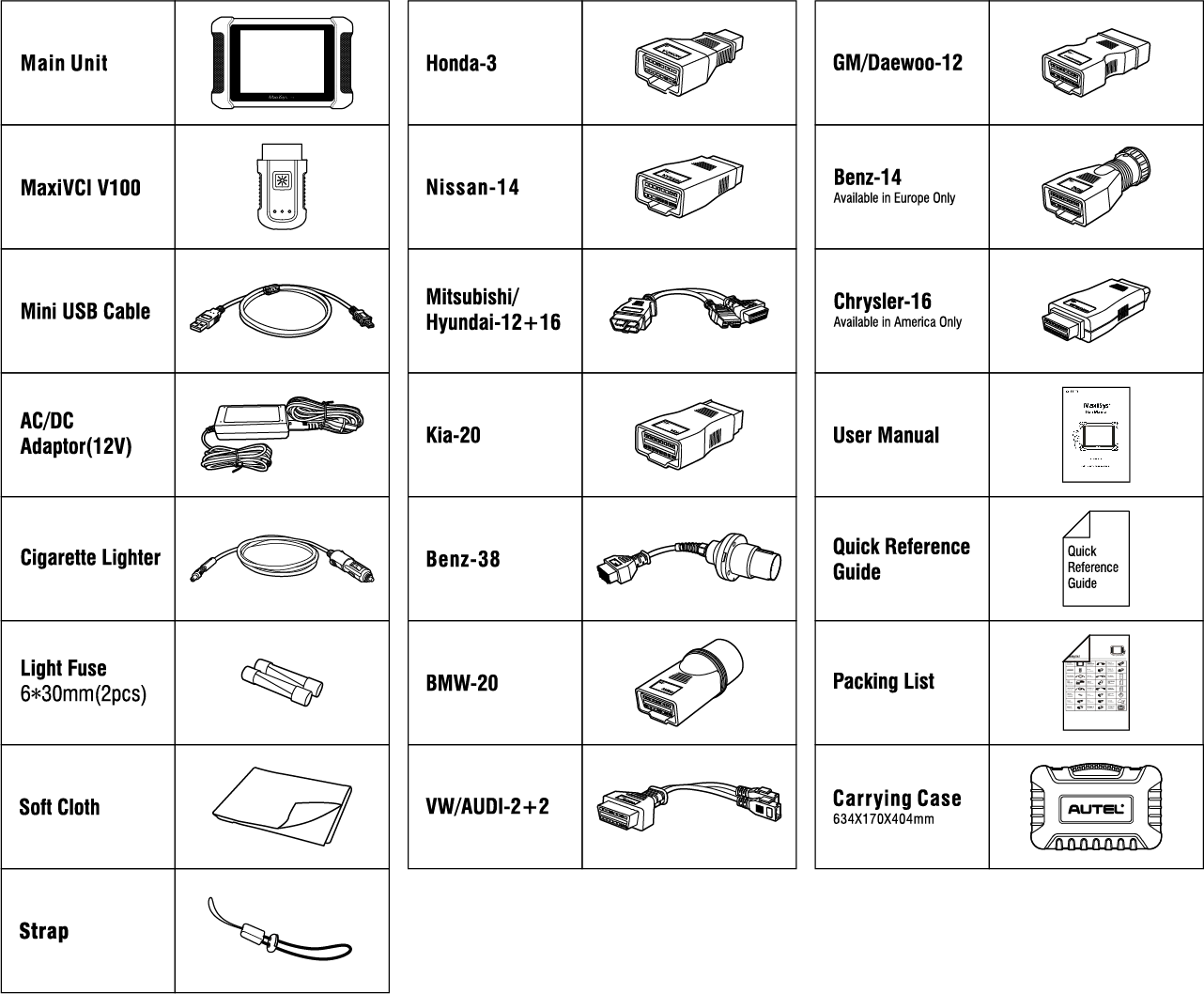

- What's Included
- Sold Separately
- Compare Similar
- Extraordinarily powerful Samsung Exynos Hexa-core processor
- 8.0” 1024×768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
- Internal reliable 64GB SSD for better performance
- Built-in 8-megapixel rear camera with autofocus and flashlight
- 802.11b/g/n Wi-Fi to access your favorite web resources
- Unique ergonomic design with rubberized outer protection and a rugged internal housing
- Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
- USB, audio and auxiliary ports make it easy to connect accessories
- Open source Android Operating System for fast boot-up and multitasking
- Easy and intuitive navigation makes finding what you need simple and fast
- The most extensive complete system coverage for more than 80 US, Asian and European makes and models
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
- Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
- Smart AutoVIN technology for identifying vehicle easily
- Automatic system and software updates with real-time push message notifications via internet
- Instant remote control tech support anytime, anywhere
- Cloud-based MaxiFix online community provides proven filed fixes
- Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
- Convenient data management system for managing internal program applications and reviewing data
| Operating System | Android 4.4.2, KitKat |
| Processor | Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) |
| Memory | 2 GB RAM & 64 GB ROM |
| Display | 8.0" LED capacitive touch screen with 1024x768P resolution |
| Connectivity |
|
| Camera (rear) | Rear-facing, 8.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12 V (9-35 V) |
| Power Consumption | 5W |
| Operating Temperature | -10 to 55°C (14 to 131°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Dimensions (W x H x D) | 270.8 mm (10.0") x 176.0 mm (6.9") x 36.0 mm (1.4") |
| Net Weight | NW: 1.05 kg (2.3lb.) |
MaxiSYS Elite | MaxiSYS CV | MaxiSYS MS908S Pro | MaxiSYS MS908S | MaxiSYS MS906TS | MaxiSYS MS906BT | MaxiSYS MS906 | |
| Function | |||||||
| All Systems DTC Scan | √ | √ | √ | √ | √ | √ | √ |
| Service Function | √ | √ | √ | √ | √ | √ | √ |
| Bi-Directional Control | √ | √ | √ | √ | √ | √ | √ |
| Auto VIN Technology | √ | √ | √ | √ | √ | √ | √ |
| ECU Coding | √ | -- | √ | √ | √ | √ | -- |
| ECU Programming | √ | -- | √ | -- | -- | -- | -- |
MaxiFix Cloud-Based Info System | √ | √ | √ | √ | √ | √ | √ |
| Data Manager | √ | √ | √ | √ | √ | √ | √ |
| Shop Manager | √ | √ | √ | √ | √ | √ | √ |
| Remote Support | √ | √ | √ | √ | √ | √ | √ |
| Pre-scan Report & Post-scan Report | North America Only | -- | North America Only | North America Only | √ | North America Only | North America Only |
| Print Feature | √ | √ | √ | √ | √ | √ | √ |
| Multi-language Support | √ | √ | √ | √ | √ | √ | √ |
| Coverage | |||||||
| Domestic/Asian/European Coverage(1996-Present) | √ | √ | √ | √ | √ | √ | √ |
| Hardware | |||||||
| Display Size | 9.7" | 9.7" | 9.7" | 9.7" | 8" | 8" | 8" |
| Wireless VCI | MaxiFlash Elite | MaxiFlash Elite | MaxiFlash Elite | Wireless Diagnostic Interface | MaxiVCI V100 | MaxiVCI V100 | -- |
| Battery Life | 15400 mAh 3.7 V | 11000 mAh 3.7 V | 11000 mAh 3.7 V | 11000 mAh 3.7 V | 10000 mAh 3.7 V | 10000 mAh 3.7 V | 5000 mAh 3.7 V |
| Memory Storage | 64GB | 64GB | 64GB | 64GB | 32GB | 32GB | 32GB |
| Connector Kit | √ | √ | √ | √ | √ | √ | √ |
| Options | |||||||
| TPMS | -- | -- | -- | -- | √ | -- | -- |
| Oscilloscope | √ | √ | √ | √ | √ | √ | -- |
| Inspection Camera | √ | √ | √ | √ | √ | √ | -- |
| ADAS | √ | -- | √ | √ | -- | √ | √ |
