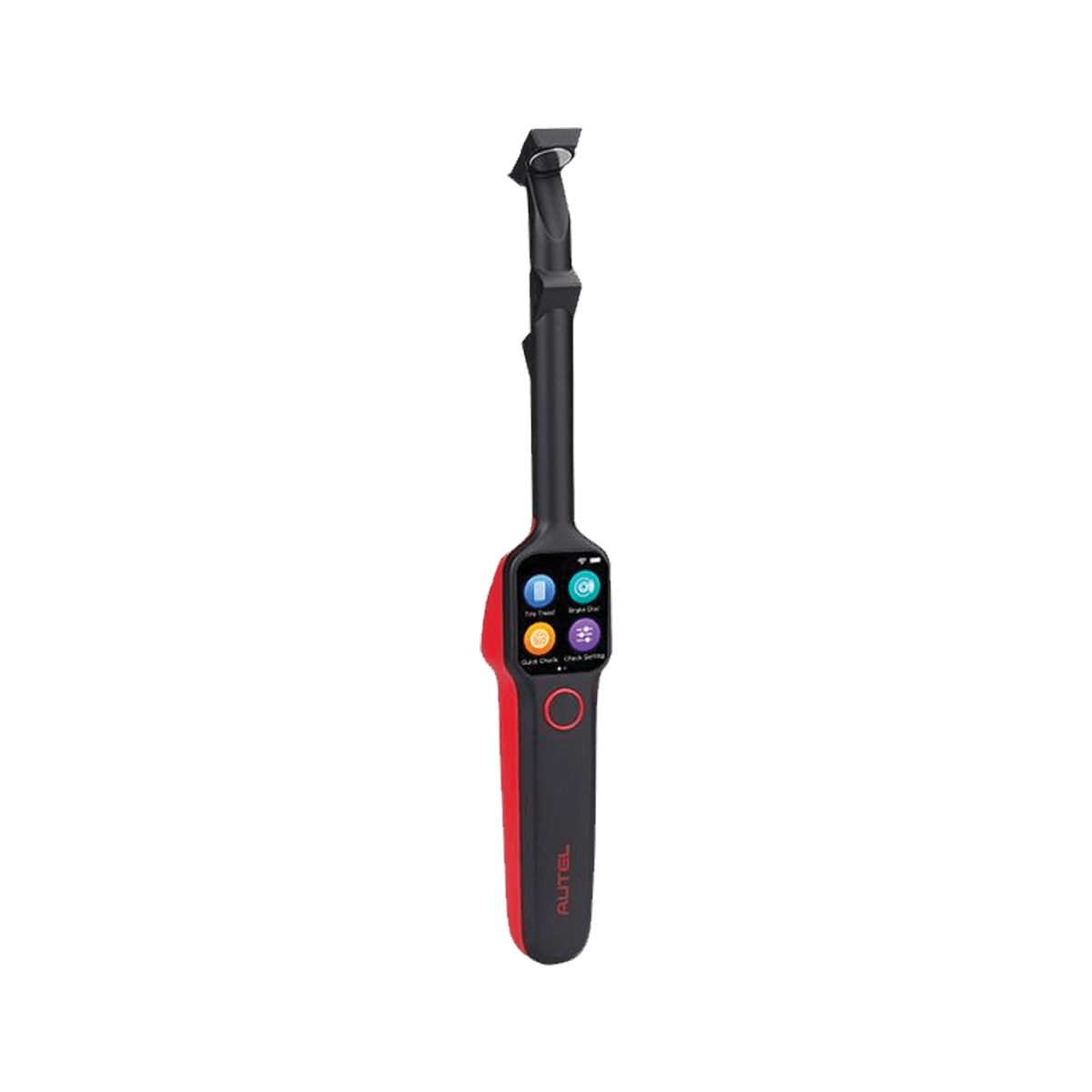

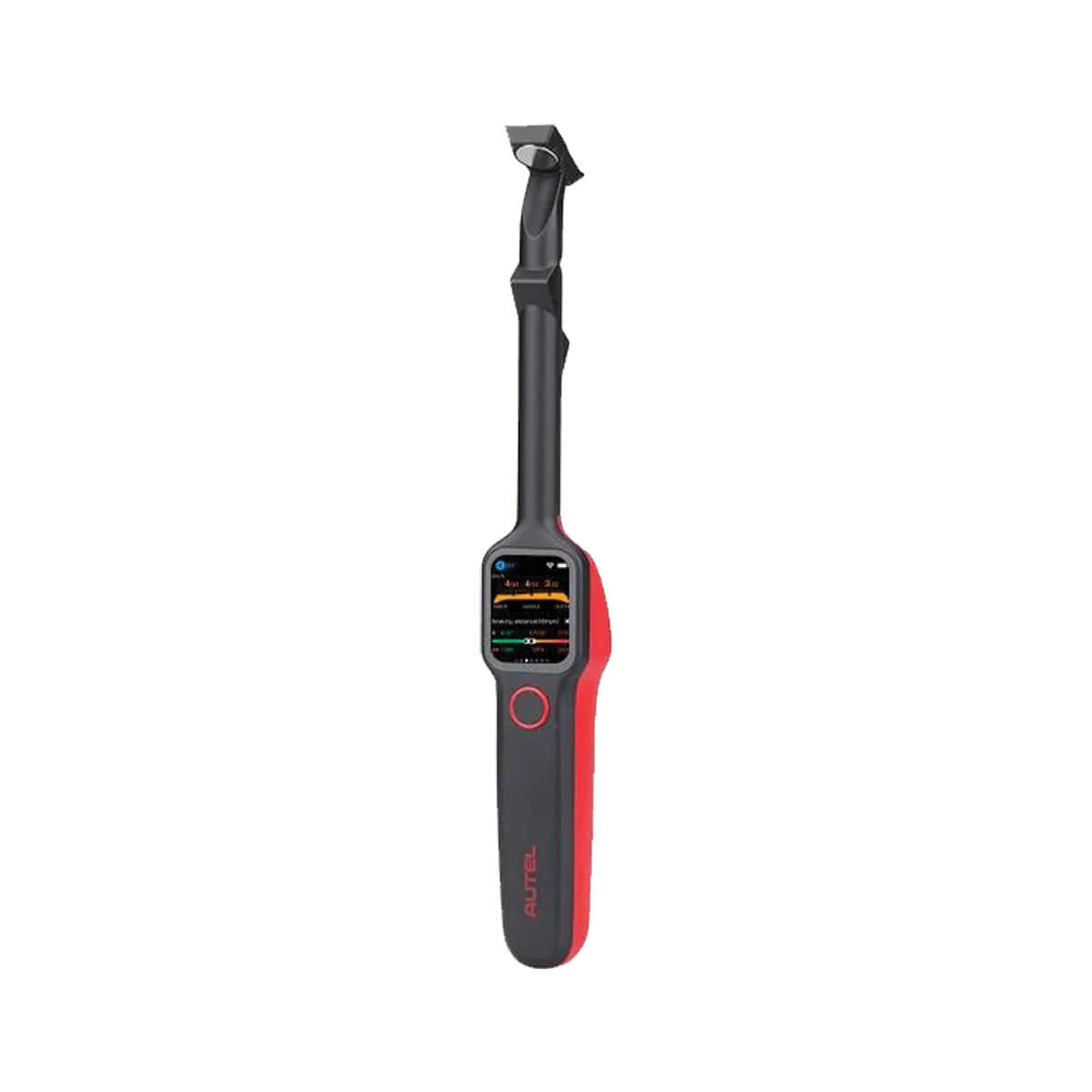

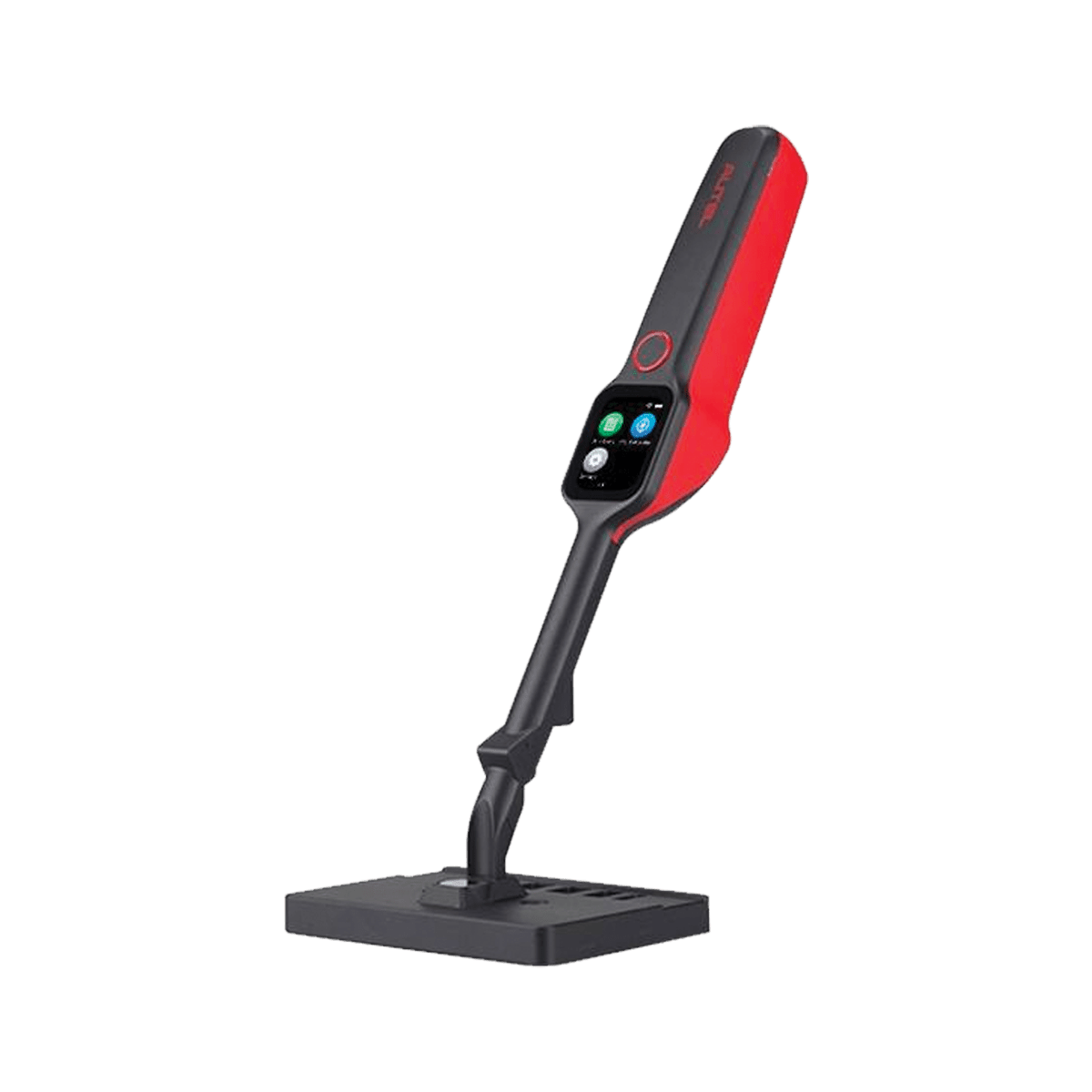

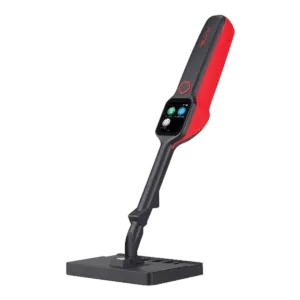

MaxiTPMS TBE100
Laser-Enabled Tire Tread Depth Examiner
The MaxiTPMS TBE100 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. The TBE100, which features a 0.95” AMOLED touchscreen display, features 4-megapixel, 4 cm macro camera. Use alone or with ITS600 Advanced Tire Service tablet to produce detailed reports. This lightweight tool features a rechargeable 1300 mAh Lithium-Ion Battery. Includes a one-year limited warranty.
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Videos
- Downloads

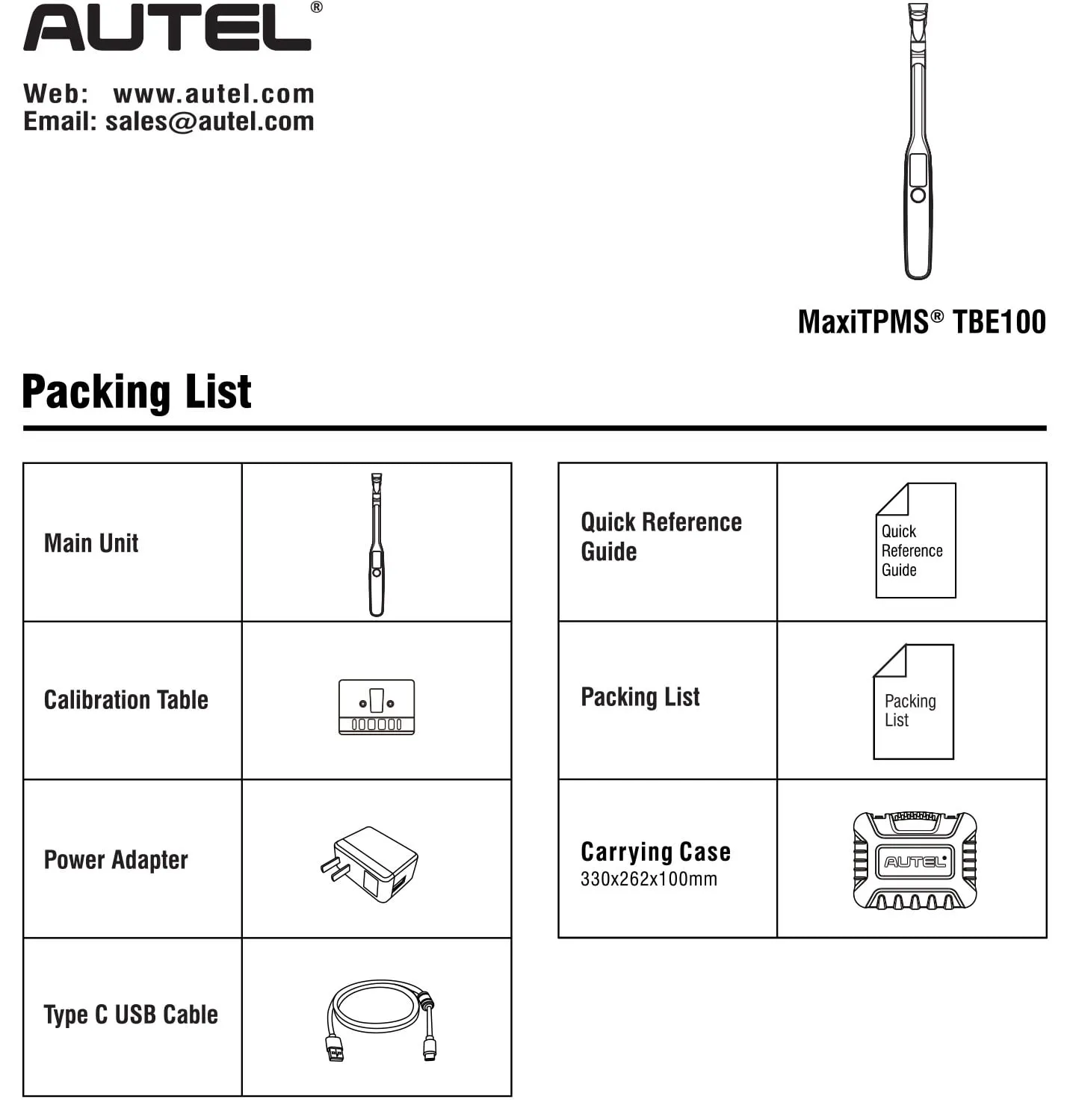

- What's Included
- Compare Similar
- Tire Tread and Brake Disc Wear Examiner
- Laser-Enabled; No Need to Remove Tire
- .95” AMOLED Super Retina Touchscreen Display
- Precise Wear Data Displayed on Screen
- Features 4-megapixel, 4 cm Macro Camera
- Compatible with Passenger, Commercial and Off-road Vehicles
- Work Alone or With New MaxiTPMS ITS600 Tablet
- 1300 mAh Lithium-Ion Battery
- One-year Limited Warranty

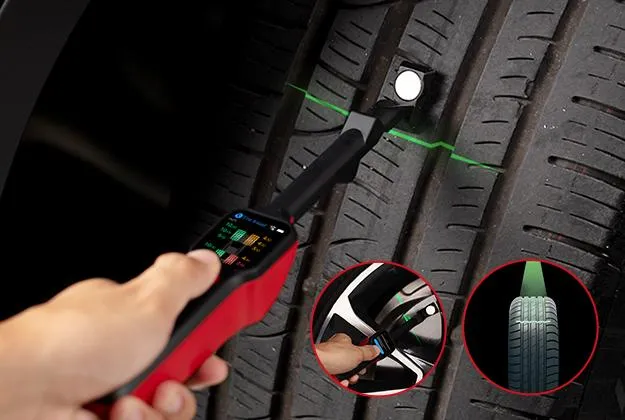

Laser Measurement
- Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
- Laser measurement with 0.1mm accuracy
- Single tread and full tread measurement
- Quick Check both tread depth & brake disc

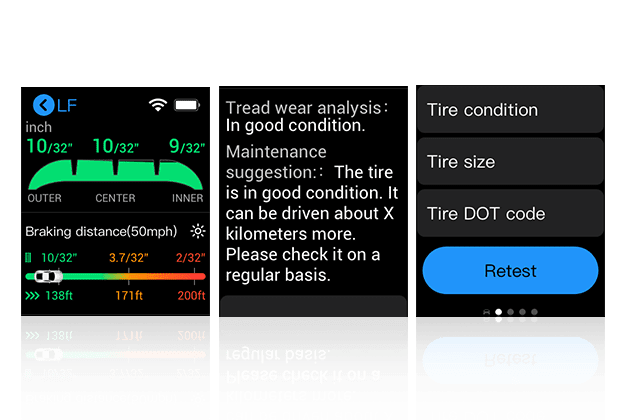

Real-time Tire Health Analysis
- Real-time measurement data on touchscreen
- Measurement data curve display
- Uneven wear analysis
- Test detail for tire tread / brake disc
- Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)

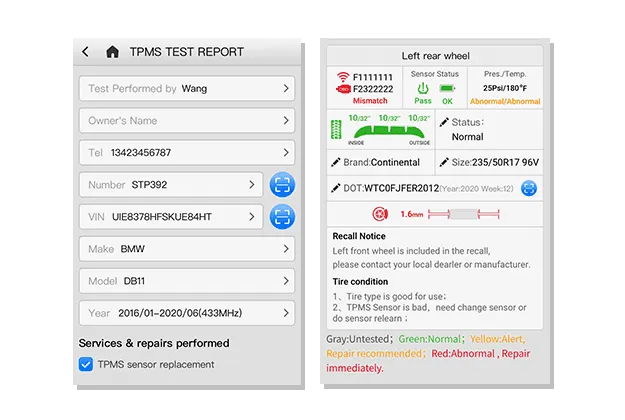

Comprehensive Test Report
Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics (Requires ITS600)

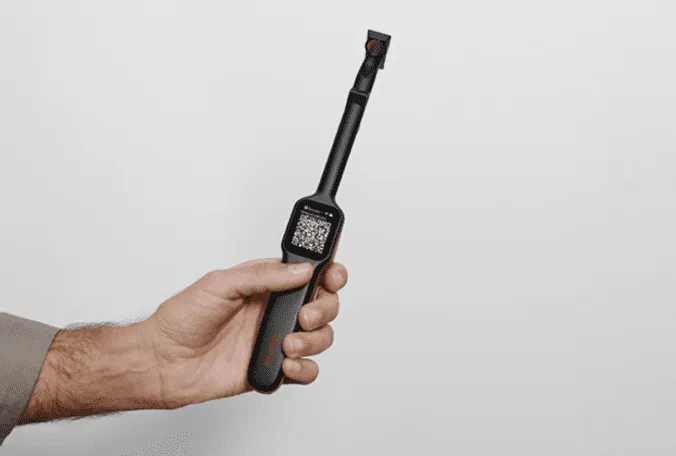

Easy To Use QR Code Report Download & Sharing
Generate QR codes for tire tread depth and brake disc measurements to allow for easy report sharing & download via mobile phones or tablets.
| Recommended Use | Indoor |
| Processor | 4x ARM Cortex-A35 (1.5 GHz) |
| Memory | 1GB RAM & 4GB ROM |
| Display | 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution |
| Connectivity |
|
| Camera | 1 megapixel |
| Audio Output | Output: Beep |
| Power and Battery |
|
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 300 mA (AMOLED on with default brightness) @3.7 V |
| Operating Temperature | -10 to 45°C(14 to 113°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 283.0 mm (11.14") x 39.0 mm (1.54") x 33.5 mm (1.32") |
| Net Weight | 186 g (0.41 lb.) |
 |
TBE100/TBE200 Quick Reference Guide | Download |

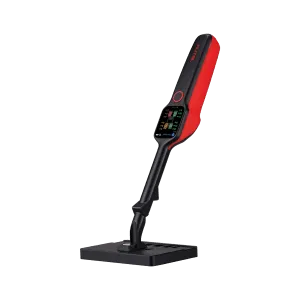

| MaxiTPMS TBE100 | MaxiTPMS TBE200 | |
|---|---|---|
 |  | |
| HARDWARE | ||
| Screen | 1.65" AMOLED Super Retina Touchscreen | 1.65" AMOLED Super Retina Touchscreen |
| Battery | Lithium-ion 3000mAh | Lithium-ion 3000mAh |
| Processor | Vibration Reminder | Vibration Reminder |
| Memory | 4GB Flash / 1GB RAM | 4GB Flash / 1GB RAM |
| Camera | 1 Megapixel Macro Camera | 1 Megapixel, 4cm Macro Camera; 8 Megapixel 10cm zoomable Camera |
| COMPARE FEATURES | ||
| Tire tread depth/ brake disc wear measurement | Yes | Yes |
| No need to remove the wheel during measurement | Yes | Yes |
| Laser measurement | Yes | Yes |
| Measurement accuracy | 0.1mm | 0.1mm |
| Real-time measurement data on touchscreen | Yes | Yes |
| Measurement data curve display | Yes | Yes |
| Full tread measurement | Yes | Yes |
| Uneven wear analysis | Yes | Yes |
| Replacement & Maintenance suggestions | Tire replacement, brake disc replacement, tire rotation, four tire alignment | Tire replacement, brake disc replacement, tire rotation, four tire alignment |
| Quick Check | Yes | Yes |
| Test detail for single tire tread / brake disc | Yes | Yes |
| Comprehensive Test Report with TPMS | (With the ITS600) | (With the ITS600) |
| Scan DOT | — | Yes |
| Tire expiration notice | — | Yes |
| Tire recall lookup | — | Yes |
| Take photos of tire wear and damage | — | Yes |
| Compatible with | Passenger cars, off-roads, commercial vehicles | Passenger cars, off-roads, commercial vehicles |
