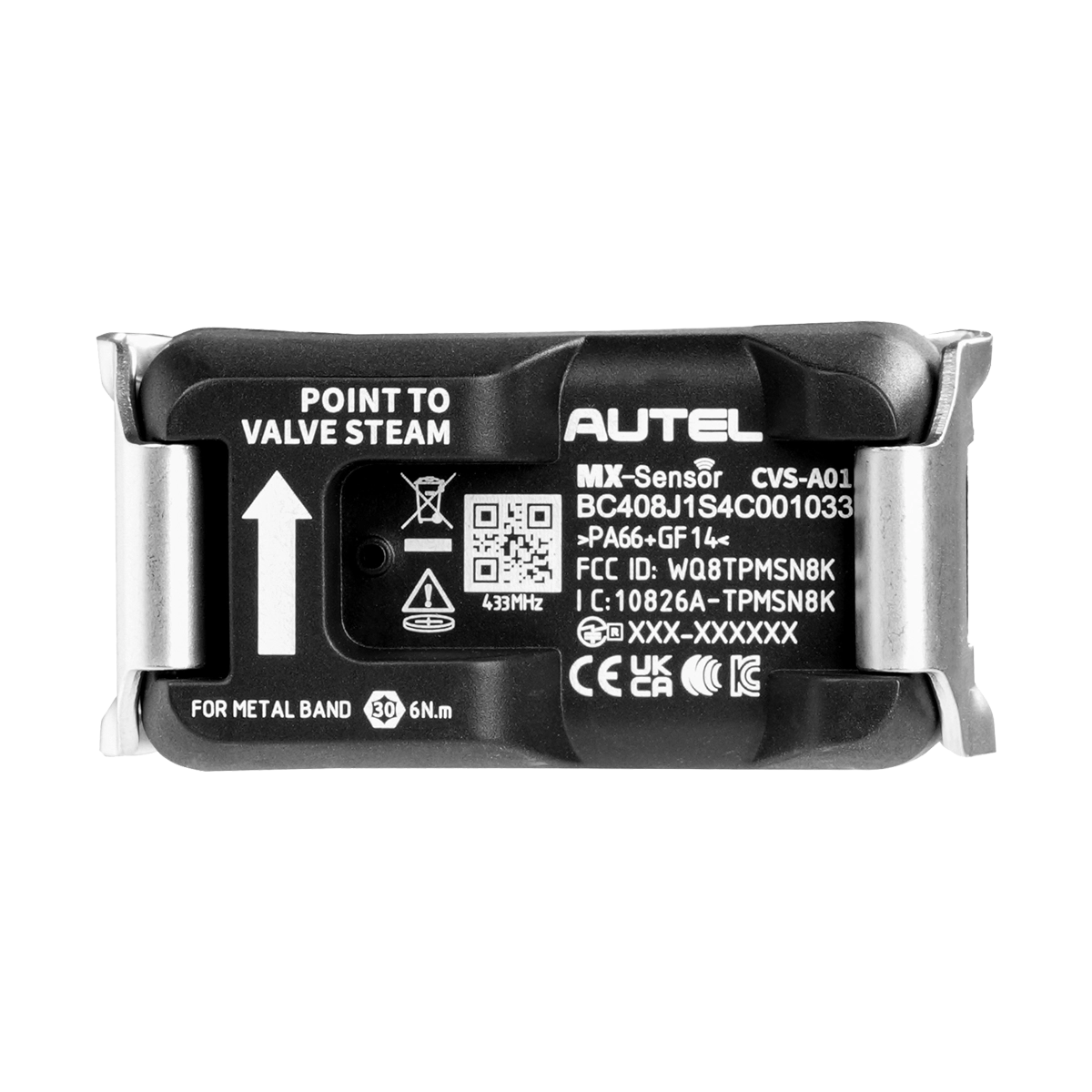

CVS-A01 Metal Strap Programmable CV TPMS Sensor
CV TPMS Sensor
The Autel MX-Sensor CVS-A01, part number 300170, is a programmable universal TPMS sensor designed for commercial vehicles with a metal band to attach the sensor to rim that is compatible with rims sized 14 to 24.5-inches. Program the CVS-A01 with the Autel MaxiTPMS ITS600 CV tool to replace OE and programmed aftermarket TPMS sensors on trucks, trailers, buses all manner of direct sensor, TPMS commercial vehicles. The CVS-01 is compatible with 433MHZ frequency systems. All Autel TPMS sensors are designed to meet or exceed industry standards and offer long battery life for proven customer satisfaction. The CVS-A01 is covered by a two-year limited warranty.
| MX-Sensor CVS-A01: Metal Strap R14-24.5 |
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads

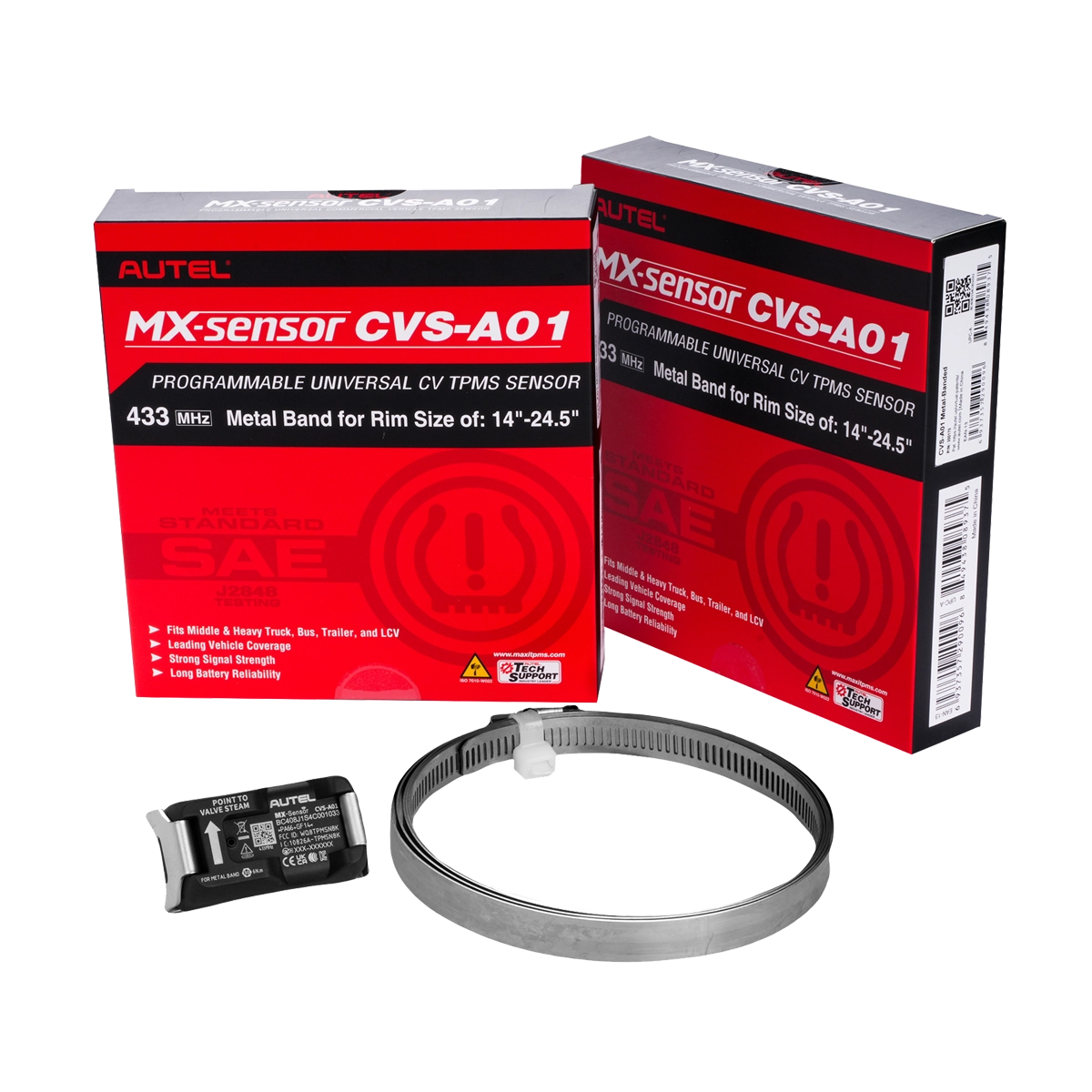

- What's Included
- Sold Separately
- Compare Similar
- Programmable Commercial Vehicle TPMS Sensor

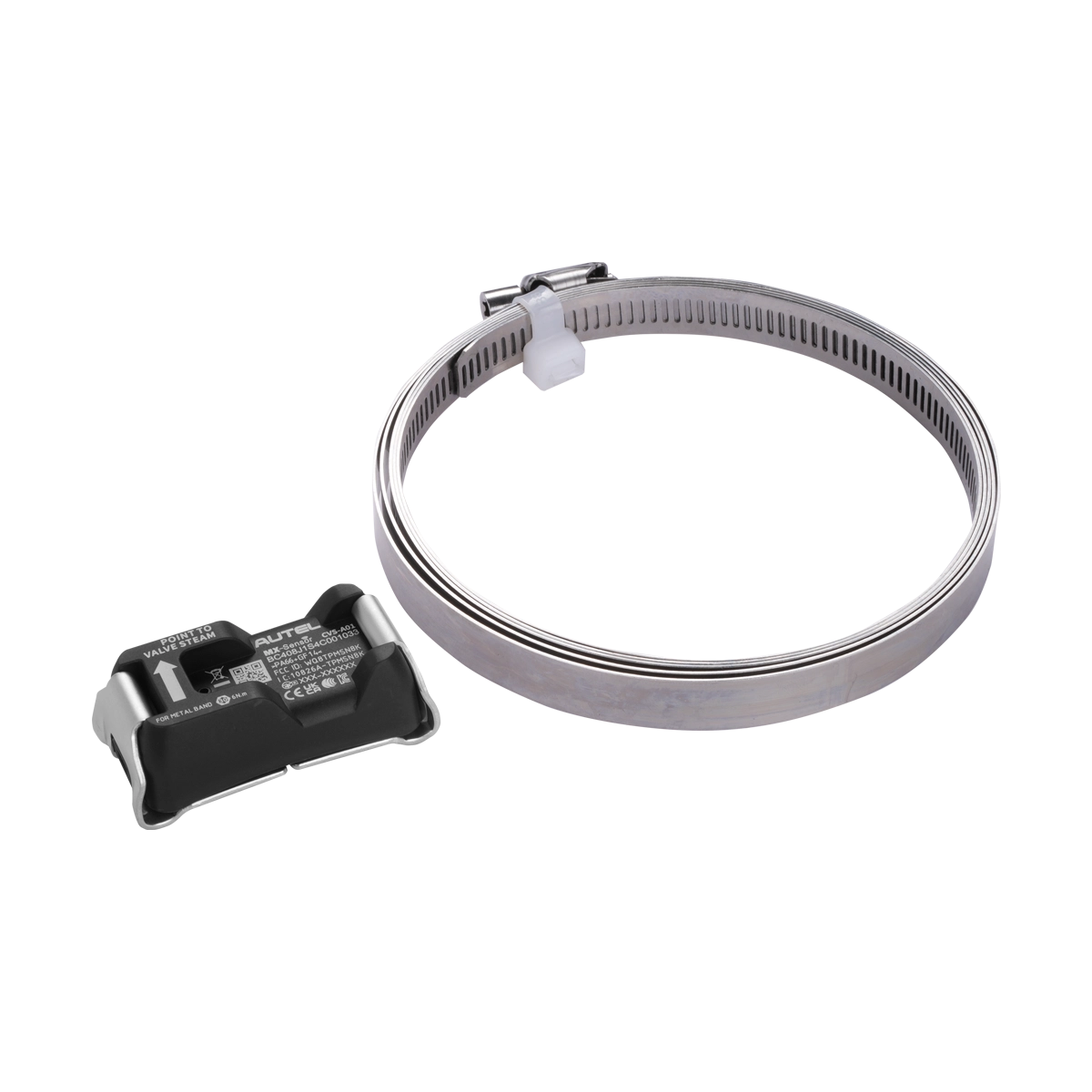

- Package includes metal band to attach sensor to rim, compatible with rims sized 14 to 24.5-inches
- Program the Autel CVS-A01 sensor with the Autel MaxiTPMS ITS600 CV tablet to replace TPMS sensors on light, medium and heavy-duty vehicles
- Compatible with 433MHZ frequency systems
- Autel TPMS sensors are designed to meet or exceed industry standards and offer long battery life for proven customer satisfaction
- Covered by a two-year limited warranty
| Weight (sensor body only) | 26.3 g |
| Dimension（W x H x D | 54.0 x 29.4 x 18.1 mm |
| Max. pressure range (relative) | 1400 kPa |
| Operating relative pressure | 0-1.4 MPa |
| Operating temperature | -40°C to 125°C |
| Operating frequency | 433 MHz |
| Battery capacity | 550mAh |
| Battery life | ≥5 years |
