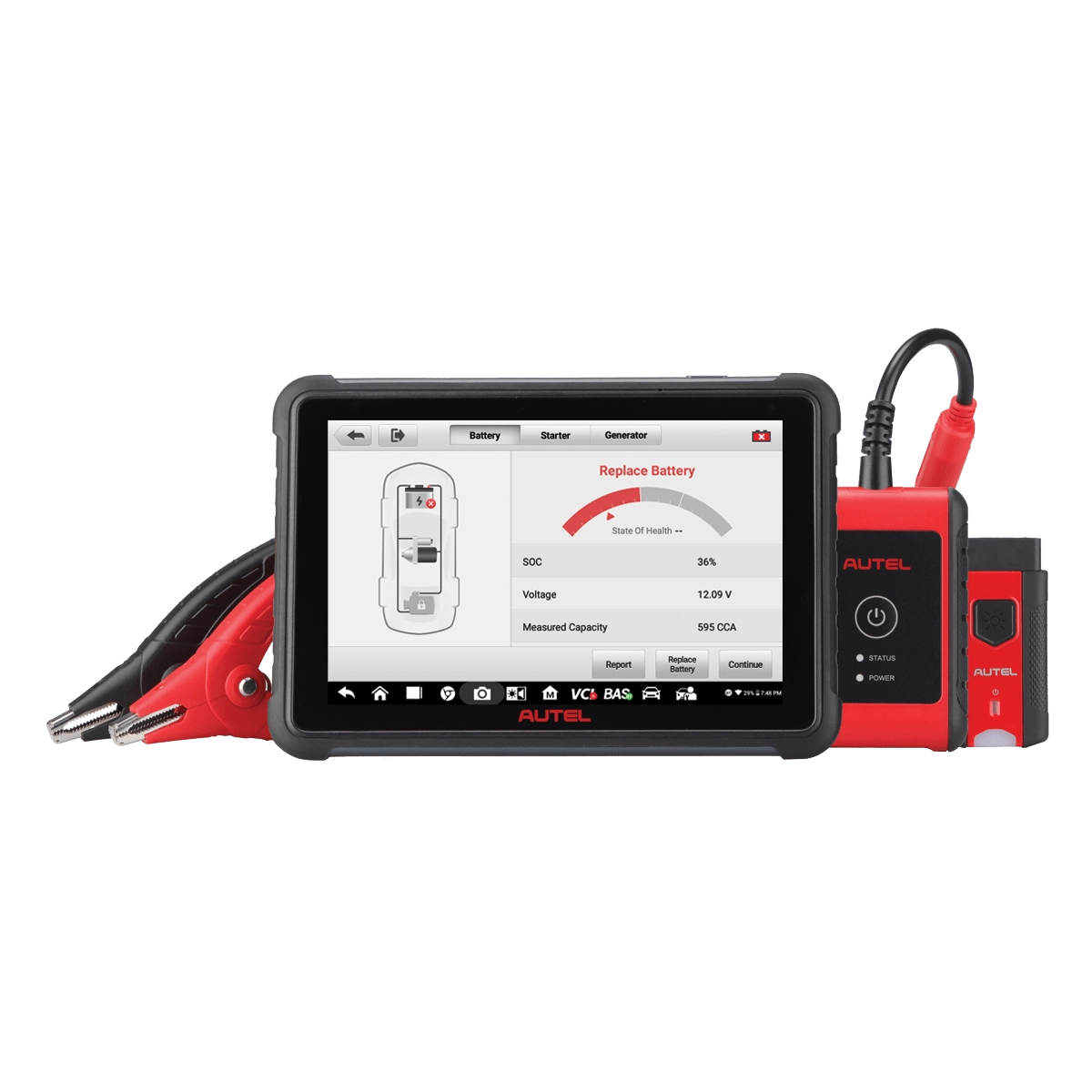

MaxiBAS BT609

Battery Testing and Analysis

The MaxiBAS BT609 wireless battery and electrical system analysis tablet using Adaptive Conductance, an advanced battery analysis method that produces a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The 7-inch Android touchscreen tablet can display a quick health status of the existing battery, register a new battery and perform advanced battery and electrical system diagnostics. The BT609’s features include AutoVIN to immediately identify vehicle and battery information and to display graphic instructions for battery positioning and testing. Features service menu. Read/Clear codes on all available vehicle systems and perform common maintenance services. Print or share customized reports via Wi-Fi. One year of free software updates and limited hardware warranty.

SKU: BT609 Category:
  • Android-based Wireless Battery and Electrical System Analysis Tablet
  • 7-inch Touchscreen / Android 9.0 / Wi-Fi Software Updates
  • Uses Adaptive Conductance to Produce a More Accurate Exam of the Battery's Status
  • Support In-vehicle and Out-of-vehicle Testing of Passenger Vehicle Batteries
  • Test 6- and 12-volt Batteries: 100-3000 CCA
  • Test 12- and 24-volt Cranking/Charging Systems
  • Test Flooded, AGM, AGM Spiral, EFB and GEL Batteries
  • Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
  • Features VINscan for Rapid Identification of Vehicle and Battery Specifications
  • All Systems Code Reader and Service Menu
  • One Year of Free Software Updates and Limited Hardware Warranty

Specifications

Operating System Android 9.0
Memory 2GB RAM & 64GB On-board Memory
Display 7.0 inch TFT-LCD with 1280 x 800 resolution & capacitive touch screen
Connectivity
  • Wi-Fi (IEEE 802.11 a/b/g/n/ac 1×1)
  • BT 5.0+EDR+BLE
  • USB 2.0 (1 USB HOST + 1 USB OTG)
  • Micro SD Card (Support up to 128GB)
Camera 8 Megapixel
Sensor Ambient Light Sensor (ALS)
Audio Microphone
Input/Output Loudspeaker
Power and Battery
  • 5800 mAh 3.85 V lithium-polymer battery
  • Charging via 5 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 5V / 2A Adapter
Operating Temperature 0 to 50° C (32 to 122° F)
Storage Temperature -10 to 60° C   (14 to 140° F)
Dimensions(W x H x D) 197 mm (7.75″) x 135 mm (5.31″) x 14 mm (0.55″)
Weight 445 g (0.98 lb.)

Videos

Downloads

PDF MaxiBAS BT609 User Manual Download
PDF MaxiBAS BT609 Quick Start Guide Download

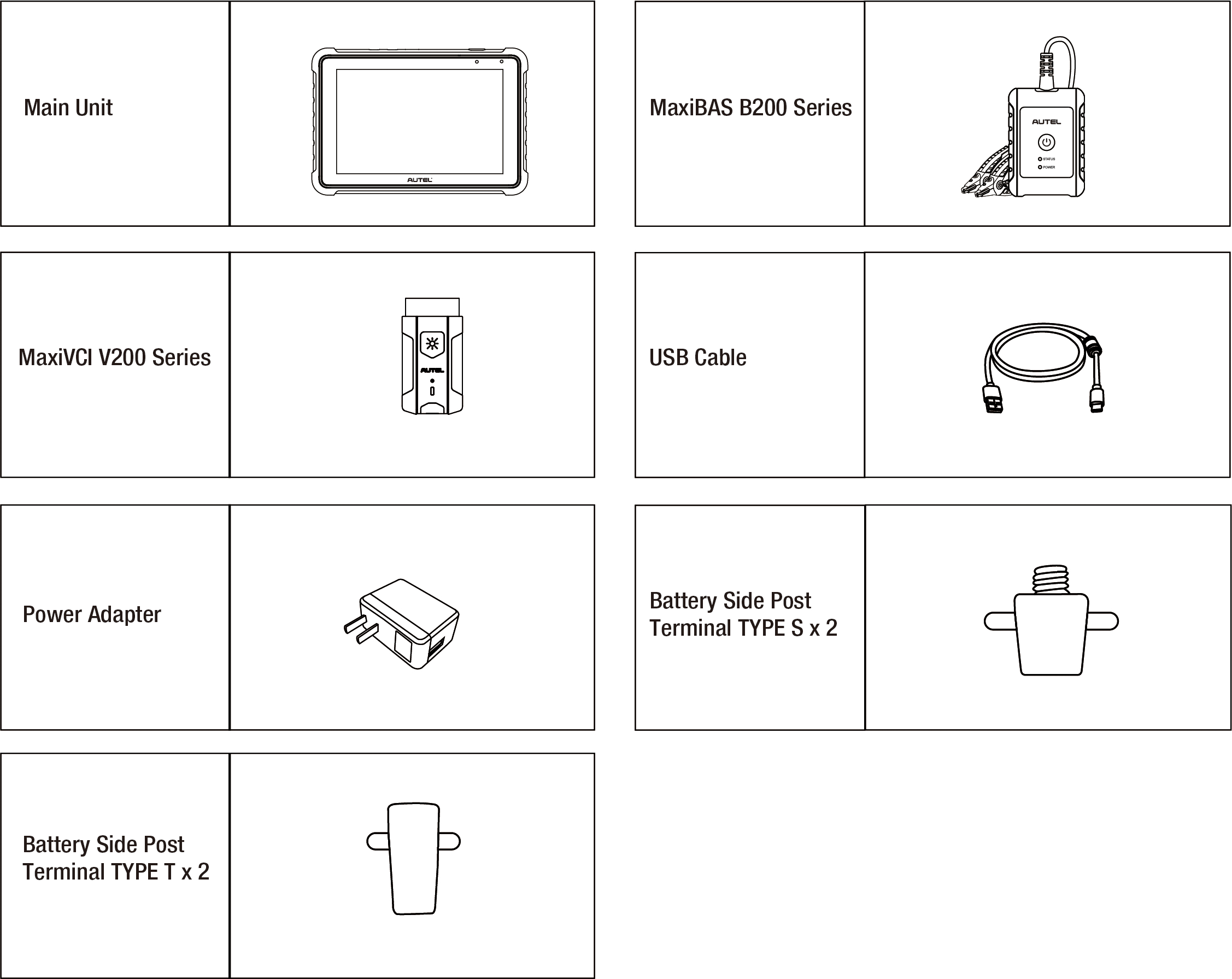

What's Included

MaxiBAS BT609 Accessories

Compare Similar

MaxiBAS BT508 MaxiBAS BT608 MaxiBAS BT609
MaxiBAS BT508 Battery Tester MaxiBAS BT608 MOTOR Top 20 MaxiBAS BT609 Kit
HARDWARE
Screen
5.5-Inch Touchscreen
720 x 1280 DPI / LED Color Screen
7-Inch Touchscreen
1280 x 800 DPI / LED Color Screen
Battery
3,000 mAh 6H
6,000 mAh 6H
Processor
CORTEX-M4
1.5 GHz
CORTEX-A35 QUAD-CORE
1.5 GHz
CORTEX-A35 QUAD-CORE
Memory
32GB SSD / 2GB RAM
64GB SSD / 2GB RAM
Camera
8.0MP
8.0MP
SOFTWARE
Operating System
ANDROID 9.0
ANDROID 9.0
FEATURES
CCA Range
100-2000 CCA
100-3000 CCA
100-3000 CCA
Battery Type
Flooded, AGM, AGM Spiral, EFB, GEL
Flooded, AGM, AGM Spiral, EFB, GEL
Flooded, AGM, AGM Spiral, EFB, GEL
Battery Ratings
CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
Battery Voltage
6V, 12V
6V, 12V
6V, 12V
Electrical System
12V, 24V
12V, 24V
12V, 24V
Voltage Range
1.5-36V
1.5-36V
1.5-36V
Temperature Compensation
Included
Included
Battery Registration
53 Vehicle Makes
53 Vehicle Makes
53 Vehicle Makes
Electrical Reset
Included
Included
Included
System Detection
AUTOVIN
AUTOVIN, VINSCAN, PLATE SCAN
AUTOVIN, VINSCAN, PLATE SCAN
Battery Location Diagrams
Included
Included
Included
Battery Health Report
Included
Included
Included
Built-In Printer
Included
Email Report
Included
Included
Included
Cloud-Base Service
Included
Included
Included
Multimeter
Optional
Optional
Amp Clamp
Optional
Optional
DIAGNOSTICS
All System with Autoscan
One Vehicle Brand Only
Included
Included
All Maintenance Resets
Included
Diagnostic Software Update
Charge for additional vehicle brands & annual update
No Annual Update Fee
Annual Update Fee
