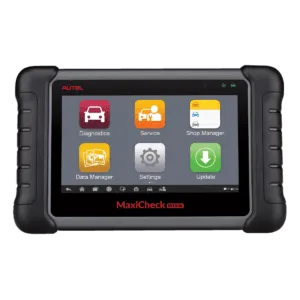

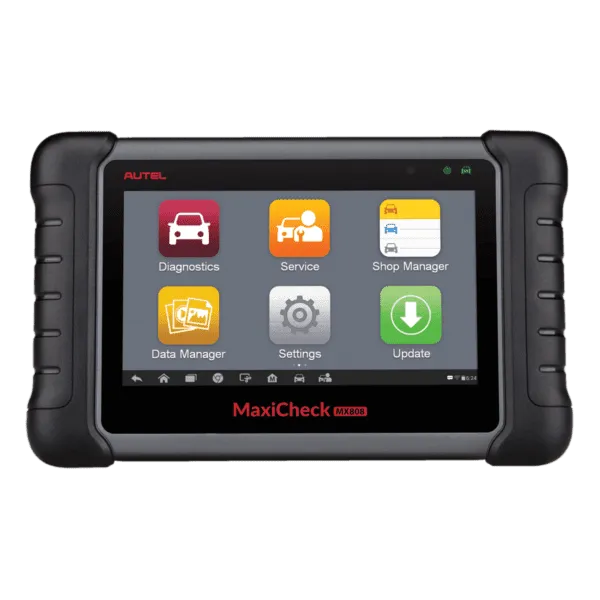

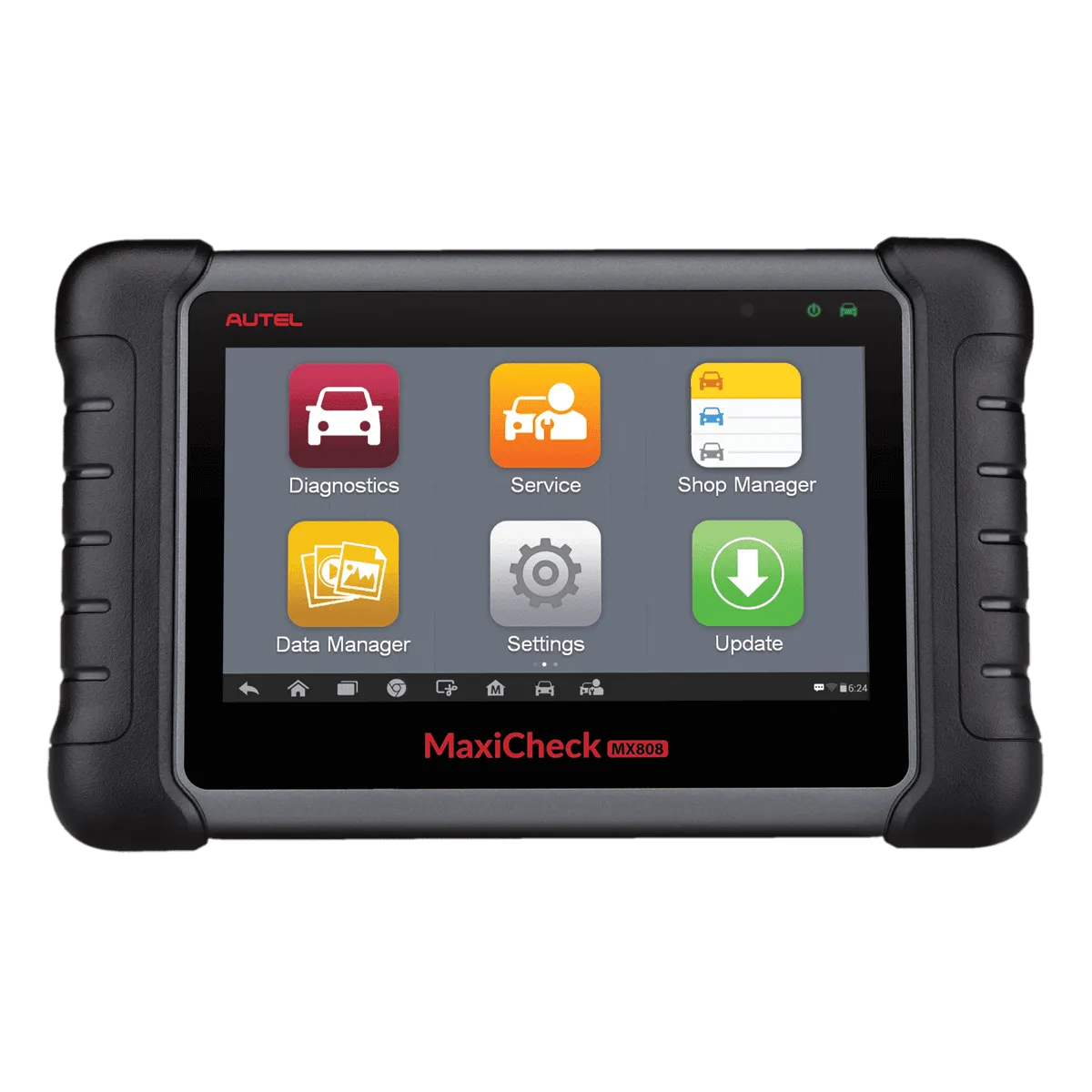

MaxiCheck MX808
Advanced Service + All System Diagnostics
The MX808 is a combination service and diagnostic scan tool. The 7-inch touchscreen tablet comes equipped with an Android 4.4.4 operating system, a 1.5GHz quad-core processor, 32G hard drive, and the Autel MaxiSYS system suite software. It can access all available modules in all systems, performs AutoSCAN and AutoVIN (2006+), currently has 17 service functions including ABS brake bleed, and generates printable diagnostic reports. The MX808 can graph/record/playback live data, display live and freeze frame data, performs I/M readiness/emissions testing, enhanced Mode 6 diagnostics, and can set inspection 1&2 service intervals. The MX808 is updatable via Wi-Fi and includes an OBDII cable. A 1-year tool warranty and 1 year of free software updates are available with purchase. This tool is eligible for TCP expanded coverage.
| Availability: | This product has been discontinued. |
|---|
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads
- What's Included
- Sold Separately
- Compare Similar
- AutoVIN 2006+ /AutoSCAN: All Modules in All Systems
- 17 Service Functions / Generates Printable Diagnostic Reports
- Covers Domestic, Asian and European Vehicle Manufacturers (1996+) 1Yr FREE Updates
- 7” Touchscreen /1.5GHz Quad-Core Processor /32GB Memory /2GB RAM
- Android 4.4.4 /Wi-Fi Software Updates
- I/M Readiness / Emissions Testing
- Reset Diesel Emissions on Select Light & Med. Duty Vehicles/DPF Regeneration
- Set Inspection 1&2 Service Intervals
- Support OBDII Protocols & All 10 Test Modes
- Enhanced Mode 6 Diagnostics
- View Live and Freeze Frame Data
- Relearn TPMS Sensor ID (activation tool required)
- Graph, Record & Playback Live Data
- MaxiSYS System Suite Applications – Shop Manager
- Software & 1Yr Warranty / Eligible for Extended TCP Coverage

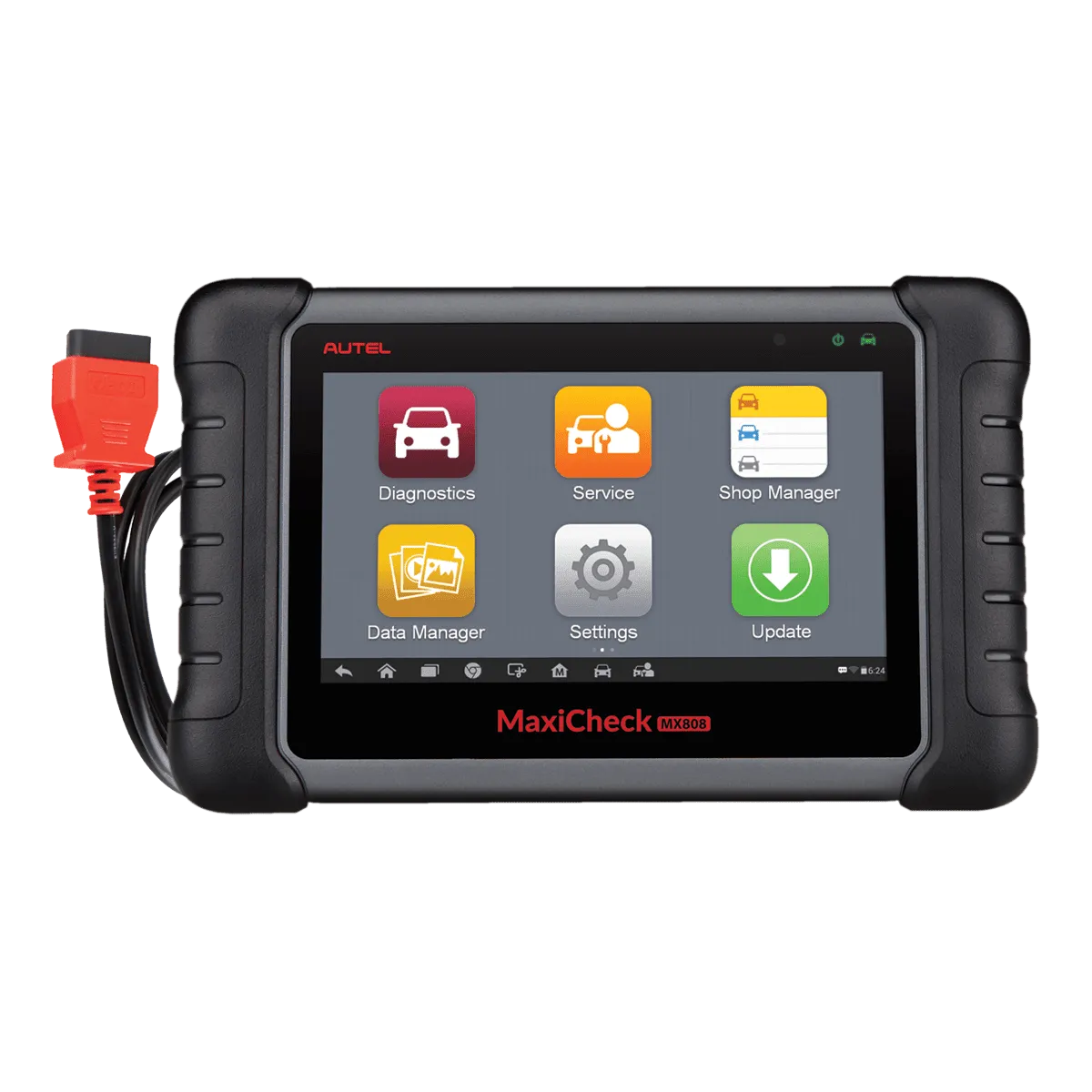

- Includes OBDII Cord
- 5,000mAh Lithium-polymer Battery / 8MP Camera with LED Light
- Save Files with Micro SD Card (32G max., not included)
| Recommended Use | Indoor |
| Operating System | Android™ 4.4.4, KitKat |
| Processor | Cortex-A9 processor(1.5 GHz) |
| Memory | 64GB |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity |
|
| Sensors | Light sensor for brightness auto adjust |
| Audio input/output |
|
| Power and Battery |
|
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5V/1.5A |
| Power Consumption | 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V |
| Operating Temp | -10to60°C(14to140°F) |
| Storage Temp | -20to70°C(-4to158°F) |
| Operating Humidity | 5%-95%non-condensing |
| Dimensions(WXHXD) | 270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4) |
| Net Weight | 885g(2.31|b.) |
| Protocols | ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code, SAE-J1850 VPW,SAE-J1850PWM, ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN) SAE J2610,GM UART UART Echo Byte Protocol Honda Diag-H Protocol,TP2.0,TP1.6 |
| MaxiCheck MX808 | MaxiTPMS TS608 | ||
|---|---|---|---|
 |  | ||
| HARDWARE | |||
| Connection | OBDII Cable VCI-Mini | Bluetooth MaxiVCI-Mini | |
| Screen | 7-Inch Touchscreen 1024 x 600 DPI / LCD | 7-Inch Touchscreen 1024 x 600 DPI / LED Color Screen | |
| Battery | 5,000 mAh | 5,000 mAh | |
| Processor | 1.5GHz Cortex-A9 QUAD-CORE | 1.6GHz QUAD-CORE | |
| Memory | 32GB SSD / 1GB RAM (up to) 32GB micro SD card not included | 32GB SSD / 1GB RAM (up to) 32GB micro SD card not included | |
| Accessories | USB Port | HDMI Port / USB Port | |
| Print Data | Print via PC | Print via PC | |
| SOFTWARE | |||
| Operating System | Android 4.4.4 | ANDROID 4.4.2 | |
| Installed App System | MaxiFIX / Remote Support shop manager / data logging | MaxiFIX / Remote Support shop manager / data logging | |
| Software Updates | 1 Year Free Coverage Update via wi-fi | 1 Year Free Coverage Update via wi-fi | |
| Automatic Detection | Auto-Vin / Auto-Scan | Auto-Vin / Auto-Scan | |
| Features | |||
| Vehicle Coverage | US, Asian & European 1996 And Newer | US, Asian & European 1996 And Newer | |
| Emissions Component Test | I/M Readiness o2 & on-board monitor | I/M Readiness o2 & on-board monitor | |
| OBDII Test Modes | All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6 | All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6 | |
| Complete TPMS Service | — | Read / Activate /Relearn All known Sensors | |
| ID Program Methods | — | 4 Options - MX Sensors | |
| TPMS Diagnostics | — | Enhanced TPMS Status Screen | |
| TPMS Tool-Kit App | — | Special Functions | |
| Service Resets | 17 Service Functions Standard Features | 17 Service functions Standard Features | |
| System Diagnostics | All Systems Diagnostics all modules in all systems | All Systems Diagnostics all modules in all systems | |
| Key Fob | — | Key Fob Check |
