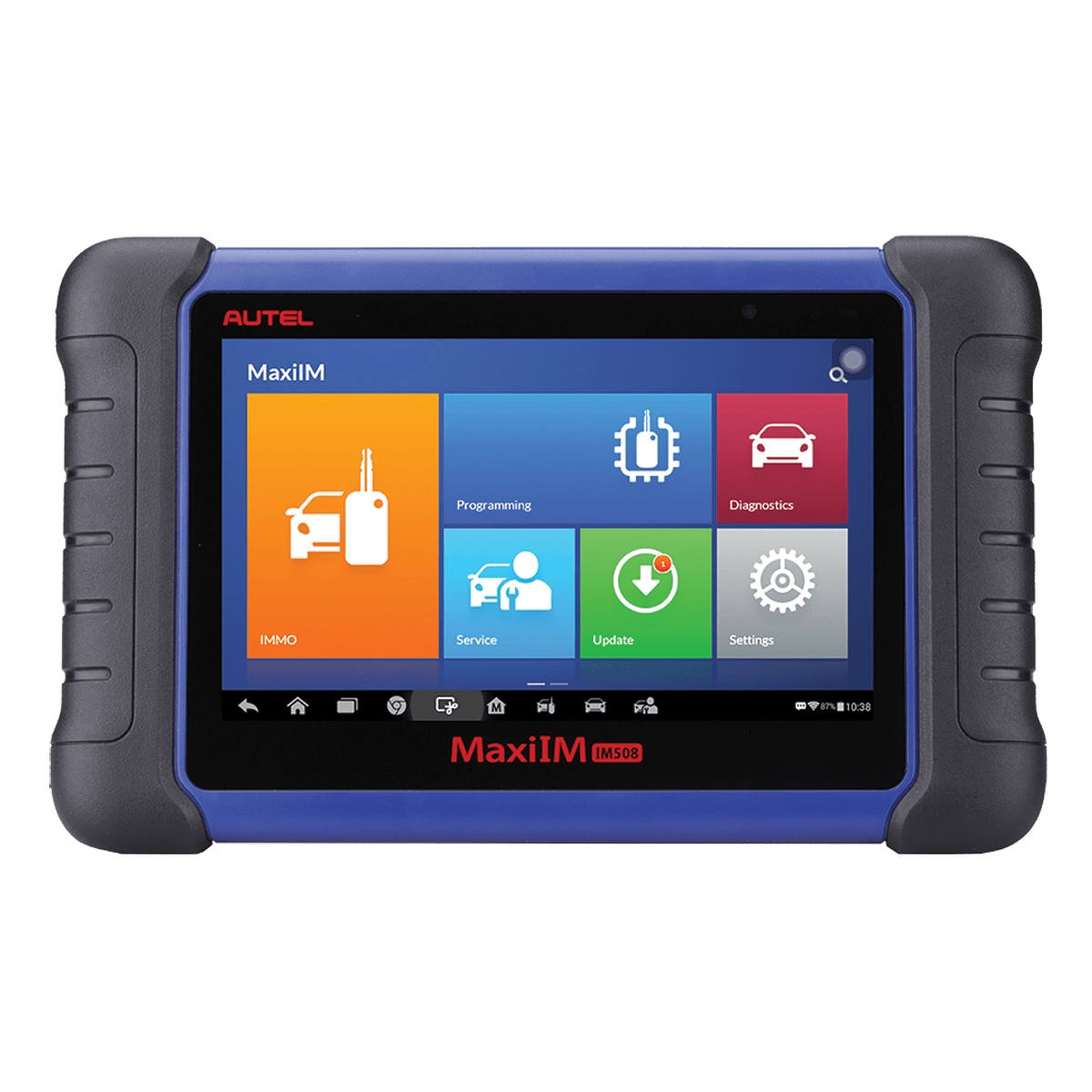

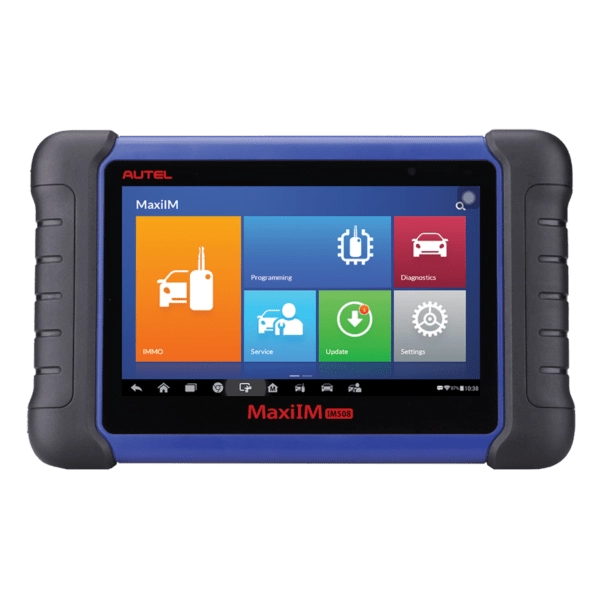

MaxiIM IM508
Key Programming Tablet
The IM508 is an Android-based touchscreen diagnostic, service and key programming tablet. This 7-inch Wi-Fi tablet includes the XP200 key programmer capable of EEPROM and key reading and writing. The IM508, an all systems code reader and service tool, offers powerful IMMO functionality including backup, restore, adaptations and coding, key generation and key learning & remote learning.
| Availability: | This product has been discontinued. |
|---|---|
| IM5081YRUPDATE: | Total Care (TCP) for IM508 $349.00 |
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads

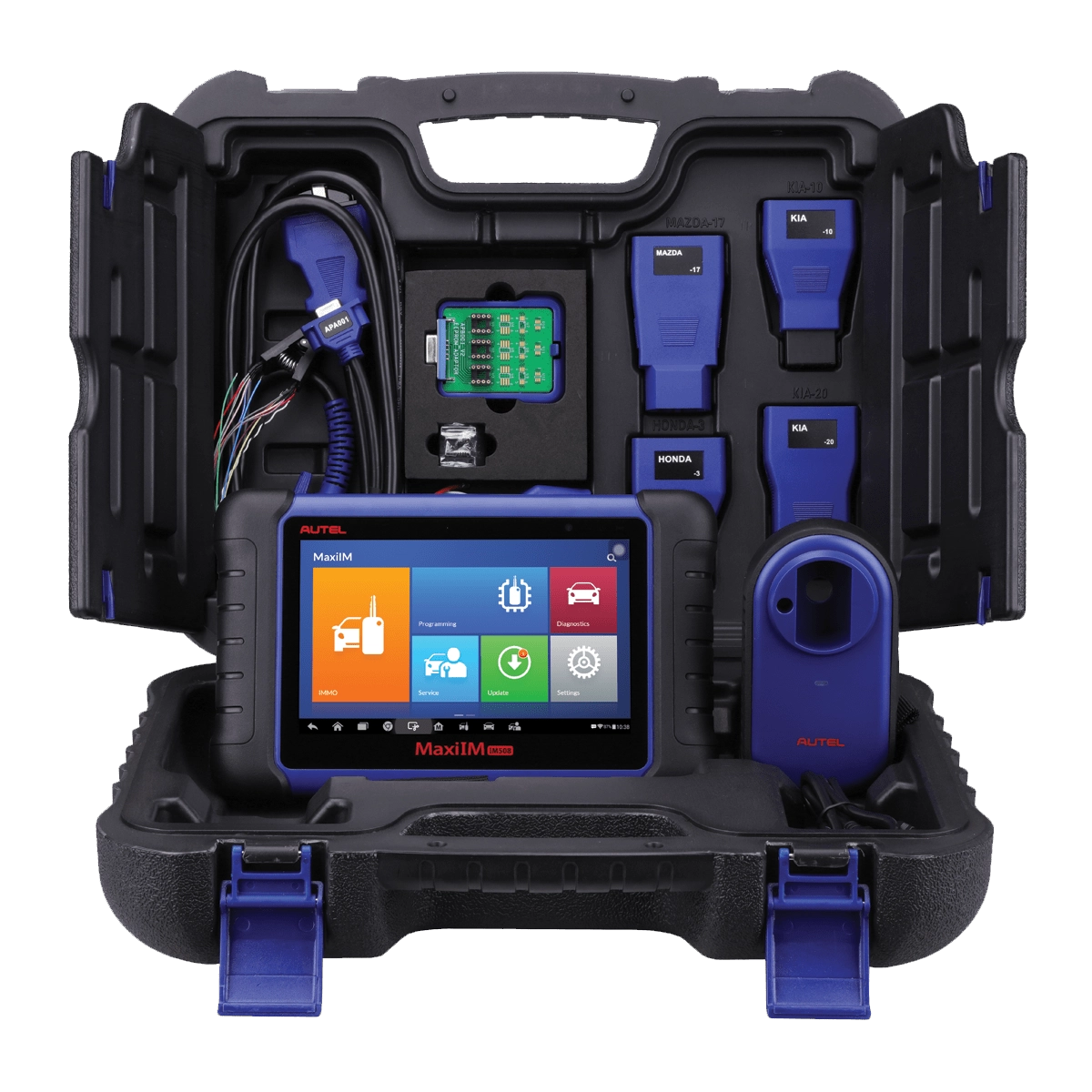

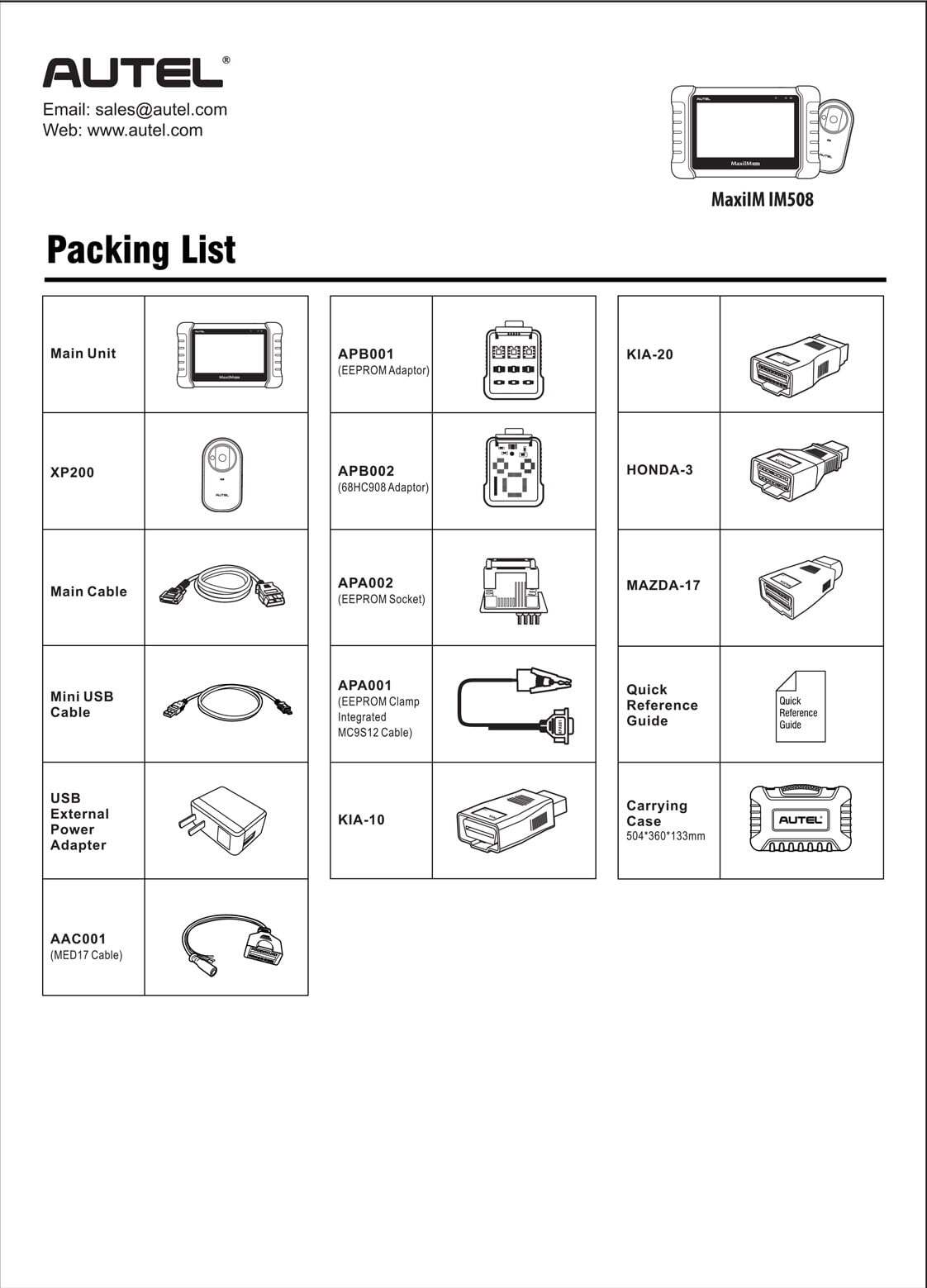

- What's Included
- Sold Separately
- Compare Similar
- 7″ Touchscreen Android-Based Tablet
- Powerful Key Programming & IMMO Functionality
- All Systems Vehicle Diagnostics
- Comprehensive Service Menu

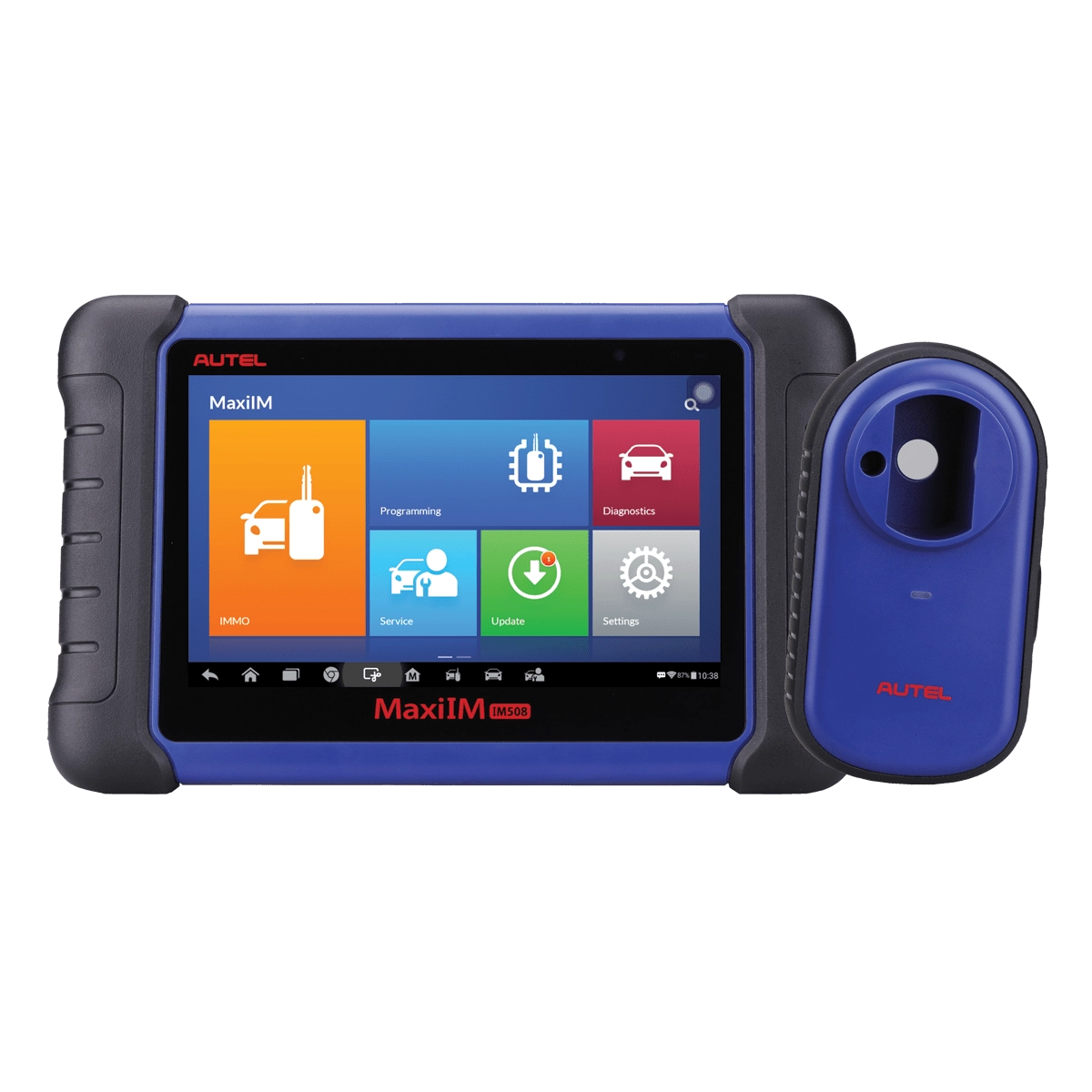

- Includes the XP200 Key & Chip Programming
- Includes 1-Year Software Updates and Warranty
| Operating System | Android™ 4.4.4, KitKat |
| Processor | Cortex-A9 processor(1.6 GHz) |
| Memory | 32GB |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity |
|
| Sensors | Ambient light sensor for brightness auto changing |
| Power and Battery |
|
| Tested Battery Life | Around 4.5 hours of continuous use |
| Battery Charging Input | 5V/1.5A |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5%-95% non-condensing |
| Net Weight | 885g(2.31lb.) |
| Supported Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
