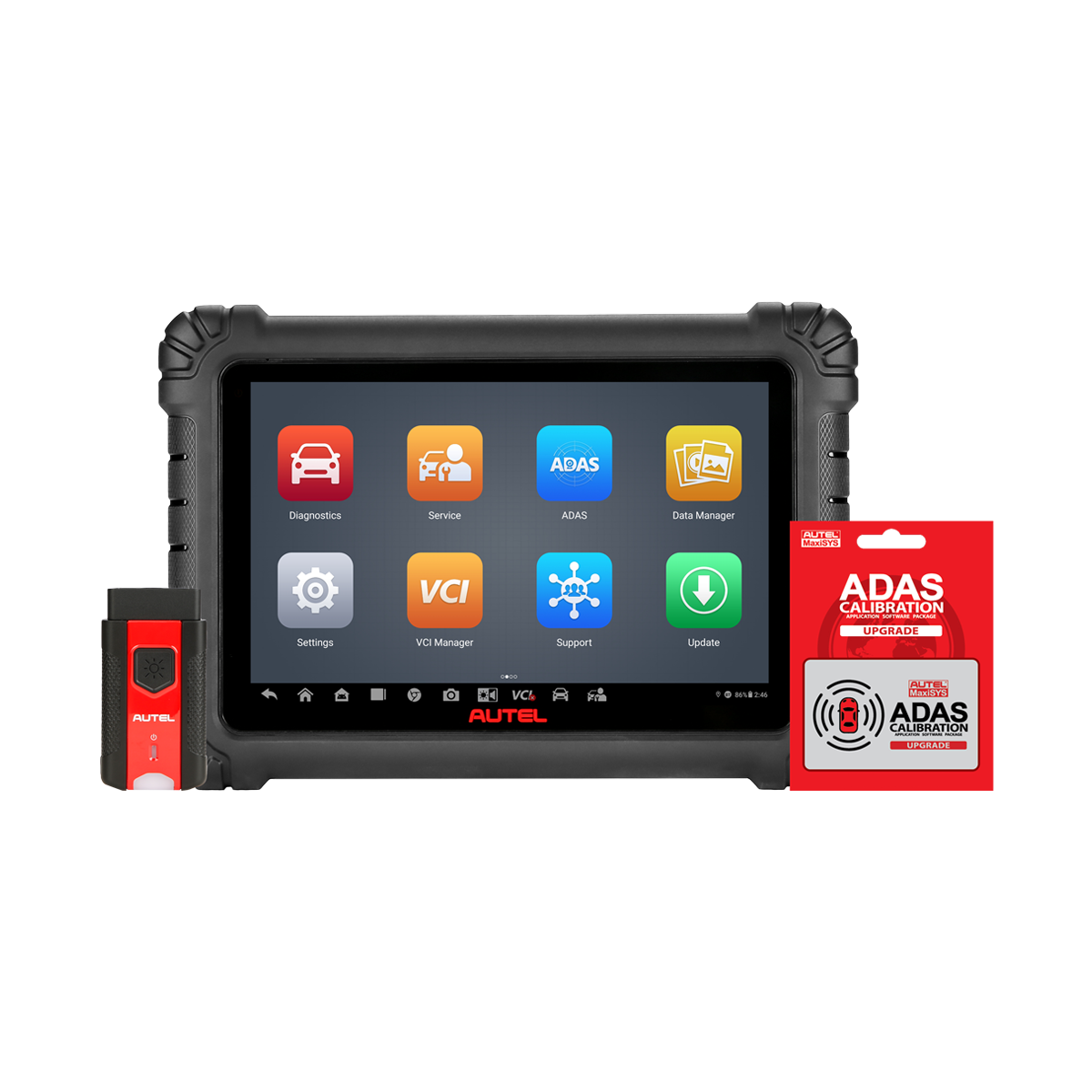

MaxiSYS MS906 MAX ADAS
The MaxiSYS MS906 MAX ADAS tablet is a 10.1-inch display wireless tablet with the Bluetooth-enabled MaxiVCI V200 and ADAS Calibration software. The MS906 MAX can perform All-systems diagnostics: read and erase codes, view Freeze Frame data, view and graph Live Data, and perform bi-directional controls, including Active Tests and Special Functions. The tablet includes ADAS Calibration software for the Autel Standard Calibration or MA600 mobile frame systems. Perform dynamic and static calibrations of cameras, radar, and lidar components with applicable patterns, targets, and calibrators. The MS906 MAX offers an extensive 40+ service and maintenance task menu, customizable Pre and Post Scans with ADAS identification, and can perform coding and adaptations; the unit includes one year of software updates and is covered by a one-year limited warranty.
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads

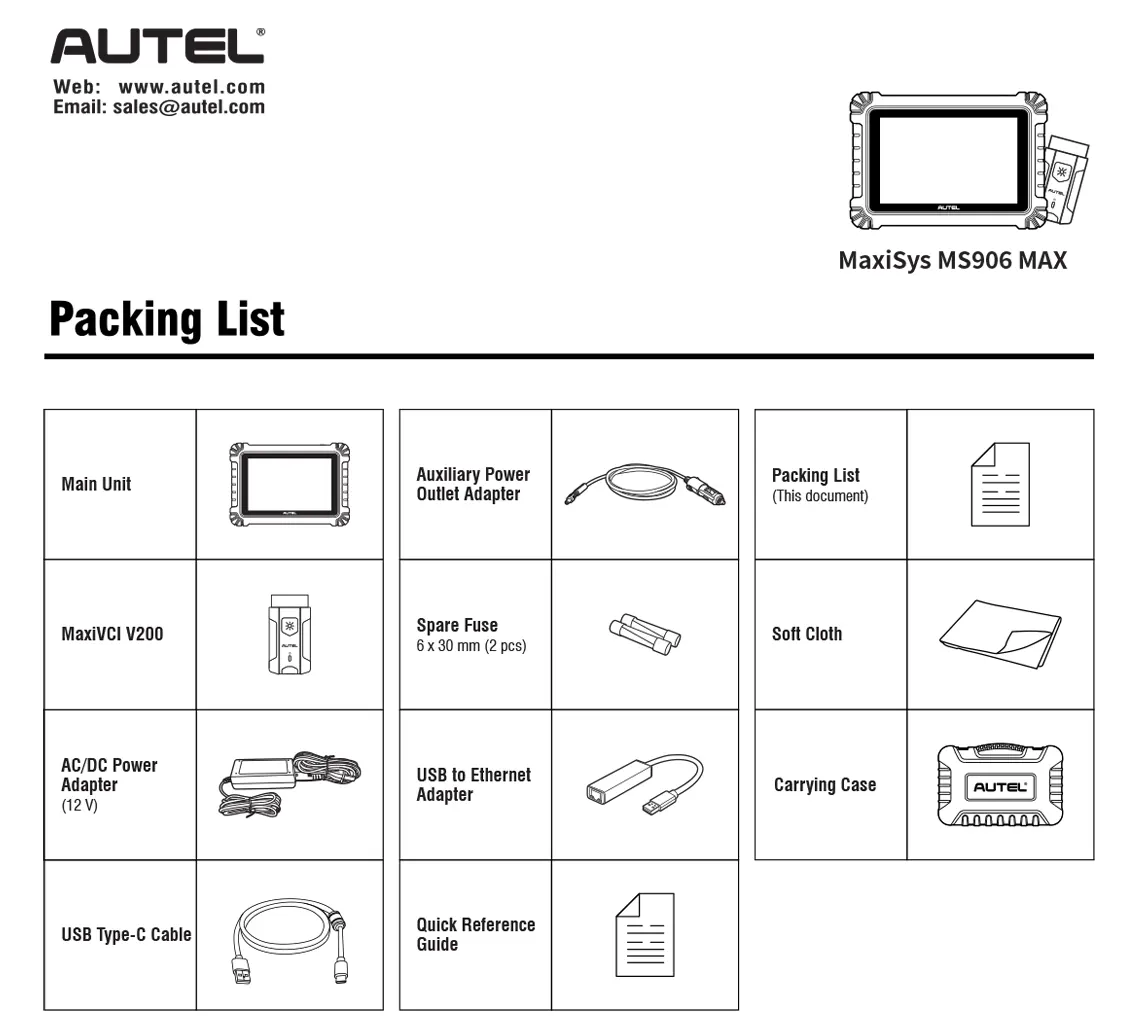

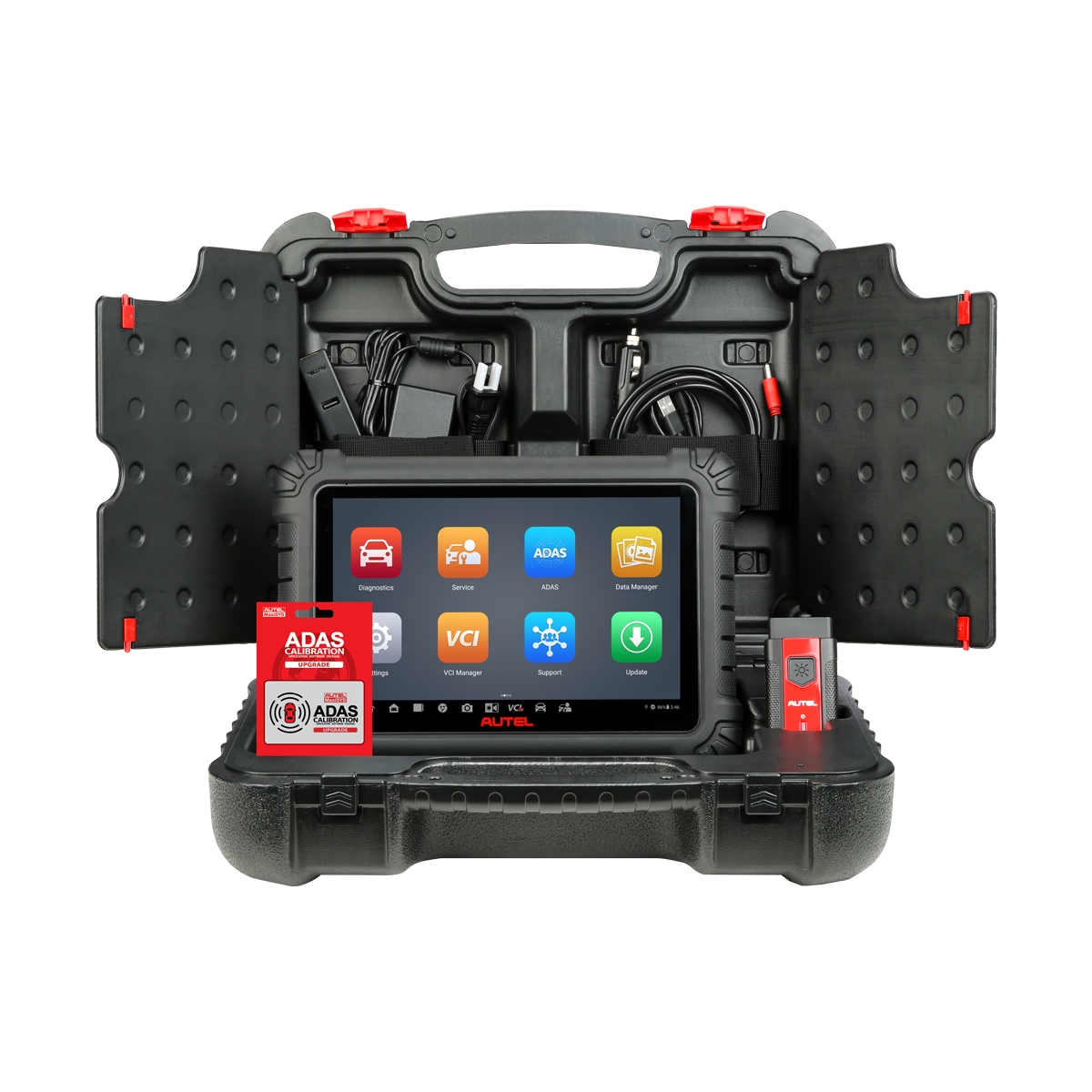

- What's Included
- Sold Separately
- Compare Similar

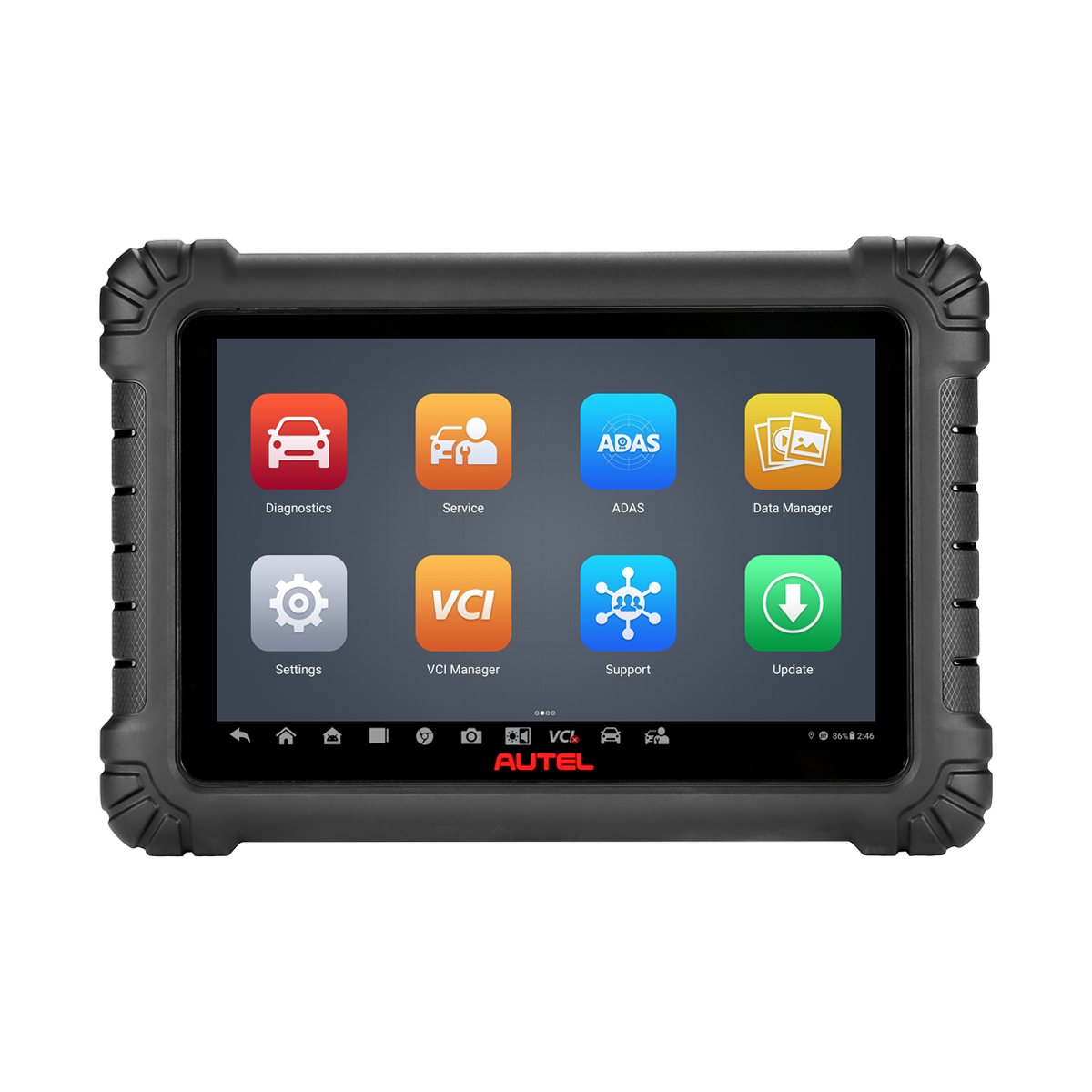

- 10.1-inch touchscreen wireless professional diagnostics and service tablet
- Extensive vehicle coverage of U.S., Asian and European vehicles, 1996 and newer
- Includes static and dynamic ADAS calibration software upgrade
- Compatible with Autel MA600 and Standard ADAS Calibration frame systems (purchase separately)
- Perform all-systems diagnostics including read and erase codes, view and graph Live Data
- Perform bi-directional Active Tests and Special Functions
- Extensive service and maintenance task menu
- Includes Bluetooth-enabled MaxiVCI V200 for support of standard and advanced communication protocols
- 128GB storage and extended battery life
- Includes one year of software updates and is covered by a one-year limited warranty
| Operating System | Android™ 10 |
| Processor | Octa-core Processor |
| Memory | 4 GB RAM & 128 GB On-board Memory |
| Display | 10.1-inch LCD Capacitive Touchscreen with 1920 x 1200 Resolution |
| Rear Camera | 13 MP |
| Connectivity |
|
| Sensors |
|
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12 V/3 A Adapter |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | -10 °C to 60 °C (14 °F to 140 °F) |
| Dimensions (WxHxD) | 311.1 mm (12.25") x 216.0 mm (8.50") x 39.9 mm (1.57") |
| Weight | 1.71 kg (3.77 lbs) |
Protocols |
PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2), ISO13400, CAN FD |
