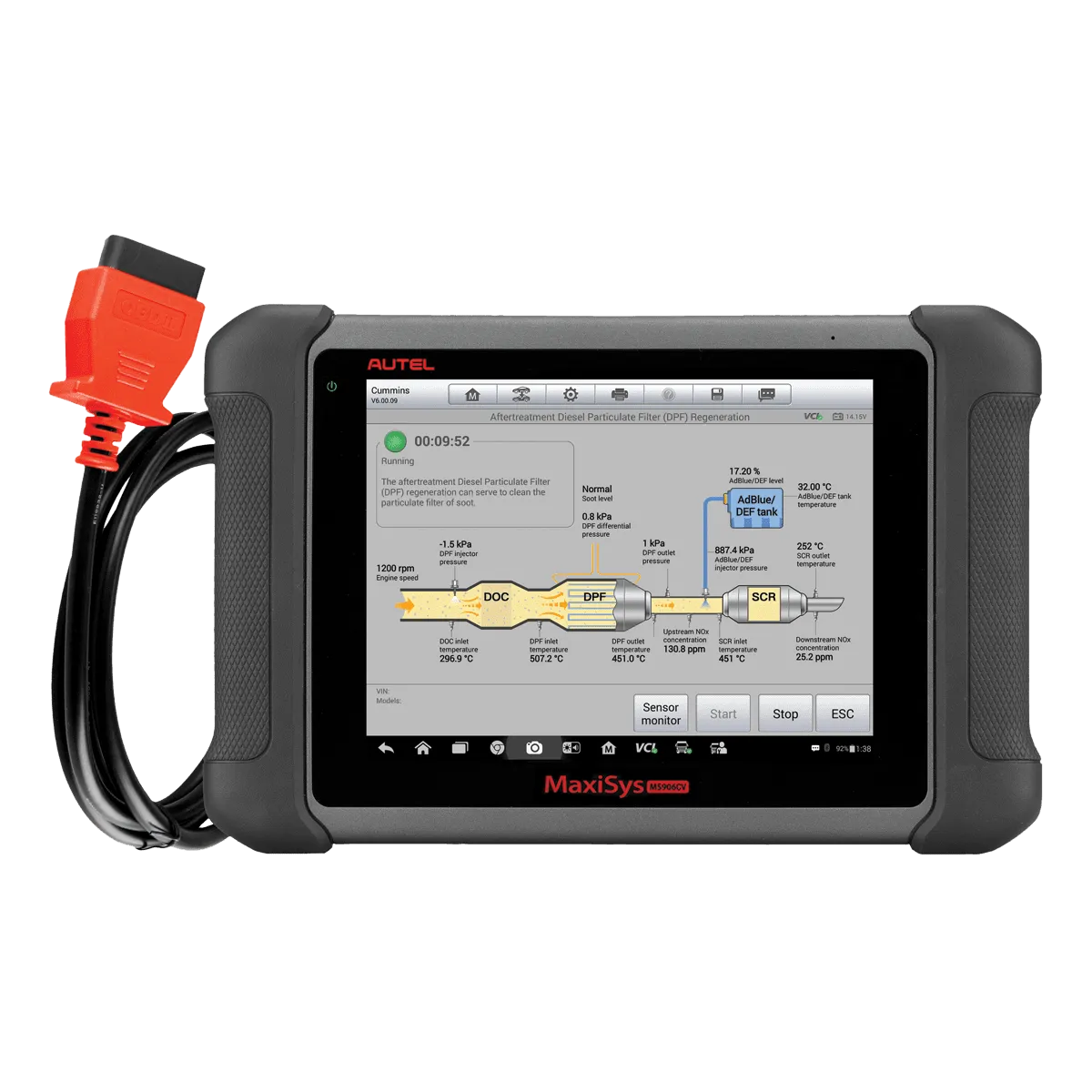

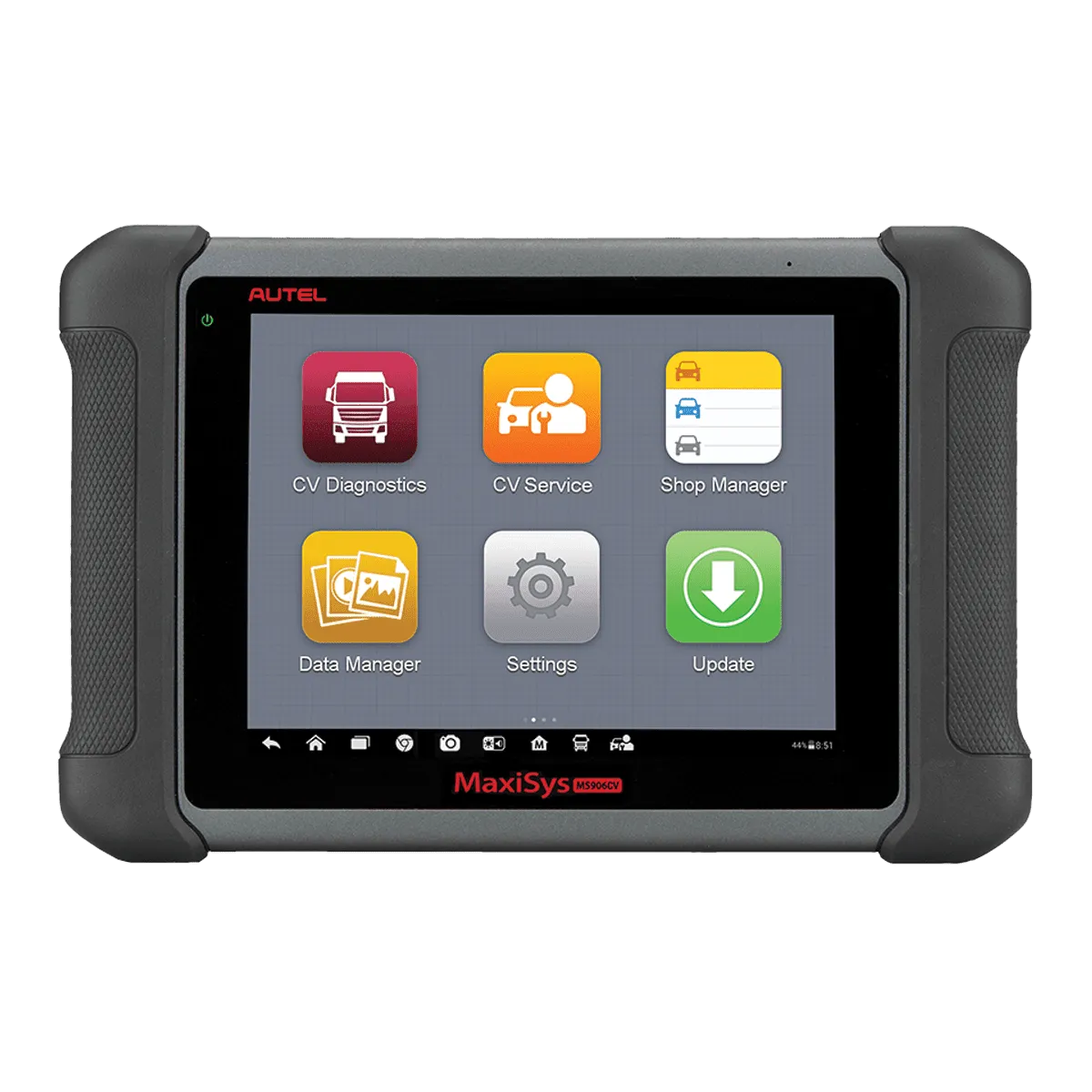

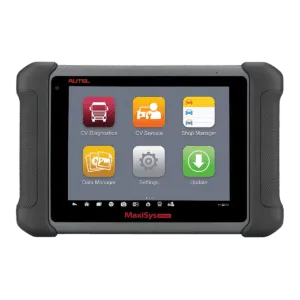

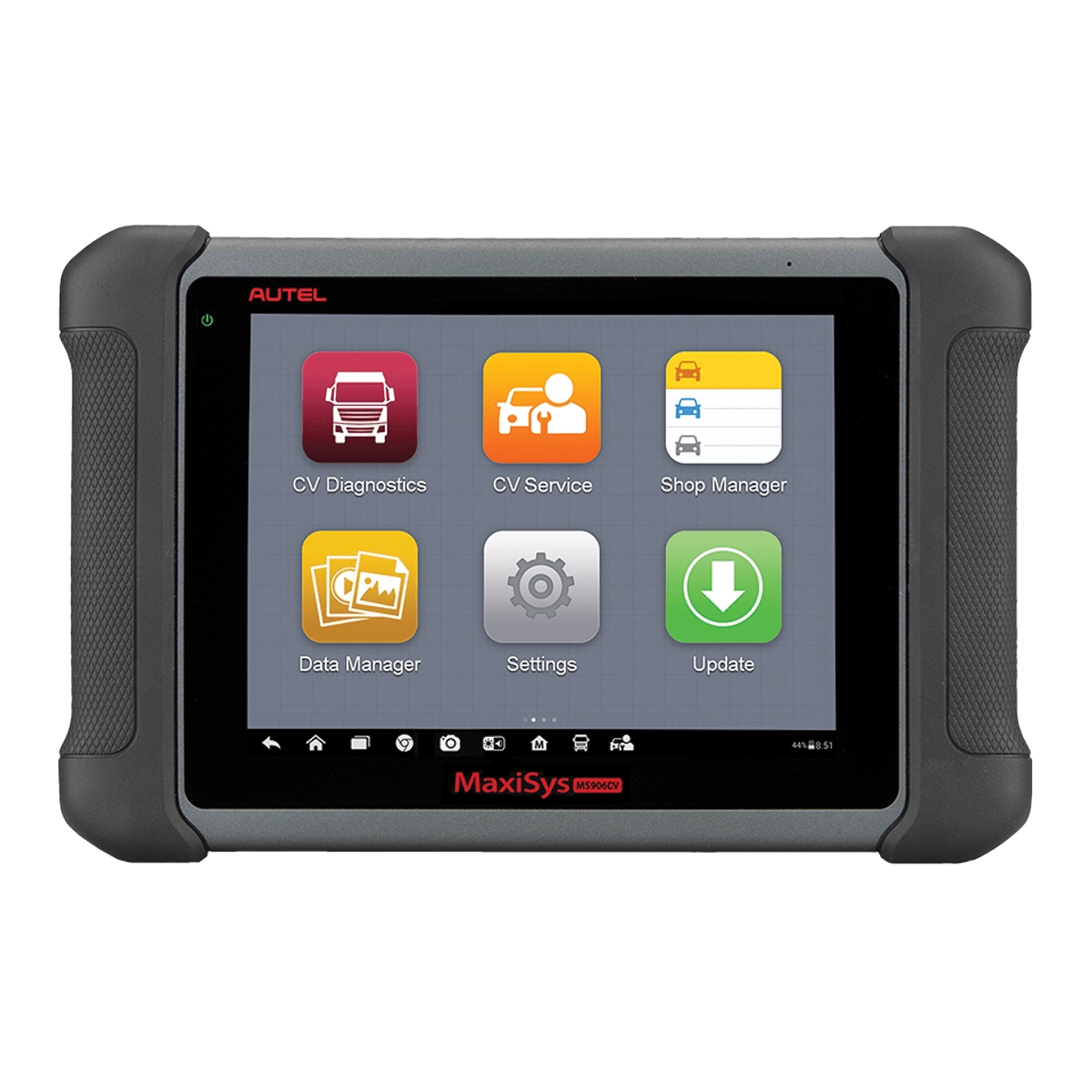

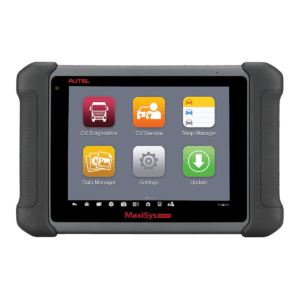

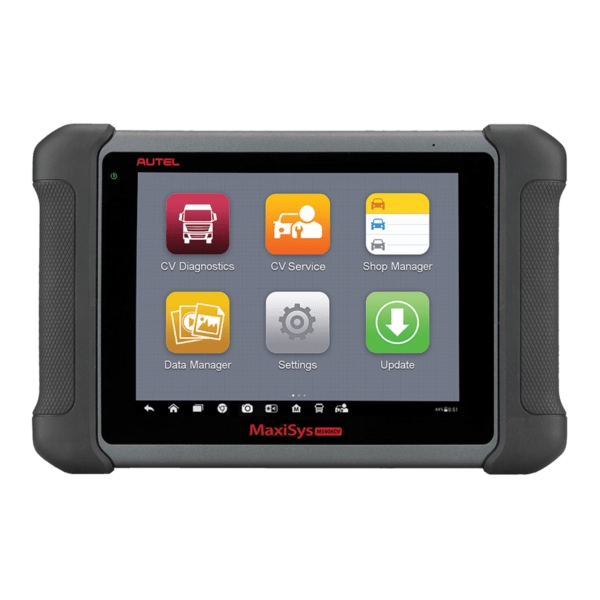

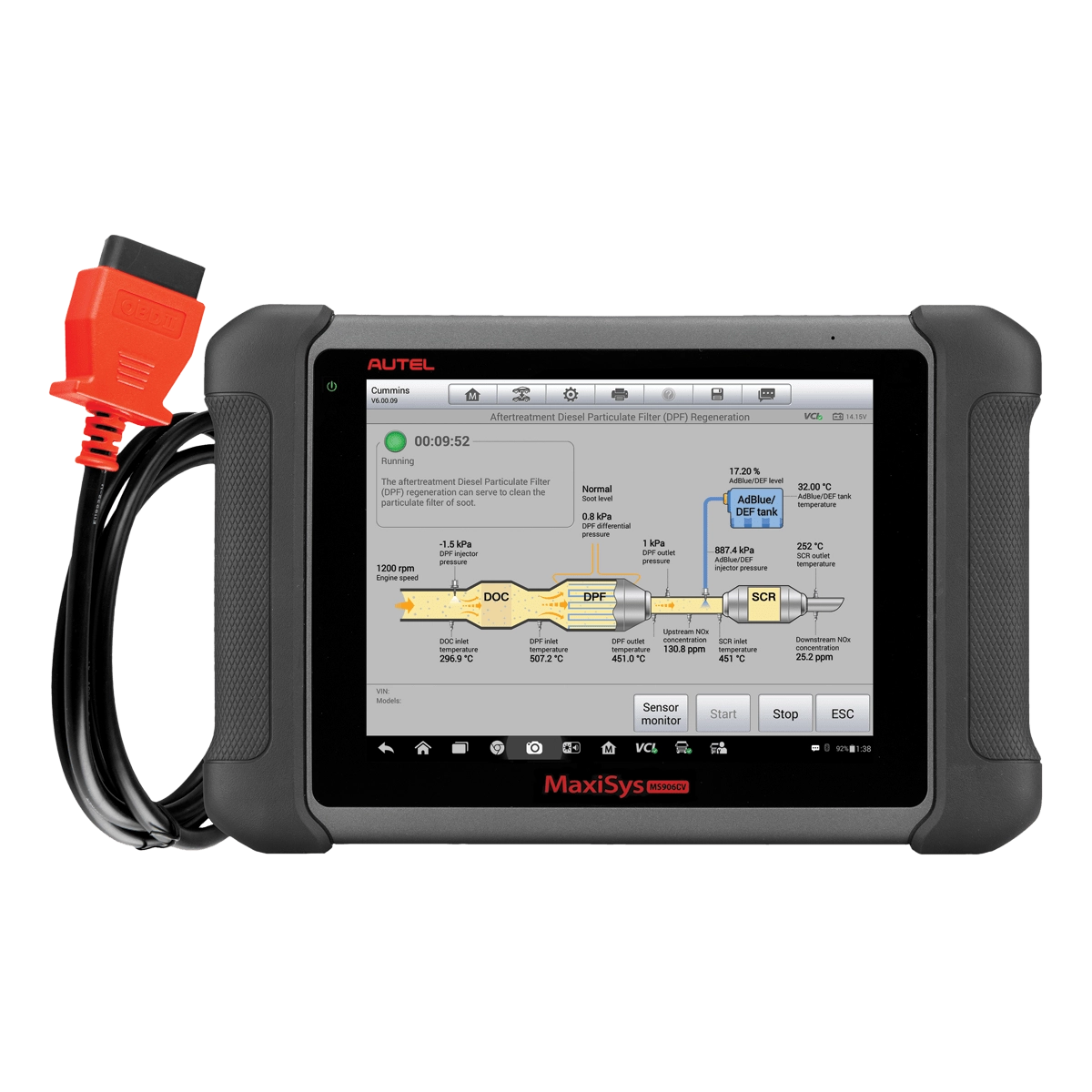

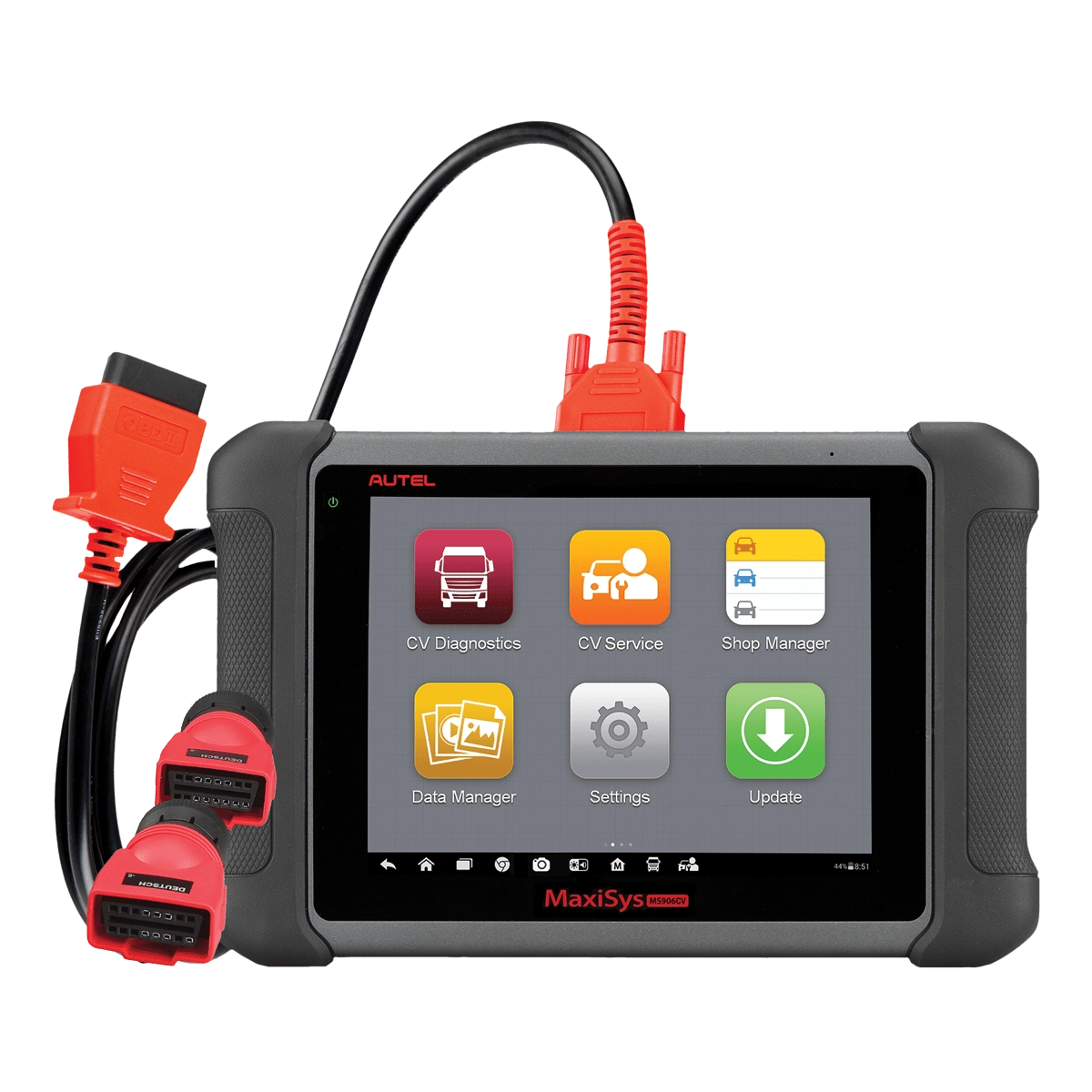

MaxiSYS MS906CV Heavy Duty
Commercial Vehicle Diagnostics
The MaxiSYS MS906CV is Autel’s most affordable heavy duty diagnostic scan tablet for vehicles Class 1 (0-6,000LBS) – Class 9 (33,000LBS). The 8-inch touchscreen tablet comes equipped with an Android 4.4.2 operating system, a 1.3GHz + 1.7GHz hexa-core processor, 32G hard drive, and the Autel MaxiSYS system suite software. The MS906CV can access all available modules for commercial vehicles Class 1 (0-6,000LBS) – Class 9 (33,000LBS). It performs AutoSCAN and AutoVIN on supported vehicles and generates printable diagnostic reports. It features coding and adaptations, and has 20+ service functions including ABS brake bleed. The MS906CV is updatable via Wi-Fi and J1708/J1939 compliant. It includes Deutsch 9-Pin and 6-Pin adapters, a full probe set, complete OBDII connector kit and cable. A 1-year tool warranty and 1 year of free software updates are available with purchase. This tool is eligible for TCP expanded coverage.
| Availability: | This product has been discontinued. |
|---|---|
| MS906CV1YRUPDATE: | Total Care (TCP) for MS906CV $795.00 |
- Description
- Specifications
- 12,000 LBS Specs
- 14,000 LBS Specs
- Updates
- Functions
- Software
- Videos
- Downloads
- What's Included
- Sold Separately
- Compare Similar
- Class 1- 9 Commercial Vehicles / SAE J1939/SAE J1708
- MFG. CUST. J1939/J1708 Protocols
- AutoVIN 2006+ / AutoSCAN: All Modules in All Systems

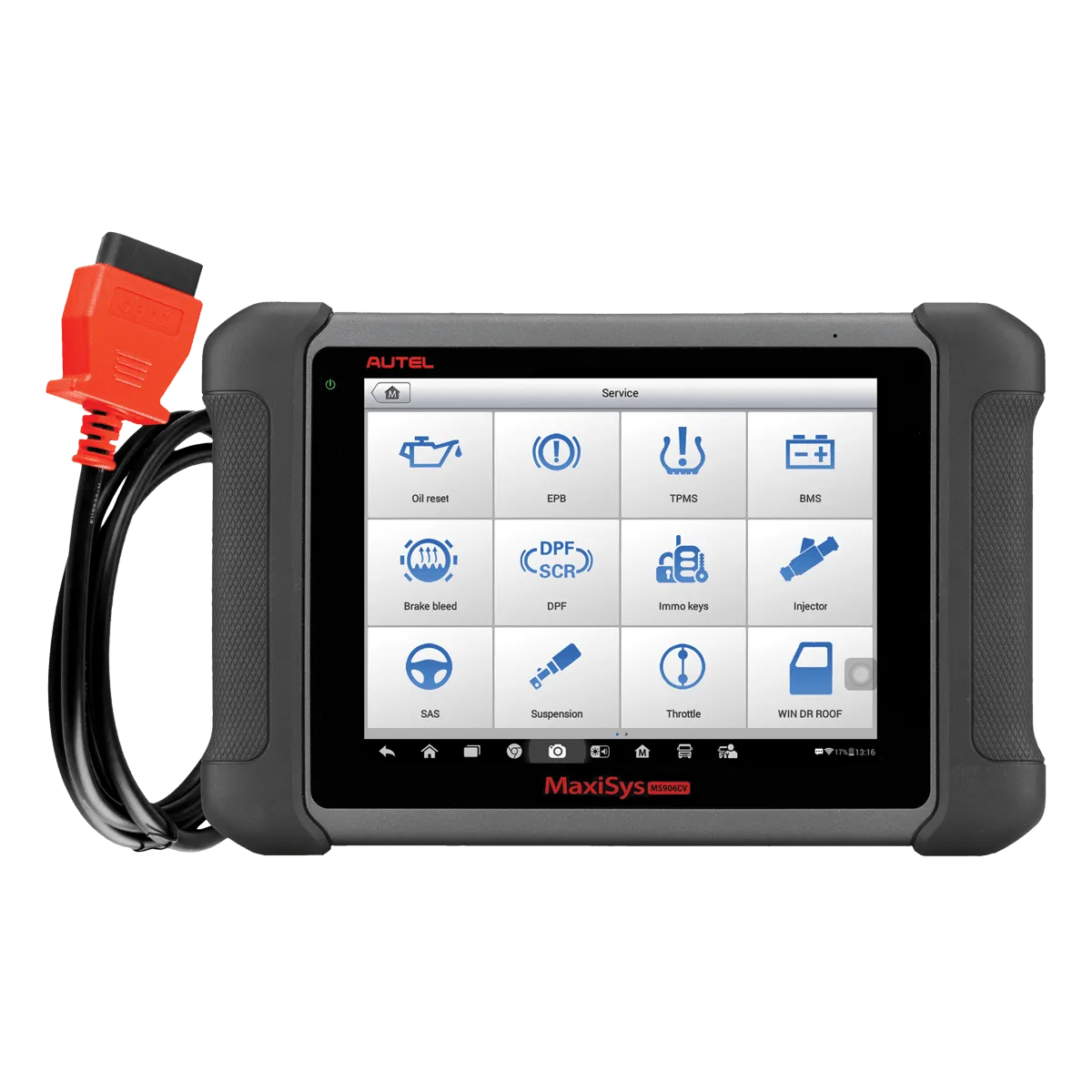

- 23 Service Functions /DPF Regeneration
- Includes Deutsch 6Pin & 9Pin and Full Probe Set
- 8” Touchscreen /1.3GHz+1.7GHz Processor /32GB Memory / 2GB RAM
- 1Yr FREE Software & 1Yr Warranty / Eligible for Extended TCP Coverage
- Android 4.4.2 / Wi-Fi Software Updates
- Class 1-9 Reset Diesel Emissions
- Includes OBDII Cable, OBDII Connector Kit & Carry Case
- Covers Domestic, Asian and European Vehicle Manufacturers (1996+) Including Super Cars
- Manufacturer-Specific Systems Diagnostics
- Coding & Adaptations
- Generates Printable Diagnostic Reports
- Enhanced Mode 6 Diagnostics / All 10 Test Modes
- View Live & Freeze Frame Data
- MaxiSYS System Suite Applications – Shop Manager
- 5,000mAh Lithium-polymer Battery / 8MP Camera with LED Light
- Save Files with Micro SD Card (32G max. not included)
| Operating System | Android™ 4.4.2, KitKat |
| Processor | Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) |
| Memory | 2 GB RAM & 32 GB ROM |
| Display | 8.0 inch LED capacitive touch screen with 1024x768P resolution |
| Connectivity |
|
| Camera (rear) | Rear-facing, 8.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery | 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply |
| Input Voltage | DC/12 V (9-35 V) |
| Power Consumption | 5 W |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Housing | Strong plastic housing with protective rubber boot |
| Dimensions (W x H x D) | 270.8 mm (10.0") x 176.0 mm (6.9") x 36.0mm (1.4") |
| Net Weight | 0.93 kg (2.05 lb.) |
| Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K-Line, L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J |
[yourchannel user="AUTELus" tag="Tools" search="MaxiSYS MS906CV" limit="6" own="1"]
 |
MaxiSYS CV Total Care Program | Download |
|
MaxiSYS Heavy Duty Comparison Chart | Download |

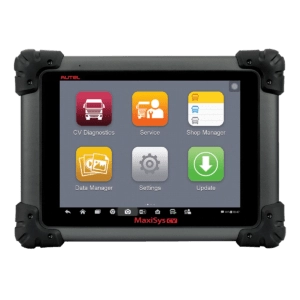

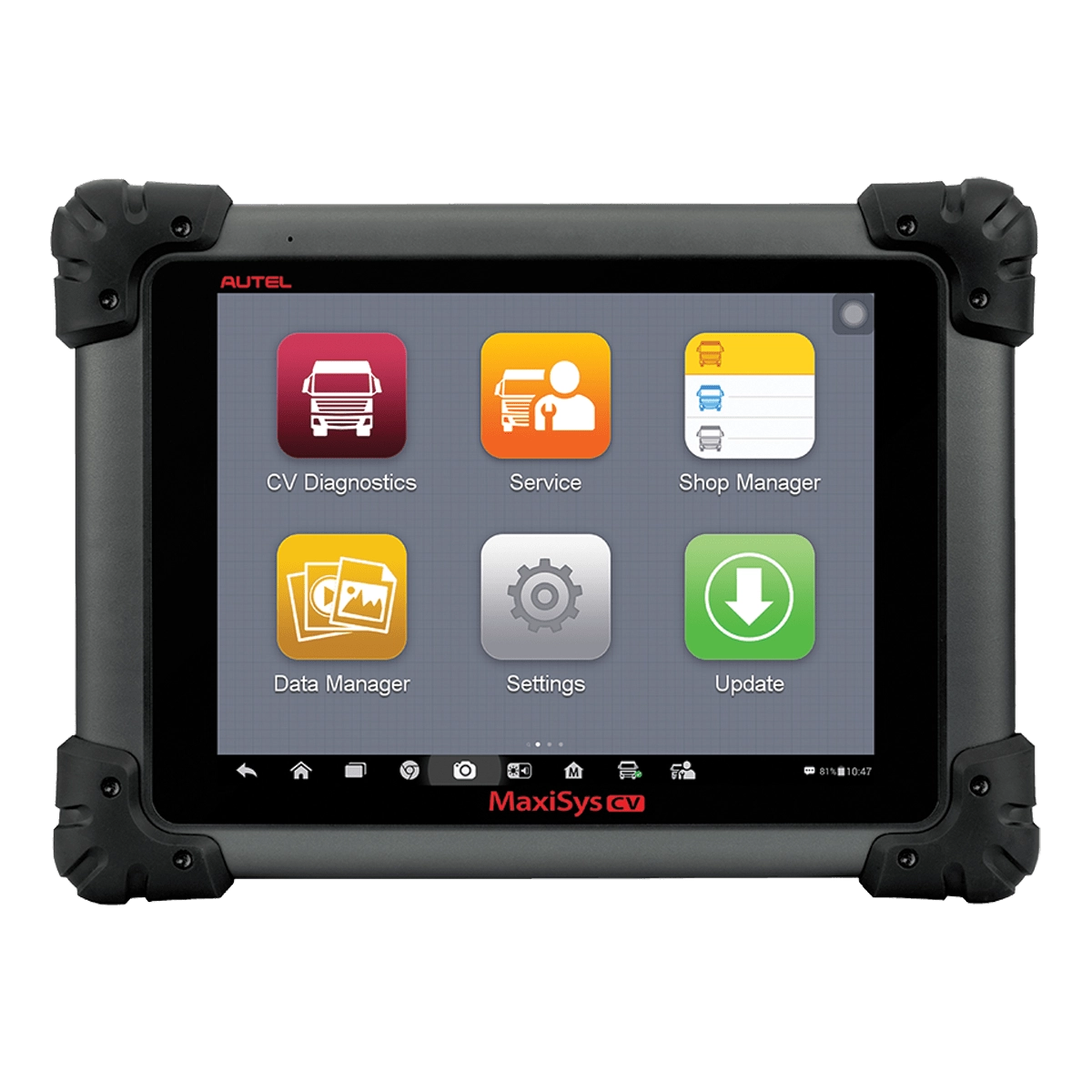

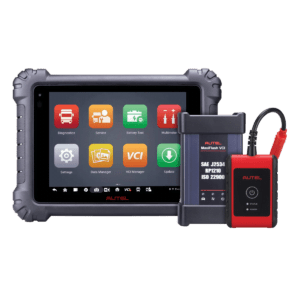

| MaxiSYS MS906CV Heavy Duty | MaxiSYS MS908CV Heavy Duty | MaxiSYS MS909CV Heavy Duty | |
|---|---|---|---|
 |  |  | |
| HARDWARE | |||
| Connection | OBDII cable
included | J2534 MaxiFLASH Elite
Wireless Bluetooth | J2534 MaxiFLASH VCI
Wireless Bluetooth |
| Screen | 8-Inch Touchscreen
1024 x 768 DPI / LED Color Screen | 9.7-Inch Touchscreen
1024 x 768 DPI / LED color screen | 9.7-Inch Touchscreen
1536 x 2048 DPI / LED Color Screen |
| Battery | 5,000 mAh | 11,000 mAh | 15,000 mAh |
| Processor | 1.3GHz + 1.7GHz
HEXA-CORE | 1.4GHz
QUAD-CORE | 2.3GHz + 1.7GHz
OCTA-CORE |
| Memory | 32GB SSD / 2GB RAM | 64GB SSD / 2GB RAM | 128GB SSD / 4GB RAM |
| Camera | 8MP
with Flashlight | 5MP
with flashlight | 16MP Rear & 5MP Front
with Flashlight |
| Docking Station | — | — | — |
| SOFTWARE | |||
| Operating System | Android 4.4.2 | Android 4.4.2 | Android 7.0 |
| Software Updates | 1 Year Free | 1 Year Free | 1 YEAR FREE |
| Automatic Detection | Auto-Vin / Auto-Scan | Auto-Vin / Auto-Scan | Auto-Vin / Auto-Scan / SCANVIN |
| Secure Gateway Access | Authorized FCA Access
With Autoauth Account | Authorized FCA Access
With Autoauth Account | Authorized FCA Access
With Autoauth Account |
| License Plate Reader | — | — | — |
| Vehicle Coverage | US, Asian & European
1992 and Newer Class 1-9 | US, Asian & European
1992 and newer class 1-9 | Class 3 - Class 9
10,000LBS 33,000LBS |
| OBDII Test Modes | All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6 | All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6 | All 10 test modes
LIVE & FREEZE FRAME / ENHANCED MODE 6 |
| Service Resets | 19 Service Features | 19 Service Features | 25 Service Features |
| Diesel PM | Reset Diesel Emissions
Class 1-9 Vehicles | Reset Diesel Emissions
Class 1-9 vehicles | Class 1-9
Reset Diesel Emissions |
| System Diagnostics | Access All Modules
Body control module not included | Access All Modules
In all systems on select vehicles | Access All Modules
In All Systems on Select Vehicles |
| Component Activations | — | 1,000+ New with software update
Bi-directional Controls
DPF Regen / Injector Coding | 1,000+ New with software updates
Bi-directional Controls
DPF Regen / Injector coding |
| Enhanced Functions | Coding + Adaptations | Advanced Coding + Adaptations | Advanced Coding + Adaptations |
| ADAS Calibration | — | — | Access Static Calibration Class 3-5*
Class 6-8 Dynamic Calibration *ADAS target kits sold separately |
| Battery Analysis | — | — | MaxiBAS Software with multimeter
AMP Clamps & B200 included |
| Complete TPMS Function | — | — | — |
| Topology Module Mapping | — | — | — |
| Technical Service Bulletins | — | — | — |
| Oscilloscope | — | MP408 Compatible | — |
| Split Screen Display | — | — | — |
